Manage Azure SQL Managed Instance long-term backup retention

Applies to: Azure SQL Managed Instance

In Azure SQL Managed Instance, you can configure a long-term backup retention policy (LTR). This allows you to automatically retain database backups in separate Azure Blob storage containers for up to 10 years. You can then recover a database using these backups with the Azure portal and PowerShell.

The following sections show you how to use the Azure portal, PowerShell, and Azure CLI to configure the long-term backup retention, view backups in Azure SQL storage, and restore from a backup in Azure SQL storage.

Prerequisites

Portal

An active Azure subscription.

Azure CLI

Prepare your environment for the Azure CLI.

• Use the Bash environment in Azure Cloud Shell. For more information, see Quickstart for Bash in Azure Cloud Shell.



• If you prefer to run CLI reference commands locally, install the Azure CLI. If you're running on Windows or macOS, consider running Azure CLI in a Docker container. For more information, see How to run the Azure CLI in a Docker container.

  • If you're using a local installation, sign in to the Azure CLI by using the az login command. To finish the authentication process, follow the steps displayed in your terminal. For other sign-in options, see Sign in with the Azure CLI.

  • When you're prompted, install the Azure CLI extension on first use. For more information about extensions, see Use extensions with the Azure CLI.

  • Run az version to find the version and dependent libraries that are installed. To upgrade to the latest version, run az upgrade.

PowerShell

Prepare your environment for PowerShell.

Note

This article uses the Azure Az PowerShell module, which is the recommended PowerShell module for interacting with Azure. To get started with the Az PowerShell module, see Install Azure PowerShell. To learn how to migrate to the Az PowerShell module, see Migrate Azure PowerShell from AzureRM to Az.

Important

The PowerShell Azure Resource Manager module is still supported by Azure SQL Database, however, future development will be done in the Az.Sql module. For these cmdlets, see AzureRM.Sql. The arguments for the commands in the Az module and in the AzureRm modules are substantially identical.

For Get-AzSqlInstanceDatabaseLongTermRetentionBackup and Restore-AzSqlInstanceDatabase, you will need to have one of the following roles:

• Subscription Owner role or
• SQL Managed Instance Contributor role or
• Custom role with the following permissions:
  • Microsoft.Sql/locations/longTermRetentionManagedInstanceBackups/read
  • Microsoft.Sql/locations/longTermRetentionManagedInstances/longTermRetentionManagedInstanceBackups/read
  • Microsoft.Sql/locations/longTermRetentionManagedInstances/longTermRetentionDatabases/longTermRetentionManagedInstanceBackups/read

For Remove-AzSqlInstanceDatabaseLongTermRetentionBackup, you will need to have one of the following roles:

• Subscription Owner role or
• Custom role with the following permission:
  • Microsoft.Sql/locations/longTermRetentionManagedInstances/longTermRetentionDatabases/longTermRetentionManagedInstanceBackups/delete

Note

The SQL Managed Instance Contributor role does not have permission to delete LTR backups.

Azure RBAC permissions could be granted in either subscription or resource group scope. However, to access LTR backups that belong to a dropped instance, the permission must be granted in the subscription scope of that instance.

• Microsoft.Sql/locations/longTermRetentionManagedInstances/longTermRetentionDatabases/longTermRetentionManagedInstanceBackups/delete

Create long-term retention policies

You can configure SQL Managed Instance to retain automated backups for a period longer than the retention period for your service tier.

Portal

1. In the Azure portal, select your managed instance and then click Backups. On the Retention policies tab, select the database(s) on which you want to set or modify long-term backup retention policies. Changes will not apply to any databases left unselected.



2. In the Configure policies pane, specify your desired retention period for weekly, monthly, or yearly backups. Choose a retention period of '0' to indicate that no long-term backup retention should be set.



3. When complete, click Apply.

Important

When you enable a long-term backup retention policy, it may take up to 7 days for the first backup to become visible and available to restore. For details of the LTR backup cadence, see long-term backup retention.

Azure CLI

1. Run the az sql midb show command to get the details for the SQL Managed Instance database.

   az sql midb show /
   --resource-group mygroup /
   --managed-instance myinstance /
   --name mymanageddb /
   --subscription mysubscription


2. Run the az sql midb ltr-policy set command to create an LTR policy. The following example sets a long-term retention policy for 12 weeks for the weekly backup.

   az sql midb ltr-policy set /
   --resource-group mygroup /
   --managed-instance myinstance /
   --name mymanageddb /
   --weekly-retention "P12W"


   This example sets a retention policy for 12 weeks for the weekly backup, 5 years for the yearly backup, and the week of April 15 in which to take the yearly LTR backup.

   az sql midb ltr-policy set /
   --resource-group mygroup /
   --managed-instance myinstance /
   --name mymanageddb /
   --weekly-retention "P12W" /
   --yearly-retention "P5Y" /
   --week-of-year 16


PowerShell

# get the Managed Instance
$subId = "<subscriptionId>"
$instanceName = "<instanceName>"
$resourceGroup = "<resourceGroupName>"
$dbName = "<databaseName>"

Connect-AzAccount

Select-AzSubscription -SubscriptionId $subId

$instance = Get-AzSqlInstance -Name $instanceName -ResourceGroupName $resourceGroup

# create LTR policy with WeeklyRetention = 12 weeks. MonthlyRetention and YearlyRetention = 0 by default.
$LTRPolicy = @{
    InstanceName = $instanceName
    DatabaseName = $dbName
    ResourceGroupName = $resourceGroup
    WeeklyRetention = 'P12W'
}
Set-AzSqlInstanceDatabaseBackupLongTermRetentionPolicy @LTRPolicy

# create LTR policy with WeeklyRetention = 12 weeks, YearlyRetention = 5 years and WeekOfYear = 16 (week of April 15). MonthlyRetention = 0 by default.
$LTRPolicy = @{
    InstanceName = $instanceName
    DatabaseName = $dbName
    ResourceGroupName = $resourceGroup
    WeeklyRetention = 'P12W'
    YearlyRetention = 'P5Y'
    WeekOfYear = '16'
}
Set-AzSqlInstanceDatabaseBackupLongTermRetentionPolicy @LTRPolicy

View backups and restore from a backup

Portal

To view available long-term backups from the Azure portal, follow these steps:

1. In the Azure portal, select your managed instance and then select Backups. On the Available backups tab, select the database for which you want to see available backups. Select Manage.

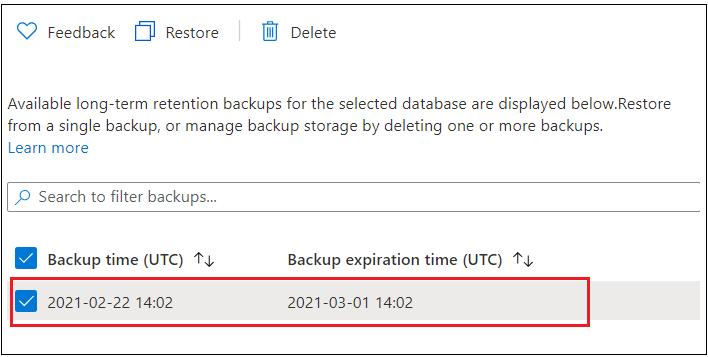

2. In the Manage backups pane, review the available backups.



You can also restore from this page by choosing the backup and selecting Restore.

Alternatively, to restore a backup from long-term retention by using the Azure portal, follow these steps:

1. Sign in to the Azure portal.

2. Go to the target SQL Managed Instance where you plan to restore your database to.

3. On the Overview page, choose + New database to open the Create Azure SQL Managed Database page.



4. On the Basics tab of the Create Azure SQL Managed Database page, provide subscription and resource group details under Project details. Then, under Database details provide the new name of the database you plan to restore. Confirm the correct managed instance is listed in the drop down. Then select Next: Data source >



5. On the Data source tab, choose Point-in-time restore under Use existing data. Provide the subscription, resource group and managed instance that contains the source database. From the Managed database drop-down, choose the database you want to restore, and then choose the point in time you want to restore the database from. The source and target instance can be the same, or two different instances. Select Next : Additional settings >



6. On the Additional settings tab, you can check the box to inherit the retention policy from the source database, or, alternatively, you can select Configure retention to open the Configure policies page, and set your desired retention policies for your restored database. When finished, select Review + create.



7. On Review + create, when validation is successful, select Create to restore your database.

This action starts the restore process, which creates a new database and populates it with data from the original database at the specified point in time. For more information about the recovery process, see Recovery time.

Note

From here, you can connect to the restored database using SQL Server Management Studio to perform needed tasks, such as to extract a bit of data from the restored database to copy into the existing database or to delete the existing database and rename the restored database to the existing database name.

Azure CLI

View LTR policies

Run the az sql midb ltr-policy show command to view the LTR policy for a single database within an instance.

az sql midb ltr-policy show \
    --resource-group mygroup \
    --managed-instance myinstance \
    --name mymanageddb

View LTR backups

Use the az sql midb ltr-backup list command to view the LTR backups within an instance.

az sql midb ltr-backup list \
    --resource-group mygroup \
    --location eastus2 \
    --managed-instance myinstance

Delete LTR backups

Run the az sql midb ltr-backup delete command to remove an LTR backup. You can run az sql midb ltr-backup list to get the backup name.

az sql midb ltr-backup delete \
    --location eastus2 \
    --managed-instance myinstance \
    --database mymanageddb \
    --name "3214b3fb-fba9-43e7-96a3-09e35ffcb336;132292152080000000"

Important

Deleting LTR backup is non-reversible. To delete an LTR backup after the instance has been deleted you must have Subscription scope permission. You can set up notifications about each delete in Azure Monitor by filtering for operation 'Deletes a long term retention backup'. The activity log contains information on who and when made the request. See Create activity log alerts for detailed instructions.

Restore from LTR backups

Run the az sql midb ltr-backup restore command to restore your database from an LTR backup. You can run az sql midb ltr-backup show to get the backup-id.

1. Create a variable for the backup-id with the command az sql db ltr-backup show for future use.

    get_backup_id=$(az sql midb ltr-backup show
       --location eastus2 \
       --managed-instance myinstance \
       --database mydb \
       --name "3214b3fb-fba9-43e7-96a3-09e35ffcb336;132292152080000000" \
       --query 'id' \
       --output tsv)


2. Restore your database from an LTR backup

   az sql midb ltr-backup restore \
       --dest-database targetmidb \
       --dest-mi myinstance \
       --dest-resource-group mygroup \
       --backup-id $get_backup_id


Important

To restore from an LTR backup after the instance has been deleted, you must have permissions scoped to the subscription of the instance and that subscription must be active.

Note

From here, you can connect to the restored database using SQL Server Management Studio to perform needed tasks, such as to extract a bit of data from the restored database to copy into the existing database or to delete the existing database and rename the restored database to the existing database name. See point in time restore.

PowerShell

View LTR policies

This example shows how to list the LTR policies within an instance for a single database.

# gets the current version of LTR policy for a database
$LTRPolicy = @{
    InstanceName = $instanceName
    DatabaseName = $dbName
    ResourceGroupName = $resourceGroup
}
Get-AzSqlInstanceDatabaseBackupLongTermRetentionPolicy @LTRPolicy

This example shows how to list the LTR policies for all of the databases on an instance.

# gets the current version of LTR policy for all of the databases on an instance

$Databases = Get-AzSqlInstanceDatabase -ResourceGroupName $resourceGroup -InstanceName $instanceName

$LTRParams = @{
    InstanceName = $instanceName
    ResourceGroupName = $resourceGroup
}

foreach($database in $Databases.Name){
    Get-AzSqlInstanceDatabaseBackupLongTermRetentionPolicy @LTRParams  -DatabaseName $database
 }

Clear an LTR policy

This example shows how to clear an LTR policy from a database.

# remove the LTR policy from a database
$LTRPolicy = @{
    InstanceName = $instanceName
    DatabaseName = $dbName
    ResourceGroupName = $resourceGroup
    RemovePolicy = $true
}
Set-AzSqlInstanceDatabaseBackupLongTermRetentionPolicy @LTRPolicy

View LTR backups

This example shows how to list the LTR backups within an instance.

$instance = Get-AzSqlInstance -Name $instanceName -ResourceGroupName $resourceGroup

# get the list of all LTR backups in a specific Azure region
# backups are grouped by the logical database id, within each group they are ordered by the timestamp, the earliest backup first
Get-AzSqlInstanceDatabaseLongTermRetentionBackup -Location $instance.Location

# get the list of LTR backups from the Azure region under the given managed instance
$LTRBackupParam = @{
    Location = $instance.Location
    InstanceName = $instanceName
}
Get-AzSqlInstanceDatabaseLongTermRetentionBackup @LTRBackupParam

# get the LTR backups for a specific database from the Azure region under the given managed instance
$LTRBackupParam = @{
    Location = $instance.Location
    InstanceName = $instanceName
    DatabaseName = $dbName
}
Get-AzSqlInstanceDatabaseLongTermRetentionBackup @LTRBackupParam

# list LTR backups only from live databases (you have option to choose All/Live/Deleted)
$LTRBackupParam = @{
    Location = $instance.Location
    DatabaseState = 'Live'
}
Get-AzSqlInstanceDatabaseLongTermRetentionBackup @LTRBackupParam

# only list the latest LTR backup for each database
$LTRBackupParam = @{
    Location = $instance.Location
    InstanceName = $instanceName
    OnlyLatestPerDatabase = $true
}
Get-AzSqlInstanceDatabaseLongTermRetentionBackup @LTRBackupParam

Delete LTR backups

This example shows how to delete an LTR backup from the list of backups.

# remove the earliest backup
# get the LTR backups for a specific database from the Azure region under the given managed instance
$LTRBackupParam = @{
    Location = $instance.Location
    InstanceName = $instanceName
    DatabaseName = $dbName
}
$ltrBackups = Get-AzSqlInstanceDatabaseLongTermRetentionBackup @LTRBackupParam
$ltrBackup = $ltrBackups[0]
Remove-AzSqlInstanceDatabaseLongTermRetentionBackup -ResourceId $ltrBackup.ResourceId

Important

Deleting LTR backup is non-reversible. To delete an LTR backup after the instance has been deleted you must have Subscription scope permission. You can set up notifications about each delete in Azure Monitor by filtering for operation 'Deletes a long term retention backup'. The activity log contains information on who and when made the request. See Create activity log alerts for detailed instructions.

Restore from LTR backups

This example shows how to restore from an LTR backup. Note, this interface did not change but the resource ID parameter now requires the LTR backup resource ID.

# restore a specific LTR backup as an P1 database on the instance $instanceName of the resource group $resourceGroup
$LTRBackupParam = @{
    Location = $instance.Location
    InstanceName = $instanceName
    DatabaseName = $dbname
    OnlyLatestPerDatabase = $true
}
$ltrBackup = Get-AzSqlInstanceDatabaseLongTermRetentionBackup @LTRBackupParam

$RestoreLTRParam = @{
    TargetInstanceName          = $instanceName
    TargetResourceGroupName     = $resourceGroup
    TargetInstanceDatabaseName  = $dbName
    FromLongTermRetentionBackup = $true
    ResourceId                  = $ltrBackup.ResourceId
}
Restore-AzSqlInstanceDatabase @RestoreLTRParam

Important

To restore from an LTR backup after the instance has been deleted, you must have permissions scoped to the subscription of the instance and that subscription must be active. You must also omit the optional -ResourceGroupName parameter.

Note

From here, you can connect to the restored database using SQL Server Management Studio to perform needed tasks, such as to extract a bit of data from the restored database to copy into the existing database or to delete the existing database and rename the restored database to the existing database name. See point in time restore.

Next steps

• To learn about service-generated automatic backups, see automatic backups
• To learn about long-term backup retention, see long-term backup retention
