Tutorial: Create a secured hub and spoke network

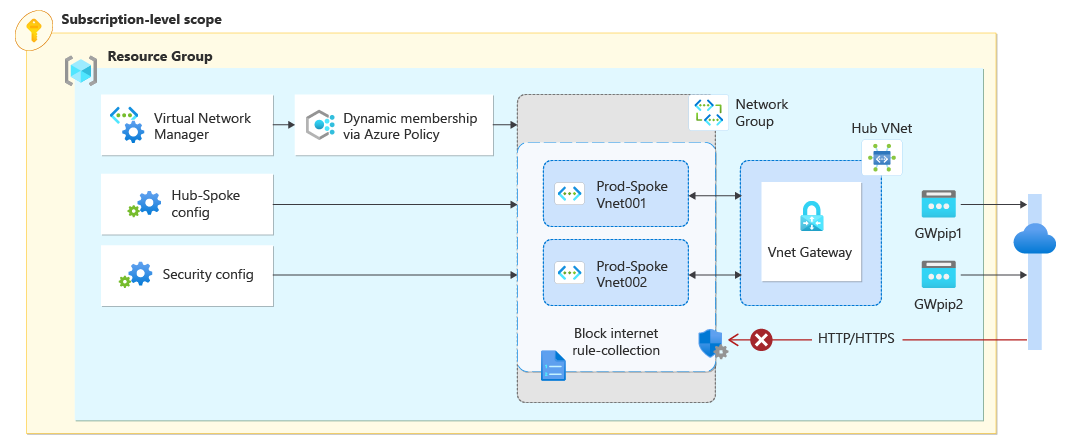

In this tutorial, you create a hub and spoke network topology using Azure Virtual Network Manager. You then deploy a virtual network gateway in the hub virtual network to allow resources in the spoke virtual networks to communicate with remote networks using VPN. Also, you configure a security configuration to block outbound network traffic to the internet on ports 80 and 443. Last, you verify that configurations were applied correctly by looking at the virtual network and virtual machine settings.
Azure Virtual Network Manager is now in General Availability for Virtual Network Manager and hub and spoke connectivity configurations.
In this tutorial, you learn how to:
- Create multiple virtual networks.
- Deploy a virtual network gateway.
- Create a hub and spoke network topology.
- Create a security configuration blocking traffic on port 80 and 443.
- Verify configurations were applied.
- An Azure account with an active subscription. Create an account for free.
- Before you can complete steps in this tutorial, you must first create an Azure Virtual Network Manager instance.
Create virtual networks
This procedure walks you through creating three virtual networks. One is in the West US region and the other two are in the East US region.
Sign in to the Azure portal.
Select + Create a resource and search for Virtual network. Then select Create to begin configuring the virtual network.
On the Basics tab, enter or select the following information:
Setting Value Subscription Select the subscription you want to deploy this virtual network into. Resource group Select or create a new resource group to store the virtual network. This quickstart uses a resource group named myAVNMResourceGroup. Name Enter VNet-A-WestUS for the virtual network name. Region Select the West US region.
Select Next: IP Addresses and configure the following network address space:
Setting Value IPv4 address space Enter 10.3.0.0/16 as the address space. Subnet name Enter the name default for the subnet. Subnet address space Enter the subnet address space of 10.3.0.0/24.
Select Review + create and then select Create to deploy the virtual network.
Repeat steps 2-5 to create two more virtual networks into the same resource group with the following information:
Second virtual network:
- Name: VNet-A-EastUS
- Region: East US
- IPv4 address space: 10.4.0.0/16
- Subnet name: default
- Subnet address space: 10.4.0.0/24
Third virtual network:
- Name: VNet-B-EastUS
- Region: East US
- IPv4 address space: 10.5.0.0/16
- Subnet name: default
- Subnet address space: 10.5.0.0/24
Deploy a virtual network gateway
Deploy a virtual network gateway into the hub virtual network. This virtual network gateway is necessary for the spokes to Use hub as a gateway setting.
Select + Create a resource and search for Virtual network gateway. Then select Create to begin configuring the virtual network gateway.
On the Basics tab, enter or select the following settings:
Setting Value Subscription Select the subscription you want to deploy this virtual network into. Name Enter VNet-A-WestUS-GW for the virtual network gateway name. SKU Select VpnGW1 for the SKU. Generation Select Generation1 for the generation. Virtual network Select the VNet-A-WestUS for the VNet. Public IP address name Enter the name VNet-A-WestUS-GW-IP for the public IP.
Select Review + create and then select Create after validation has passed. The deployment of a virtual network gateway can take about 30 minutes. You can move on to the next section while waiting for this deployment to complete. However, you may find VNet-A-WestUS-GW doesn't display that it has a gateway due to timing and sync across the Azure portal.
Create a dynamic network group
Go to your Azure Virtual Network Manager instance. This tutorial assumes you've created one using the quickstart guide.
Select Network groups under Settings, and then select + Create to create a new network group.
On the Create a network group screen, enter the following information:
Setting Value Name Enter myNetworkGroupB for the network group name. Description Provide a description about this network group.
Select Create to create the virtual network group.
From the Network groups page, select the created network group from above to configure the network group.
On the Overview page, select Create Azure Policy under Create policy to dynamically add members.

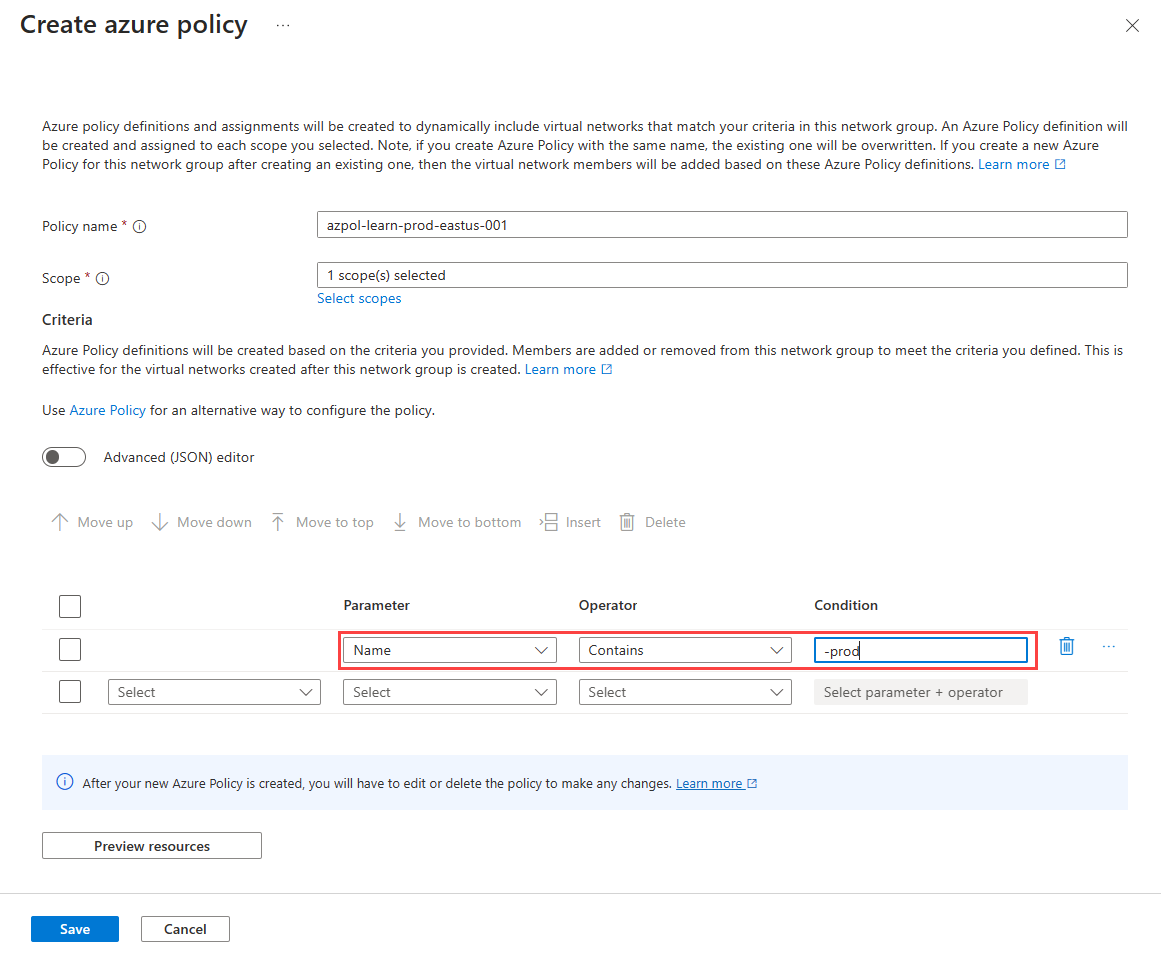

On the Create Azure Policy page, select or enter the following information:
Setting Value Policy name Enter VNetAZPolicy in the text box. Scope Select Select Scopes and choose your current subscription. Criteria Parameter Select Name from the drop-down. Operator Select Contains from the drop-down. Condition Enter -EastUS to dynamically add the two East US virtual networks into this network group.
Select Save to deploy the group membership.

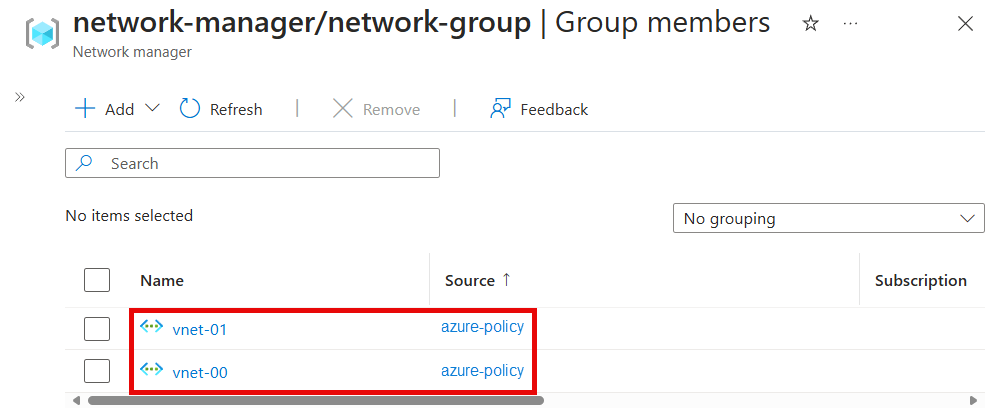

Under Settings, select Group Members to view the membership of the group based on the conditions defined in Azure Policy.
Create a hub and spoke connectivity configuration
Select Configuration under Settings, then select + Add a configuration. Select Connectivity from the drop-down menu.
On the Basics tab, enter and select the following information for the connectivity configuration:
Setting Value Name Enter HubA for the name of the configuration Description Provide a description about what this connectivity configuration will do.
Select Next: Topology >. Select Hub and Spoke under the Topology setting. This will reveal other settings.
Select Select a hub under Hub setting. Then, select VNet-A-WestUS to serve as your network hub and select Select.
Depending on the timing of deployment, you may not see the target hub virtual networked as have a gateway under Has gateway. This is due to the deployment of the virtual network gateway. It can take up to 30 minutes to deploy, and may not display immediately in the various Azure portal views.

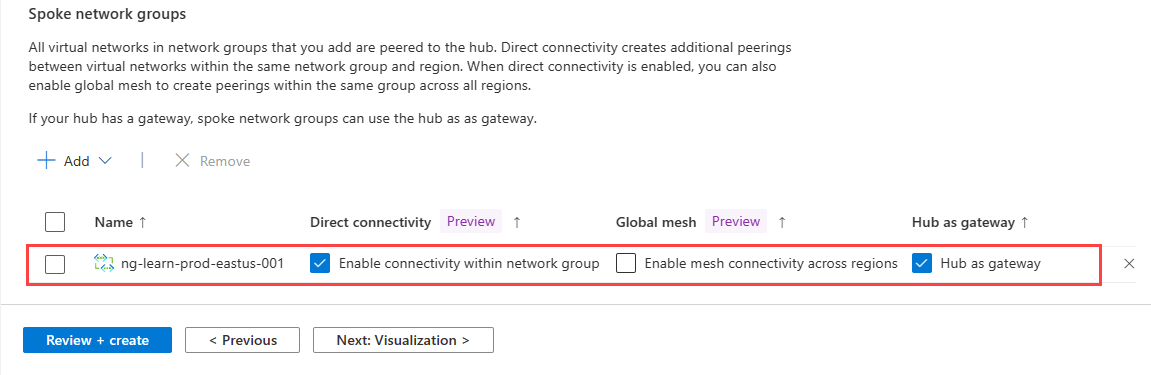

Under Spoke network groups, select + add. Then, select myNetworkGroupB for the network group and select Select.
After you've added the network group, select the following options. Then select add to create the connectivity configuration.
Setting Value Direct Connectivity Select the checkbox for Enable connectivity within network group. This setting will allow spoke virtual networks in the network group in the same region to communicate with each other directly. Hub as gateway Select the checkbox for Use hub as a gateway. Global Mesh Leave Enable mesh connectivity across regions option unchecked. This setting isn't required as both spokes are in the same region
Select Next: Review + create > and then create the connectivity configuration.
Deploy the connectivity configuration
Make sure the virtual network gateway has been successfully deployed before deploying the connectivity configuration. If you deploy a hub and spoke configuration with Use the hub as a gateway enabled and there's no gateway, the deployment will fail. For more information, see use hub as a gateway.
Select Deployments under Settings, then select Deploy configuration.
Select Include connectivity configurations in your goal state and HubA as the Connectivity configurations setting. Then select West US and East US as the target regions and select Next.

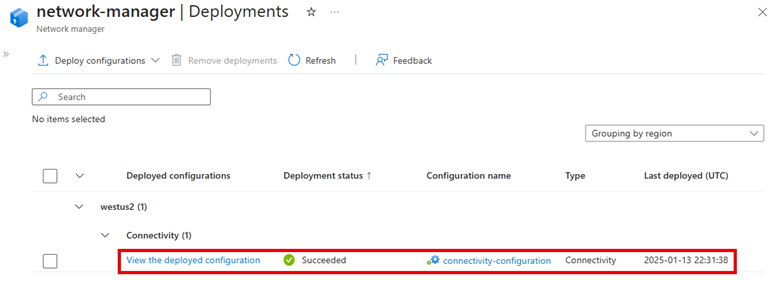

Select Deploy. You should now see the deployment show up in the list for those regions. The deployment of the configuration can take several minutes to complete.
Create security configuration
Select Configuration under Settings again, then select + Create, and select SecurityAdmin from the menu to begin creating a SecurityAdmin configuration.
Enter the name mySecurityConfig for the configuration, then select Next: Rule collections.
Enter the name myRuleCollection for the rule collection and select myNetworkGroupB for the target network group. Then select + Add.

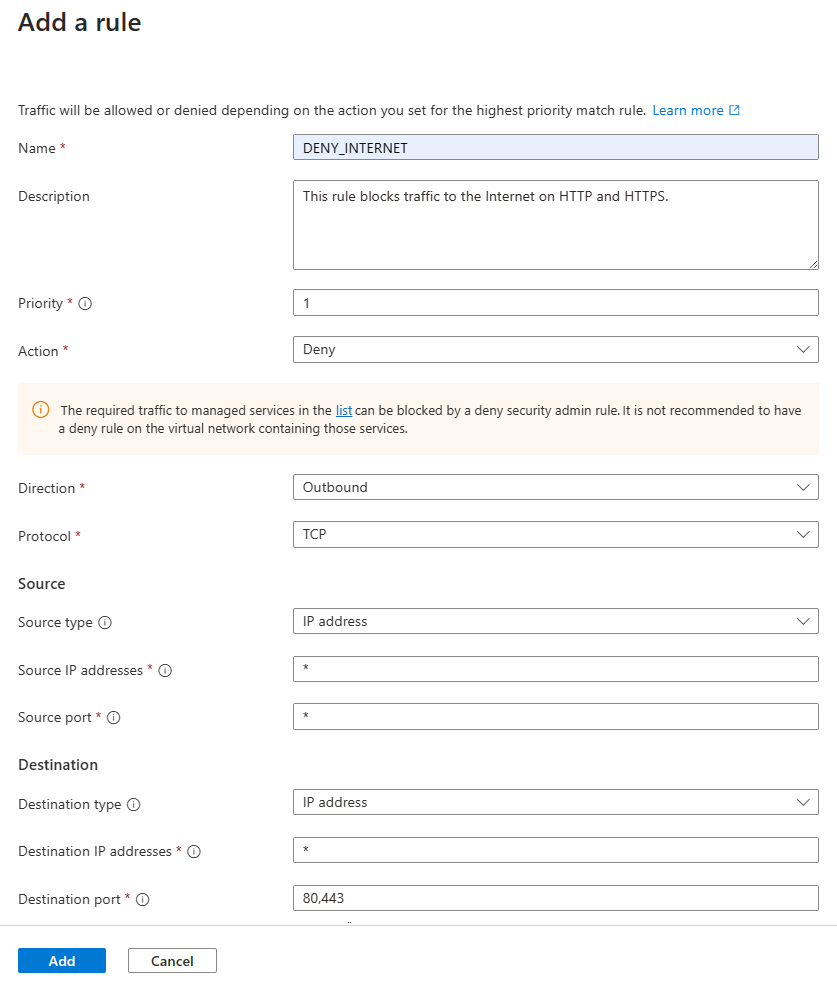

Enter and select the following settings, then select Add:
Setting Value Name Enter DENY_INTERNET Description Enter This rule blocks traffic to the internet on HTTP and HTTPS Priority Enter 1 Action Select Deny Direction Select Outbound Protocol Select TCP Destination port Enter 80, 443
Select Add to add the rule collection to the configuration.
Select Review + create and Create to create the security admin configuration.
Deploy the security admin configuration
Select Deployments under Settings, then select Deploy configurations.
Under Configurations, Select Include security admin in your goal state and the mySecurityConfig configuration you created in the last section. Then select West US and East US as the target regions and select Next.
Select Next and then Deploy. You should now see the deployment show up in the list for the selected region. The deployment of the configuration can take about 15-20 minutes to complete.
Verify deployment of configurations
Verify from a virtual network

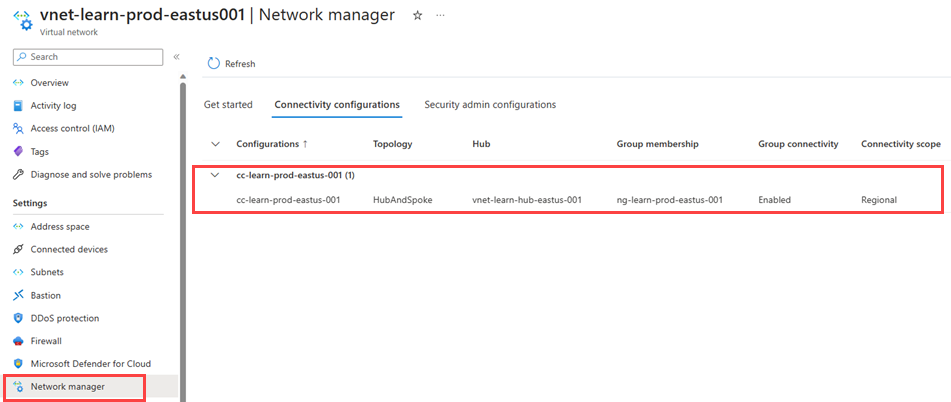

Go to VNet-A-EastUS virtual network and select Network Manager under Settings. You'll see the HubA connectivity configuration applied.

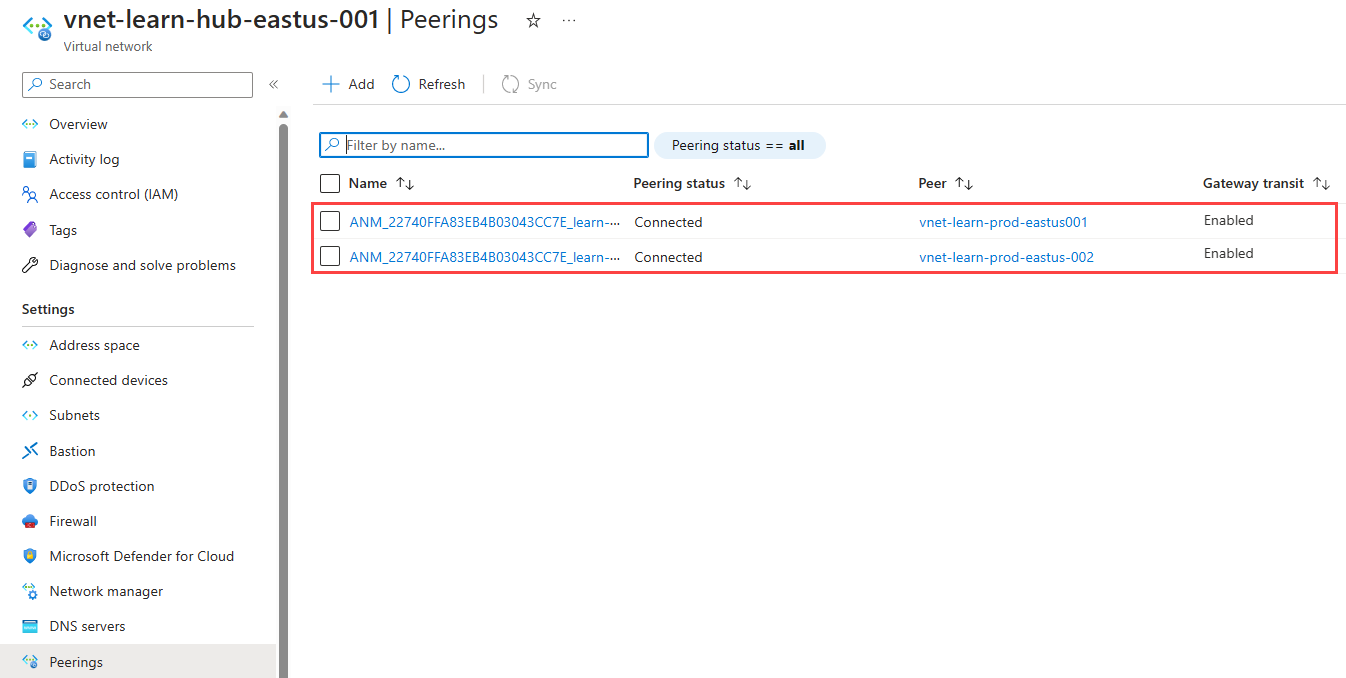

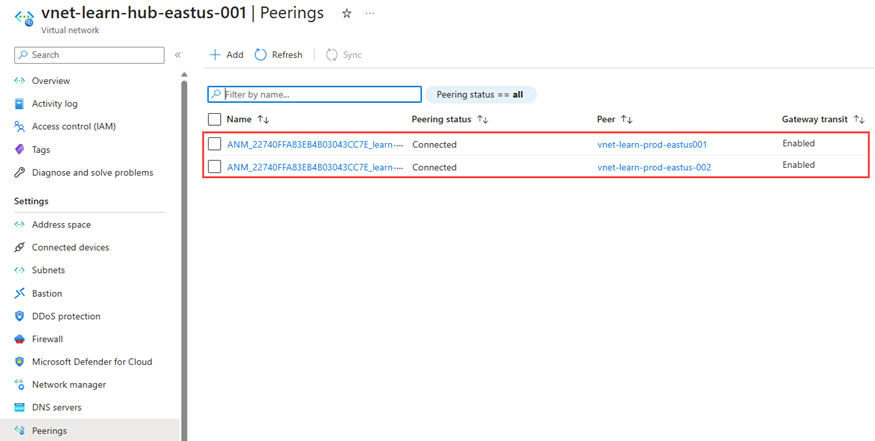

Select Peerings under Settings. You'll see virtual network peerings created by Virtual Network Manager with AVNM in the name.

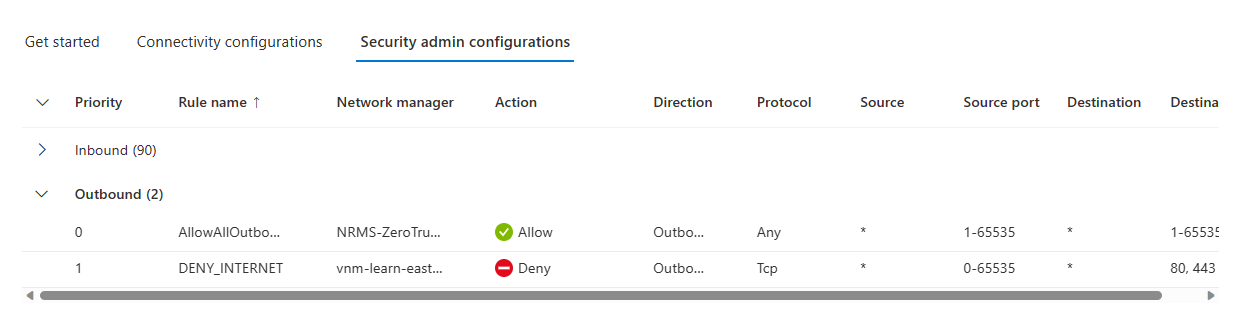

Select the SecurityAdmin tab to see the security admin rules applied to this virtual network.
Verify from a VM
Deploy a test Windows VM into VNet-A-EastUS.

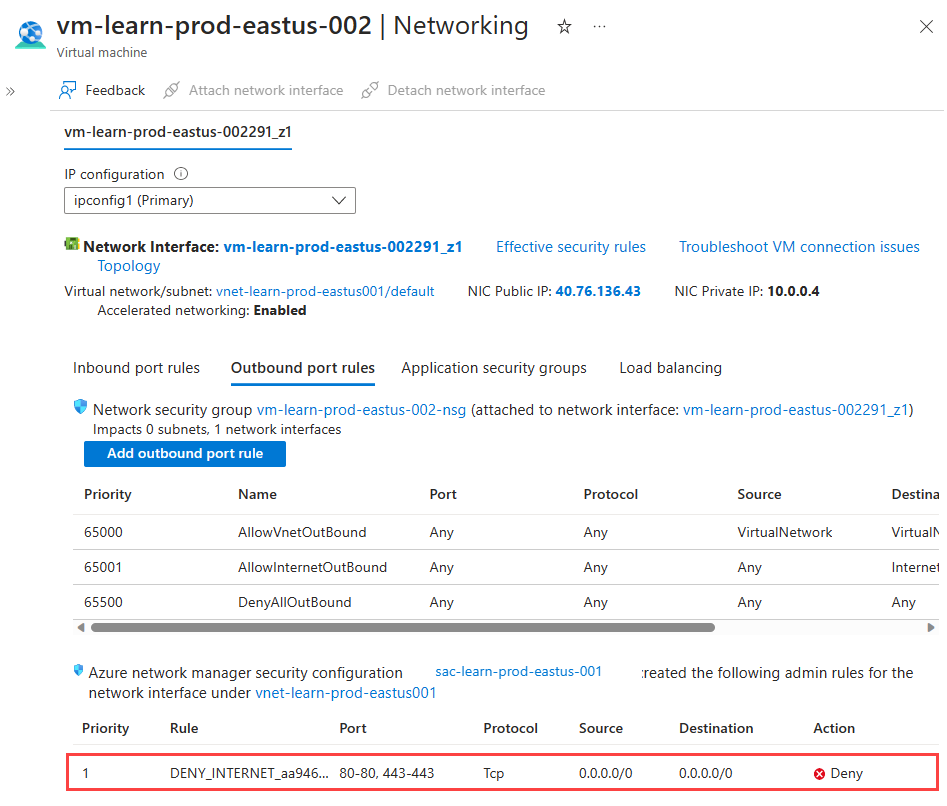

Go to the test VM created in VNet-A-EastUS and select Networking under Settings. Select Outbound port rules and you'll see the security admin rule applied.
Select the network interface name.
Then select Effective routes under Help to see the routes for the virtual network peerings. The
10.3.0.0/16route with the next hop of
VNetGlobalPeeringis the route to the hub virtual network. The
10.5.0.0/16route with the next hop of
ConnectedGroupis route to the other spoke virtual network. All spokes virtual network is in a ConnectedGroup when Transitivity is enabled.
Clean up resources
If you no longer need the Azure Virtual Network Manager, you need to make sure all of following is true before you can delete the resource:
- There are no deployments of configurations to any region.
- All configurations have been deleted.
- All network groups have been deleted.
Use the remove components checklist to make sure no child resources are still available before deleting the resource group.
Learn how to block network traffic with a Security admin configuration.
