EmbossBitmapEffect Class

Definition

Note: This API is now obsolete. The non-obsolete alternative is Effect. Creates a bump mapping of the visual object to give the impression of depth and texture from an artificial light source.

public ref class EmbossBitmapEffect sealed : System::Windows::Media::Effects::BitmapEffect
public sealed class EmbossBitmapEffect : System.Windows.Media.Effects.BitmapEffect
type EmbossBitmapEffect = class
    inherit BitmapEffect
Public NotInheritable Class EmbossBitmapEffect
Inherits BitmapEffect
Inheritance

Remarks

Note

WPF bitmap effects are software rendered. Any object that applies an effect will also be rendered in software. Bitmap effects should not be applied to large visuals or animations as this can degrade performance.

EmbossBitmapEffect is one of several effects that are shipped with the SDK. Other effects include:

An emboss makes a selection appear raised or stamped by converting its fill color to gray and tracing the edges with the original fill color. The following illustration shows a EmbossBitmapEffect applied to a visual object (in this case applied to a Image).

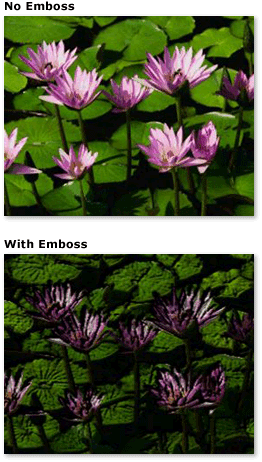

Screenshot: Compare image with and without emboss

The visual effect of an emboss can be modified using the Relief and LightAngle properties.

Constructors

EmbossBitmapEffect()

Note: This API is now obsolete. The non-obsolete alternative is Effect. Initializes a new instance of the EmbossBitmapEffect class.

Fields

LightAngleProperty

Note: This API is now obsolete. The non-obsolete alternative is Effect. Identifies the LightAngle dependency property.

ReliefProperty

Note: This API is now obsolete. The non-obsolete alternative is Effect. Identifies the Relief dependency property.

Properties

CanFreeze

Gets a value that indicates whether the object can be made unmodifiable.

(Inherited from Freezable)
DependencyObjectType

Gets the DependencyObjectType that wraps the CLR type of this instance.

(Inherited from DependencyObject)
Dispatcher

Gets the Dispatcher this DispatcherObject is associated with.

(Inherited from DispatcherObject)
HasAnimatedProperties

Gets a value that indicates whether one or more AnimationClock objects is associated with any of this object's dependency properties.

(Inherited from Animatable)
IsFrozen

Gets a value that indicates whether the object is currently modifiable.

(Inherited from Freezable)
IsSealed

Gets a value that indicates whether this instance is currently sealed (read-only).

(Inherited from DependencyObject)
LightAngle

Note: This API is now obsolete. The non-obsolete alternative is Effect. Gets or sets the direction the artificial light is cast upon the embossed object.

Relief

Note: This API is now obsolete. The non-obsolete alternative is Effect. Gets or sets the amount of relief of the emboss.

Methods

ApplyAnimationClock(DependencyProperty, AnimationClock, HandoffBehavior)

Applies an AnimationClock to the specified DependencyProperty. If the property is already animated, the specified HandoffBehavior is used.

(Inherited from Animatable)
ApplyAnimationClock(DependencyProperty, AnimationClock)

Applies an AnimationClock to the specified DependencyProperty. If the property is already animated, the SnapshotAndReplace handoff behavior is used.

(Inherited from Animatable)
BeginAnimation(DependencyProperty, AnimationTimeline, HandoffBehavior)

Applies an animation to the specified DependencyProperty. The animation is started when the next frame is rendered. If the specified property is already animated, the specified HandoffBehavior is used.

(Inherited from Animatable)
BeginAnimation(DependencyProperty, AnimationTimeline)

Applies an animation to the specified DependencyProperty. The animation is started when the next frame is rendered. If the specified property is already animated, the SnapshotAndReplace handoff behavior is used.

(Inherited from Animatable)
CheckAccess()

Determines whether the calling thread has access to this DispatcherObject.

(Inherited from DispatcherObject)
ClearValue(DependencyProperty)

Clears the local value of a property. The property to be cleared is specified by a DependencyProperty identifier.

(Inherited from DependencyObject)
ClearValue(DependencyPropertyKey)

Clears the local value of a read-only property. The property to be cleared is specified by a DependencyPropertyKey.

(Inherited from DependencyObject)
Clone()

Note: This API is now obsolete. The non-obsolete alternative is Effect. Creates a modifiable clone of this EmbossBitmapEffect, making deep copies of this object's values. When copying dependency properties, this method copies resource references and data bindings (but they might no longer resolve) but not animations or their current values.

CloneCore(Freezable)

Makes the instance a clone (deep copy) of the specified Freezable using base (non-animated) property values.

(Inherited from Freezable)
CloneCurrentValue()

Note: This API is now obsolete. The non-obsolete alternative is Effect. Creates a modifiable clone of this EmbossBitmapEffect object, making deep copies of this object's current values. Resource references, data bindings, and animations are not copied, but their current values are.

CloneCurrentValueCore(Freezable)

Makes the instance a modifiable clone (deep copy) of the specified Freezable using current property values.

(Inherited from Freezable)
CoerceValue(DependencyProperty)

Coerces the value of the specified dependency property. This is accomplished by invoking any CoerceValueCallback function specified in property metadata for the dependency property as it exists on the calling DependencyObject.

(Inherited from DependencyObject)
CreateInstance()

Initializes a new instance of the Freezable class.

(Inherited from Freezable)
CreateInstanceCore()

When implemented in a derived class, creates a new instance of the Freezable derived class.

(Inherited from Freezable)
CreateUnmanagedEffect()
Obsolete.

When overridden in a derived class, creates a clone of the unmanaged effect.

(Inherited from BitmapEffect)
Equals(Object)

Determines whether a provided DependencyObject is equivalent to the current DependencyObject.

(Inherited from DependencyObject)
Freeze()

Makes the current object unmodifiable and sets its IsFrozen property to true.

(Inherited from Freezable)
FreezeCore(Boolean)

Makes this Animatable object unmodifiable or determines whether it can be made unmodifiable.

(Inherited from Animatable)
GetAnimationBaseValue(DependencyProperty)

Returns the non-animated value of the specified DependencyProperty.

(Inherited from Animatable)
GetAsFrozen()

Creates a frozen copy of the Freezable, using base (non-animated) property values. Because the copy is frozen, any frozen sub-objects are copied by reference.

(Inherited from Freezable)
GetAsFrozenCore(Freezable)

Makes the instance a frozen clone of the specified Freezable using base (non-animated) property values.

(Inherited from Freezable)
GetCurrentValueAsFrozen()

Creates a frozen copy of the Freezable using current property values. Because the copy is frozen, any frozen sub-objects are copied by reference.

(Inherited from Freezable)
GetCurrentValueAsFrozenCore(Freezable)

Makes the current instance a frozen clone of the specified Freezable. If the object has animated dependency properties, their current animated values are copied.

(Inherited from Freezable)
GetHashCode()

Gets a hash code for this DependencyObject.

(Inherited from DependencyObject)
GetLocalValueEnumerator()

Creates a specialized enumerator for determining which dependency properties have locally set values on this DependencyObject.

(Inherited from DependencyObject)
GetOutput(BitmapEffectInput)
Obsolete.

Returns the BitmapSource that results when the effect is applied to the specified BitmapEffectInput.

(Inherited from BitmapEffect)
GetType()

Gets the Type of the current instance.

(Inherited from Object)
GetValue(DependencyProperty)

Returns the current effective value of a dependency property on this instance of a DependencyObject.

(Inherited from DependencyObject)
InvalidateProperty(DependencyProperty)

Re-evaluates the effective value for the specified dependency property.

(Inherited from DependencyObject)
MemberwiseClone()

Creates a shallow copy of the current Object.

(Inherited from Object)
OnChanged()

Called when the current Freezable object is modified.

(Inherited from Freezable)
OnFreezablePropertyChanged(DependencyObject, DependencyObject, DependencyProperty)

This member supports the Windows Presentation Foundation (WPF) infrastructure and is not intended to be used directly from your code.

(Inherited from Freezable)
OnFreezablePropertyChanged(DependencyObject, DependencyObject)

Ensures that appropriate context pointers are established for a DependencyObjectType data member that has just been set.

(Inherited from Freezable)
OnPropertyChanged(DependencyPropertyChangedEventArgs)

Overrides the DependencyObject implementation of OnPropertyChanged(DependencyPropertyChangedEventArgs) to also invoke any Changed handlers in response to a changing dependency property of type Freezable.

(Inherited from Freezable)
ReadLocalValue(DependencyProperty)

Returns the local value of a dependency property, if it exists.

(Inherited from DependencyObject)
ReadPreamble()

Ensures that the Freezable is being accessed from a valid thread. Inheritors of Freezable must call this method at the beginning of any API that reads data members that are not dependency properties.

(Inherited from Freezable)
SetCurrentValue(DependencyProperty, Object)

Sets the value of a dependency property without changing its value source.

(Inherited from DependencyObject)
SetValue(DependencyProperty, Object)

Sets the local value of a dependency property, specified by its dependency property identifier.

(Inherited from DependencyObject)
SetValue(DependencyPropertyKey, Object)

Sets the local value of a read-only dependency property, specified by the DependencyPropertyKey identifier of the dependency property.

(Inherited from DependencyObject)
ShouldSerializeProperty(DependencyProperty)

Returns a value that indicates whether serialization processes should serialize the value for the provided dependency property.

(Inherited from DependencyObject)
ToString()

Returns a string that represents the current object.

(Inherited from Object)
UpdateUnmanagedPropertyState(SafeHandle)
Obsolete.

When overridden in a derived class, updates the property states of the unmanaged properties of the effect.

(Inherited from BitmapEffect)
VerifyAccess()

Enforces that the calling thread has access to this DispatcherObject.

(Inherited from DispatcherObject)
WritePostscript()

Raises the Changed event for the Freezable and invokes its OnChanged() method. Classes that derive from Freezable should call this method at the end of any API that modifies class members that are not stored as dependency properties.

(Inherited from Freezable)
WritePreamble()

Verifies that the Freezable is not frozen and that it is being accessed from a valid threading context. Freezable inheritors should call this method at the beginning of any API that writes to data members that are not dependency properties.

(Inherited from Freezable)

Events

Changed

Occurs when the Freezable or an object it contains is modified.

(Inherited from Freezable)

Applies to
