Tutorial: Microsoft Entra SSO integration with Adra by Trintech

  • Article

In this tutorial, you'll learn how to integrate Adra by Trintech with Microsoft Entra ID. When you integrate Adra by Trintech with Microsoft Entra ID, you can:

  • Control in Microsoft Entra ID who has access to Adra by Trintech.
  • Enable your users to be automatically signed-in to Adra by Trintech with their Microsoft Entra accounts.
  • Manage your accounts in one central location.

Prerequisites

To get started, you need the following items:

  • A Microsoft Entra subscription. If you don't have a subscription, you can get a free account.
  • Adra by Trintech single sign-on (SSO) enabled subscription.
  • Along with Cloud Application Administrator, Application Administrator can also add or manage applications in Microsoft Entra ID. For more information, see Azure built-in roles.

Scenario description

In this tutorial, you configure and test Microsoft Entra SSO in a test environment.

  • Adra by Trintech supports SP and IDP initiated SSO.

To configure the integration of Adra by Trintech into Microsoft Entra ID, you need to add Adra by Trintech from the gallery to your list of managed SaaS apps.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > New application.
  3. In the Add from the gallery section, type Adra by Trintech in the search box.
  4. Select Adra by Trintech from results panel and then add the app. Wait a few seconds while the app is added to your tenant.

Alternatively, you can also use the Enterprise App Configuration Wizard. In this wizard, you can add an application to your tenant, add users/groups to the app, assign roles, as well as walk through the SSO configuration as well. Learn more about Microsoft 365 wizards.

Configure and test Microsoft Entra SSO for Adra by Trintech

Configure and test Microsoft Entra SSO with Adra by Trintech using a test user called B.Simon. For SSO to work, you need to establish a link relationship between a Microsoft Entra user and the related user in Adra by Trintech.

To configure and test Microsoft Entra SSO with Adra by Trintech, perform the following steps:

  1. Configure Microsoft Entra SSO - to enable your users to use this feature.
    1. Create a Microsoft Entra test user - to test Microsoft Entra single sign-on with B.Simon.
    2. Assign the Microsoft Entra test user - to enable B.Simon to use Microsoft Entra single sign-on.
  2. Configure Adra by Trintech SSO - to configure the single sign-on settings on application side.
    1. Create Adra by Trintech test user - to have a counterpart of B.Simon in Adra by Trintech that is linked to the Microsoft Entra representation of user.
  3. Test SSO - to verify whether the configuration works.

Configure Microsoft Entra SSO

Follow these steps to enable Microsoft Entra SSO.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.

  2. Browse to Identity > Applications > Enterprise applications > Adra by Trintech > Single sign-on.

  3. On the Select a single sign-on method page, select SAML.

  4. On the Set up single sign-on with SAML page, click the pencil icon for Basic SAML Configuration to edit the settings.

    Screenshot shows how to edit Basic SAML Configuration.

  5. On the Basic SAML Configuration section, if you have Service Provider metadata file and wish to configure in IDP initiated mode, perform the following steps:

    a. Click Upload metadata file.

    Screenshot shows to upload metadata file.

    b. Click on folder logo to select the metadata file and click Upload.

    Screenshot shows to choose metadata file.

    c. After the metadata file is successfully uploaded, the Identifier and Reply URL values get auto populated in Basic SAML Configuration section.

    d. In the Sign-on URL text box, type the URL: https://login.adra.com

    e. In the Relay state text box, type the URL: https://setup.adra.com

    f. In the Logout URL text box, type the URL: https://login.adra.com/Saml/SLOServiceSP

    Note

    You will get the Service Provider metadata file from the Configure Adra by Trintech SSO section, which is explained later in the tutorial. If the Identifier and Reply URL values do not get auto populated, then fill in the values manually according to your requirement.

  6. On the Set up single sign-on with SAML page, In the SAML Signing Certificate section, click copy button to copy App Federation Metadata Url and save it on your computer.

    Screenshot shows the Certificate download link.

Create a Microsoft Entra test user

In this section, you'll create a test user called B.Simon.

  1. Sign in to the Microsoft Entra admin center as at least a User Administrator.
  2. Browse to Identity > Users > All users.
  3. Select New user > Create new user, at the top of the screen.
  4. In the User properties, follow these steps:
    1. In the Display name field, enter B.Simon.
    2. In the User principal name field, enter the username@companydomain.extension. For example, B.Simon@contoso.com.
    3. Select the Show password check box, and then write down the value that's displayed in the Password box.
    4. Select Review + create.
  5. Select Create.

Assign the Microsoft Entra test user

In this section, you'll enable B.Simon to use single sign-on by granting access to Adra by Trintech.

  1. Sign in to the Microsoft Entra admin center as at least a Cloud Application Administrator.
  2. Browse to Identity > Applications > Enterprise applications > Adra by Trintech.
  3. In the app's overview page, select Users and groups.
  4. Select Add user/group, then select Users and groups in the Add Assignment dialog.
    1. In the Users and groups dialog, select B.Simon from the Users list, then click the Select button at the bottom of the screen.
    2. If you are expecting a role to be assigned to the users, you can select it from the Select a role dropdown. If no role has been set up for this app, you see "Default Access" role selected.
    3. In the Add Assignment dialog, click the Assign button.

Configure Adra by Trintech SSO

  1. Log in to your Adra by Trintech company site as an administrator.

  2. Go to Engagement > Security Tab > Security Policy > select Use a federated identity provider button.

  3. Download the Service Provider metadata file by clicking here in the Adra page and upload this metadata file.

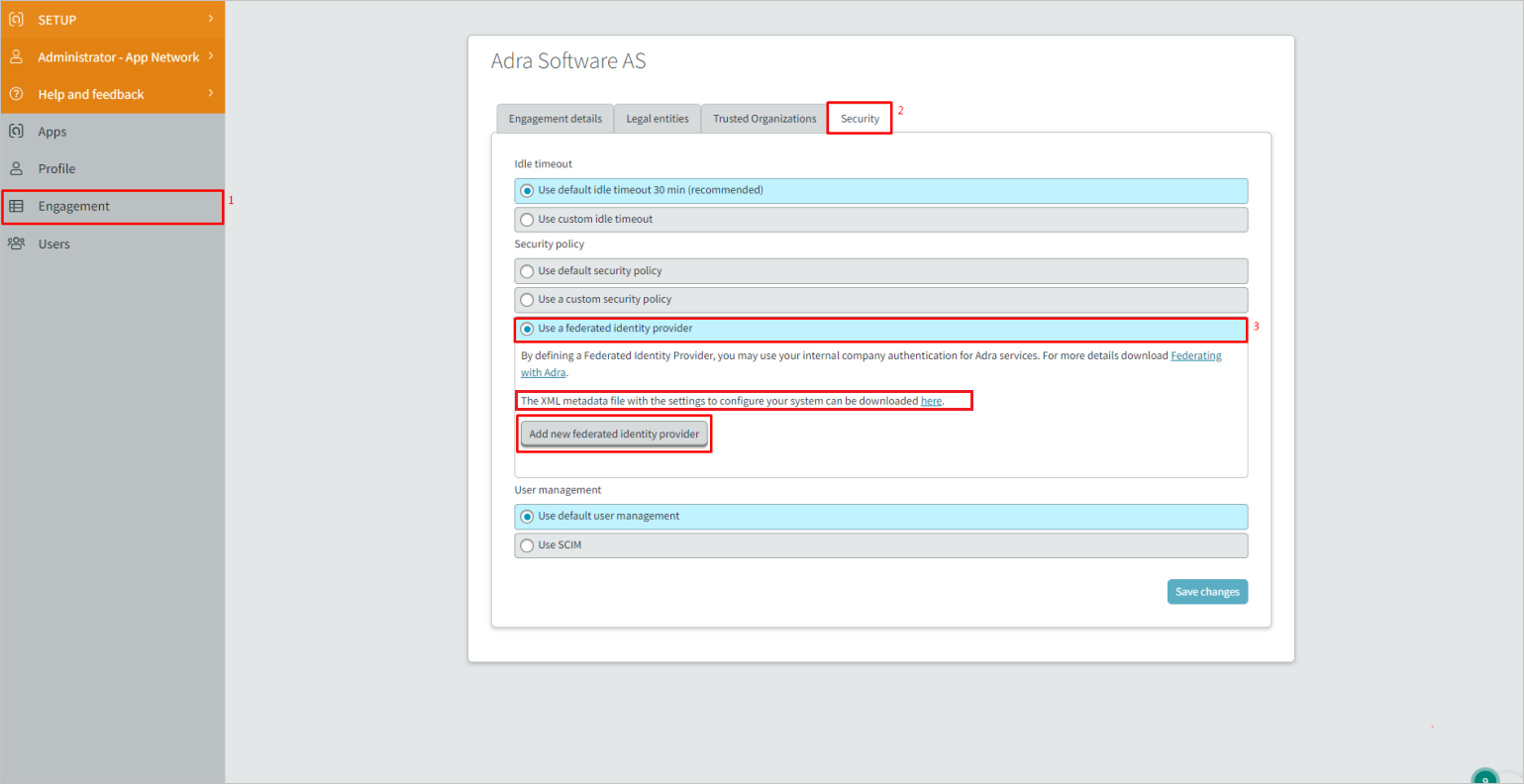

    Screenshot that shows the Configuration Settings.

  4. Click on the Add a new federated identity provider button and perform the following steps:

    Screenshot that shows the Organization Algorithm.

    a. Enter a valid Name and Description values in the textbox.

    b. In the Metadata URL textbox, paste the App Federation Metadata Url which you've copied and click on the Test URL button.

    c. Click Save to save the SAML configuration..

Create Adra by Trintech test user

In this section, you create a user called Britta Simon at Adra by Trintech. Work with Adra by Trintech support team to add the users in the Adra by Trintech platform. Users must be created and activated before you use single sign-on.

Test SSO

In this section, you test your Microsoft Entra single sign-on configuration with following options.

SP initiated:

  • Click on Test this application, this will redirect to Adra by Trintech Sign-on URL where you can initiate the login flow.

  • Go to Adra by Trintech Sign-on URL directly and initiate the login flow from there.

IDP initiated:

  • Click on Test this application, and you should be automatically signed in to the Adra by Trintech for which you set up the SSO.

You can also use Microsoft My Apps to test the application in any mode. When you click the Adra by Trintech tile in the My Apps, if configured in SP mode you would be redirected to the application sign-on page for initiating the login flow and if configured in IDP mode, you should be automatically signed in to the Adra by Trintech for which you set up the SSO. For more information, see Microsoft Entra My Apps.

Next steps

Once you configure Adra by Trintech you can enforce session control, which protects exfiltration and infiltration of your organization’s sensitive data in real time. Session control extends from Conditional Access. Learn how to enforce session control with Microsoft Defender for Cloud Apps.
