Deploy hybrid Next.js websites on Azure Static Web Apps (Preview)

In this tutorial, you learn to deploy a Next.js website to Azure Static Web Apps, using the support for Next.js features such as React Server Components, Server-Side Rendering (SSR), and API routes.

Note

Next.js hybrid support is in preview.

Prerequisites

Unsupported features in preview

The following features of Static Web Apps are unsupported for Next.js with hybrid rendering:

  • Linked APIs using Azure Functions, Azure App Service, Azure Container Apps, or Azure API Management.
  • SWA CLI local emulation and deployment.
  • Partial support for staticwebapp.config.json file.
    • Navigation fallback is unsupported.
    • Route rewrites to routes within the Next.js application must be configured within next.config.js.
    • The configuration within the staticwebapp.config.json file takes precedence over the configuration within next.config.js.
    • Configuration for the Next.js site should be handled using next.config.js for full feature compatibility.
  • skip_app_build and skip_api_build can't be used within the Azure/static-web-apps-deploy@v1 deployment image.
  • Incremental static regeneration (ISR) doesn't support caching images.

Note

The maximum app size for the hybrid Next.js application is 250 MB. Use standalone feature by Next.js for optimized app sizes. If this is not sufficient, consider using Static HTML exported Next.js if your app size requirement is more than 250 MB.

Create a repository

This article uses a GitHub template repository to make it easy for you to get started. The template features a starter app to deploy to Azure Static Web Apps.

  1. Navigate to the following location to create a new repository.

    https://github.com/staticwebdev/nextjs-hybrid-starter/generate

  2. Name your repository my-first-static-web-app

  3. Select Create repository from template.

    Screenshot of create repository from template button.

Create a static web app

Now that the repository is created, you can create a static web app from the Azure portal.

  1. Go to the Azure portal.
  2. Select Create a Resource.
  3. Search for Static Web Apps.
  4. Select Static Web Apps.
  5. Select Create.

In the Basics section, begin by configuring your new app and linking it to a GitHub repository.

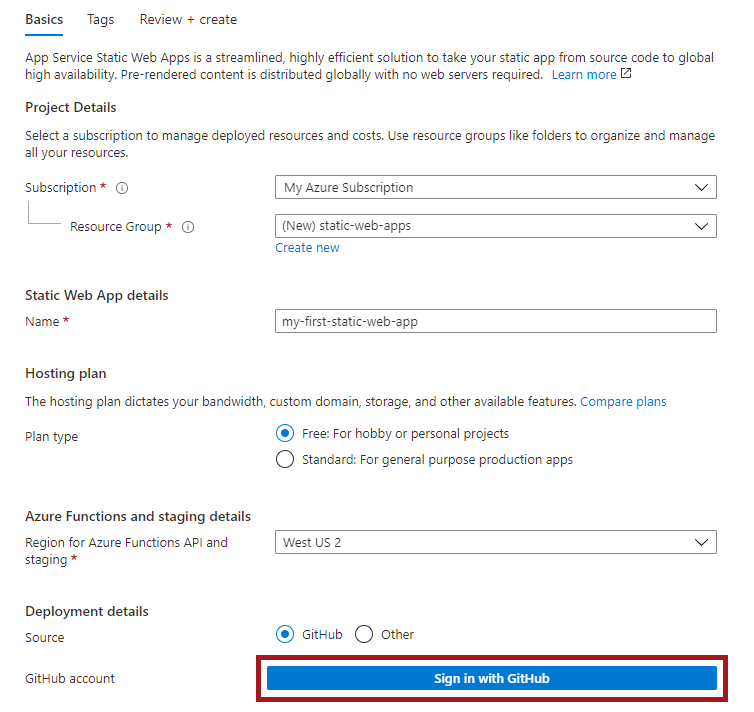

Screenshot of the basics section in the Azure portal.

Setting Value
Subscription Select your Azure subscription.
Resource Group Select the Create new link, and enter static-web-apps-test in the textbox.
Name Enter my-first-static-web-app in the textbox.
Plan type Select Free.
Azure Functions and staging details Select a region closest to you.
Source Select GitHub.

Select Sign-in with GitHub and authenticate with GitHub.

After you sign in with GitHub, enter the repository information.

Setting Value
Organization Select your organization.
Repository Select my-first-web-static-app.
Branch Select main.

Screenshot of repository details in the Azure portal.

Note

If you don't see any repositories:

  • You may need to authorize Azure Static Web Apps in GitHub. Browse to your GitHub repository and go to Settings > Applications > Authorized OAuth Apps, select Azure Static Web Apps, and then select Grant.
  • You may need to authorize Azure Static Web Apps in your Azure DevOps organization. You must be an owner of the organization to grant the permissions. Request third-party application access via OAuth. For more information, see Authorize access to REST APIs with OAuth 2.0.

In the Build Details section, add configuration details specific to your preferred front-end framework.

  1. Select Next.js from the Build Presets dropdown.

  2. Keep the default value in the App location box.

  3. Leave the Api location box empty.

  4. Leave the App artifact location box empty.

Select Review + create.

Screenshot of the create button.

View the website

There are two aspects to deploying a static app. The first creates the underlying Azure resources that make up your app. The second is a workflow that builds and publishes your application.

Before you can go to your new static site, the deployment build must first finish running.

The Static Web Apps Overview window displays a series of links that help you interact with your web app.

Screenshot of Azure Static Web Apps overview window.

Selecting on the banner that says, Select here to check the status of your GitHub Actions runs takes you to the GitHub Actions running against your repository. Once you verify the deployment job is complete, then you can go to your website via the generated URL.

Once GitHub Actions workflow is complete, you can select the URL link to open the website in new tab.

Set up your Next.js project locally to make changes

  1. Clone the new repo to your machine. Make sure to replace <YOUR_GITHUB_ACCOUNT_NAME> with your account name.

    git clone http://github.com/<YOUR_GITHUB_ACCOUNT_NAME>/my-first-static-web-app

  2. Open the project in Visual Studio Code or your preferred code editor.

Add Server-Rendered data with a Server Component

To add server-rendered data in your Next.js project using the App Router, edit a Next.js component to add a server-side operations to render data in the component. By default, Next.js components are Server Components that can be server-rendered.

  1. Open the app/page.tsx file and add an operation that sets the value of a variable, which is computed server-side. Examples include fetching data or other server operations.

    export default function Home() {
        const timeOnServer = new Date().toLocaleTimeString('en-US');
        return(
            ...
        );
    }

  2. Import unstable_noStore from next/cache and call it within the Home component to ensure the route is dynamically rendered.

    import { unstable_noStore as noStore } from 'next/cache';

    export default function Home() {
        noStore();

        const timeOnServer = new Date().toLocaleTimeString('en-US');
        return(
            ...
        );
    }


    Note

    This example forces dynamic rendering of this component to demonstrate server-rendering of the server's current time. The App Router model of Next.js recommends caching individual data requests to optimize the performance of your Next.js app. Read more on data fetching and caching in Next.js.

  3. Update the Home component in app/pages.tsx to render the server-side data.

    import { unstable_noStore as noStore } from 'next/cache';

    export default function Home() {
        noStore();

        const timeOnServer = new Date().toLocaleTimeString('en-US');
        return(
            <main className="flex min-h-screen flex-col items-center justify-between p-24">
                <div>
                    This is a Next.js application hosted on Azure Static Web Apps with
                    hybrid rendering. The time on the server is <strong>{timeOnServer}</strong>.
                </div>
            </main>
        );
    }


Adding an API route

In addition to Server Components, Next.js provides Route Handlers you can use to create API routes to your Next.js application. These APIs can be fetched in Client Components.

Begin by adding an API route.

  1. Create a new file at app/api/currentTime/route.tsx. This file holds the Route Handler for the new API endpoint.

  2. Add a handler function to return data from the API.

    import { NextResponse } from 'next/server';

    export const dynamic = 'force-dynamic';

    export async function GET() {
        const currentTime = new Date().toLocaleTimeString('en-US');

        return NextResponse.json({
            message: `Hello from the API! The current time is ${currentTime}.`
        });
    }

  3. Create a new file at app/components/CurrentTimeFromAPI.tsx. This component creates a container for the Client Component that fetches the API from the browser.

  4. Add a client component that fetches the API in this file.

    'use client';

    import { useEffect, useState } from 'react';

    export function CurrentTimeFromAPI(){
        const [apiResponse, setApiResponse] = useState('');
        const [loading, setLoading] = useState(true);

        useEffect(() => {
            fetch('/api/currentTime')
                .then((res) => res.json())
                .then((data) => {
                setApiResponse(data.message);
                setLoading(false);
                });
            },
        []);

        return (
            <div className='pt-4'>
                The message from the API is: <strong>{apiResponse}</strong>
            </div>
        )
    }


This Client Component fetches the API with a useEffect React hook to render the component after the load is complete. The 'use client' directive identifies this element as a Client Component. For more information, see Client Components.

  1. Edit app/page.tsx to import and render the CurrentTimeFromAPI Client Component.

    import { unstable_noStore as noStore } from 'next/cache';
    import { CurrentTimeFromAPI } from './components/CurrentTimeFromAPI';

    export default function Home() {
        noStore();

        const timeOnServer = new Date().toLocaleTimeString('en-US');
        return(
            <main className="flex min-h-screen flex-col items-center justify-between p-24">
                <div>
                    This is a Next.js application hosted on Azure Static Web Apps with
                    hybrid rendering. The time on the server is <strong>{timeOnServer}</strong>.
                </div>
                <CurrentTimeFromAPI />
            </main>
        );
    }

  2. The result from the API route is displayed on the page.

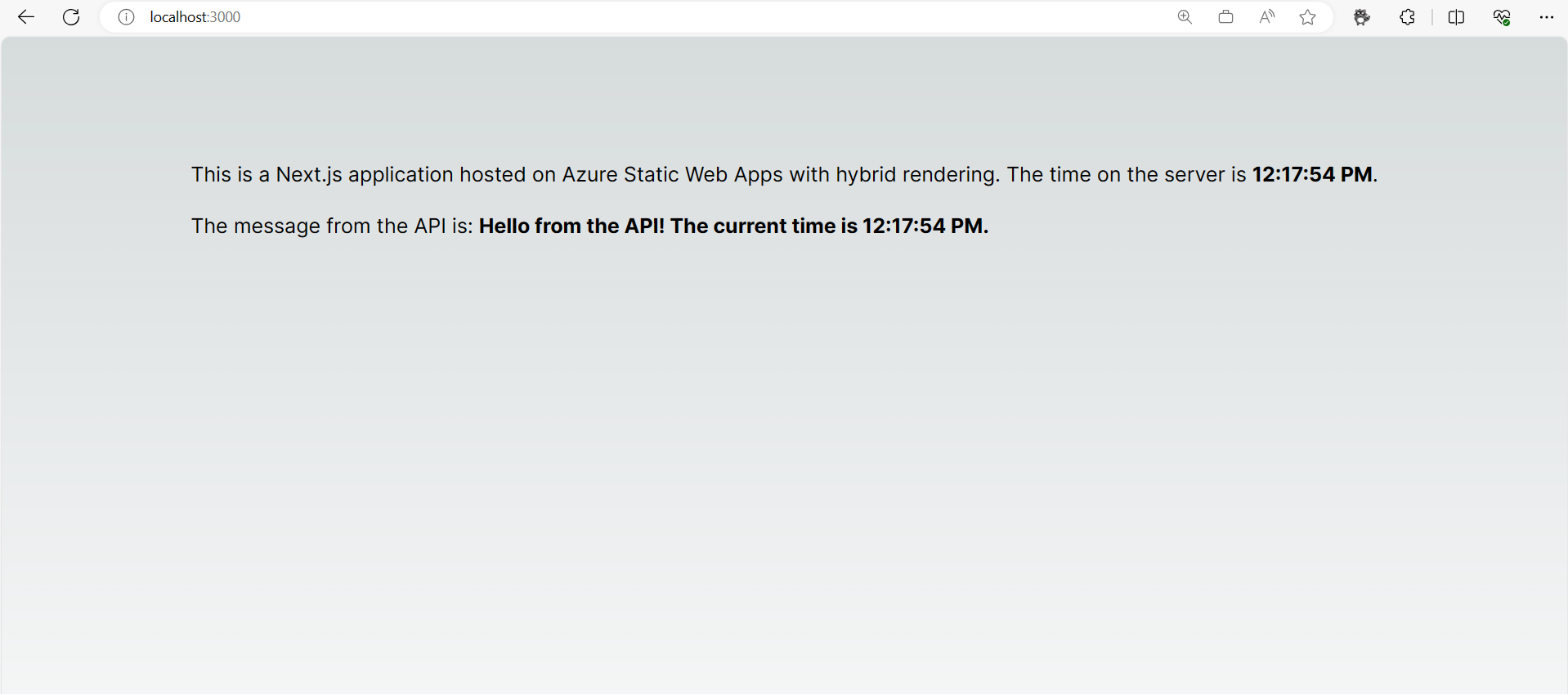

Screenshot showing the display the output from the API route.

Configure the runtime version for Next.js

Certain Next.js versions require specific Node.js versions. To configure a specific Node version, you can set the 'engines' property of your package.json file to designate a version.

{
  ...
  "engines": {
    "node": "18.17.1"
  }
}

Set environment variables for Next.js

Next.js uses environment variables at build time and at request time, to support both static page generation and dynamic page generation with server-side rendering. Therefore, set environment variables both within the build and deploy task, and in the Environment variables of your Azure Static Web Apps resource.

...
      - name: Build And Deploy
        id: builddeploy
        uses: Azure/static-web-apps-deploy@v1
        with:
          azure_static_web_apps_api_token: ${{ secrets.AZURE_STATIC_WEB_APPS_API_TOKEN }}
          repo_token: ${{ secrets.GITHUB_TOKEN }} # Used for Github integrations (i.e. PR comments)
          action: "upload"
          app_location: "/"
          api_location: ""
          output_location: ""
        env:
          DB_HOST: ${{ secrets.DB_HOST }}
          DB_USER: ${{ secrets.DB_USER }}
          DB_DATABASE: ${{ secrets.DB_DATABASE }}
          DB_PASSWORD: ${{ secrets.DB_PASSWORD }}
          DB_PORT: ${{ secrets.DB_PORT }}
...

Enable standalone feature

When your application size exceeds 250Mb, the Next.js Output File Tracing feature helps optimize the app size and enhance performance.

Output File Tracing creates a compressed version of the whole application with necessary package dependencies built into a folder named .next/standalone. This folder is meant to deploy on its own without additional node_modules dependencies.

In order to enable the standalone feature, add the following additional property to your next.config.js:

module.exports ={
    output:"standalone",
}

You will also need to configure the build command in the package.json file in order to copy static files to your standalone output.

{
  ...
  "scripts": {
    ...
    "build": "next build && cp -r .next/static .next/standalone/.next/ && cp -r public .next/standalone/"
    ...
  }
  ...
}

Configure your Next.js routing and middleware for deployment to Azure Static Web Apps

Your Next.js project can be configured to have custom handling of routes with redirects, rewrites, and middleware. These handlers are commonly used for authentication, personalization, routing, and internationalization. Custom handling affects the default routing of your Next.js site and the configuration must be compatible with hosting on Static Web Apps.

Static Web Apps validates that your Next.js site is successfully deployed by adding a page to your site at build time. The page is named public/.swa/health.html, and Static Web Apps verifies the successful startup and deployment of your site by navigating to /.swa/health.html and verifying a successful response. Middleware and custom routing, which includes redirects and rewrites, can affect the access of the /.swa/health.html path, which can prevent Static Web Apps' deployment validation. To configure middleware and routing for a successful deployment to Static Web Apps, follow these steps:

  1. Exclude routes starting with .swa in your middleware.ts (or .js) file in your middleware configuration.

    export const config = {
      matcher: [
        /*
         * Match all request paths except for the ones starting with:
         * - .swa (Azure Static Web Apps)
         */
        '/((?!.swa).*)',
      ],
    }

  2. Configure your redirects in next.config.js to exclude routes starting with .swa

    module.exports = {
        async redirects() {
            return [
              {
                source: '/((?!.swa).*)<YOUR MATCHING RULE>',
                destination: '<YOUR REDIRECT RULE>',
                permanent: false,
              },
            ]
        },
    };

  3. Configure your rewrites in next.config.js to exclude routes starting with .swa

    module.exports = {
        async rewrites() {
            return {
                beforeFiles: [
                    {
                        source: '/((?!.swa).*)<YOUR MATCHING RULE>',
                        destination: '<YOUR REWRITE RULE>',
                    }
                ]
            }
        },
    };


These code snippets exclude paths that start with .swa from being handled by your custom routing or middleware. These rules ensure that the paths resolve as expected during deployment validation.

Enable logging for Next.js

Following best practices for Next.js server API troubleshooting, add logging to the API to catch these errors. Logging on Azure uses Application Insights. In order to preload this SDK, you need to create a custom start up script. To learn more:

Clean up resources

If you're not going to continue to use this application, you can delete the Azure Static Web Apps instance through the following steps:

  1. Open the Azure portal.
  2. Search for my-first-web-static-app from the top search bar.
  3. Select the app name.
  4. Select Delete.
  5. Select Yes to confirm the delete action (this action may take a few moments to complete).

Next steps
