Quickstart: Receive events from Event Hubs using Apache Storm

Apache Storm is a distributed real-time computation system that simplifies reliable processing of unbounded streams of data. This section shows how to use an Azure Event Hubs Storm spout to receive events from Event Hubs. Using Apache Storm, you can split events across multiple processes hosted in different nodes. The Event Hubs integration with Storm simplifies event consumption by transparently checkpointing its progress using Storm's Zookeeper installation, managing persistent checkpoints and parallel receives from Event Hubs.

For more information about Event Hubs receive patterns, see the Event Hubs overview.


Before you start with the quickstart, create an Event Hubs namespace and an event hub. Use the Azure portal to create a namespace of type Event Hubs, and obtain the management credentials your application needs to communicate with the event hub. To create a namespace and an event hub, follow the procedure in this article.

Create project and add code

  1. Use the following command to install the package into the local Maven store. This enables you to add it as a reference in the Storm project in a later step.

    mvn install:install-file -Dfile=target\eventhubs-storm-spout-0.9-jar-with-dependencies.jar -DgroupId=com.microsoft.eventhubs -DartifactId=eventhubs-storm-spout -Dversion=0.9 -Dpackaging=jar

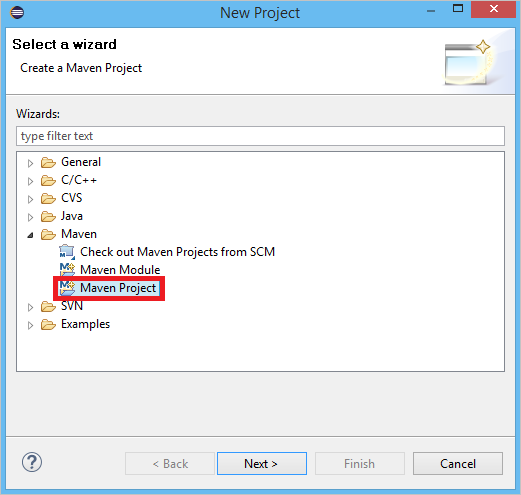

  2. In Eclipse, create a new Maven project (click File, then New, then Project).

    File -> New -> Project

  3. Select Use default Workspace location, then click Next

  4. Select the maven-archetype-quickstart archetype, then click Next

  5. Insert a GroupId and ArtifactId, then click Finish

  6. In pom.xml, add the following dependencies in the <dependency> node.

  7. In the src folder, create a file called Config.properties and copy the following content, substituting the receive rule key and event hub name values:

    eventhubspout.username = ReceiveRule
    eventhubspout.password = {receive rule key}
    eventhubspout.namespace = ioteventhub-ns
    eventhubspout.entitypath = {event hub name}
    eventhubspout.partitions.count = 16
    # if not provided, will use storm's zookeeper settings
    # zookeeper.connectionstring=localhost:2181
    eventhubspout.checkpoint.interval = 10
    eventhub.receiver.credits = 10

    The value for eventhub.receiver.credits determines how many events are batched before releasing them to the Storm pipeline. For the sake of simplicity, this example sets this value to 10. In production, it should usually be set to higher values; for example, 1024. 1 . Create a new class called LoggerBolt with the following code:

    import java.util.Map;
    import org.slf4j.Logger;
    import org.slf4j.LoggerFactory;
    import backtype.storm.task.OutputCollector;
    import backtype.storm.task.TopologyContext;
    import backtype.storm.topology.OutputFieldsDeclarer;
    import backtype.storm.topology.base.BaseRichBolt;
    import backtype.storm.tuple.Tuple;
    public class LoggerBolt extends BaseRichBolt {
        private OutputCollector collector;
        private static final Logger logger = LoggerFactory
        public void execute(Tuple tuple) {
            String value = tuple.getString(0);
            logger.info("Tuple value: " + value);
        public void prepare(Map map, TopologyContext context, OutputCollector collector) {
            this.collector = collector;
            this.count = 0;
        public void declareOutputFields(OutputFieldsDeclarer declarer) {
            // no output fields

    This Storm bolt logs the content of the received events. This can easily be extended to store tuples in a storage service. The HDInsight Storm with Event Hub example uses this same approach to store data into Azure Storage and Power BI.

  8. Create a class called LogTopology with the following code:

    import java.io.FileReader;
    import java.util.Properties;
    import backtype.storm.Config;
    import backtype.storm.LocalCluster;
    import backtype.storm.StormSubmitter;
    import backtype.storm.generated.StormTopology;
    import backtype.storm.topology.TopologyBuilder;
    import com.microsoft.eventhubs.samples.EventCount;
    import com.microsoft.eventhubs.spout.EventHubSpout;
    import com.microsoft.eventhubs.spout.EventHubSpoutConfig;
    public class LogTopology {
        protected EventHubSpoutConfig spoutConfig;
        protected int numWorkers;
        protected void readEHConfig(String[] args) throws Exception {
            Properties properties = new Properties();
            if (args.length > 1) {
                properties.load(new FileReader(args[1]));
            } else {
            String username = properties.getProperty("eventhubspout.username");
            String password = properties.getProperty("eventhubspout.password");
            String namespaceName = properties
            String entityPath = properties.getProperty("eventhubspout.entitypath");
            String zkEndpointAddress = properties
                    .getProperty("zookeeper.connectionstring"); // opt
            int partitionCount = Integer.parseInt(properties
            int checkpointIntervalInSeconds = Integer.parseInt(properties
            int receiverCredits = Integer.parseInt(properties
                    .getProperty("eventhub.receiver.credits")); // prefetch count
                                                                // (opt)
            System.out.println("Eventhub spout config: ");
            System.out.println("  partition count: " + partitionCount);
            System.out.println("  checkpoint interval: "
                    + checkpointIntervalInSeconds);
            System.out.println("  receiver credits: " + receiverCredits);
            spoutConfig = new EventHubSpoutConfig(username, password,
                    namespaceName, entityPath, partitionCount, zkEndpointAddress,
                    checkpointIntervalInSeconds, receiverCredits);
            // set the number of workers to be the same as partition number.
            // the idea is to have a spout and a logger bolt co-exist in one
            // worker to avoid shuffling messages across workers in storm cluster.
            numWorkers = spoutConfig.getPartitionCount();
            if (args.length > 0) {
                // set topology name so that sample Trident topology can use it as
                // stream name.
        protected StormTopology buildTopology() {
            TopologyBuilder topologyBuilder = new TopologyBuilder();
            EventHubSpout eventHubSpout = new EventHubSpout(spoutConfig);
            topologyBuilder.setSpout("EventHubsSpout", eventHubSpout,
                    .setBolt("LoggerBolt", new LoggerBolt(),
            return topologyBuilder.createTopology();
        protected void runScenario(String[] args) throws Exception {
            boolean runLocal = true;
            StormTopology topology = buildTopology();
            Config config = new Config();
            if (runLocal) {
                LocalCluster localCluster = new LocalCluster();
                localCluster.submitTopology("test", config, topology);
            } else {
                StormSubmitter.submitTopology(args[0], config, topology);
        public static void main(String[] args) throws Exception {
            LogTopology topology = new LogTopology();

    This class creates a new Event Hubs spout, using the properties in the configuration file to instantiate it. It is important to note that this example creates as many spouts tasks as the number of partitions in the event hub, in order to use the maximum parallelism allowed by that event hub.
