Threat Modeling Tool feature overview

The Threat Modeling Tool can help you with your threat modeling needs. For a basic introduction to the tool, see Get started with the Threat Modeling Tool.

Note

The Threat Modeling Tool is updated frequently, so check this guide often to see our latest features and improvements.

To open a blank page, select Create A Model.

To see the features currently available in the tool, use the threat model created by our team in the Get started example.

Navigation

Before we discuss the built-in features, let's review the main components found in the tool.

Menu items

The experience is similar to other Microsoft products. Let's review the top-level menu items.

Label	Details
File	Open, save, and close files Sign in and sign out of OneDrive accounts. Share links (view and edit). View file information. Apply a new template to existing models.
Edit	Undo and redo actions, as well as copy, paste, and delete.
View	Switch between Analysis and Design views. Open closed windows (for example, stencils, element properties, and messages). Reset layout to default settings.
Diagram	Add and delete diagrams, and move through tabs of diagrams.
Reports	Create HTML reports to share with others.
Help	Find guides to help you use the tool.

The symbols are shortcuts for the top-level menus:

Symbol	Details
Open	Opens a new file.
Save	Saves the current file.
Design	Opens the Design view, where you can create models.
Analyze	Shows generated threats and their properties.
Add diagram	Adds a new diagram (similar to new tabs in Excel).
Delete diagram	Deletes the current diagram.
Copy/Cut/Paste	Copies, cuts, and pastes elements.
Undo/Redo	Undoes and redoes actions.
Zoom in/Zoom out	Zooms in and out of the diagram for a better view.
Feedback	Opens the MSDN Forum.

Canvas

The canvas is the space where you drag and drop elements. Drag and drop is the quickest and most efficient way to build models. You can also right-click and select items from the menu to add generic versions of elements, as shown:

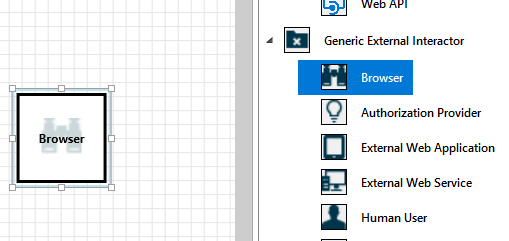

Drop the stencil on the canvas

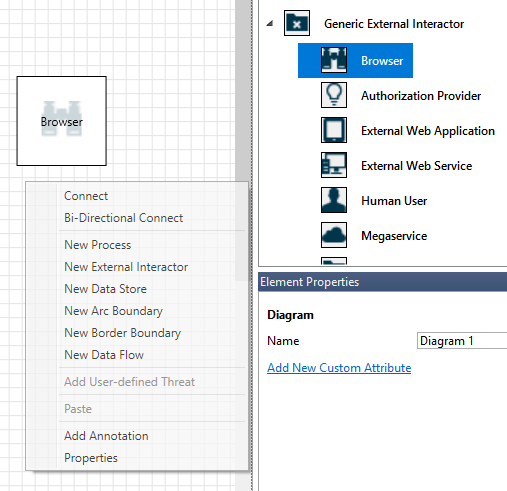

Select the stencil

Stencils

Based on the template you select, you can find all the stencils available to use. If you can't find the right elements, use another template. Or you can modify a template to fit your needs. Generally, you can find a combination of categories like these:

Stencil name	Details
Process	Applications, browser plug-ins, threads, virtual machines
External interactor	Authentication providers, browsers, users, web applications
Data store	Cache, storage, configuration files, databases, registry
Data flow	Binary, ALPC, HTTP, HTTPS/TLS/SSL, IOCTL, IPSec, named pipe, RPC/DCOM, SMB, UDP
Trust line/Border boundary	Corporate networks, internet, machine, sandbox, user/kernel mode

Notes/messages

Component	Details
Messages	Internal tool logic that alerts users whenever there's an error, such as no data flows between elements.
Notes	Manual notes are added to the file by engineering teams throughout the design and review process.

Element properties

Element properties vary by the elements you select. Apart from trust boundaries, all other elements contain three general selections:

Element property	Details
Name	Useful for naming your processes, stores, interactors, and flows so that they're easily recognized.
Out of scope	If selected, the element is taken out of the threat-generation matrix (not recommended).
Reason for out of scope	Justification field to let users know why out of scope was selected.

Properties are changed under each element category. Select each element to inspect the available options. Or you can open the template to learn more. Let's review the features.

Welcome screen

When you open the app, you see the Welcome screen.

Open a model

Hover over Open A Model to reveal two options: Open From This Computer and Open From OneDrive. The first option opens the File Open screen. The second option takes you through the sign-in process for OneDrive. After successful authentication, you can select folders and files.

Feedback, suggestions, and issues

When you select Feedback, Suggestions and Issues, you go to the MSDN Forum for SDL Tools. You can read what other people are saying about the tool, including workarounds and new ideas.

Design view

When you open or create a new model, the Design view opens.

Add elements

You can add elements on the grid in two ways:

• Drag and drop: Drag the desired element to the grid. Then use the element properties to provide additional information.
• Right-click: Right-click anywhere on the grid, and select items from the drop-down menu. A generic representation of the element you select appears on the screen.

Connect elements

You can connect elements in two ways:

• Drag and drop: Drag the desired dataflow to the grid, and connect both ends to the appropriate elements.
• Click + Shift: Click the first element (sending data), press and hold the Shift key, and then select the second element (receiving data). Right-click, and select Connect. If you use a bi-directional data flow, the order is not as important.

Properties

To see the properties that can be modified on the stencils, select the stencil and the information populates accordingly. The following example shows before and after a Database stencil is dragged onto the diagram:

Before

After

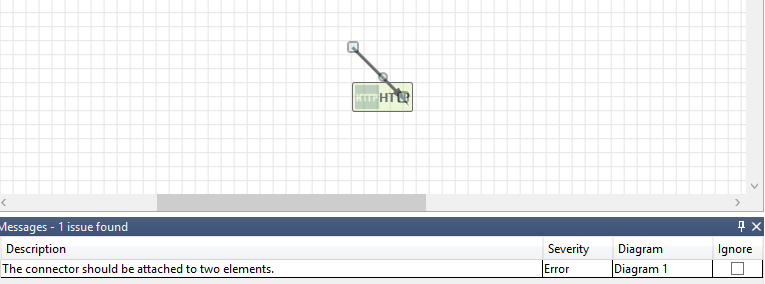

Messages

If you create a threat model and forget to connect data flows to elements, you get a notification. You can ignore the message, or you can follow the instructions to fix the issue.

Notes

To add notes to your diagram, switch from the Messages tab to the Notes tab.

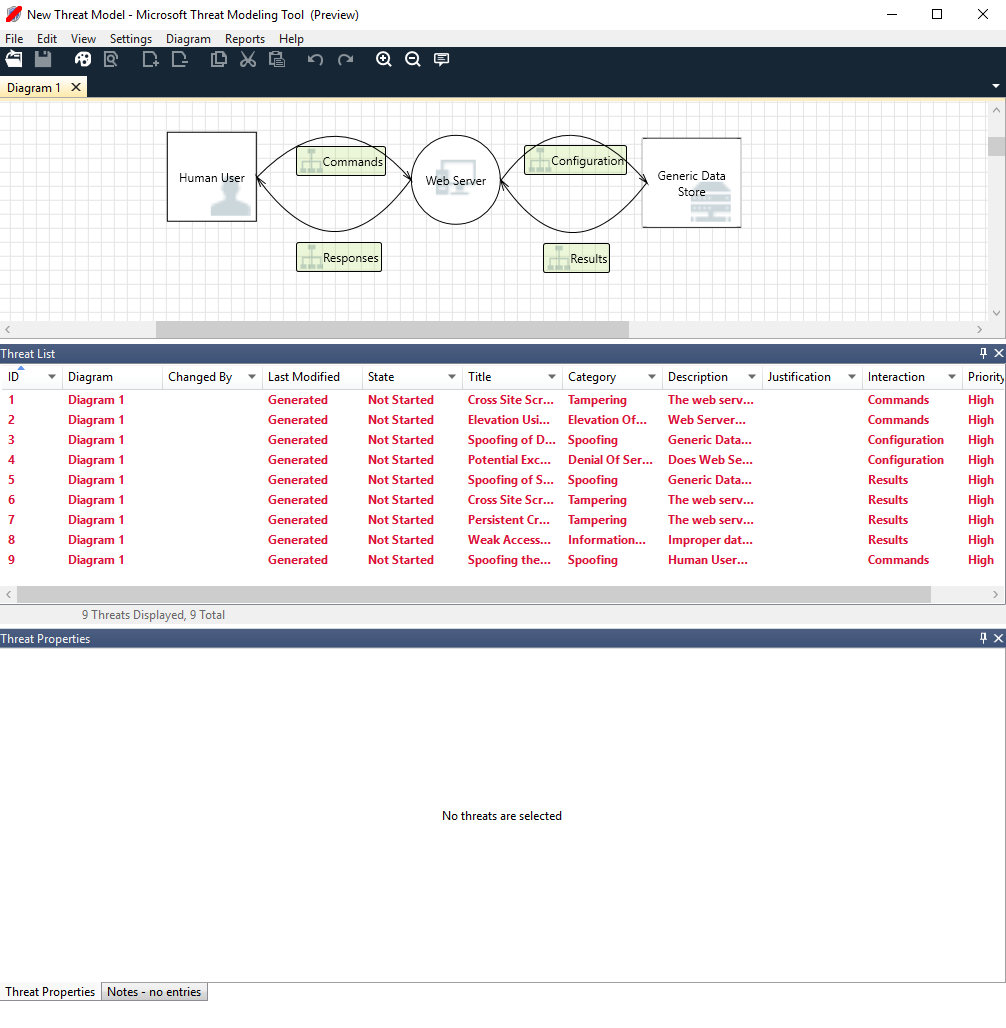

Analysis view

After you build your diagram, select the Analysis symbol (the magnifying glass) on the shortcuts toolbar to switch to the Analysis view.

Generated threat selection

When you select a threat, you can use three distinct functions:

Feature	Information
Read indicator	The threat is marked as read, which helps you keep track of the items you reviewed.

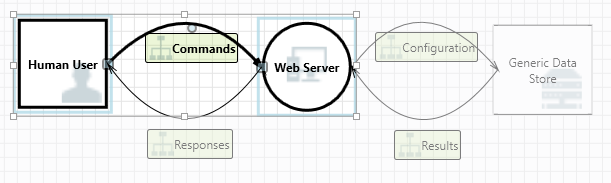

Interaction focus	Interaction in the diagram that belongs to a threat is highlighted.
Threat properties	Additional information about the threat appears in the Threat Properties window.

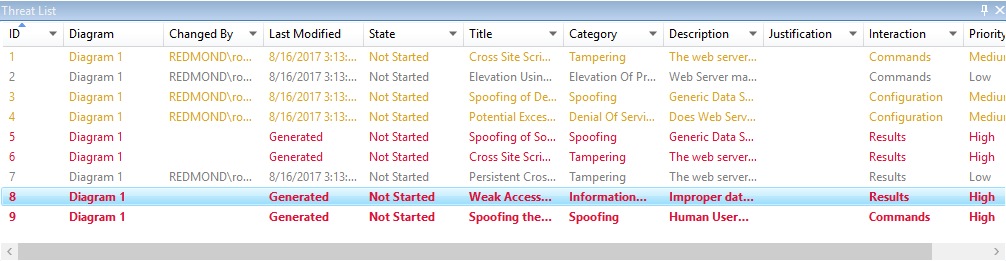

Priority change

You can change the priority level of each generated threat. Different colors make it easy to identify high-, medium-, and low-priority threats.

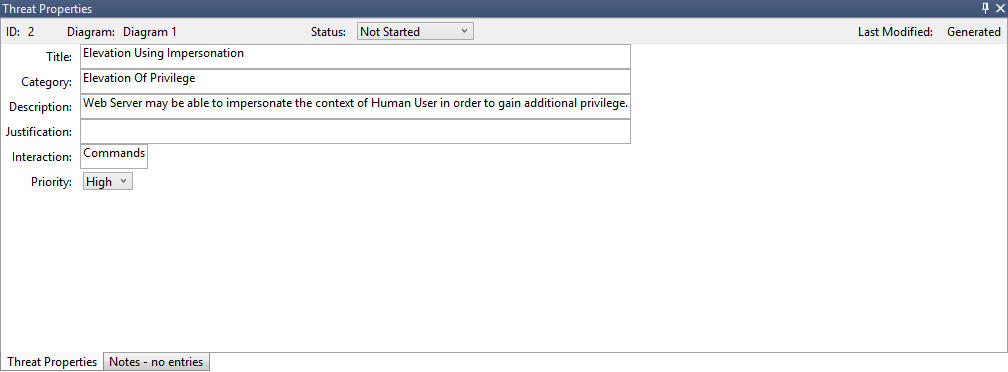

Threat properties editable fields

As seen in the preceding image, you can change the information generated by the tool. You can also add information to certain fields, such as justification. These fields are generated by the template. If you need more information for each threat, you can make modifications.

Reports

After you finish changing priorities and updating the status of each generated threat, you can save the file and/or print out a report. Go to Report > Create Full Report. Name the report, and you should see something similar to the following image:

Next steps

• Send your questions, comments and concerns to tmtextsupport@microsoft.com. Download the Threat Modeling Tool to get started.
• To contribute a template for the community, go to our GitHub page.
