APPLIES TO: Generally available in Business Central 2025 release wave 1 (version 26.x).

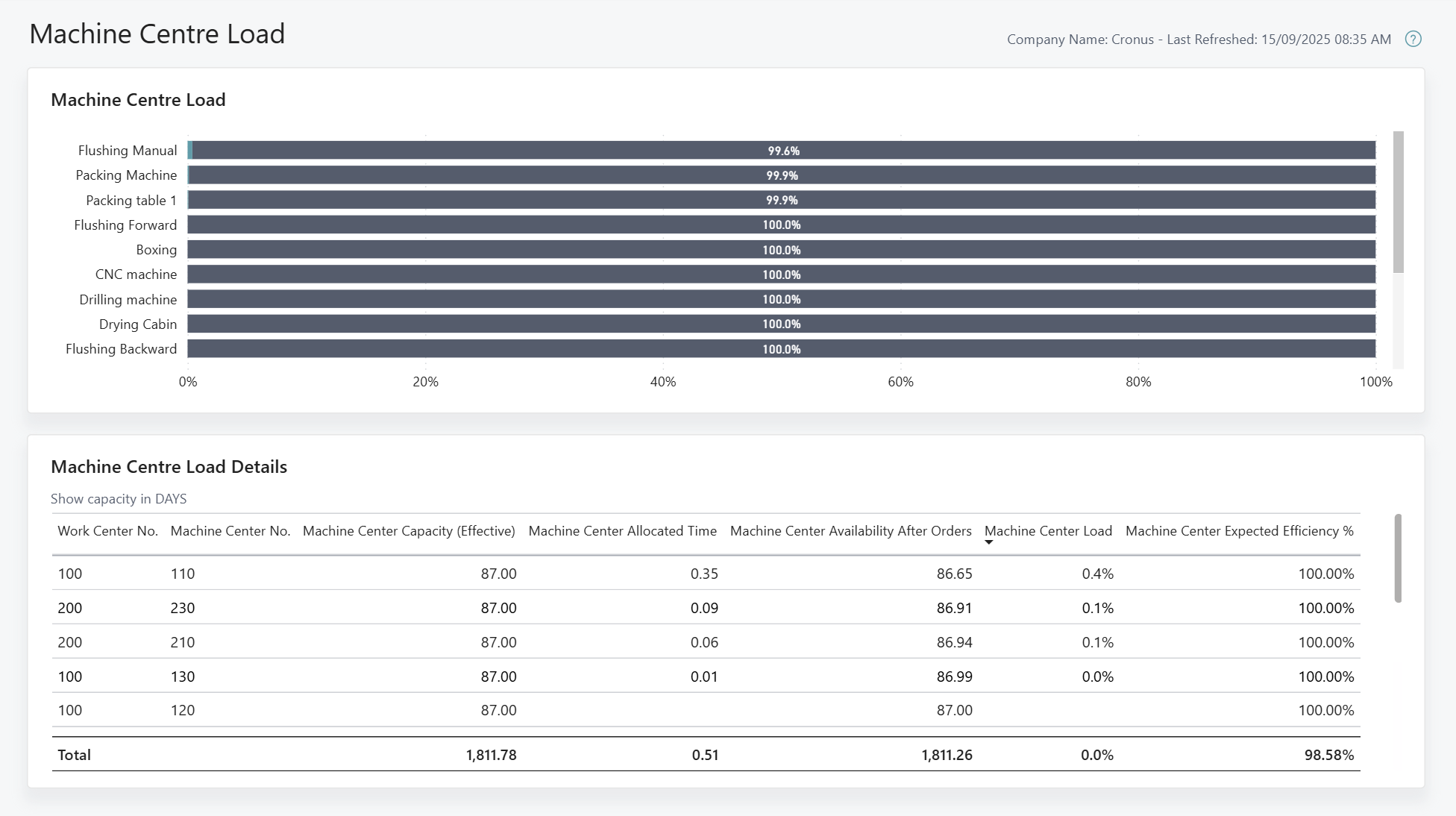

The Machine Centre Load report measures the load and the allocated capacity of each machine centre. Use this report to ensure that machine centres aren't overloaded.
Use the report
The report is meant for manufacturing managers and supervisors.
Manufacturing managers use this report to ensure that loads on machine centres don't exceed their available capacity. By analysing the load percentage and allocated time, you can identify overloaded machine centres and take steps to reduce the workload. For example, you might adjust the production schedule or allocate more resources to a particular machine centre. Additionally, by monitoring the machine centre load, you can ensure room for contingencies in cases where a machine centre is loaded to 100%.
Production supervisors use this report to analyse the load percentage and allocated time for machine centre loads and report them to the manufacturing manager. This information helps ensure that the workload is distributed evenly across all machine centres so production runs smoothly.
Key performance indicators (KPIs)
The Machine Centre Load report includes the following KPIs and measures:
- Machine Centre Capacity Effective
- Machine Centre Allocated Time
- Machine Centre Availability After Orders
- Machine Centre Load
- Machine Centre Expected Efficiency %
Click on the link for a KPI to learn more about what it means, how it is calculated, and what data was used in the calculations.
Tip
You can easily track the KPIs that the Power BI reports display against your business objectives. To learn more, go to Track your business KPIs with Power BI metrics.
Data used in the report
The report uses data from the following tables in Business Central:
- Calendar Entry
- Prod Order Capacity Need
- Machine Centre
Try the report
Try the report here: Machine Centre Load
Tip
If you hold down the CTRL key while you select the report link, the report opens on a new browser tab. In this way, you can stay on the current page while you explore the report on the other browser tab.
