Microsoft 365 Copilot connectors overview for Microsoft Search

Microsoft Search indexes all your Microsoft 365 data to make it searchable for users. With Microsoft 365 Copilot connectors, your organization can index third-party data, ensuring it appears in Microsoft Search and Microsoft 365 Copilot results. This feature enhances the range of content sources searchable within your Microsoft 365 productivity apps and the broader Microsoft ecosystem. The third-party data can be hosted on-premises or in the public or private clouds. Microsoft 365 Copilot connectors respect the source permissions configured in your content source. As a result, users can only access content for which they have appropriate permissions

Note

For details about how to build a Microsoft 365 Copilot connector that is integrated with Microsoft 365 Copilot, see Microsoft 365 Copilot for Microsoft 365 Copilot connectors.

The Microsoft 365 Copilot connectors setup process for the Microsoft Search experience is explained in the following video.

This article is intended to help Microsoft 365 administrators locate the resources that are available to answer the following questions:

• Microsoft 365 Copilot connectors architecture
• What data sources can be connected to Microsoft Search and Microsoft 365 Copilot?
• How do I manage my connections?
• What are the license requirements and terms of use for Microsoft 365 Copilot connectors?
• How do I customize and configure search results?
• How do I search my connector data from a custom application?
• How do I customize search results?

Architecture

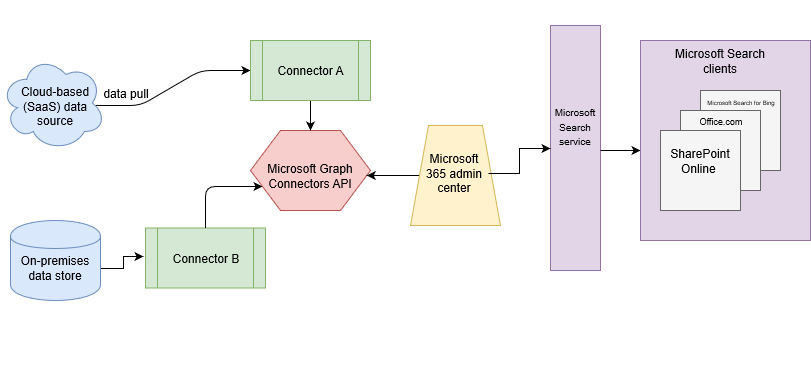

The following architectural diagram of the Microsoft Graph platform shows how Microsoft 365 Copilot connector content flows through content indexing to user results in Microsoft Search clients. The rest of this section explains each of the key building blocks in the diagram.

Microsoft 365 Copilot connectors can pull data from cloud-based (SaaS) data sources and on-premises data stores. The above diagram shows connections to only two data sources, but you can add connections to up to ten sources per tenant.

The Microsoft 365 Copilot connectors API instantiates one connection per data source. Then, the API indexes and stores the data. Established connections interact with Microsoft Search and Microsoft 365 Copilot so that users can get search results.

You can use the Microsoft 365 admin center to set up and manage any of the Microsoft 365 Copilot connectors. The admin center has a simple user interface that makes it easy to establish a connection to your data source and monitor connection status and utilization.

To create a connection to a data source, admins need authenticated access to the data and the entire content repository. The data is fed to the Microsoft 365 Copilot connector service for indexing.

What data sources can be connected to Microsoft Search and Microsoft 365 Copilot?

Microsoft provides more than 30 Microsoft 365 Copilot connectors, and our ecosystem partners have created over 100 more connectors. You can also build your own connector.

Microsoft 365 Copilot connectors

You can connect to the many popular data sources using connectors created by Microsoft.

The Microsoft 365 Copilot connectors gallery contains a brief description of each of these connectors. If you're ready to connect one of these data sources to your tenant, be sure to read the Setup overview and any other articles in the setup connectors by Microsoft section that apply to your data source.

Microsoft 365 Copilot connectors by our partners

The Microsoft 365 Copilot connectors gallery includes a brief description of each of the connectors created by our partners and a link to each partner's website. To learn more, contact each partner directly.

Build your own Microsoft 365 Copilot connector

You can build your own connector if you prefer. For developer documentation about building connectors, see Microsoft 365 Copilot connectors overview. For a quick start on building connectors, see Build your first custom Microsoft 365 Copilot connector.

How do I manage my connections?

You can manage your connections on the connectors tab in the Microsoft 365 admin center. For more information about managing connections, see Monitor your connections.

What are the license requirements and terms of use for connectors?

For users in your organization to view data from connectors in their search results, you need a valid Microsoft 365 or Office 365 license.

To learn more, see License requirements and pricing and Terms of use.

How do I customize and configure search results?

There are many ways to customize and configure search results. To learn more, see the following articles:

• Manage search verticals and result types
• Manage connector results in All vertical
• Manage search result layouts
• Manage result cluster
• Manage custom filters

How do I search my connector data from a custom application?

After custom data is indexed, developers can query this data. You can view your data in any application. For more information, see the Overview of the Microsoft Search API in Microsoft Graph.

What are the limitations of Microsoft 365 Copilot connectors?

• When you publish a Microsoft 365 Copilot connector, it can take a few minutes for the connection to be created. During that time, the connection shows its status as 'Publishing'.

• There are limited editing capabilities that are supported after publishing a connection. If you need to change any details other than the ones enabled, you must delete and recreate the connection.
