Win32 sample app

Article
29/01/2025

The WebView2APISample app demonstrates how to use the WebView2 control and WebView2 APIs to add features to a Win32 C++ app. This is the main Win32 sample, and has test webpages for the latest features and APIs, and hundreds of menuitems to test various APIs.

Sample name: WebView2APISample
Repo directory: WebView2APISample
Solution file: WebView2Samples.sln (located in the parent directory, \SampleApps\)
Project name in Solution Explorer: WebView2APISample

WebView2APISample embeds a WebView2 control within a Win32 native application.

This sample uses C++ and HTML/CSS/JavaScript in the WebView2 environment.

WebView2APISample showcases a selection of WebView2's event handlers and API methods that allow a native Win32 application to directly interact with a WebView2 control and vice versa.

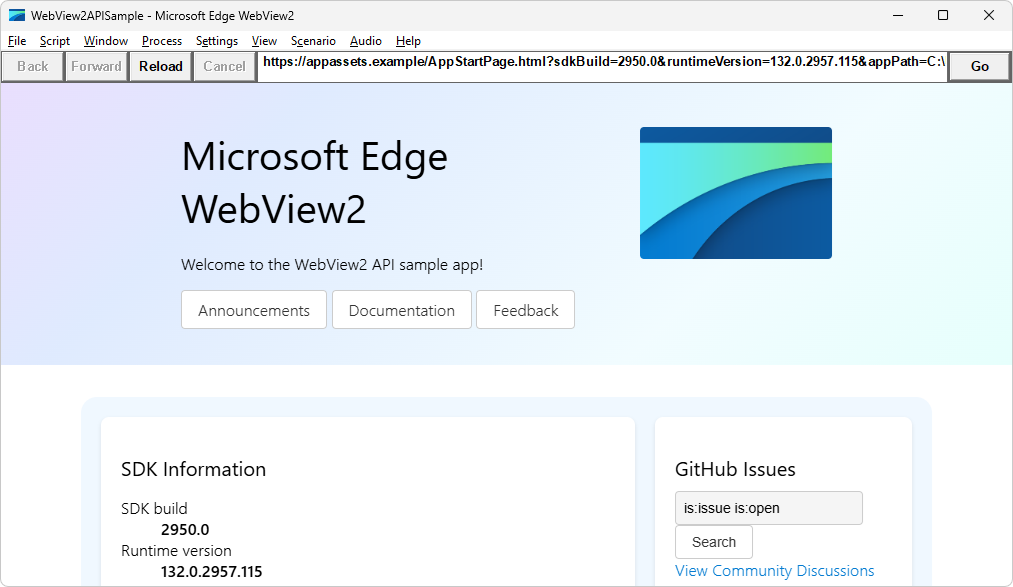

WebView2APISample app running

This sample and its solution file are unique: it contains a copy of other samples, in Solution Explorer.

WebView2APISample is a hybrid application built with the Microsoft Edge WebView2 control; that is, this app combines a native side and a browser web app side. See Hybrid app approach in Introduction to Microsoft Edge WebView2.

The running WebView2APISample app window shows the WebView2 SDK version and also the WebView2 Runtime version and path. There are many useful menus and menuitems to test and demonstrate the WebView2 APIs.

Sequence of articles

To start learning WebView2, use this suggested sequence of articles and sample projects:

Get this WebView2APISample to build and run, using the present article, even if your own app is for a different platform.
If you're most interested in a platform other than Win32, use the Sample article for your platform; see Sample apps.
Use the Get Started article for the platform you're interested in; see Getting Started tutorials.

Step 1: Install Visual Studio 2022

Press the Windows key, enter Visual Studio 2022, and then click Open.

The Visual Studio Open recent dialog opens.

Microsoft Visual Studio Code is not supported for this sample.
If Visual Studio 2022 isn't installed, go to Visual Studio 2022 and then use the Download Visual Studio combo button.

Continue with the next step below, Step 2: Clone the WebView2Samples repo.

Older versions of Visual Studio

Visual Studio 2019 and 2017 are also supported.

Visual Studio 2019

This sample was created with Visual Studio 2019, as a Visual Studio 2019 project. To open this sample's project as-is, you can use Visual Studio 2019.

Visual Studio 2017

If you want to open this sample by using Visual Studio 2017:

Open the solution in Visual Studio 2017.
Change the project's Platform Toolset in Project Properties > Configuration properties > General > Platform Toolset.
You might also need to install a recent Windows SDK on your machine.

Step 2: Clone the WebView2Samples repo

Press Windows + E.

A File Explorer window opens.
Navigate to where you cloned or plan to clone the WebView2Samples repo.

Example path:

C:\Users\localAccount\GitHub\WebView2Samples
If not done already, clone the WebView2Samples repo to your local drive. In a separate window or tab, see Clone the WebView2Samples repo in Set up your Dev environment for WebView2. Follow the steps in that section, and then return to this page and continue below.
If not opened already, open a git bash command prompt: Press the Windows key, and then type git bash.

Pull commits
Switch to the cloned repo directory:
```
cd C:/Users/localAccount/GitHub/WebView2Samples`
```
Substitute the path where you cloned the WebView2Samples repo to.
Pull the latest commits to your local copy of the repo:
```
git pull
```
Create a working branch
Create a working branch and switch to it:
```
git checkout -b test
```
Returns: Switched to branch 'test'

You are now free to modify the code in your working branch, without altering the code that's in the "main" branch of the repo. Later you might want to switch back to the "main" branch, for example to pull new commits, or create a different branch based off the "main" branch.

Step 3: Open the solution in Visual Studio

Opening and building the sample will modify the sample. Best practice is to avoid changing the code that's in the "main" branch, by creating and switching to a working branch, which you can do from within Visual Studio.

Press the Windows key, enter Visual Studio 2022, and then click Open.

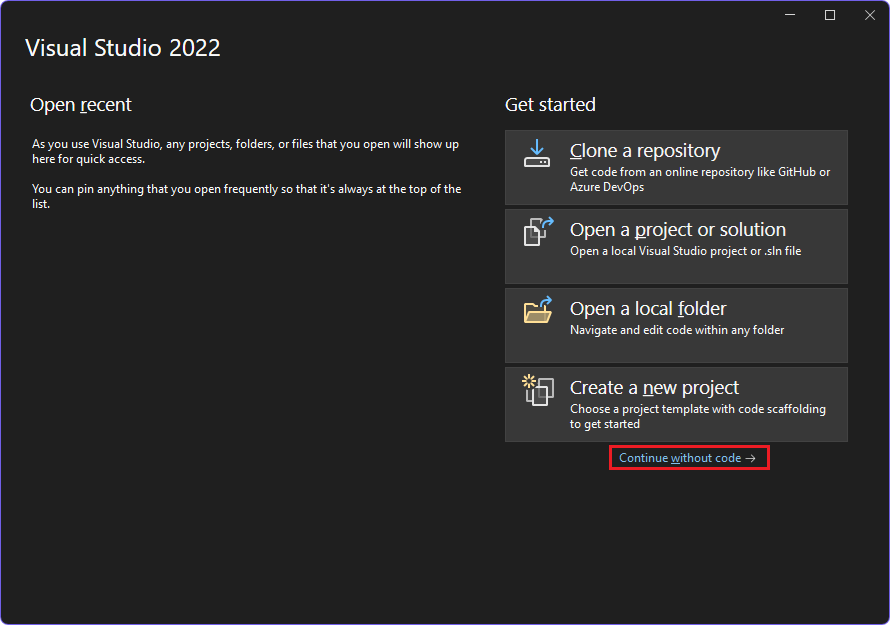

The Visual Studio Open recent dialog opens:
Click Continue without code, in the lower right.
In Visual Studio 2022, select File > Open > Project/Solution.

The Open Project/Solution dialog opens.
Navigate to the WebView2Samples\SampleApps\WebView2Samples.sln file, and then click the Open button.

Example path:
```
C:\Users\localAccount\GitHub\WebView2Samples\SampleApps\WebView2Samples.sln
```
Unlike some other samples, there's not a dedicated .sln file in the sample repo directory that contains this sample's Readme. Instead, the .sln file for this sample (including other sample projects as well) is in the parent directory.

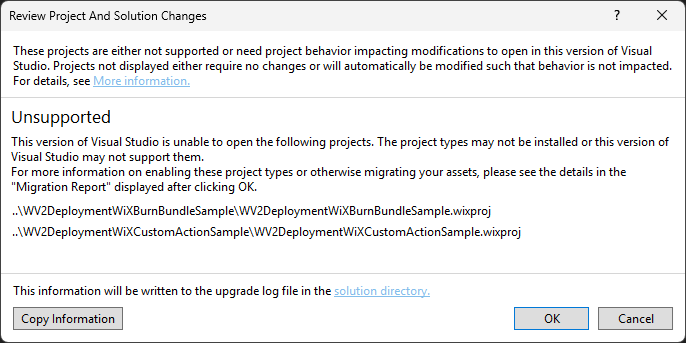

The Review Project and Solution Changes dialog might open:
Click the OK button.

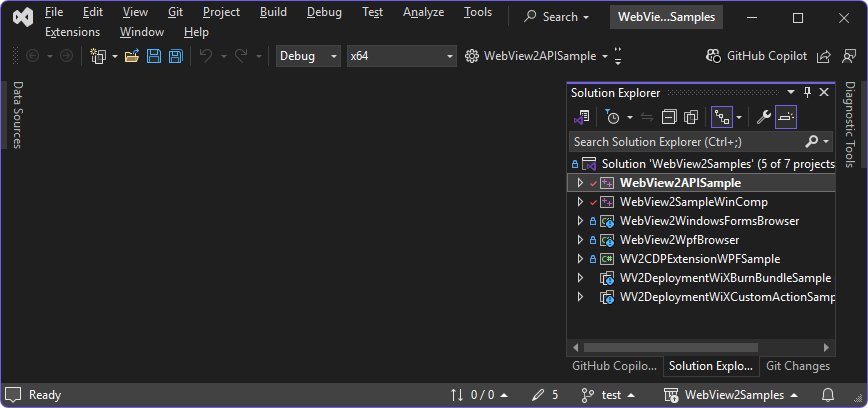

The solution opens in Visual Studio:

Step 4: Update the toolset

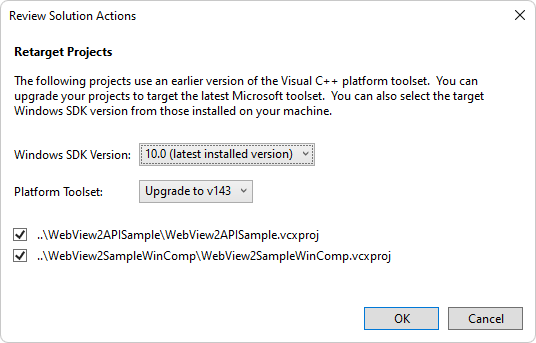

Continuing from above: The Review Solution Actions: Retarget Projects dialog might open:

The "Review Solution Actions" dialog

This screenshot shows:

Windows SDK Version: 10.0 (latest installed version)
Platform Toolset: Upgrade to v143

Those options are listed for these projects:

WebView2APISample.vcxproj - the present, main sample.
WebView2APISampleWinComp.vcxproj - a different sample.

If that dialog opens, click the OK button.

The Output pane in Visual Studio shows results, such as:

Upgrading project 'WebView2APISample'...
Configuration 'Debug|ARM64': changing Platform Toolset to 'v143' (was 'v142').
Configuration 'Debug|Win32': changing Platform Toolset to 'v143' (was 'v142').
Configuration 'Debug|x64': changing Platform Toolset to 'v143' (was 'v142').
Configuration 'Release|Win32': changing Platform Toolset to 'v143' (was 'v142').
Configuration 'Release|ARM64': changing Platform Toolset to 'v143' (was 'v142').
Configuration 'Release|x64': changing Platform Toolset to 'v143' (was 'v142').
Upgrading project 'WebView2SampleWinComp'...
Configuration 'Debug|Win32': changing Platform Toolset to 'v143' (was 'v142').
Configuration 'Debug|x64': changing Platform Toolset to 'v143' (was 'v142').
Configuration 'Release|Win32': changing Platform Toolset to 'v143' (was 'v142').
Configuration 'Release|x64': changing Platform Toolset to 'v143' (was 'v142').
Retargeting End: 2 completed, 0 failed, 0 skipped

In the browser, a Migration Report page opens, such as: file:///C:/Users/localAccount/GitHub/WebView2Samples/SampleApps/UpgradeLog.htm

Step 5: Update .NET

Continuing from above: In Visual Studio, in Solution Explorer in the upper right, the message might appear: This project is targeting a version of .NET which is not installed.

If you get that message, click the Install link next to the message.

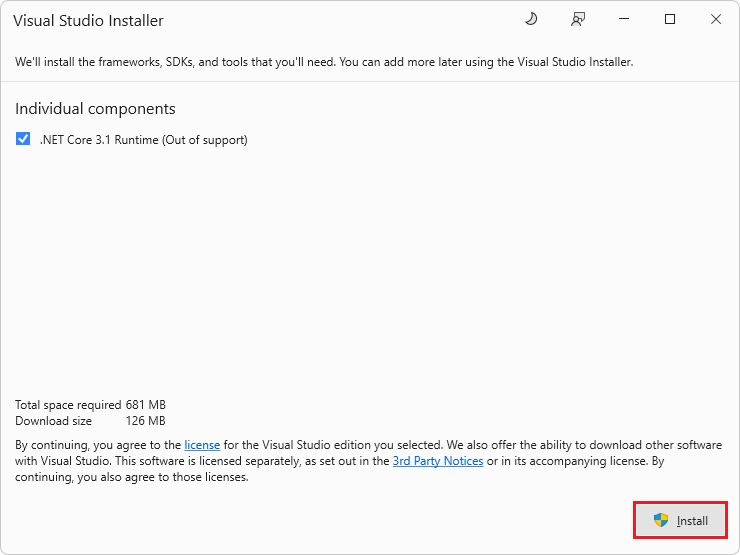

The Visual Studio Installer dialog opens:
Click the Install button.

The User Account Control dialog opens.
Click the Yes button.

The Visual Studio Installer dialog shows progress for downloading and installing, and then shows The installation has completed.
Click the Close button.

The Visual Studio Installer dialog closes.

Solution Explorer is displayed without the "not installed" message.

Step 6: Install the C++ workload for Visual Studio

Continuing from above: If prompted to install workloads when you try to build the project:

In Visual Studio, select Tools > Get Tools and Features.

The Visual Studio Installer dialog opens, and then the Modifying dialog opens.
In the Workloads tab, select the Desktop development with C++ card, so that a checkmark appears on it.
In Installation details on the right, expand Desktop development with C++.
Click the Update or Install button.

The Installer closes.

Step 7: Build and run using older SDK

At the top of Visual Studio, set the build target, as follows:

In the Solution Configurations dropdown list, select Debug.
In the Solution Platforms dropdown list, select x64.

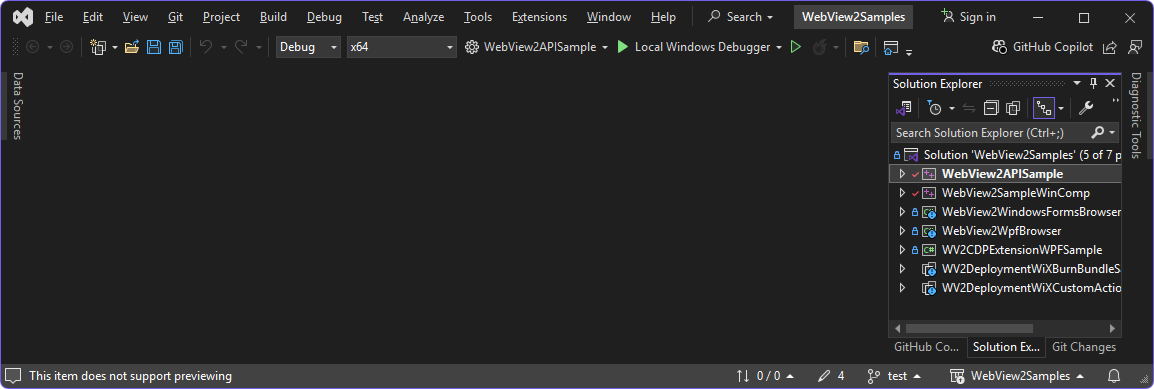

In Solution Explorer, right-click the WebView2APISample project, and then select Build.

This builds the project file SampleApps/WebView2APISample/WebView2APISample.vcxproj.
Select Debug > Start Debugging (F5).

The WebView2APISample app window opens:
Close the sample app window.

Step 8: Update the prerelease WebView2 SDK

The repo version of this sample has a Prerelease version of the WebView2 SDK installed. Below, you'll update the WebView2 SDK to the latest Prerelease version (unless the latest Prerelease SDK is installed already). A Prerelease SDK supports the latest experimental APIs and the latest "Stable in Prerelease" APIs.

Check the version number of the Prerelease SDK that's in the repo's copy of the WebView2APISample app at GitHub: see packages.config.

For example:

XML

<package id="Microsoft.Web.WebView2" version="1.0.2950-prerelease" targetFramework="native" />
<package id="Microsoft.Windows.ImplementationLibrary" version="1.0.220201.1" targetFramework="native" />

Check what's the latest Prerelease version number, at Release Notes for the WebView2 SDK.
In Visual Studio, in Solution Explorer, right-click the WebView2APISample project (not the solution node above it), and then select Manage NuGet Packages.

The NuGet Package Manager panel opens in Visual Studio.

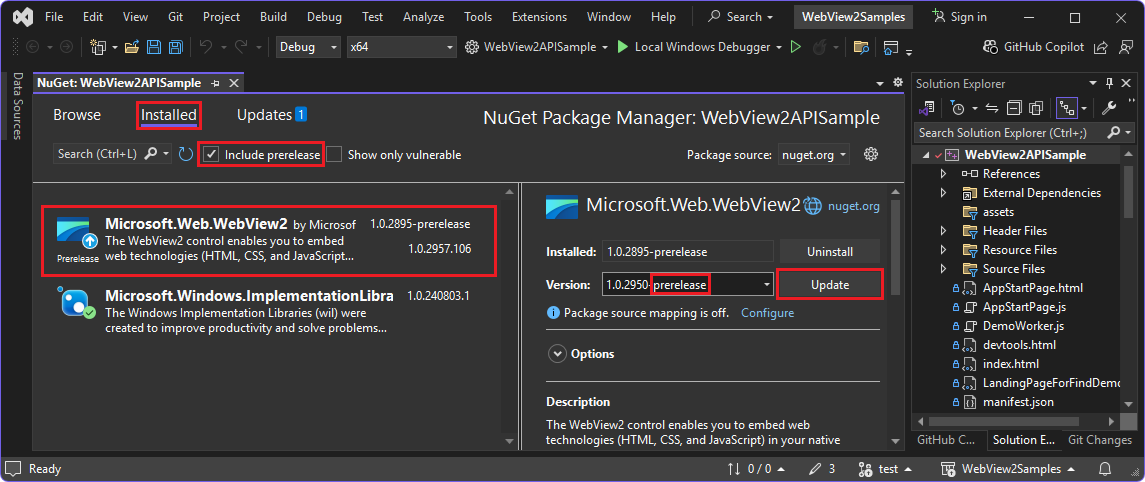

In the NuGet Package Manager, click the Installed tab:
To the right of the Search text box, select the Include prerelease check box.
On the left, select Microsoft.Web.WebView2.
On the right, in the Version dropdown list, select the latest -prerelease version.
To the right of the Version dropdown list, click the Update button.

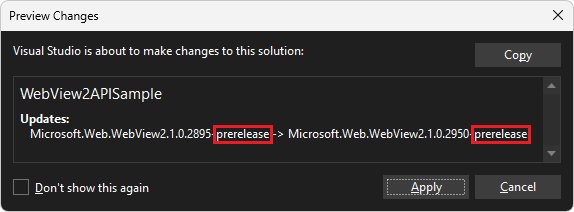

The Preview Changes dialog opens:
Click the Apply button.
Repeat the above steps to update the Microsoft.Windows.Implementation.Library, but you can select the latest Release rather than latest Prerelease.

The latest prerelease version of the WebView2 SDK is now installed for this project.

Step 9: Build and run using updated SDK

Assuming you updated the Prerelease version of the WebView2 SDK, build and run the sample again:

In Solution Explorer, right-click the WebView2APISample project, and then select Build.
Select Debug > Start Debugging (F5).

The WebView2APISample app window opens:
Close the sample app window.

You obtained, updated, built, and ran the Win32 sample app.

Step 10: Study the sample

The sections below describe how the sample works.

View the project files

These steps assume you obtained, updated, built, and ran the Win32 sample app per the above steps.

The WebView2APISample sample and project is the main Win32 sample.

Open WebView2Samples.sln in Visual Studio.

Example path:
```
C:\Users\localAccount\GitHub\WebView2Samples\SampleApps\WebView2Samples.sln
```
This solution file contains the main sample (WebView2APISample) and other samples as well:

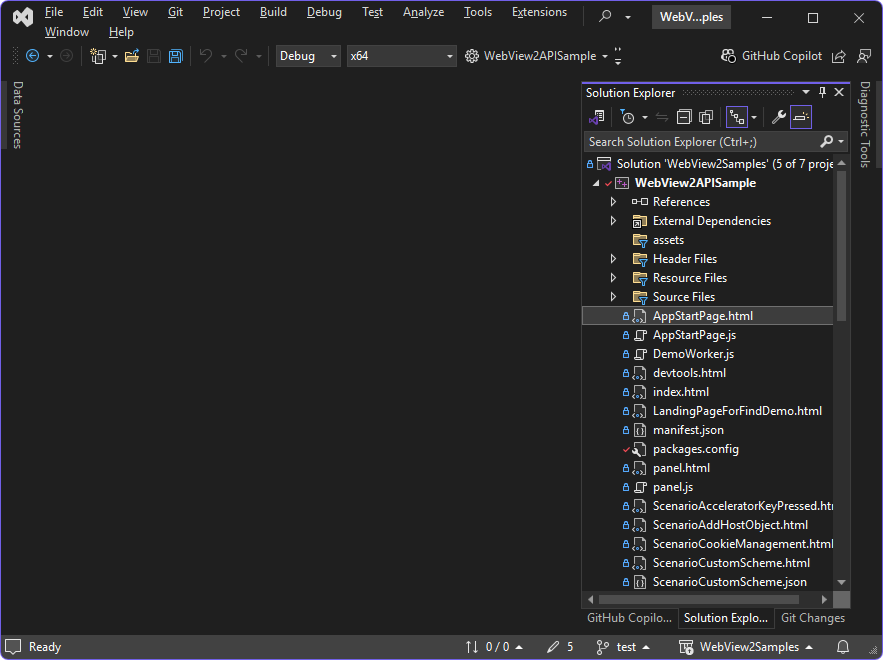

In Solution Explorer, expand the WebView2APISample project:

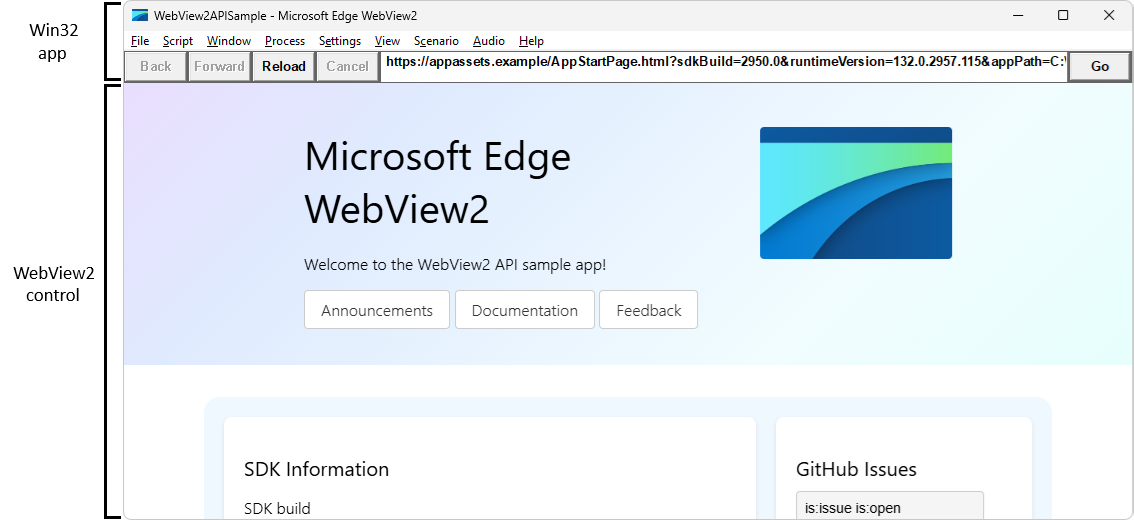

Hybrid app architecture

The WebView2APISample app is an example of a hybrid application, with a Win32 native part and a WebView part:

Hybrid app

The Win32 part can directly access native Windows APIs. The top part of the WebView2APISample app is a Win32 component written in C++. This part of the application takes in UI inputs from the user and uses them to control the WebView.
The WebView is a container for standard web technologies (HTML, CSS, and JavaScript). The main part of the WebView2APISample app is a WebView that can be repurposed using standard web technologies (HTML/CSS/JavaScript). The WebView can be navigated to websites or local content.

This hybrid approach allows you to create and iterate faster using web technologies, while still being able to take advantage of native functionality. The WebView2APISample app demonstrates how the Win32 component and the WebView component can interact with each other.

This sample app has over 100 menuitems, which demonstrate many WebView2 APIs in the Win32/C++ framework. The following sections focus on basics of hybrid app implementation.

Project Files

This section briefly explains some key files within the repository. The WebView2APISample app is divided vertically into components, instead of horizontally into layers. Each component implements the whole workflow of a category of example features, from listening for menu commands, to calling WebView API methods to implement them.

App.cpp

This is the top-level file that runs the WebView2APISample app. It reads command-line options, sets up the process environment, and handles the app's threading model.

This file implements the application window, by doing the following:

Set up all the Win32 controls.
Initialize the WebView Environment and the WebView.
Add event handlers to the WebView and create all the components that handle various features of the application.

The AppWindow class handles commands from the sample app's Window menu.

This file is described in more detail in Key functions in AppWindow.cpp, below.

This component handles commands from the File menu (except for Exit), as well as the DocumentTitleChanged event.

This component handles commands from the Script menu, which involve interacting with the WebView by injecting JavaScript, posting WebMessages, adding native objects to the webpage, or using the DevTools protocol to communicate with the webpage.

This component handles commands from the Process menu, which involve interaction with the browser's process. It also handles the ProcessFailed event, in case the browser process or one of its render process crashes or is unresponsive.

This component handles commands from the Settings menu. This component is also in charge of copying settings from an old WebView when a new one is created. Most code that interacts with the ICoreWebView2Settings interface is found here.

This component handles commands from the View menu, and any functionality related to sizing and visibility of the WebView. When the app window is resized, minimized, or restored, ViewComponent will resize, hide, or show the WebView in response. It also responds to the ZoomFactorChanged event.

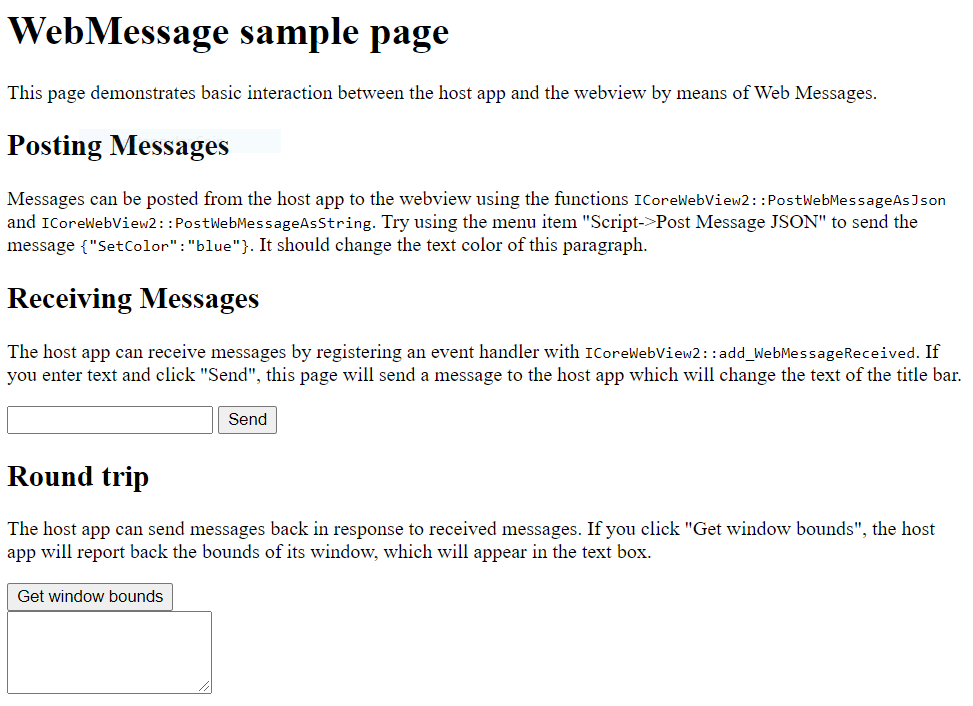

The ScenarioWebMessage component is created when you select the Scenario > Web Messaging menu item. This component implements an example application with a C++ part and an HTML + JavaScript part, which communicate with each other by asynchronously posting and receiving messages.

This component is described in more detail in ScenarioWebMessage (.html, .cpp, and .h), below.

This component is created when you select the Scenario > Host Objects menu item. It demonstrates communication between the native app and the HTML webpage by means of host object injection. The interface of the host object is declared in HostObjectSample.idl, and the object itself is implemented in HostObjectSampleImpl.cpp.

Key functions in AppWindow.cpp

AppWindow.cpp implements the application window, by doing the following:

Set up all the Win32 controls.
Initialize the WebView Environment and the WebView.
Add event handlers to the WebView and create all the components that handle various features of the application.

The AppWindow class handles commands from the sample app's Window menu. The following are some of the key functions in AppWindow.cpp.

InitializeWebView()

In AppWindow.cpp, the InitializeWebView() function creates the WebView2 environment by using CreateCoreWebView2EnvironmentWithOptions.

To see these API calls in action, inspect the following code from InitializeWebView():

C++

HRESULT hr = CreateCoreWebView2EnvironmentWithOptions(
    subFolder, nullptr, options.Get(),
    Callback<ICoreWebView2CreateCoreWebView2EnvironmentCompletedHandler>(
        this, &AppWindow::OnCreateEnvironmentCompleted)
        .Get());
if (!SUCCEEDED(hr))
{
    if (hr == HRESULT_FROM_WIN32(ERROR_FILE_NOT_FOUND))
    {
        MessageBox(
            m_mainWindow,
            L"Couldn't find Edge installation. "
            "Do you have a version installed that's compatible with this "
            "WebView2 SDK version?",
            nullptr, MB_OK);
    }
    else
    {
        ShowFailure(hr, L"Failed to create webview environment");
    }
}

OnCreateEnvironmentCompleted()

After creating the environment, we create the WebView by using CreateCoreWebView2Controller.

The OnCreateEnvironmentCompleted callback function is passed to CreateCoreWebView2EnvironmentWithOptions in InitializeWebView(). The callback stores the environment pointer and then uses it to create a new WebView:

C++

HRESULT AppWindow::OnCreateEnvironmentCompleted(
    HRESULT result, ICoreWebView2Environment* environment)
{
    CHECK_FAILURE(result);

    m_webViewEnvironment = environment;

    CHECK_FAILURE(m_webViewEnvironment->CreateCoreWebView2Controller(
        m_mainWindow, Callback<ICoreWebView2CreateCoreWebView2ControllerCompletedHandler>(
                            this, &AppWindow::OnCreateCoreWebView2ControllerCompleted)
                            .Get()));
    return S_OK;
}

OnCreateCoreWebView2ControllerCompleted()

The OnCreateCoreWebView2ControllerCompleted callback function is passed to CreateCoreWebView2Controller in InitializeWebView(). This callback:

Initializes the WebView-related state.
Registers some event handlers.
Creates the app components.

RegisterEventHandlers()

The RegisterEventHandlers function is called within CreateCoreWebView2Controller. It sets up some of the event handlers used by the application, and adds them to the WebView.

For more information about event handlers in WebView2, see ICoreWebView2.

Below is a code snippet from RegisterEventHandlers(), where we set up an event handler for the NewWindowRequested event. This event is fired when JavaScript in the webpage calls window.open(). ICoreWebView2NewWindowRequestedEventHandler makes a new AppWindow and passes the new window's WebView back to the browser, so it can return it from the window.open() call. Unlike our calls to CreateCoreWebView2EnvironmentWithOptions and CreateCoreWebView2Controller, instead of providing a method for the callback, we just provide a C++ lambda right then and there:

C++

CHECK_FAILURE(m_webView->add_NewWindowRequested(
    Callback<ICoreWebView2NewWindowRequestedEventHandler>(
        [this](
            ICoreWebView2* sender,
            ICoreWebView2NewWindowRequestedEventArgs* args) {
            wil::com_ptr<ICoreWebView2Deferral> deferral;
            CHECK_FAILURE(args->GetDeferral(&deferral));

            auto newAppWindow = new AppWindow(L"");
            newAppWindow->m_isPopupWindow = true;
            newAppWindow->m_onWebViewFirstInitialized = [args, deferral, newAppWindow]() {
                CHECK_FAILURE(args->put_NewWindow(newAppWindow->m_webView.get()));
                CHECK_FAILURE(args->put_Handled(TRUE));
                CHECK_FAILURE(deferral->Complete());
            };

            return S_OK;
        })
        .Get(),
    nullptr));

ScenarioWebMessage (.html, .cpp, and .h)

The ScenarioWebMessage files show how the Win32 host can modify the WebView, how the WebView can modify the Win32 host, and how the WebView can modify itself by accessing information from the Win32 host. This is done asynchronously.

The ScenarioWebMessage component is created when you select the Scenario > Web Messaging menu item. The ScenarioWebMessage component implements an example application with a C++ part and an HTML+JavaScript part, which communicate with each other by asynchronously posting and receiving messages:

Web Messaging: Posting and receiving messages

The following sections demonstrate how each discrete function works using the WebView2APISample app, and then explains how to implement this functionality.

First, go to the ScenarioWebMessage web app within the sample app:

Open (run) the WebView2APISample app.
In the Scenario menu, select Web Messaging.

The WebView displays a webpage titled WebMessage sample page (ScenarioWebMessage.html):

To explore the ScenarioWebMessage functionality, you can follow the instructions on the page, or follow the steps below.

Posting Messages from the Win32 host to the WebView

The following steps show how the Win32 Host can modify a WebView. In this example, you'll turn the text blue:

Open the WebMessage sample page (ScenarioWebMessage.html) as described above.
In the Script menu, select Post Web Message JSON.

A dialog containing the pre-written code {"SetColor":"blue"} appears.
Click OK.

The text in the Posting Messages section of the page changes from black to blue.

How it works

In ScriptComponent.cpp, the call to PostWebMessageAsJson posts user input to the ScenarioMessage.html web application:

C++

// Prompt the user for some JSON and then post it as a web message.
void ScriptComponent::SendJsonWebMessage()
{
   TextInputDialog dialog(
      m_appWindow->GetMainWindow(),
      L"Post Web Message JSON",
      L"Web message JSON:",
      L"Enter the web message as JSON.",
      L"{\"SetColor\":\"blue\"}");
   if (dialog.confirmed)
   {
      m_webView->PostWebMessageAsJson(dialog.input.c_str());
   }
}

Within the web application, event listeners are used to receive and respond to the web message. The code snippet below is from ScenarioWebMessage.html. The event listener changes the color of the text if the argument is "SetColor":

JavaScript
```
window.chrome.webview.addEventListener('message', arg => {
   if ("SetColor" in arg.data) {
      document.getElementById("colorable").style.color = arg.data.SetColor;
   }
});
```

Receiving messages (from the WebView to the Win32 host)

The following steps show how the WebView can modify the Win32 Host App by changing the title of the Win32 app:

Open the WebMessage sample page (ScenarioWebMessage.html) as described above.
Note the title of the WebView2APISample app, displayed in the top left of the window next to the icon. It's initially WebView2APISample - Microsoft Edge WebView2.
In the Receiving Messages section of the page, enter a new title, and then click the Send button.
Note the new title that's displayed in the titlebar of the WebView2APISample app.

How it works

In ScenarioWebMessage.html, window.chrome.webview.postMessage() sends the user input to the host application:

JavaScript

function SetTitleText() {
   let titleText = document.getElementById("title-text");
   window.chrome.webview.postMessage(`SetTitleText ${titleText.value}`);
}

Within ScenarioWebMessage.cpp, we use add_WebMessageReceived to register the event handler. When we receive the event, after validating the input, we change the title of the App Window (m_appWindow):

C++

// Setup the web message received event handler before navigating to
// ensure we don't miss any messages.
CHECK_FAILURE(m_webview->add_WebMessageReceived(
   Microsoft::WRL::Callback<ICoreWebView2WebMessageReceivedEventHandler>(
      [this](ICoreWebView2* sender, ICoreWebView2WebMessageReceivedEventArgs* args)
{
   wil::unique_cotaskmem_string uri;
   CHECK_FAILURE(args->get_Source(&uri));

   // Always validate that the origin of the message is what you expect.
   if (uri.get() != m_sampleUri)
   {
      return S_OK;
   }
   wil::unique_cotaskmem_string messageRaw;
   CHECK_FAILURE(args->TryGetWebMessageAsString(&messageRaw));
   std::wstring message = messageRaw.get();

   if (message.compare(0, 13, L"SetTitleText ") == 0)
   {
      m_appWindow->SetTitleText(message.substr(13).c_str());
   }
   return S_OK;
}).Get(), &m_webMessageReceivedToken));

Round trip messages (from the WebView to the host back to the WebView)

The following steps show how the WebView can get information from the Win32 Host and modify itself by displaying the size of the Win32 App.

Open the WebMessage sample page (ScenarioWebMessage.html) as described above.
In the Round trip section of the page, click the GetWindowBounds button.

The text box below the button displays the bounds for the WebView2APISample app.

How it works

When the Get window bounds button is clicked, the GetWindowBounds function in ScenarioWebMessage.html gets called. GetWindowBounds calls window.chrome.webview.postMessage() to send a message to the host application:

JavaScript
```
function GetWindowBounds() {
    window.chrome.webview.postMessage("GetWindowBounds");
}
```

In ScenarioWebMessage.cpp, we use add_WebMessageReceived to register the received event handler. After validating the input, the event handler gets window bounds from the App Window. PostWebMessageAsJson sends the bounds to the web application:

C++

if (message.compare(L"GetWindowBounds") == 0)
{
   RECT bounds = m_appWindow->GetWindowBounds();
   std::wstring reply =
      L"{\"WindowBounds\":\"Left:" + std::to_wstring(bounds.left)
      + L"\\nTop:" + std::to_wstring(bounds.top)
      + L"\\nRight:" + std::to_wstring(bounds.right)
      + L"\\nBottom:" + std::to_wstring(bounds.bottom)
      + L"\"}";
   CHECK_FAILURE(sender->PostWebMessageAsJson(reply.c_str()));
}

In ScenarioWebMessage.html, an event listener responds to the WindowBounds message and displays the bounds of the window:

JavaScript

window.chrome.webview.addEventListener('message', arg => {
   if ("WindowBounds" in arg.data) {
      document.getElementById("window-bounds").value = arg.data.WindowBounds;
   }
});

Share via

Win32 sample app

Sequence of articles

Step 1: Install Visual Studio 2022

Older versions of Visual Studio

Visual Studio 2019

Visual Studio 2017

Step 2: Clone the WebView2Samples repo

Step 3: Open the solution in Visual Studio

Step 4: Update the toolset

Step 5: Update .NET

Step 6: Install the C++ workload for Visual Studio

Step 7: Build and run using older SDK

Step 8: Update the prerelease WebView2 SDK

Step 9: Build and run using updated SDK

Step 10: Study the sample

View the project files

Hybrid app architecture

Project Files

App.cpp

AppWindow.cpp (Window menu)

FileComponent.cpp (File menu)

ScriptComponent.cpp (Script menu)

ProcessComponent.cpp (Process menu)

SettingsComponent.cpp (Settings menu)

ViewComponent.cpp (View menu)

ScenarioWebMessage.cpp and ScenarioWebMessage.html (Scenario menu)

ScenarioAddHostObject.cpp and ScenarioAddHostObject.html (Scenario menu)

Key functions in AppWindow.cpp

InitializeWebView()

OnCreateEnvironmentCompleted()

OnCreateCoreWebView2ControllerCompleted()

RegisterEventHandlers()

ScenarioWebMessage (.html, .cpp, and .h)

Posting Messages from the Win32 host to the WebView

How it works

Receiving messages (from the WebView to the Win32 host)

How it works

Round trip messages (from the WebView to the host back to the WebView)

How it works

See also

Feedback

Additional resources
