Use an Azure AI Search indexer to ingest Microsoft Purview sensitivity labels and enforce document-level security (preview)

Important

These features and functionality are part of the 2026-05-01-preview REST API. The 2026-05-01-preview is licensed to you as part of your Azure subscription and is subject to the terms applicable to "Previews" in the Microsoft Product Terms, the Microsoft Products and Services Data Protection Addendum ("DPA"), and the Supplemental Terms of Use for Microsoft Azure Previews.

The 2026-05-01-preview supports connections to other Microsoft services and third-party services. Use of these services is subject to their respective terms and might result in data processing or storage outside of the Azure compliance boundary, as well as data flowing into the Azure compliance boundary.

The 2026-05-01-preview can't modify access permissions that were set outside of the 2026-05-01-preview. If you use the 2026-05-01-preview with access- or permission-restricted content, a timing lag will occur before the 2026-05-01-preview recognizes changes to those access or permission restrictions.

It's your responsibility to manage whether your data will flow outside of your organization's compliance and geographic boundaries and any related implications, and that appropriate permissions, boundaries, and approvals are provisioned.

You're responsible for carefully reviewing and testing applications you build in the context of your specific use cases and making all appropriate decisions and customizations. This includes implementing your own responsible AI mitigations, such as metaprompts, content filters, or other safety systems, and ensuring your applications meet appropriate quality, reliability, security, and trustworthiness standards. For more information, see the Azure AI Search Transparency Note.

Azure AI Search supports automatic extraction of Microsoft Purview sensitivity labels at document-level during indexing, with label-based access control enforced at query time. Available in preview, this feature enables organizations to align search experiences with existing information protection policies defined in Microsoft Purview.

With sensitivity label indexing, Azure AI Search extracts and stores metadata that describes each document's sensitivity level. It also enforces label-based access control, ensuring that only authorized users can view or retrieve labeled content in search results.

This functionality is available for the following data sources:

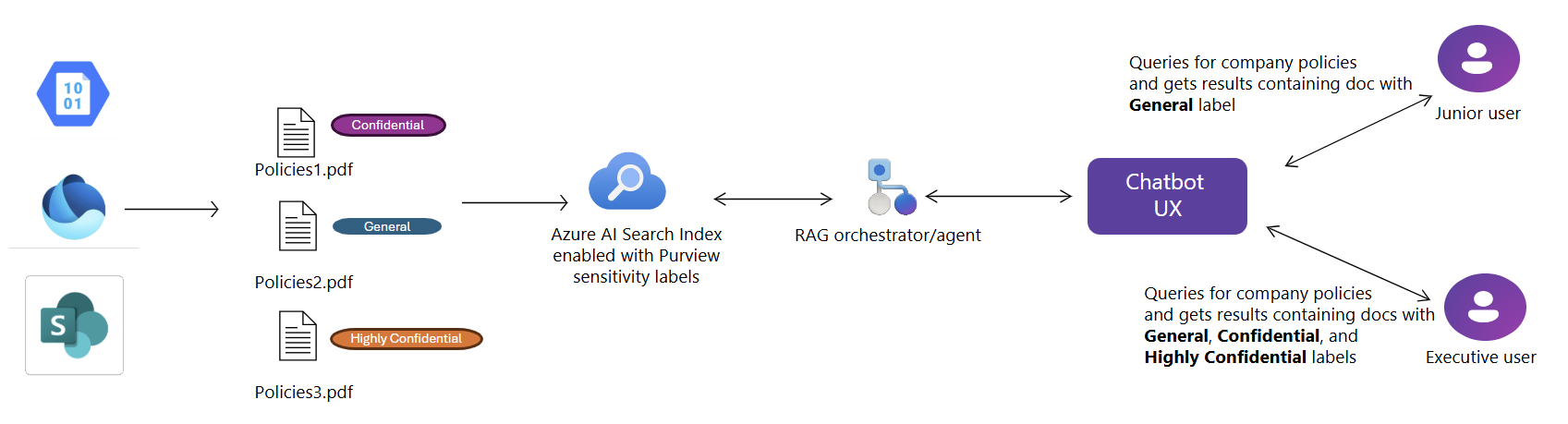

Architecture diagram showing a governed RAG solution where documents labeled with Microsoft Purview sensitivity labels are indexed into Azure AI Search, and a RAG orchestrator filters query results by label so junior users see only General content while executive users see General, Confidential, and Highly Confidential content.

Prerequisites

Limitations

  • The Azure portal doesn't support this feature.

  • Autocomplete and Suggest APIs aren't supported for Purview-enabled indexes, as they can't yet enforce label-based access control.

  • Guest accounts and cross-tenant queries aren't supported.

  • User-managed identity for permission assignment to allow the search service to extract the sensitivity labels and sensitivity-labeled content isn't supported.

  • The following indexer features don't support documents with sensitivity labels. If you use any of these features in a skillset or indexer, documents with sensitivity labels aren't processed.

How policy enforcement works

Sensitivity label support has two phases: indexing and query-time enforcement.

Indexing

When configured on a schedule, the indexer pulls new documents and updates from the data source. For each document, it captures:

  • Document content
  • The associated sensitivity label
  • Changes to content or labels since the last indexer run

Note

Label changes on source documents aren't reflected in the index until the next successful indexer run.

Query-time enforcement

At query time, Azure AI Search evaluates sensitivity labels and enforces document-level access control based on the user's Microsoft Entra ID token and Microsoft Purview label policies. Only users authorized to access content with READ usage right under a given label can retrieve corresponding documents in search results.

Authorized administrators can also issue elevated read requests, which return labeled documents that the calling user wouldn't normally see and emit a Microsoft Purview audit log entry for every document returned. Elevated read requires the Search Index Data Contributor role on the search service and the 2026-05-01-preview API version.

End-to-end example

The following images show how sensitivity labels flow from authoring to the search experience. In the first image, a user applies the Confidential label to a document in Microsoft Word. In the second image, an enterprise chatbot enforces that label at query time, blocking copy and share actions for confidential content.

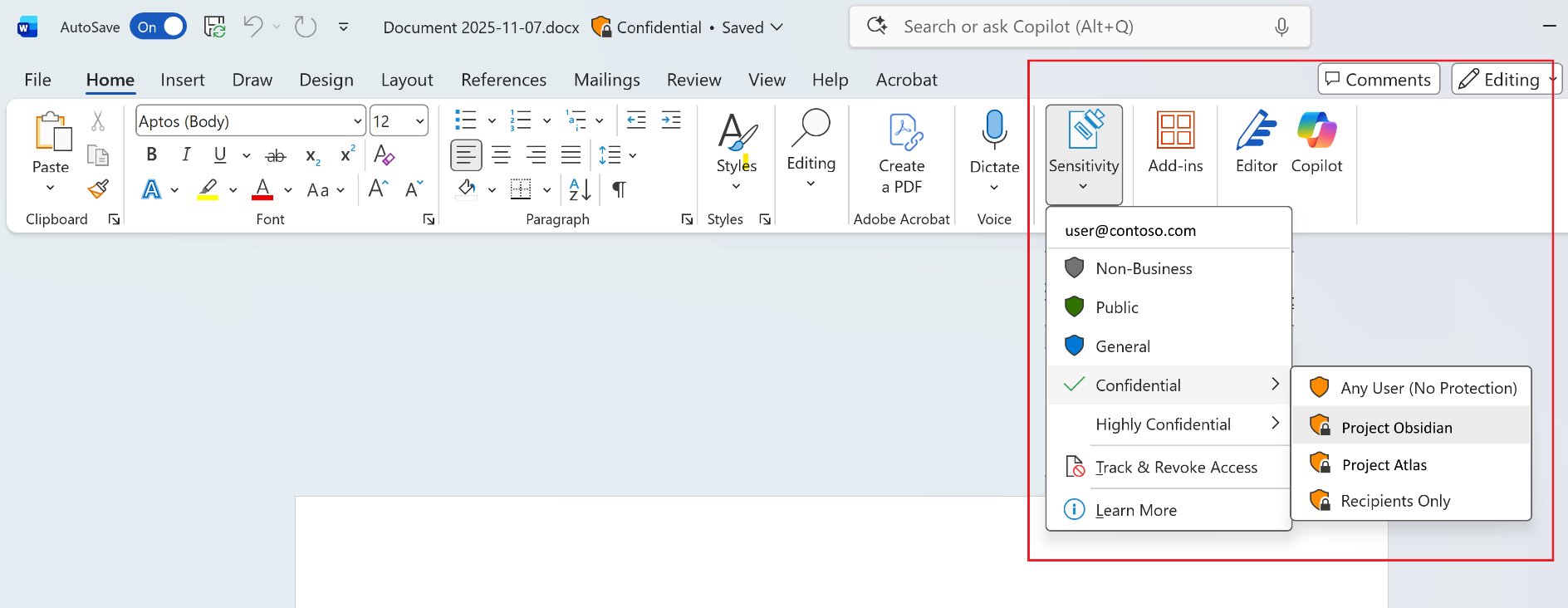

Screenshot of the Microsoft Word Sensitivity menu showing a label hierarchy including Non-Business, Public, General, Confidential with sublabels such as Project Obsidian and Recipients Only, and Highly Confidential, with the Confidential label currently applied to the document.

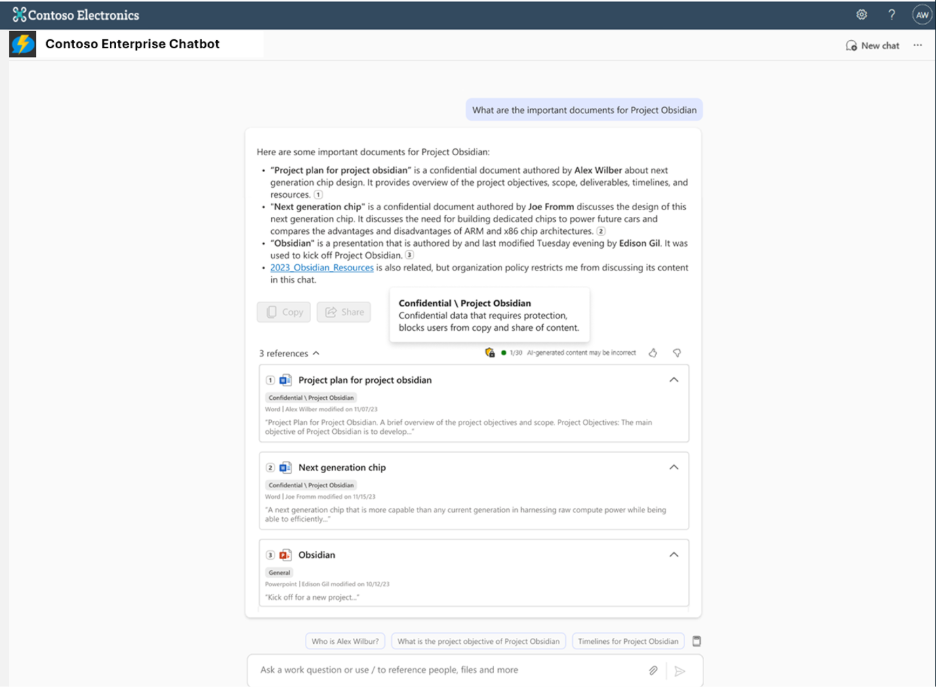

Screenshot of a Contoso enterprise chatbot displaying a policy-aware response with numbered citations, a Confidential Project Obsidian sensitivity label banner, blocked copy and share actions, and per-document sensitivity labels shown in the references panel.

1. Enable AI Search managed identity

Enable a system-assigned managed identity for your Azure AI Search service. This identity is required for the indexer to securely access Microsoft Purview and extract label metadata.

2. Enable RBAC on your AI Search service

Enable a role-based access control (RBAC) on your Azure AI Search service. This step is required so content-related operations such as indexing content and querying the index succeed. Keep both RBAC and API keys to avoid disrupting operations that rely on API keys.

3. Grant access to extract sensitivity labels

Accessing Microsoft Purview sensitivity label metadata involves highly privileged operations, including reading encrypted content and security classifications. To enable this capability in Azure AI Search, you must grant specific roles to the service's managed identity—following your organization's internal governance and approval processes.

Identify your global or privileged role administrators

If you need to determine who can authorize permissions for the search service, you can locate active or eligible Global Administrators in your Microsoft Entra tenant.

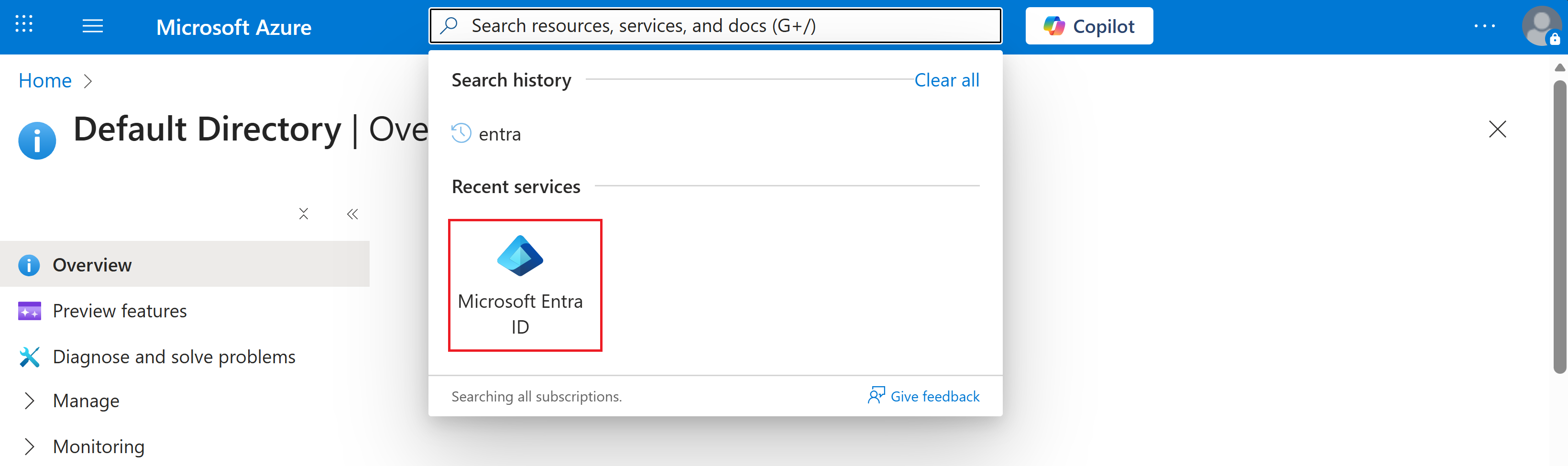

  1. In the Azure portal, search for Microsoft Entra ID.

    Screenshot of the search action for Microsoft Entra product.

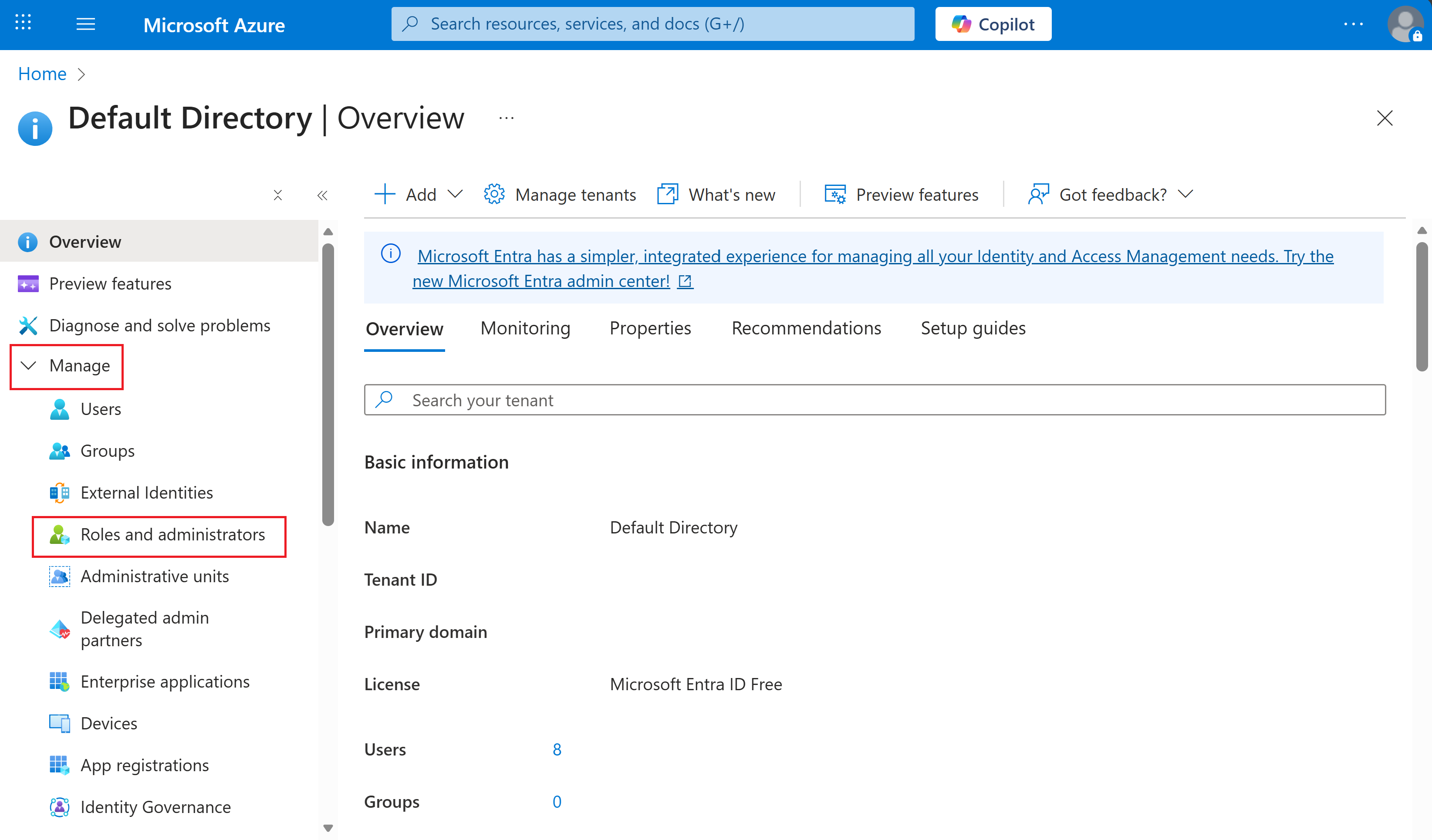

  2. In the left navigation pane, select Manage > Roles and administrators.

    Screenshot of the Entra roles and administrators page.

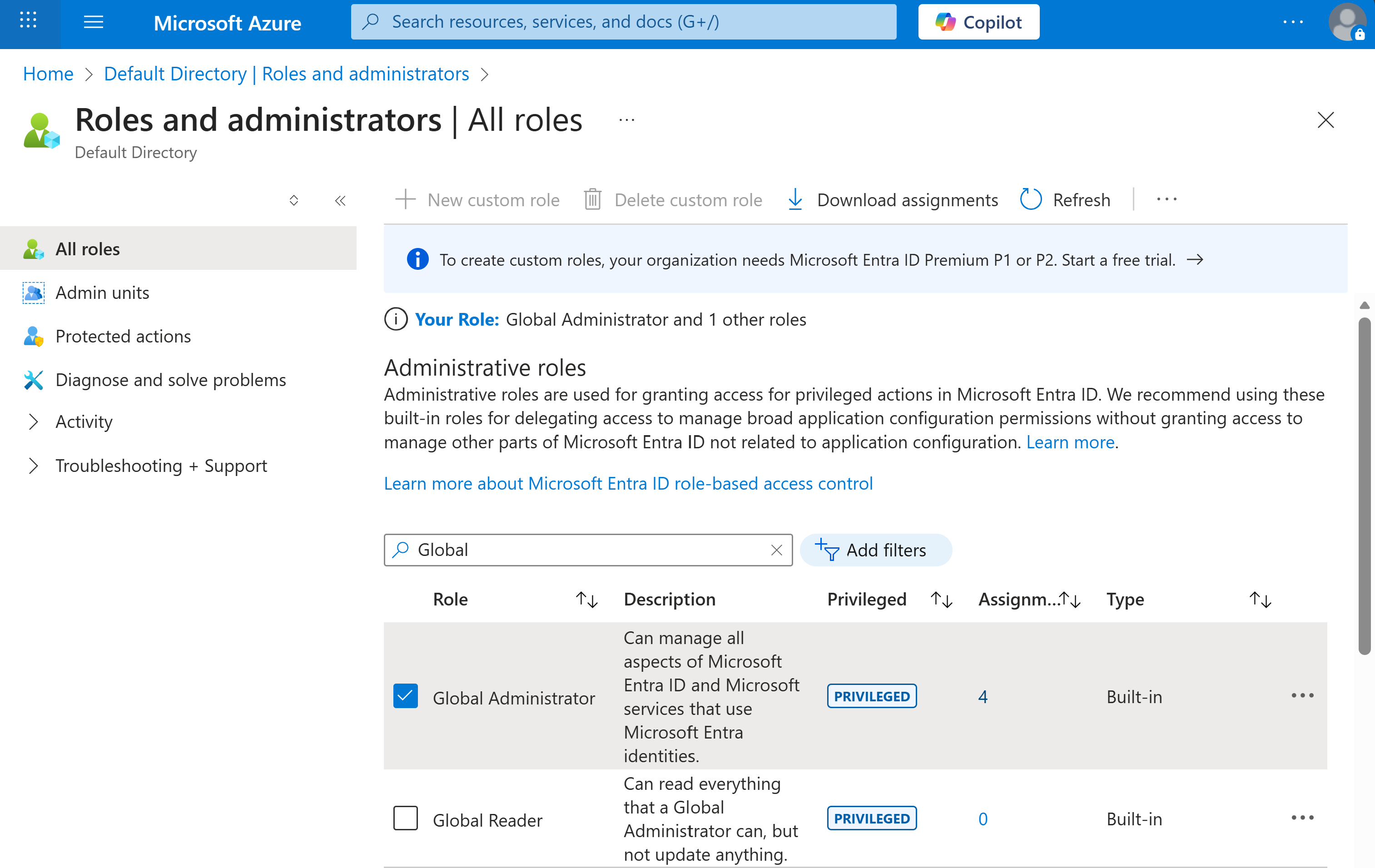

  3. Search for the Global Administrator or Privileged Role Administrator role and select it.

    Screenshot of the selection of global administrator role.

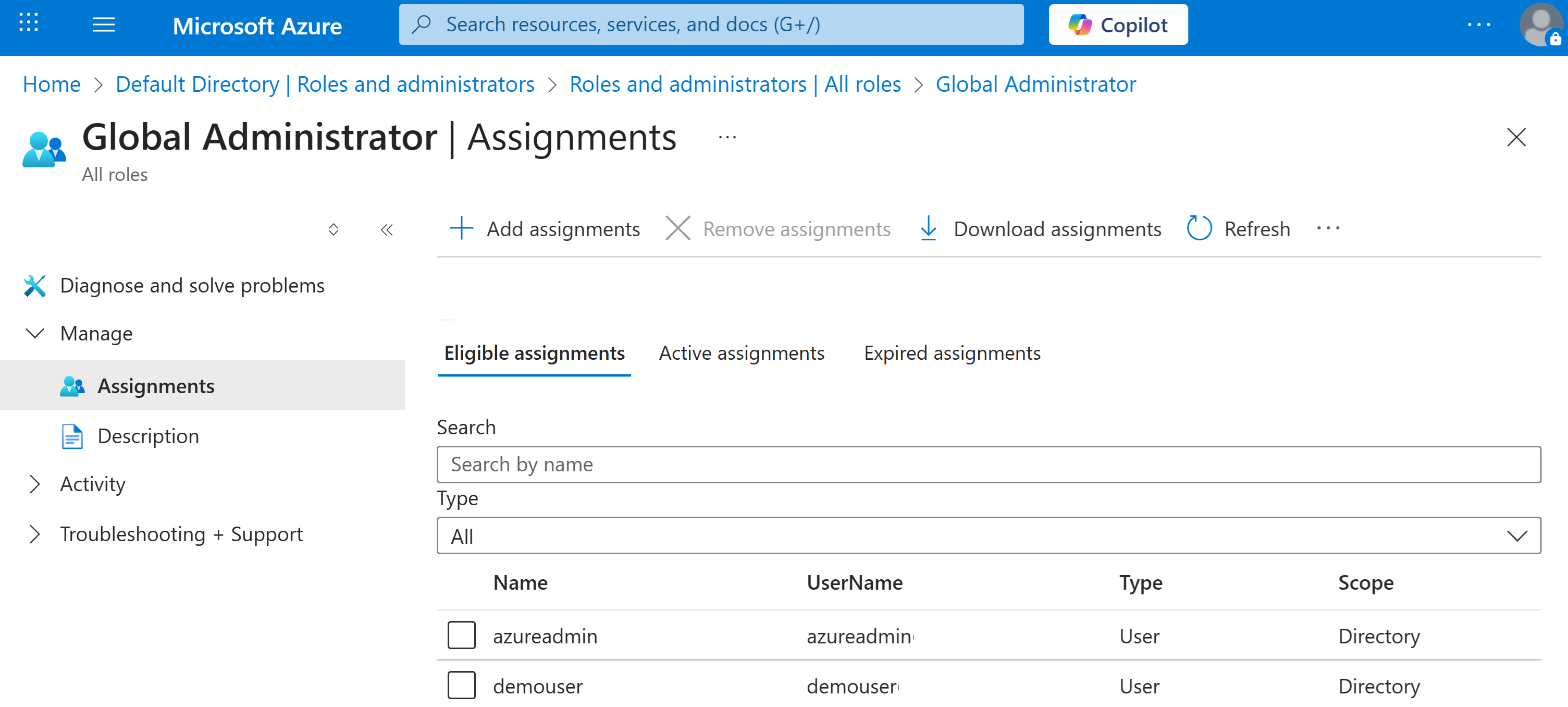

  4. Under Eligible assignments and Active assignments, review the list of administrators authorized to run the permissions setup process.

    Screenshot of role eligible and active assignments.

Secure governance approval

Engage your internal security or compliance teams to review the request. Microsoft recommends following your company's standard governance and security review process before proceeding with any role assignments.

Once approved, a Global Administrator or Privileged Role Administrator must assign the following roles to the Azure AI Search system-assigned managed identity:

  • Content.SuperUser – for label and content extraction
  • UnifiedPolicy.Tenant.Read – for Purview policy and label metadata access

Assign roles via PowerShell

Your Global Administrator or Privileged Role Administrator should use the following PowerShell script to grant the required permissions. Replace the placeholder values with your actual subscription, resource group, and search service names.

Install-Module -Name Az -Scope CurrentUser
Install-Module -Name Microsoft.Entra -AllowClobber
Import-Module Az.Resources
Connect-Entra -Scopes 'Application.ReadWrite.All'

$resourceIdWithManagedIdentity = "subscriptions/<subscriptionId>/resourceGroups/<resourceGroup>/providers/Microsoft.Search/searchServices/<searchServiceName>"
$managedIdentityObjectId = (Get-AzResource -ResourceId $resourceIdWithManagedIdentity).Identity.PrincipalId

# Microsoft Information Protection (MIP)
$MIPResourceSP = Get-EntraServicePrincipal -Filter "appID eq '870c4f2e-85b6-4d43-bdda-6ed9a579b725'"
New-EntraServicePrincipalAppRoleAssignment -ServicePrincipalId $managedIdentityObjectId -Principal $managedIdentityObjectId -ResourceId $MIPResourceSP.Id -Id "8b2071cd-015a-4025-8052-1c0dba2d3f64"

# Microsoft Rights Management Services (MRMS) - Service Principal for policy read
$MRMSResourceSP = Get-EntraServicePrincipal -Filter "appID eq '00000012-0000-0000-c000-000000000000'"
New-EntraServicePrincipalAppRoleAssignment -ServicePrincipalId $managedIdentityObjectId -Principal $managedIdentityObjectId -ResourceId $MRMSResourceSP.Id -Id "7347eb49-7a1a-43c5-8eac-a5cd1d1c7cf0"

The appID roles in the provided PowerShell script are associated to the following Azure roles:

AppID Service Principal
870c4f2e-85b6-4d43-bdda-6ed9a579b725 Microsoft Info Protection Sync Service
00000012-0000-0000-c000-000000000000 Microsoft Rights Management Services

4. Configure the index to enable Purview sensitivity label

When sensitivity label support is required, set the purviewEnabled property to true in your index definition.

Important

The purviewEnabled property must be set to true when the index is created. This setting is permanent and can't be modified later.

When purviewEnabled is set to true, only RBAC authentication is supported for all document operations APIs.

API key access is limited to index schema retrieval (list and get).

PUT https://{service}.search.windows.net/indexes('{indexName}')?api-version=2026-05-01-preview
{
  "purviewEnabled": true,
  "fields": [
    {
      "name": "sensitivityLabel",
      "type": "Edm.String",
      "filterable": true,
      "sensitivityLabel": true,
      "retrievable": true
    }
  ]
}

5. Configure the data source

To enable sensitivity label ingestion, configure the data source with the indexerPermissionOptions property set to ["sensitivityLabel"].

{
  "name": "purview-sensitivity-datasource",
  "type": "azureblob", // < adjust type value according to the data source you are enabling this for: sharepoint, onelake, adlsgen2.
  "indexerPermissionOptions": [ "sensitivityLabel" ],
  "credentials": {
    "connectionString": <your-connection-string>;"
  },
  "container": {
    "name": "<container-name>"
  }
}

The indexerPermissionOptions property instructs the indexer to extract sensitivity label metadata during ingestion and attach it to the indexed document.

6. Configure index projections in your skillset (if applicable)

If your indexer has a skillset and you're implementing data chunking through the Text Split skill, such as with integrated vectorization, project the sensitivity label onto each chunk via index projections in the skillset.

For the broader rule on when permission and ACL fields belong in indexer field mappings versus index projections, see Choose where to populate ACL fields.

This step is required for both query-time enforcement and for agentic retrieval responses to include per-document sensitivityLabelInfo for each chunk. Without the projection mapping, child chunk rows won't be filtered correctly.

PUT https://{service}.search.windows.net/skillsets/{skillset}?api-version=2026-05-01-preview
{
  "name": "my-skillset",
  "skills": [
    {
      "@odata.type": "#Microsoft.Skills.Text.SplitSkill",
      "name": "#split",
      "context": "/document",
      "inputs": [{ "name": "text", "source": "/document/content" }],
      "outputs": [{ "name": "textItems", "targetName": "chunks" }]
    }
    // ... (other skills such as embeddings, entity recognition, etc.)
  ],
  "indexProjections": {
    "selectors": [
      {
        "targetIndexName": "chunks-index",
        "parentKeyFieldName": "parentId",          // must exist in target index
        "sourceContext": "/document/chunks/*",     // match your split output path
        "mappings": [
          { "name": "chunkId",           "source": "/document/chunks/*/id" },     // if you create an id per chunk
          { "name": "content",           "source": "/document/chunks/*/text" },   // chunk text
          { "name": "parentId",          "source": "/document/id" },              // parent doc id
          { "name": "sensitivityLabel",  "source": "/document/metadata_sensitivity_label" } // <-- parent → child
        ]
      }
    ],
    "parameters": {
      "projectionMode": "skipIndexingParentDocuments"
    }
  }
}

7. Configure the indexer

  • Define field mappings in your indexer definition to route extracted label metadata to the index fields. If your data source emits label metadata under a different field name (for example, metadata_sensitivity_label), map it explicitly.
{
  "fieldMappings": [
    {
      "sourceFieldName": "metadata_sensitivity_label",
      "targetFieldName": "sensitivityLabel"
    }
  ]
}
  • Sensitivity label updates are indexed automatically when changes to a document's label, content, or metadata are detected during a scheduled indexer run. Configure the indexer on a recurring schedule. The minimum supported interval is every 5 minutes.
