Get started with button trigger tokens

  • Article

What are button trigger tokens?

Button trigger tokens are data points that are known and available to the device on which a button flow is running. These tokens change based on factors such as the current time or the geographic location of the device at a given moment.

For example, if you are running a button flow on a smart phone, it is likely that the phone knows the time at your current location as well as the date and your current address. In this context, the time, date and address where the phone is located are all determined at the time the button flow runs. They are automatically available for use in any button flows that are executed on the device. You can use these trigger tokens to build useful flows that will minimize repetitive tasks such as providing your location to someone or tracking how much time you spent on a particular job/service call.

List of button trigger tokens

Here's the list of the button trigger tokens that are available for you to use when creating your button flows.

Parameter Description
City The city in which the device that's running the flow is located.
Country/Region The country/region in which the device that's running the flow is located.
Full address The full address where the device that's running the flow is located.
Latitude The latitude in which the device that's running the flow is located.
Longitude The longitude in which the device that's running the flow is located.
PostalCode The postal code in which the device that's running the flow is located.
State The state in which the device that's running the flow is located.
Street The street on which the device that's running the flow is located.
Timestamp The time in the area where the device that's running the flow is located.
Date The date in the area where the device that's running the flow is located.
User name The user name of the person signed into the device that's running the flow.
User email The email address of the person signed into the device that's running the flow.

Create a button flow that uses trigger tokens

When you create a button, you can use trigger tokens to add rich functionality to your button.

In this walk-through, we will create a button flow on an Android device. The button flow will use trigger tokens to send the date and your full address in a "Working from home" email to your boss.

In this walk-through, you will see screen-shots from an Android device, however, the experience is similar on iOS and Windows Phone devices as well.

Prerequisites

Let's get started:

  1. Launch Flow and select Browse
    button trigger token.
  2. Select the Send a 'Working from home today' email to your manager service under the Button category
    button trigger token.
  3. Select USE THIS TEMPLATE
    button trigger token.
  4. Select Edit on the Send an email card
    button trigger token.
  5. Tap the Subject text box and enter: " today - " into the text box after the "WFH" text. Notice that when you tapped on the text box, a list of parameters/tokens also opened up. We'll use one of these tokens in the next step to add the date to the subject of the email.
    button trigger token.
  6. With the cursor still in the subject text box, scroll to the manual list of parameters and tap Date. Notice the date parameter is now in the Subject text box:
    button trigger token.
  7. Scroll to the Body text box and tap after the default message so that additional tokens can be included there.
    button trigger token.
  8. Tap the Full address parameter, then tap Create
    button trigger token.
  9. Tap Done. Your button flow is now created.
    button trigger token.

Run the button flow

NOTE: This button flow will send your current location via email.

  1. Tap the Buttons category at the bottom of the screen. You will see a list of the buttons that you have permissions to use. Tap the button that represents the button flow you just created:
    button trigger token.

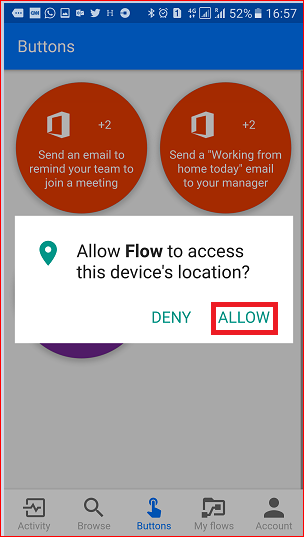

  2. Tap ALLOW to indicate that it's OK for the button flow to access your device's location information:
    button trigger token.
  3. Within a few moments, notice that the email was sent to your boss:
    button trigger token.

Congratulations, you've just created a button flow that uses both the date and full address trigger tokens.
