How to extract table with table name in custom model

Question

How to extract table with table name in custom model

Amol Harde 46

Hi All,

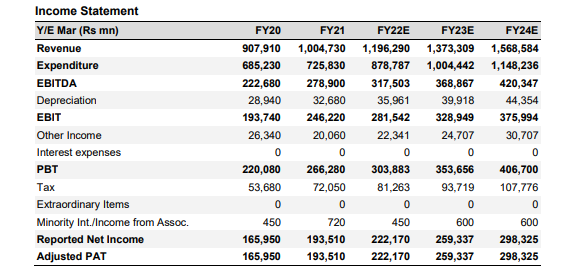

Table name: Income Statement

We want to extract table with table name

romungi-MSFT 48,911 Reputation points Microsoft Employee Moderator

2022-12-05T11:48:37.76+00:00

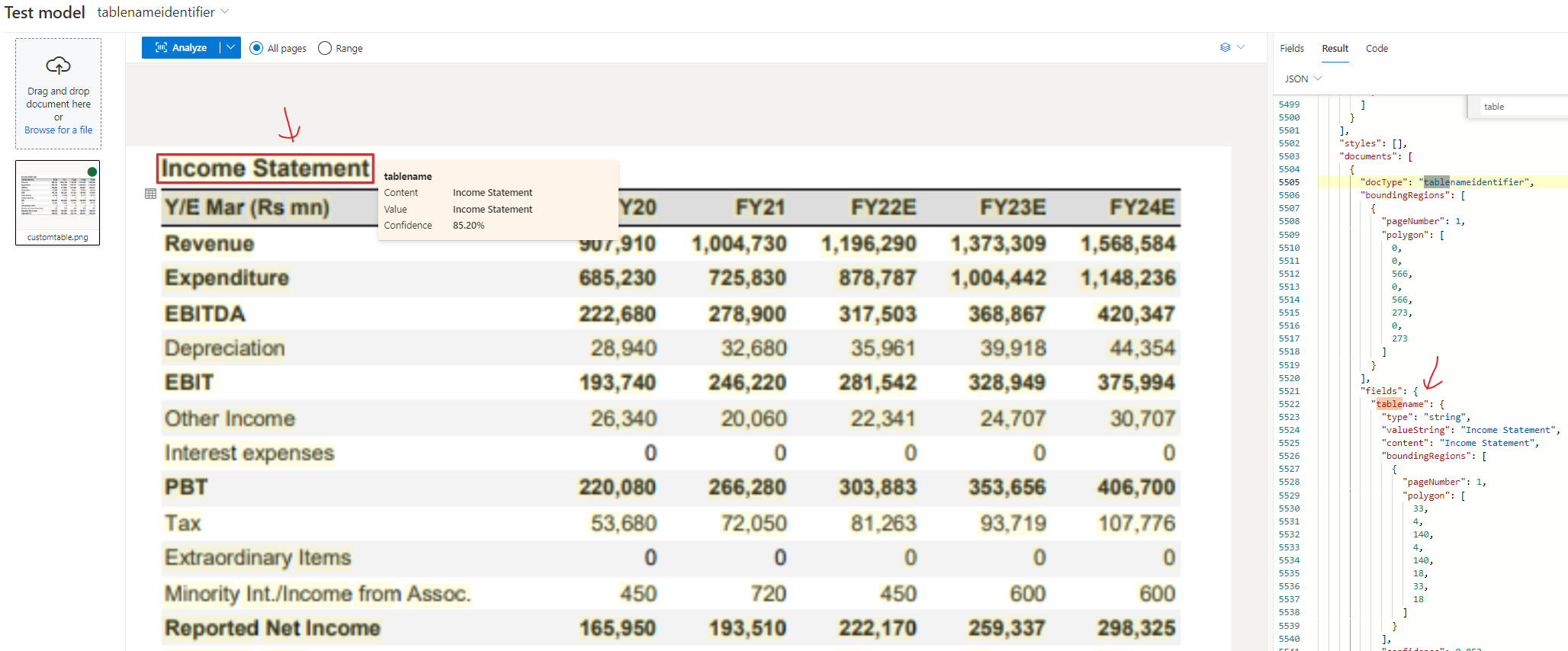

@Amol Harde Table name as mentioned in the above screen shot is not a supported identifier with tables extraction data. However, you can train your model to extract the table name as a field and it should identify similar fields where the text is present above the table. Here is sample screenshot, where I defined a label tablename and the model was able to locate the name as a label with good confidence score.
Does this help?

Amol Harde 46

Thank You for Answer.

   We are using java for get data but we can able to get Table with table name.We want to extract table with table name using java but we cant able to find such a method to get table with table name ,
 We have show output in following

IncomeStatement=com.azure.ai.formrecognizer.models.DocumentField@4564db23
but we want IncomeStatement as a table name and table

1 answer

Your answer

romungi-MSFT 48,911 Reputation points Microsoft Employee Moderator

2022-12-05T11:48:37.76+00:00

@Amol Harde Table name as mentioned in the above screen shot is not a supported identifier with tables extraction data. However, you can train your model to extract the table name as a field and it should identify similar fields where the text is present above the table. Here is sample screenshot, where I defined a label tablename and the model was able to locate the name as a label with good confidence score.
Does this help?
Amol Harde 46 Reputation points

2022-12-06T05:56:11.807+00:00

Thank You for Answer.

We are using java for get data but we can able to get Table with table name.We want to extract table with table name using java but we cant able to find such a method to get table with table name , We have show output in following

IncomeStatement=com.azure.ai.formrecognizer.models.DocumentField@4564db23
but we want IncomeStatement as a table name and table

Answer 1

romungi-MSFT 48,911 Microsoft Employee Moderator

I do not see getTables returning the table name field. You will have to train a model to get this field as a key/value pair and then use this to identify the table name. Examples of using the Java SDK for FR is available here. The sample uses getTables() method to get the tables from the analyzeResult operation. You will have to use getKeyValuePairs() from the result to get the label or key/values pair that you define with your custom model. I hope this clarifies.

If an answer is helpful, please click on or upvote which might help other community members reading this thread.

Amol Harde 46 Reputation points

2022-12-07T10:20:53.787+00:00

Thanks for your answer,

We will try according to your suggestion.
