Datagrid bind filter view for multiple textboxes

Question

Datagrid bind filter view for multiple textboxes

Kran2022 406

Hi All:

I'm tried to duplicate the View Filter but it looks like i'm making a mistake. I have 4 datagrid columns & i need to make an individual search for two columsn, so i added two textboxes; one textbox is working, another textbox is not working:

Filter Working: TextBox x:Name="tname" Text="{Binding SizeSearch, UpdateSourceTrigger=PropertyChanged}"
Filter Not working: TextBox Name="tmainproduct" Text="{Binding MainProductSearch,UpdateSourceTrigger=PropertyChanged}"

How can i have multiple filters or dedicated filter for each textbox?

Also using Xdocument.Save() method, how can i save back the file after editing from the datagrid?

270055-dta.txt Find attached the file to read in the datagrid

XAML Code:

 <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*" />
            <ColumnDefinition Width="*" />
        </Grid.ColumnDefinitions>

        <Grid Grid.Column="0" >
            <Grid.RowDefinitions >
                <RowDefinition Height="200"/>
                <RowDefinition Height="*"/>

            </Grid.RowDefinitions>
            <StackPanel VerticalAlignment="Top" Margin="10,0,-10,0" Grid.Row="0">
            <Label Name="lcategory" Content="Product Category Search" HorizontalAlignment="Left" Margin="0,0,0,0" />
            <TextBox Name="tmainproduct" Text="{Binding MainProductSearch,UpdateSourceTrigger=PropertyChanged}"
                     HorizontalAlignment="Left"  Width="150" Margin="5,5" />
            <ComboBox x:Name="ccategory" Width="150" Text="{Binding MainProductSearch,UpdateSourceTrigger=PropertyChanged}"  Margin="5,5" HorizontalAlignment="Left" />
            <Label Name="lproduct" Content="Product Name Search" Margin="5,5" HorizontalAlignment="Left" />
            <TextBox x:Name="tname" Text="{Binding SizeSearch, UpdateSourceTrigger=PropertyChanged}" Margin="5,5" HorizontalAlignment="Left" Width="150"  />
            <ComboBox x:Name="cpdtname" Width="150" Margin="5,5" HorizontalAlignment="Left" Text="{Binding SizeSearch, UpdateSourceTrigger=PropertyChanged}"/>
            </StackPanel>
            <DockPanel Grid.Row="1" >

            <DataGrid  x:Name="datagrid" VerticalAlignment="Top" HorizontalAlignment="Left" SelectedItem="{Binding SelectedProduct}" Width="400"
               ItemsSource="{Binding View}" AutoGenerateColumns="False" CanUserAddRows="False" ScrollViewer.VerticalScrollBarVisibility="Visible" Margin="0,2,0,0"
                       Height="{Binding RelativeSource={RelativeSource AncestorType={x:Type DockPanel}}, Path=ActualHeight}"  >
                <DataGrid.Columns>

                    <DataGridTextColumn Header="MianProduct"   Binding="{Binding Mainproduct}" Width="*" IsReadOnly="True"/>
                    <DataGridTextColumn Header="Name"   Binding="{Binding Name}" Width="*" IsReadOnly="True"/>
                    <DataGridTextColumn Header="Price"  Binding="{Binding Price}" Width="*" />

                    <DataGridTextColumn Header="Visible"  Binding="{Binding Visible}" Width="*" />
                </DataGrid.Columns>

            </DataGrid>
            </DockPanel>

        </Grid>

        <Grid Grid.Row="0" Grid.Column="1" >
            <StackPanel HorizontalAlignment="Stretch">
            <Button Name="bsavepricefile" Content="Save File" HorizontalAlignment="Left" Margin="147,303,0,0" VerticalAlignment="Top" Width="75" Click="bsavepricefile_Click"/>
                </StackPanel>
        </Grid>
    </Grid>

Code incl class:

/// </summary>
public partial class PricingEdit : Window
{
    public PricingEdit()
    {
        InitializeComponent();
        DataContext = new ProductPriceViewModel();
        tmainproduct.Background = (SolidColorBrush)new BrushConverter().ConvertFromString("#ff66ccff");
        tmainproduct.Foreground = Brushes.Black;

        addpretexts(); // to add some pre-texts to the comboboxes
    }

    void addpretexts()
    {
        List<string> MainProductCategory = new List<string>();

        MainProductCategory.Add("PrintProduct");
        MainProductCategory.Add("RetroPrint");
        MainProductCategory.Add("PrintWithFrame");
        MainProductCategory.Add("Calendar");
        MainProductCategory.Add("Collage");
        MainProductCategory.Add("CollagePoster");
        MainProductCategory.Add("SingleSidePhoto");
        MainProductCategory.Add("PassportPhoto");
        MainProductCategory.Add("IDPhotoCard");
        MainProductCategory.Add("GadgetProduct");
        MainProductCategory.Add("GreetingCard");


        foreach (var mpdtcategory in MainProductCategory)
        {
            ccategory.Items.Add(mpdtcategory);
        }


        List<string> ProductName = new List<string>();

        ProductName.Add("10x10");
        ProductName.Add("10x15");
        ProductName.Add("10x8");
        ProductName.Add("10x20");
        ProductName.Add("13x18");
        ProductName.Add("13x13");
        ProductName.Add("15x20");
        ProductName.Add("15x23");
        ProductName.Add("20x25");
        ProductName.Add("20x30");
        ProductName.Add("Sticker");
        ProductName.Add("Metallic");
        ProductName.Add("Perfo");

        foreach (var pdtnames in ProductName)
        {
            cpdtname.Items.Add(pdtnames);
        }
    }

    private void bsavepricefile_Click(object sender, RoutedEventArgs e)
    {

    }


}


//https://learn.microsoft.com/en-us/answers/questions/675416/wpf-filtering-datagrid.html
//https://stackoverflow.com/questions/1934935/wpf-using-multiple-filters-on-the-same-listcollectionview
//https://www.c-sharpcorner.com/UploadFile/20c06b/filtering-elements-in-a-collection-in-wpf/
class ProductPriceViewModel : INotifyPropertyChanged
{
    public event PropertyChangedEventHandler PropertyChanged;


    public void OnPropertyChanged(String info)
    {
        if (PropertyChanged != null)
        {
            PropertyChanged(this, new PropertyChangedEventArgs(info));
        }
    }


    public ProductPriceViewModel()
    {
        ProductPriceList = new ObservableCollection<Products>(GetProductsPriceList());

        this._view = new ListCollectionView(this.productpricelist);
        this._view.Filter = Filter;//MainProduct
       this._view.Filter = SizeFilter; //Name (size seacrch) but not working


    }

    private bool Filter(object item)
    {
        if (String.IsNullOrEmpty(MainProductSearch))
            return true;
        else
            return ((item as Products).Mainproduct.IndexOf(MainProductSearch, StringComparison.OrdinalIgnoreCase) >= 0) ||
                ((item as Products).Name.IndexOf(MainProductSearch, StringComparison.OrdinalIgnoreCase) >= 0);

    }

    private bool SizeFilter(object item)
    {
        if (String.IsNullOrEmpty(SizeSearch))
            return true;
        else
            return ((item as Products).Name.IndexOf(SizeSearch, StringComparison.OrdinalIgnoreCase) >= 0);
    }

    private ObservableCollection<Products> productpricelist;

    public ObservableCollection<Products> ProductPriceList
    {
        get { return productpricelist; }
        set
        {
            productpricelist = value;
            OnPropertyChanged("ProductPriceList");
        }
    }
    private ListCollectionView _view;
    public ICollectionView View
    {
        get { return this._view; }
    }

    private string _MainProductSearch;
    public string MainProductSearch
    {
        get { return _MainProductSearch; }
        set
        {
            _MainProductSearch = value;
            OnPropertyChanged("MainProductSearch");
            View.Refresh();
        }
    }

    private string _SizeSearch;
    public string SizeSearch
    {
        get { return _SizeSearch; }
        set
        {
            _SizeSearch = value;
            OnPropertyChanged("SizeSearch");
            View.Refresh();
        }
    }

    private List<Products> GetProductsPriceList()
    {

        var mylist = new List<Products>();
        XmlDocument doc = new XmlDocument();
        doc.Load(@"C:\xmltest\Dta.txt");
        foreach (XmlElement pn in doc.SelectNodes("/Data/Products/*"))
        {
            var productlist = new Products
            {
                Mainproduct = pn.LocalName.ToString(),
                Name = pn.GetAttribute("Name"),
                Price = pn.SelectSingleNode(".//ProductPrice/@Price")?.Value,
                Visible = pn.SelectSingleNode(".//ProductVisibility/@Visible")?.Value,
            };
            mylist.Add(productlist);
        }

        return mylist;
    }


}




public class Products
{

    string mainproduct;
    string name;
    string price;
    string visible;

    public string Mainproduct
    {
        get { return mainproduct; }
        set { mainproduct = value; }
    }
    public string Name
    {
        get { return name; }
        set { name = value; }
    }
    public string Price
    {
        get { return price; }
        set { price = value; }
    }
    public string Visible
    {
        get { return visible; }
        set { visible = value; }
    }
}

Accepted answer

1 additional answer

Your answer

Answer 1

Hi,
to change and save xml you can use XElement:

ViewModel to previous XAML:

namespace WpfApp033
{
#pragma warning disable CS8601, CS8602, CS8612
	class ProductPriceViewModel : INotifyPropertyChanged, ICommand
	{
		public List<string> MainProductCategory
		{
			get => new List<string>() {"PrintProduct","RetroPrint","PrintWithFrame","Calendar","Collage",
				"CollagePoster","SingleSidePhoto","PassportPhoto","IDPhotoCard","GadgetProduct","GreetingCard"};
		}

		public List<string> ProductName
		{
			get => new List<string>() {
				"10x10","10x15","10x8","10x20","13x18","13x13","15x20","15x23","20x25","20x30","Sticker","Metallic","Perfo" };
		}

		public event PropertyChangedEventHandler PropertyChanged;
		public event EventHandler? CanExecuteChanged;

		public void OnPropertyChanged(String info) => PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(info));

		private bool Filter(object item)
		{
			var ret = true;
			if (!String.IsNullOrEmpty(MainProductSearch))
				ret = ret && ((item as Product).Mainproduct.IndexOf(MainProductSearch, StringComparison.OrdinalIgnoreCase) >= 0) ||
						((item as Product).Name.IndexOf(MainProductSearch, StringComparison.OrdinalIgnoreCase) >= 0);
			if (!String.IsNullOrEmpty(SizeSearch))
				ret = ret && ((item as Product).Name.IndexOf(SizeSearch, StringComparison.OrdinalIgnoreCase) >= 0);
			return ret;
		}

		private ObservableCollection<Product> productpricelist;
		public ObservableCollection<Product> ProductPriceList
		{
			get { return productpricelist; }
			set
			{
				productpricelist = value;
				OnPropertyChanged("ProductPriceList");
			}
		}
		private CollectionViewSource cvs = new CollectionViewSource();
		public ICollectionView View
		{
			get
			{
				if (cvs.Source == null)
				{
					cvs.Source = GetProductsPriceList();
					cvs.View.Filter = Filter;
				}
				return this.cvs.View;
			}
		}

		public Product SelectedProduct { get; set; }

		private string _MainProductSearch;
		public string MainProductSearch
		{
			get { return _MainProductSearch; }
			set
			{
				_MainProductSearch = value;
				OnPropertyChanged("MainProductSearch");
				View.Refresh();
			}
		}

		private string _SizeSearch;
		public string SizeSearch
		{
			get { return _SizeSearch; }
			set
			{
				_SizeSearch = value;
				OnPropertyChanged("SizeSearch");
				View.Refresh();
			}
		}

		XElement data;

		private List<Product> GetProductsPriceList()
		{
			var mylist = new List<Product>();

			data = XElement.Load("Window033Dta.txt");
			foreach (XElement xe1 in data.Elements())
				if (xe1.Name == "Products")
					foreach (var xe2 in xe1.Elements()) mylist.Add(new Product(xe2));
			return mylist;
		}

		public bool CanExecute(object? parameter) => true;
		public void Execute(object? parameter) => data.Save("xxx.txt");
		}
	}


	public class Product
	{
		public Product(XElement xe3) => this.xe4 = xe3;
		private XElement xe4;
		public string Mainproduct { get => xe4.Name.LocalName; }
		public string Name { get => xe4.Attribute("Name").Value; }
		public string Price
		{
			get
			{
				XElement xe5 = xe4.Descendants("ProductPrice").FirstOrDefault();
				if (xe5 == null) return string.Empty;
				return xe5.Attribute("Price").Value;
			}
			set
			{
				XElement xe5 = xe4.Descendants("ProductPrice").FirstOrDefault();
				if (xe5 != null) xe5.Attribute("Price").Value = value;
			}
		}
		public string Visible
		{
			get
			{
				XElement xe5 = xe4.Descendants("ProductVisibility").FirstOrDefault();
				if (xe5 == null) return string.Empty;
				return xe5.Attribute("Visible").Value;
			}
			set
			{
				XElement xe5 = xe4.Descendants("ProductVisibility").FirstOrDefault();
				if (xe5 != null) xe5.Attribute("Visible").Value = value;
			}
		}
	}
}

Kran2022 406 Reputation points

2022-12-14T13:43:34.067+00:00

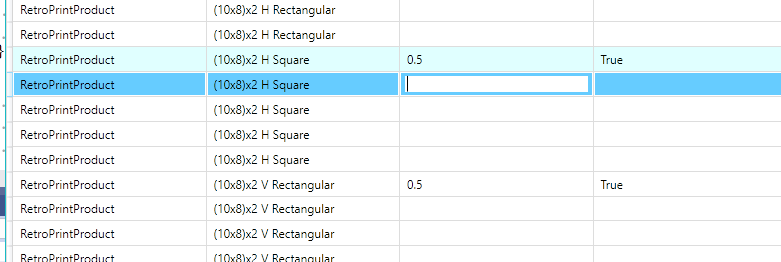

@Peter Fleischer (former MVP) : defintely i didnt think of doint with xelement, thanks so much for your solution. Question: In the Price & Visible column the entrered data doesnt save so i can modify only preloaded data but i cant entre price & visible set to True or False if the cell is empty. Cell doesnt store the value. Do i need to change something in the Datagrid or DataGridTextColumn? i think its becasue either ProductVisibility & ProductPrice elements are empty.
Peter Fleischer (former MVP) 19,336 Reputation points

2022-12-14T14:16:22.393+00:00

Hi,
if you want insert data in empty cells, you must add node. But your nodes are a complex. This complexity you must build and insert.

You can do this in Setter of properties in Product class.
Kran2022 406 Reputation points

2022-12-14T14:26:09.067+00:00

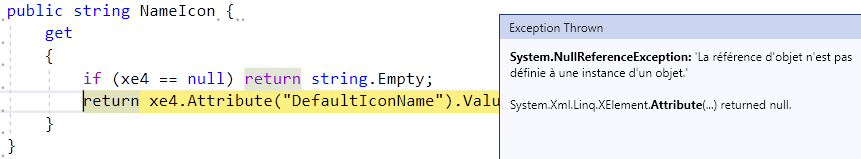

PeterFleischer-3316: ok noted, i agree its a complex file. I tried to add a new column into the datagrid but the the below get value throws error for the empty values. what is the mistake? thanks

public string NameIcon { get { if (xe4 == null) return string.Empty; return xe4.Attribute("DefaultIconName").Value; } }
Peter Fleischer (former MVP) 19,336 Reputation points

2022-12-14T15:07:31.557+00:00

Hi,
in my code xe3 cannot be null because I load an XElement in ctor. You must read Attribute in xe4 and write new value. If there isn't this attribute you can use Add like in following demo.

public string NameIcon { get { XAttribute xe5 = xe4.Attribute("DefaultIconName"); return (xe5 == null) ? string.Empty : xe5.Value; } set { XAttribute xe5 = xe4.Attribute("DefaultIconName"); if (xe5 == null) xe4.Add(new XAttribute("DefaultIconName", value)); else xe5.Value = value; } }
Kran2022 406 Reputation points

2022-12-14T15:14:41.637+00:00

@Peter Fleischer (former MVP) : ok thanks noted. In my case i dont need to set 'Set' just get is enough is for readonly column.

Answer 2

Hi,
I simplified your project and ist works fine:

XAML:

<Window x:Class="WpfApp1.Window033"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfApp033"
        mc:Ignorable="d"
        Title="Window033" Height="450" Width="800">
  <Window.DataContext>
    <local:ProductPriceViewModel/>
  </Window.DataContext>
  <Grid>
    <Grid.ColumnDefinitions>
      <ColumnDefinition Width="*" />
      <ColumnDefinition Width="*" />
    </Grid.ColumnDefinitions>

    <Grid Grid.Column="0" >
      <Grid.RowDefinitions >
        <RowDefinition Height="200"/>
        <RowDefinition Height="*"/>

      </Grid.RowDefinitions>
      <StackPanel VerticalAlignment="Top" Margin="10,0,-10,0" Grid.Row="0">
        <Label Content="Product Category Search" HorizontalAlignment="Left" Margin="0,0,0,0" />
        <TextBox Text="{Binding MainProductSearch,UpdateSourceTrigger=PropertyChanged}"
                 HorizontalAlignment="Left"  Width="150" Margin="5,5" />
        <ComboBox Width="150" ItemsSource="{Binding MainProductCategory}"
                  Text="{Binding MainProductSearch,UpdateSourceTrigger=PropertyChanged}"
                  Margin="5,5" HorizontalAlignment="Left" />
        <Label Content="Product Name Search" Margin="5,5" HorizontalAlignment="Left" />
        <TextBox Text="{Binding SizeSearch, UpdateSourceTrigger=PropertyChanged}"
                 Margin="5,5" HorizontalAlignment="Left" Width="150"  />
        <ComboBox Width="150" ItemsSource="{Binding ProductName}"
                  Text="{Binding SizeSearch, UpdateSourceTrigger=PropertyChanged}"
                  Margin="5,5" HorizontalAlignment="Left"/>
      </StackPanel>
      <DockPanel Grid.Row="1" >

        <DataGrid VerticalAlignment="Top" HorizontalAlignment="Left"
                  SelectedItem="{Binding SelectedProduct}" Width="400"
                  ItemsSource="{Binding View}" AutoGenerateColumns="False"
                  CanUserAddRows="False" ScrollViewer.VerticalScrollBarVisibility="Visible"
                  Margin="0,2,0,0"
                  Height="{Binding RelativeSource={RelativeSource AncestorType={x:Type DockPanel}}, Path=ActualHeight}"  >
          <DataGrid.Columns>
            <DataGridTextColumn Header="MianProduct" Binding="{Binding Mainproduct}" Width="*" IsReadOnly="True"/>
            <DataGridTextColumn Header="Name" Binding="{Binding Name}" Width="*" IsReadOnly="True"/>
            <DataGridTextColumn Header="Price" Binding="{Binding Price}" Width="*" />
            <DataGridTextColumn Header="Visible" Binding="{Binding Visible}" Width="*" />
          </DataGrid.Columns>
        </DataGrid>
      </DockPanel>

    </Grid>

    <Grid Grid.Row="0" Grid.Column="1" >
      <StackPanel HorizontalAlignment="Stretch">
        <Button Content="Save File" HorizontalAlignment="Left" Margin="147,303,0,0"
                VerticalAlignment="Top" Width="75"
                Command="{Binding}" CommandParameter="bsavepricefile_Click"/>
      </StackPanel>
    </Grid>
  </Grid>
</Window>

and ViewModel:

Result:

Kran2022 406 Reputation points

2022-12-14T08:43:49.41+00:00

@Peter Fleischer (former MVP) : thanks for simplifying the prject. thanks to your code i learnt to add the latest language under project properties. I see my mistake with the bool filter code.

I'm trying to save the data file but its not working, Could you please guide me what to do here? I want to append the data to same file after editing in the datagrid. Thnaks

public void Execute(object? parameter) { var serializer = new XmlSerializer(typeof(Product)); using (var writer = new XmlTextWriter(@"C:\xmltest\123.txt", Encoding.UTF8)) { serializer.Serialize(writer, productpricelist); } MessageBox.Show("File not saved"); }
Peter Fleischer (former MVP) 19,336 Reputation points

2022-12-14T09:16:36.55+00:00

Hi,
in your code I cannot see how you load productpricelist. If you use clear MVVM you must use attached property to catch reference to DataGrid. And then you can use SelectedItems property of DataGrid like productpricelist. If you want select more then 1 row in DataGrid for export (save) you must set SelectionMode="Extended".

Please, describe your goal.
Kran2022 406 Reputation points

2022-12-14T09:26:40.693+00:00

@Peter Fleischer (former MVP) : thanks for your reply, my goal is to read the file Dta.txt (user selects the file) from the file, read/get the following notes & attributes display it in the datagridview, let the user to edit price & Visiblity string then save the edited values to the same file. thanks

var mylist = new List<Product>(); XmlDocument doc = new XmlDocument(); doc.Load(@"C:\xmltest\Dta.txt"); foreach (XmlElement pn in doc.SelectNodes("/Data/Products/*")) { var productlist = new Product { Mainproduct = pn.LocalName.ToString(), Name = pn.GetAttribute("Name"), Price = pn.SelectSingleNode(".//ProductPrice/@Price")?.Value, Visible = pn.SelectSingleNode(".//ProductVisibility/@Visible")?.Value, }; mylist.Add(productlist); } return mylist;
Peter Fleischer (former MVP) 19,336 Reputation points

2022-12-14T11:33:57.39+00:00

Hi,
I unterstand your answer like write back all lines (with changed or no changed property values and all other unchanged property values). In this case is better to read data to XElements (deserialize) and then write all XElements (serialize).
Kran2022 406 Reputation points

2022-12-14T11:44:55.34+00:00

@Peter Fleischer (former MVP) : thanks again. Yes your understanding is correct, How can i deseralize and serialize? From this eaxmaple, do i need to add the xml tags to my class? could you please guide me? thanks

> public class Product > { > [System.Xml.Serialization.XmlElementAttribute("Mainproduct")] > public string Mainproduct { get; set; } > [System.Xml.Serialization.XmlElementAttribute("Name")] > public string Name { get; set; } > [System.Xml.Serialization.XmlAnyElement("Price")] > public string Price { get; set; } > [System.Xml.Serialization.XmlAnyElement("Visible")] > public string Visible { get; set; } > }

https://stackoverflow.com/questions/369792/how-to-deserialize-only-part-of-an-xml-document-in-c-sharp
Kran2022 406 Reputation points

2022-12-14T12:45:35.86+00:00

@Peter Fleischer (former MVP) : Hi, have you made any changes or inserted any new comment, i couldnt see it other than edit on the provided answer? thanks

Share via

Datagrid bind filter view for multiple textboxes

1 additional answer

Your answer
