loopbackcapture recording, Noise

TianpingHsu 26

Hi, according to Loopback Recording and Capturing a Stream, I write the sample code (check the attachment), but the result pcm file has noise.
Is there anything wrong with my code?

Environment: VS2019, Windows SDK19041271381-loopbackcapture-common.txt

1 answer

Your answer

Answer 1

Castorix31 90,686

The MS SDK sample (ApplicationLoopback), a bit more advanced (can filter PID), works fine for me (Windows 10 21H1, resulting .WAV file is OK)

TianpingHsu 26 Reputation points

2022-12-18T05:27:51.917+00:00

Thank you for your reply. I've already tried that, it also works for me, but it only supports Windows 11 or Windows 10 build 20348 later. Now I just try to find some other solutions.
Castorix31 90,686 Reputation points

2022-12-18T10:01:51.54+00:00

With the old method, I did some tests with code similar as audio_play_capture
and I also get correct .WAV files
TianpingHsu 26 Reputation points

2022-12-19T02:23:35.39+00:00

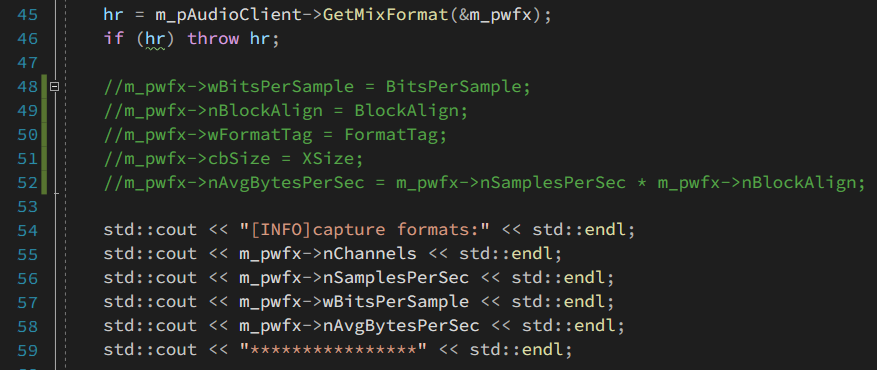

audio_play_capture works, but the capture format is hard coded (bit_depth: 16, channels: 2, sample_rate: 44100). if I use the format hr = m_pAudioClient->GetMixFormat(&m_pwfx); (line 45 in AudioListener.cpp) by ignoring the input parameters ( BitsPerSample, FormatTag, BlockAlign, XSize in AudioListener constructor), I still get the noise. check code below:
Xiaopo Yang - MSFT 12,731 Reputation points Microsoft External Staff

2022-12-19T06:56:02.75+00:00

It seems your sinker has problem. 1. These data, channels, bit depth, etc, are also needed by the sinker in order to align media data.
Have you tried FileWriteSink?
