Azure VM RDP with Azure AD doesn't work

Question

Hello all,

we need to use login to Azure Vm with Azure AD users for a customer. I have created a quick lab to test the functionallity but seems that it doesn't work.

I have created 2 VMs on Azure:

• 1 VM named VMServer (Windows Server 2019) - is the VM where users will have to log in
• 1 VM named VMclient (Windows 10) - simulates the user client where the RDP connection begins

When I created the VMServer we have checked the option for "login with AzureAD", and the extention is correctly present in the VMServer and it present within Azure AD devices (Azure AD joined).

To test the RDP connection, I have set the grant for the account in the Group "Virtual Machine Administrator Login" at the RG level.

Within the VMClient, I have registered the account within Accounts -> Email & Accounts

In this way, I have the VMClient "Azure AD registered" in the Azure AD.

I have disable the MFA for the account.

So, it seems all regular for the RDP with Azure AD.

When i try to login with RDP from the VMClient to the VMServer using AzureAD\UPN sintax I receive this error

Can you help me please?

On the VMServer (destinantion for the RDP connection) it result AzureADJoined.

Thank you for your help

Answer 1

Hello all,

I have checked and run all tests, include recreate servers (VMClinet and VMServers)

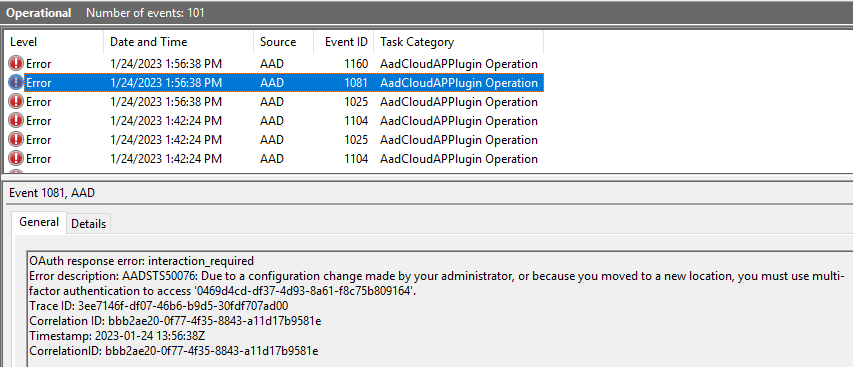

Now, when I try to login from the VMCLient (Vm is AD Registered on Azure AD) to VMServer (Vm is AD joined and with the extention corretly installed) I see these error on the Event Viewer from the VMServer

Http request status: 400. Method: POST Endpoint Uri: https://login.microsoftonline.com/ea13cfea-b639-4fde-bc89-84b4c059bd98/oauth2/token Correlation ID: BBB2AE20-0F77-4F35-8843-A11D17B9581E

---

OAuth response error: interaction_required

Error description: AADSTS50076: Due to a configuration change made by your administrator, or because you moved to a new location, you must use multi-factor authentication to access '0469d4cd-df37-4d93-8a61-f8c75b809164'.

Trace ID: 3ee7146f-df07-46b6-b9d5-30fdf707ad00

Correlation ID: bbb2ae20-0f77-4f35-8843-a11d17b9581e

Timestamp: 2023-01-24 13:56:38Z

CorrelationID: bbb2ae20-0f77-4f35-8843-a11d17b9581e

---

Logon failure. Status: 0xC0000250 Correlation ID: BBB2AE20-0F77-4F35-8843-A11D17B9581E

Here the screenshots

For my account, I have the MFA active, but I have configured exclusions on Conditional Access for the cloud apps (VM Login and also for the app with the name of VMServer.

Can you help me to understand why it doens't work?

Thanks

Answer 2

Hello,

can someone help me?

Thanks
