Unable to publish APIM developer portal

Question

Unable to publish APIM developer portal

Solar Flare 0

Hi,

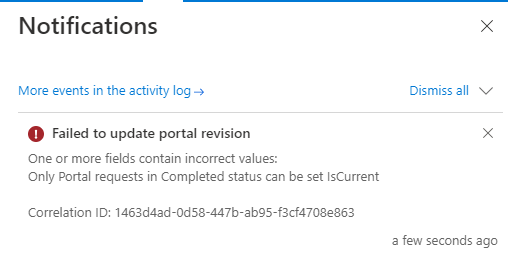

I have made some customizations to the APIM developer portal. But when I try to publish it I get the following error.

MicrosoftTeams-image (1)

What is causing this issue. How can this be resolved?

MuthuKumaranMurugaachari-MSFT 22,441 Reputation points Moderator

2023-02-21T15:01:32.3366667+00:00

Solar Flare Can you share the exception/error details? It appears that screenshot/error details are missing in the question.
Solar Flare 0 Reputation points

2023-02-22T07:04:01.2033333+00:00

updated the image.
Solar Flare 0 Reputation points

2023-02-22T07:05:44.8533333+00:00

updated the image
MuthuKumaranMurugaachari-MSFT 22,441 Reputation points Moderator

2023-02-24T03:59:22.5933333+00:00

Solar Flare I'm reaching out to see if you have any questions regarding the information provided. If you found the answer helpful, please consider marking it as "Yes".

1 answer

Your answer

MuthuKumaranMurugaachari-MSFT 22,441 Reputation points Moderator

2023-02-21T15:01:32.3366667+00:00

Solar Flare Can you share the exception/error details? It appears that screenshot/error details are missing in the question.
Solar Flare 0 Reputation points

2023-02-22T07:04:01.2033333+00:00

updated the image.
Solar Flare 0 Reputation points

2023-02-22T07:05:44.8533333+00:00

updated the image
MuthuKumaranMurugaachari-MSFT 22,441 Reputation points Moderator

2023-02-24T03:59:22.5933333+00:00

Solar Flare I'm reaching out to see if you have any questions regarding the information provided. If you found the answer helpful, please consider marking it as "Yes".

Answer 1

MuthuKumaranMurugaachari-MSFT 22,441 Moderator

Solar Flare Thank you for posting this question in Microsoft Q&A and sharing the requested details. There is a known issue in publishing the developer portal and our product team is currently working on the fix (unfortunately no ETA yet). I can confirm that you experienced the same issue using correlation id (you shared in the screenshot) and requesting you to follow the below workaround.

Workaround:

Delete pop up content item "main-menu-popup" using Direct REST API call.
Sample REST call: DELETE https://servicename.management.azure-api.net/subscriptions/000/resourceGroups/000/providers/Microsoft.ApiManagement/service/servicename/contentTypes/popup/contentItems/main-menu-popup?api-version=2021-04-01-preview HTTP/1.1 Authorization: SharedAccessSignature 1&20221209195 <<token removed>>
Open customized pages of Developer Portal in design mode, delete the section that adds the pop-up content type. If you're unsure on which page this exists, search for following control using F12:

   <a role="button" data-toggle="popup" data-target="#popupsmain-menu-popup" href="javascript:void(0)" class="button button-no-border ionsuudhhx ionsuudhhx-md">
       <!-- ko if: icon --><!-- /ko --><span data-bind="text: label">?</span>
   </a>

After following the steps, you should be able to publish the developer portal. Sorry for the inconvenience caused by this issue.

I hope this helps with your question and let me know if you have any questions.

Please accept as "Yes" if the answer is helpful, so that it can help others in the community.

Solar Flare 0 Reputation points

2023-03-02T10:22:30.88+00:00

Thank you for your answer. I do not understand the both the points in the workaround. Could you please explain how to execute the first point of sending the REST api call. What would be the endpoint?

Regarding the second point... where can I find the code view of entire portal?
MuthuKumaranMurugaachari-MSFT 22,441 Reputation points Moderator

2023-03-02T12:13:30.2666667+00:00

Solar Flare Sure, this is a Direct management API Management REST API call, and the endpoint is same as mentioned above where you would need to replace {subscription id}, {resource group name}, {APIM service name} etc. Follow doc: Manually create a SAS token to generate SAS token and call this Rest API from tools like Postman or your app.
https://servicename.management.azure-api.net/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.ApiManagement/service/{serviceName}/contentTypes/popup/contentItems/main-menu-popup?api-version=2021-04-01-preview

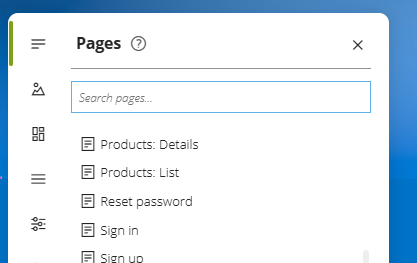

For second point, navigate to your APIM instance in the azure portal and select Developer Portal option in Overview page. This will open the developer portal in admin mode and navigate to customized pages like below. Then use F12 to search the element mentioned above.

Let me know if you see any issues with the steps.
MuthuKumaranMurugaachari-MSFT 22,441 Reputation points Moderator

2023-03-06T16:09:02.19+00:00

Solar Flare If you have any other questions, let me know. Thanks again for your engagement in the community.

If you found the answer helpful, please consider marking it as "Yes".
Tobias Gries 0 Reputation points

2023-11-07T15:56:35.1533333+00:00

Hi,

we also experience the same problem. I was able to follow step 1 without any problems but I can not find any elements even remotely that would fit the description in step 2. Is there anything else that can be done?
MuthuKumaranMurugaachari-MSFT 22,441 Reputation points Moderator

2023-11-08T16:51:22.54+00:00

Tobias Gries This issue was mitigated few weeks ago. If you experience the same issue, I suggest opening a ticket with our support team.
