Bug in UI for NAT gateway?

Question

Bug in UI for NAT gateway?

Peter Roca 0

I am setting up a terraform project to deploy network resources and have run into a really strange problem that seems to be entirely UI-related.

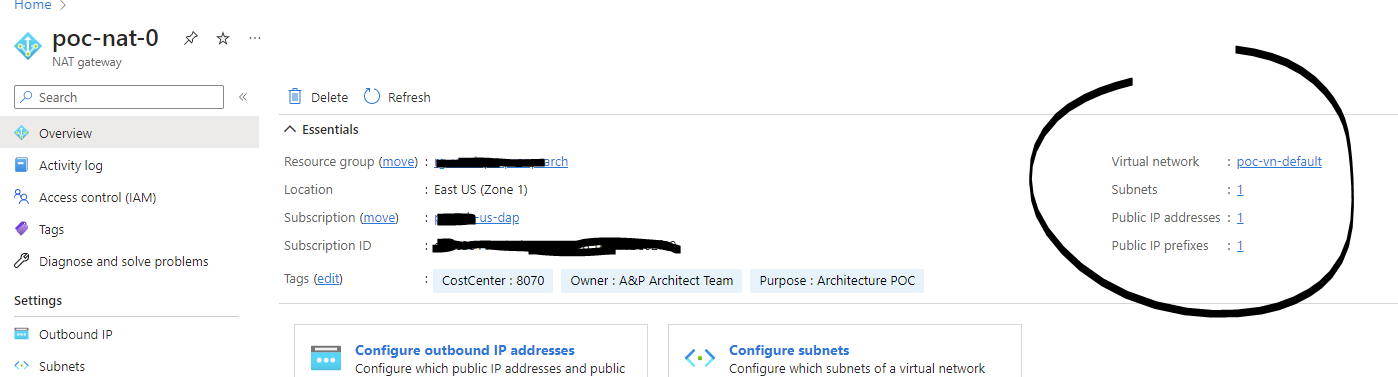

User's image

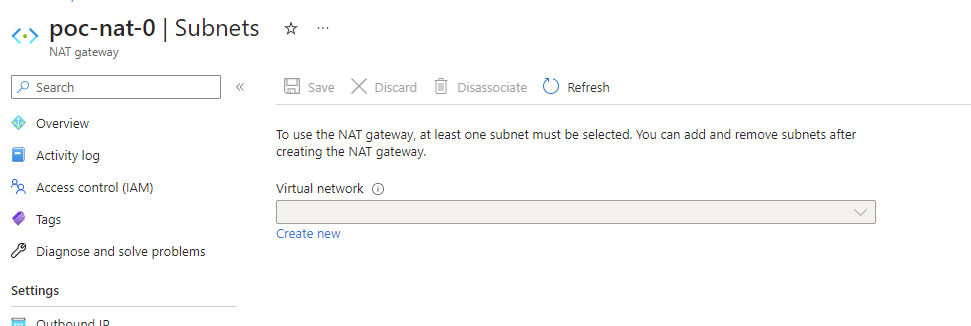

When I go to the subnet list it shows this and no virtual networks are viewable in the list

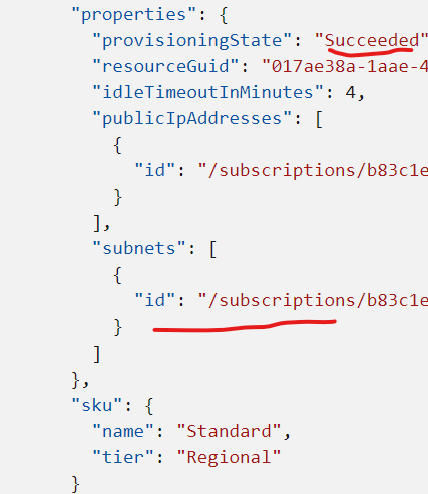

But when I go to the JSON view, it shows this: User's image

Everything about how the terraform project is set up seems correct. Is this a UI bug?

3 answers

Your answer

Answer 1

risolis 8,741

Hello @PETER ROCA Thank you for posting this concern on this community. I would like to gather the following link to either search it or report it as well: https://github.com/MicrosoftDocs/azure-docs/issues looking forward to hearing from you Cheers, Please "Accept the answer" if the information helped you. This will help us and others in the community as well.

Peter Roca 0 Reputation points

2023-04-06T20:02:21.89+00:00

I'm not following what you are asking me to do. Are you asking me to post this on github?
risolis 8,741 Reputation points

2023-04-07T02:44:35.3533333+00:00

Thank you for your answer. If you are sure, it is a bug issue well this can be reported on GitHub. For now, I have a couple of question as well... Did you use a terraform template similar to the one below? https://registry.terraform.io/providers/hashicorp/Azurerm/latest/docs/resources/nat_gateway Have you tried to import it? terraform import azurerm_nat_gateway.test /subscriptions/00000000-0000-0000-0000-000000000000/resourceGroups/group1/providers/Microsoft.Network/natGateways/gateway1

Answer 2

Peter Roca 0

Update: after 24 hours, the UI is now showing the correct values everywhere. I guess it just takes time

risolis 8,741 Reputation points

2023-04-07T17:02:28.0533333+00:00

Thank you for your update. It is nice that it worked as expected : )

Answer 3

ChaitanyaNaykodi-MSFT 27,471 Microsoft Employee Moderator

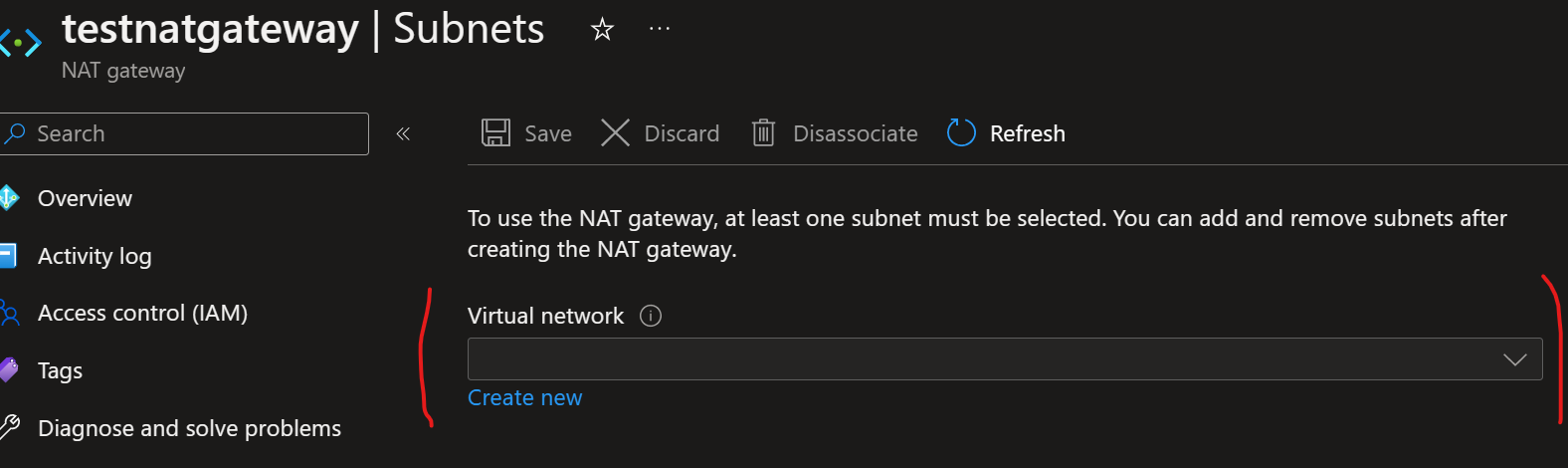

@Peter Roca Thank you for sharing your resolution here. I was able to reproduce this issue at my end and it is a portal UI bug. I have reported this as a bug to Azure Portal team internally. User's image

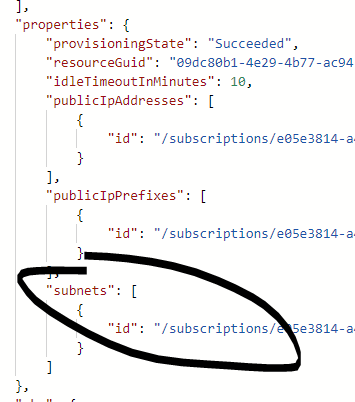

An alternate way to confirm if the NAT Gateway deployment was successful. You can perform this REST API call which will list the details for your NAT Gateway resource (the results should match your JSON view above.)

User's image

I will make an update here as soon as the bug is fixed, meanwhile it will be helpful if you could mark this answer as accepted so that anyone in the community facing similar issue can find it helpful. Please let me know if you have any questions. Thank you!

ChaitanyaNaykodi-MSFT 27,471 Reputation points Microsoft Employee Moderator

2023-04-13T16:33:05.6266667+00:00

@Peter Roca Just following up here. It will be helpful if you could mark this answer as accepted so that anyone in the community facing similar issue can find it helpful.
