what is this ambiguous behavior of RichEditBox while setting Link in UWP

pavan yekabote 5 Reputation points
2023-05-15T07:29:58.2066667+00:00

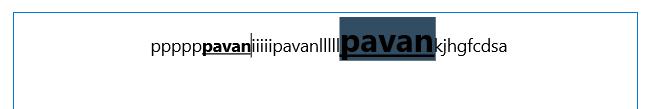

After setting the Link for the range 5 to 10 before setting the Link and RichText for the range 25 to 30 which some how getting applied for the range 5 to 10 instead of 25 to 30. here is the output


public MainPage()
        {
            this.InitializeComponent();
            box1 = new RichEditBox()
            {
                Width = 500,
                Height = 500,
                BorderBrush = new SolidColorBrush(Colors.Blue),
                BorderThickness = new Thickness(1, 1, 1, 1)
            };
            btn = new Button() { Content = "button" };
            btn.Click += Btn_Click;
            string str = "ppppppavaniiiiipavanlllllpavankjhgfcdsa";
            box1.Document.SetText(0, str);
            box1.TextAlignment = TextAlignment.Center;

            {
                ITextSelection selection1 = box1.Document.Selection;

                selection1.StartPosition = 5;
                selection1.EndPosition = 10;
                Debug.WriteLine("<<<<<<<<<<<<<<<<<<<<<" + selection1.StartPosition);
                Debug.WriteLine("<<<<<<<<<<<<<<<<<<<<<" + selection1.EndPosition);

                selection1.CharacterFormat.Bold = FormatEffect.On;

                string s = "\"google.com\"";
                selection1.Link = s;

                selection1.Collapse(false);
            }
            {
                ITextSelection selection2 = box1.Document.Selection;

                selection2.StartPosition = 25;
                selection2.EndPosition = 30;
                Debug.WriteLine("<<<<<<<<<<<<<<<<<<<<<" + selection2.StartPosition);
                Debug.WriteLine("<<<<<<<<<<<<<<<<<<<<<" + selection2.EndPosition);

                selection2.CharacterFormat.Bold = FormatEffect.On;
                selection2.CharacterFormat.Size = 20;
                selection2.CharacterFormat.BackgroundColor = Color.FromArgb(0, 50, 77, 98);
                selection2.CharacterFormat.Name = "Algerian";

                string s = "\"gjhgfdghje.com\"";
                selection2.Link = s;
            }

            grid.Children.Add(box1);
            grid.Children.Add(btn);
        }

lb9lV

If I move the second block of code above the first as below


        public MainPage()
        {
            this.InitializeComponent();
            box1 = new RichEditBox()
            {
                Width = 500,
                Height = 500,
                BorderBrush = new SolidColorBrush(Colors.Blue),
                BorderThickness = new Thickness(1, 1, 1, 1)
            };
            btn = new Button() { Content = "button" };
            btn.Click += Btn_Click;
            string str = "ppppppavaniiiiipavanlllllpavankjhgfcdsa";
            box1.Document.SetText(0, str);
            box1.TextAlignment = TextAlignment.Center;

            {
                ITextSelection selection2 = box1.Document.Selection;

                selection2.StartPosition = 25;
                selection2.EndPosition = 30;
                Debug.WriteLine("<<<<<<<<<<<<<<<<<<<<<" + selection2.StartPosition);
                Debug.WriteLine("<<<<<<<<<<<<<<<<<<<<<" + selection2.EndPosition);

                selection2.CharacterFormat.Bold = FormatEffect.On;
                selection2.CharacterFormat.Size = 20;
                selection2.CharacterFormat.BackgroundColor = Color.FromArgb(0, 50, 77, 98);
                selection2.CharacterFormat.Name = "Algerian";

                string s = "\"gjhgfdghje.com\"";
                selection2.Link = s;
            }
            {
                ITextSelection selection1 = box1.Document.Selection;

                selection1.StartPosition = 5;
                selection1.EndPosition = 10;
                Debug.WriteLine("<<<<<<<<<<<<<<<<<<<<<" + selection1.StartPosition);
                Debug.WriteLine("<<<<<<<<<<<<<<<<<<<<<" + selection1.EndPosition);

                selection1.CharacterFormat.Bold = FormatEffect.On;

                string s = "\"google.com\"";
                selection1.Link = s;

                selection1.Collapse(false);
            }
            grid.Children.Add(box1);
            grid.Children.Add(btn);
        }

then the output is this

yeHEJ

why is this behavior is like this.

How to Remove the link which has been set. how to compress or extend the range of link.
