How to fixError: creating Managed Cluster Failure sending request: StatusCode=0 -- Original Error: Code="ExistingRouteTableNotAssociatedWithSubnet"

Question

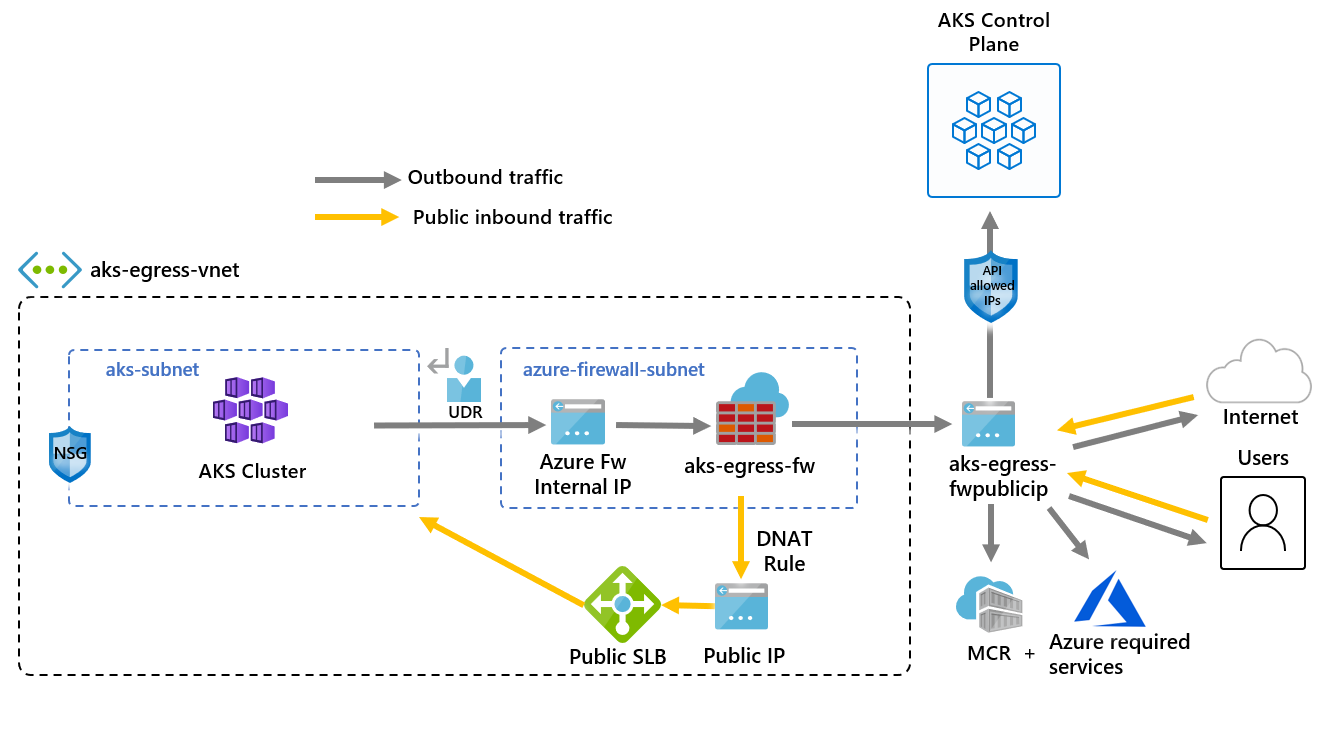

resource "azurerm_resource_group" "aks_egress_rg" {
  name     = "aks-egress-rg"
  location = "japaneast"
}

resource "azurerm_virtual_network" "aks_vnet" {
  name                = "aks-vnet"
  address_space       = ["10.0.0.0/8"]
  location            = azurerm_resource_group.aks_egress_rg.location
  resource_group_name = azurerm_resource_group.aks_egress_rg.name
}

resource "azurerm_subnet" "aks_subnet" {
  name                 = "aks_subnet"
  resource_group_name  = azurerm_resource_group.aks_egress_rg.name
  virtual_network_name = azurerm_virtual_network.aks_vnet.name
  address_prefixes     = ["10.1.0.0/16"]
  #route_table_id       = azurerm_route_table.aks_egress_fwrt.id
}

resource "azurerm_subnet" "fw_subnet" {
  name                 = "AzureFirewallSubnet"
  resource_group_name  = azurerm_resource_group.aks_egress_rg.name
  virtual_network_name = azurerm_virtual_network.aks_vnet.name
  address_prefixes     = ["10.3.6.0/24"]
}

resource "azurerm_public_ip" "fw_public_ip" {
  name                = "fw-public-ip"
  location            = azurerm_resource_group.aks_egress_rg.location
  resource_group_name = azurerm_resource_group.aks_egress_rg.name
  allocation_method   = "Static"
  sku                 = "Standard"
}

resource "azurerm_firewall" "fw" {
  name                = "fw"
  location            = azurerm_resource_group.aks_egress_rg.location
  resource_group_name = azurerm_resource_group.aks_egress_rg.name
  sku_name            = "AZFW_VNet"
  sku_tier            = "Standard"
  ip_configuration {
    name                 = "fw-ip-config"
    subnet_id            = azurerm_subnet.fw_subnet.id
    public_ip_address_id = azurerm_public_ip.fw_public_ip.id
  }
  firewall_policy_id = azurerm_firewall_policy.firewallpolicy.id
  depends_on = [azurerm_firewall_policy.firewallpolicy]
}

resource "azurerm_firewall_policy" "firewallpolicy" {
  name                = "firewallpolicy"
  resource_group_name = azurerm_resource_group.aks_egress_rg.name
  location            = azurerm_resource_group.aks_egress_rg.location
  dns {
      proxy_enabled = "true"
  }
}

# Resource: Associate user define routing table to subnet
resource "azurerm_subnet_route_table_association" "UDR_asso_to_aks_subnet" {
  depends_on = [azurerm_route_table.aks_egress_fwrt]
  subnet_id      = azurerm_subnet.aks_subnet.id
  route_table_id = azurerm_route_table.aks_egress_fwrt.id
}

resource "azurerm_route_table" "aks_egress_fwrt" {
  depends_on = [azurerm_firewall.fw]
  name                = "aks-egress-fwrt"
  resource_group_name = azurerm_resource_group.aks_egress_rg.name
  location            = azurerm_resource_group.aks_egress_rg.location
  disable_bgp_route_propagation = false
  route {
    name                 = "aks-egress-fwrn"
    address_prefix       = "0.0.0.0/0"
    next_hop_type        = "VirtualAppliance"
    next_hop_in_ip_address = azurerm_firewall.fw.ip_configuration[0].private_ip_address
  }
  route {
    name                 = "aks-egress-fwinternet"
    address_prefix      = "${azurerm_public_ip.fw_public_ip.ip_address}/32"

    next_hop_type       = "Internet"
  }
}

resource "azurerm_firewall_policy_rule_collection_group" "rulecollection" {
  name               = "rulecollection"
  firewall_policy_id = azurerm_firewall_policy.firewallpolicy.id
  priority           = 500

  network_rule_collection {
    name     = "network_rule_collection1"
    priority = 200
    action   = "Allow"
    rule {
      name                  = "AllowOutboundDNS"
      protocols             = ["UDP", "TCP"]
      source_addresses      = ["*"]
      destination_addresses = ["*"]
      destination_ports     = ["53"]
    }
    rule {
    name                  = "apiudp"
    # description           = "apiudp"
    protocols                 = ["UDP"]
    source_addresses          = ["*"]
    destination_addresses     = ["AzureCloud.japaneast"]
    destination_ports         = ["1194"]
    # action                    = "Allow"
  }
   rule {
    name                  = "apitcp"
    # description           = "apitcp"
    protocols                 = ["TCP"]
    source_addresses          = ["*"]
    destination_addresses     = ["AzureCloud.japaneast"]
    destination_ports         = ["9000"]
    # action                    = "Allow"
  }
  rule {
    name                  = "time"
    # description           = "time"
    protocols                 = ["UDP"]
    source_addresses          = ["*"]
    destination_fqdns         = ["ntp.ubuntu.com"]
    destination_ports         = ["123"]
    # action                    = "Allow"
  }

  }
  application_rule_collection {
    name     = "apprulecollection"
    priority = 400
    action   = "Allow"
    rule {
    name                 = "fqdn1"
    source_addresses     = ["*"]
    protocols {
      port = "80"
      type = "Http"
    }
    destination_fqdns           = ["AzureKubernetesService"]
  }
  rule {
    name                 = "fqdn2"
    source_addresses     = ["*"]
    protocols {
      port = "443"
      type = "Https"
    }
    destination_fqdns          = ["AzureKubernetesService"]
  }

  }
}

resource "azurerm_kubernetes_cluster" "aks" {
  name                = "aks-egress"
  location            = azurerm_resource_group.aks_egress_rg.location
  resource_group_name = azurerm_resource_group.aks_egress_rg.name
  dns_prefix          = "aks-egress"

  default_node_pool {
    name       = "default"
    node_count = 1
    vm_size    = "Standard_DS2_v2"
    type                 = "VirtualMachineScaleSets"
    vnet_subnet_id        = azurerm_subnet.aks_subnet.id
  }

  # Identity (System Assigned or Service Principal)
  identity {
    type = "SystemAssigned"
  }

  network_profile {
    network_plugin = "azure"
    load_balancer_sku = "standard"
    outbound_type  = "userDefinedRouting"
  }
}

Answer 1

I am getting same issue. if any one know the solution it is great help

Answer 2

Hi @HussainShaik ,

Thank you for your question.

From the terraform file you've shared, the subnet association step is before the creation of the route table:

# Resource: Associate user define routing table to subnet
resource "azurerm_subnet_route_table_association" "UDR_asso_to_aks_subnet" {
  depends_on = [azurerm_route_table.aks_egress_fwrt]
  subnet_id      = azurerm_subnet.aks_subnet.id
  route_table_id = azurerm_route_table.aks_egress_fwrt.id
}

resource "azurerm_route_table" "aks_egress_fwrt" {

...
...

Please make sure to flip the above steps, to have the association run after the route table creation.

Thank you.

Please Accept the answer if the information helped you. This will help us and others in the community as well.
