How to access the service that I have deployed to Azure K8s?

Question

I have created a 2 node Kubernetes cluster on Azure.

Then I deploy my service using the following yaml:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: deployment-st
  labels:
    app: cloud-test
spec:
  replicas: 3
  selector:
    matchLabels:
      app: cloud-test
  template:
    metadata:
      labels:
        app: cloud-test
    spec:
      containers:
      - name: cloud-test
        image: test:latest
        imagePullPolicy: Always
        ports:
        - containerPort: 3046
---
apiVersion: v1
kind: Service
metadata:
  name: service-st
spec:
  type: ClusterIP
  selector:
    app: cloud-test
  ports:
    - protocol: TCP
      port: 3046
      targetPort: 3046

I am using cluster IP, so I created an ingress for this :

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: k8s-ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /$2
    nginx.ingress.kubernetes.io/proxy-body-size: 100m
spec:
  ingressClassName: nginx
  rules:
  - http:
      paths:
      - path: /v1(/|$)(.*)
        pathType: Prefix
        backend:
              service:
                name: service-st
                port:
                  number: 3046

it seems they are working:

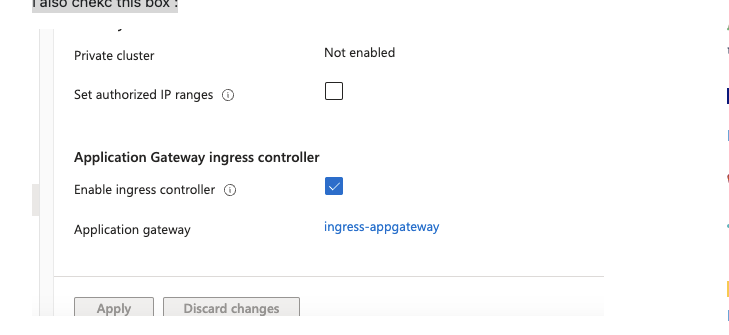

i also chekc this box :

Now, if I access the address of the nginx in services (External Ip), i get 404 from nginx. Also,if i access ip/v1 , get 404 again.

Am I missing anything here?

Answer 1

I think you have a misconfiguration. Your screengrab shows that your using a Azure Application Gateway Ingress Controller. However your ingress manifest is targeting nginx.

Try deploying an application with a known good configuration for Azure Application Gateway Ingress. Once you see it working, modify for your app.

Here's my go-to manifest for AGIC: https://github.com/Gordonby/Snippets/blob/master/AKS/Agic-simple.yml
