Availability Set depiction in the diagram - Please check for its correctness

GaneshBaladhandapani-2317 0 Reputation points
2023-11-24T13:51:15.81+00:00

Hi,

Pls. check the Availability Set depicted in the diagram referenced at the link: https://learn.microsoft.com/en-us/training/modules/describe-high-availability-disaster-recovery-strategies/6-explore-iaas-high-availability-disaster-recovery-solution

Section: Single Region High Availability Example 1 – Always On availability groups

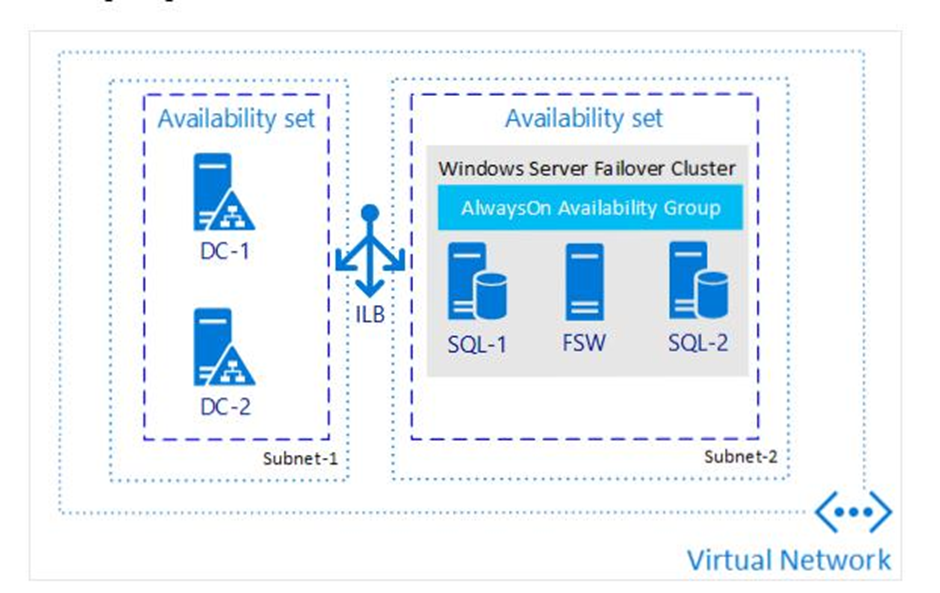

User's image

Assuming DC-1 and DC-2 are representing two distinct data centers in two locations. As scope of the Availability Set is to address Azure level environmental issues (e.g. hardware failure, power failure, networking failures etc. within a data center), please check whether the above depiction is correct.

Thank you.

Sincerely,

Ganesh.

Azure Training
Azure Training
Azure: A cloud computing platform and infrastructure for building, deploying and managing applications and services through a worldwide network of Microsoft-managed datacenters.Training: Instruction to develop new skills.
1,272 questions
{count} votes

1 answer

Sort by: Most helpful
  1. Rakesh Gurram 5,075 Reputation points Microsoft Vendor
    2023-11-25T08:38:21.6666667+00:00

    Hi GaneshBaladhandapani-2317,

    Thank you for reaching out to Microsoft Q & A forum.

    An Availability Set is a logical grouping capability for isolating VM resources from each other when they're deployed. Azure makes sure that the VMs you place within an Availability Set run across multiple physical servers, compute racks, storage units, and network switches. If a hardware or software failure happens, only a subset of your VMs are impacted and your overall solution stays operational. Availability Sets are essential for building reliable cloud solutions.

    Condition: Single Region High Availability Example 1 – Always On availability groups:

    As per the documentation in a single Azure region, you usually have multiple datacenters or Availability Zones (AZs) within that region.

    User's image

    The configuration depicted above accurately represents the architecture based on the given conditions is correct.

    If you are still facing any issues, please let us know in the comments.

    Thank you for helping to improve Microsoft Q&A!
