Does windows Autopilot uses "AUTOPILOT_MARKER" UEFI Firmware?

Question

Does windows Autopilot uses "AUTOPILOT_MARKER" UEFI Firmware?

Abdul Kalam Asath 0

Hello All,

I read some blogs which says that the Autopilot service uses the UEFI firmware called "AUTOPILOT_MARKER" to retrieve the Autopilot profile. To test this, I loaded my vm with windows 10 22H2 (19045.3693) and searched using powershell cmdlet (Get-UEFI) but I don't find any UEFI variable called "AUTOPILOT_MARKER". I even don't find it in registry.

Note: I have not yet registered my device for Autopilot

1 answer

Your answer

Answer 1

ZhoumingDuan-MSFT 17,360 Microsoft External Staff

@Abdul Kalam Asath,Thanks for posting in Q&A.

From your description, I know that you want to use "AUTOPILOT_MARKER" to retrieve the Autopilot profile.

Based on my research, Windows Autopilot uses the “AUTOPILOT_MARKER” UEFI firmware to retrieve the Autopilot profile. However, the “AUTOPILOT_MARKER” UEFI firmware variable is only created and populated after the device has been registered for Autopilot. This means that you cannot use the “AUTOPILOT_MARKER” UEFI firmware variable to identify whether a device is enrolled in Autopilot or not.

But you can find the AUTOPILOT_MARKER in the registry after the device registered for Autopilot. Location: HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\UEFI\AUTOPILOT_MARKER

Hope this can be helpful.

If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.

Abdul Kalam Asath 0 Reputation points

2023-11-27T13:13:33.8866667+00:00

Hello ZhoumingDuan,

I tried register my device for Autopilot (rebooted) and still I don't find UEFI under the path which you mentioned (HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\UEFI\AUTOPILOT_MARKER)

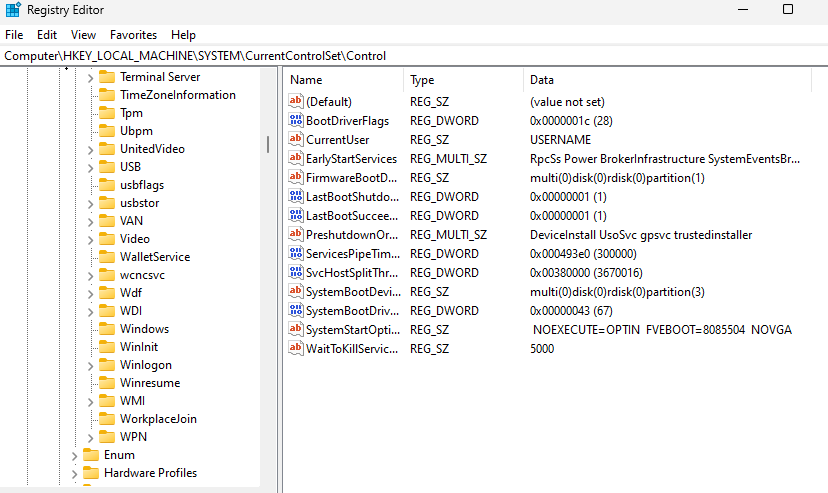

I even checked for this registry on my autopilot enrolled windows 11 VM but no luck. Attached the screenshot for your reference
ZhoumingDuan-MSFT 17,360 Reputation points Microsoft External Staff

2023-11-29T08:30:34.45+00:00

@Abdul Kalam Asath,Thanks for your update.

Based on my researching, you can refer the link below to get the AUTOPILOT_MARKER via PowerShell script.

https://call4cloud.nl/2022/12/the-token-games-the-ballad-of-autopilot-and-profiles/

Non-official, just for reference.

Hope this can be helpful.
Abdul Kalam Asath 0 Reputation points

2023-11-29T10:48:42.3333333+00:00

@ZhoumingDuan-MSFT I appreciate for your response.

I have tried that already (mentioned on my question) but still I don't find it. I can get the other UEFI variables but not the AUTOPILOT_MARKER. As I mentioned already, I tried (GET-UEFI) powershell cmdlet and manually searched in registry but no luck.
ZhoumingDuan-MSFT 17,360 Reputation points Microsoft External Staff

2023-11-30T05:19:29.9666667+00:00

@Abdul Kalam Asath,Thanks for your time.

Based on my test, I cannot find AUTOPILOT_MARKER on my autopilot registered device, due to the issue is specifical, we suggest that you open a case to get more help.

https://learn.microsoft.com/en-us/mem/get-support

Thanks for your kind understanding.
