How to create new WINPE WIM file to add it into sccm

lalajee 1,811 Reputation points


I need to create new WinPE WIM File to add into sccm under boot images.

How do I create new WIM file

I try following but its not working

ADK / WinPE software is installed

-Run as admin "Deployment and Imaging Tools Environment"

-Enter copype arm64 C:\WinPE

But Above dir doesnt have any WIM files

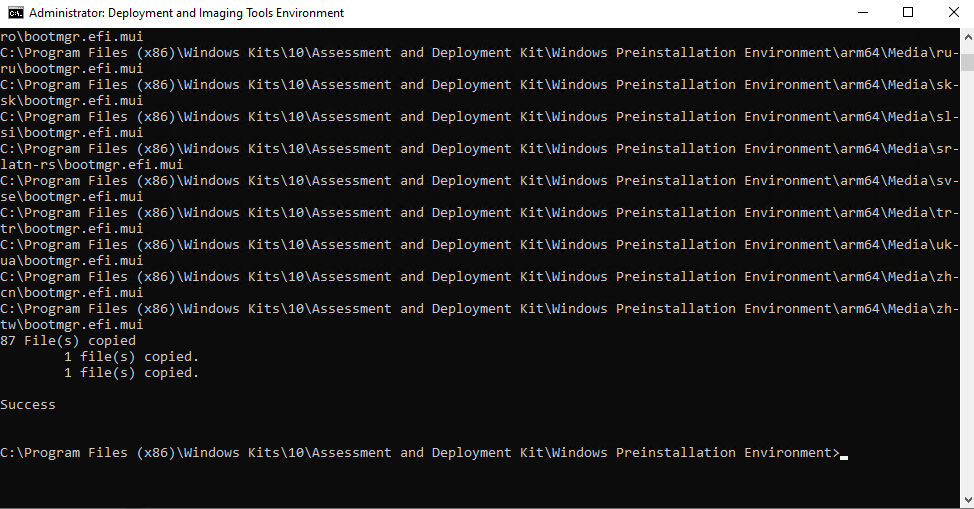

User's image

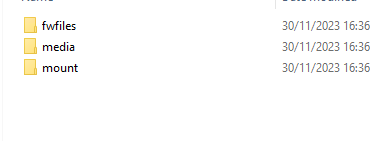

User's image

Microsoft Configuration Manager Deployment
Microsoft Configuration Manager Deployment
Microsoft Configuration Manager: An integrated solution for for managing large groups of personal computers and servers.Deployment: The process of delivering, assembling, and maintaining a particular version of a software system at a site.
934 questions
Microsoft Configuration Manager
0 comments No comments
{count} votes

Accepted answer
  1. AllenLiu-MSFT 42,746 Reputation points Microsoft Vendor

    Hi, @lalajee

    Thank you for posting in Microsoft Q&A forum.

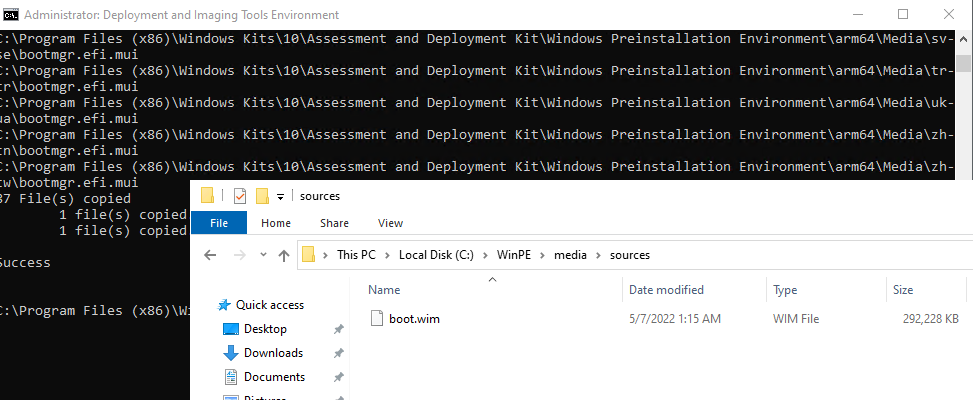

    I did the same steps follow you, it copied the files to the new folder C:\WinPE correctly, the boot.wim file is under C:\WinPE\media\sources.

    When Copype copies the Windows PE base image to the <WorkingDirectory>\Media\Sources folder, it renames the base image from Winpe.wim to Boot.wim.


    If the answer is the right solution, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Add comment".
