Incorrect screenshot shows two NSGs attached to one subnet

salem artin 0 Reputation points
2023-12-28T19:21:01.4633333+00:00

In "Determine network security group effective rules" section under "Configure network security groups" learning module, the screenshot shows two NSGs (NSG1 & NSG2) attached in Subnet1. I believe this is not possible

Please advise.

Thanks

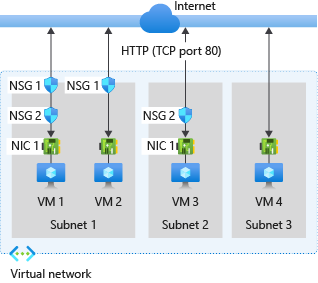

Illustration that shows how network security group security rules control traffic to virtual machines.

Azure | Azure Training

1 answer

Sort by: Most helpful
Most helpful Newest Oldest
  1. TP 156.5K Reputation points Volunteer Moderator
    2023-12-28T19:31:25.22+00:00

    Hi,

    In the diagram, NSG 1 is attached to Subnet 1 whereas NSG 2 is attached to NIC 1 (VM 1's network interface).

    Ref: AZ-104 Configure network security groups - Determine network security group effective rules

    Please click Accept Answer and upvote if the above was helpful.

    Thanks.

    -TP
