Implementing Dynamic Folder Structuring for Historical Data Load from Multiple SQL Server On-Premises Tables to Azure Blob Storage

Question

I need to extract data from multiple SQL Server On-premises tables to Azure Blob Storage with a historical load dated before 2023-12-17. However, for each table, I need to store them in dynamically created folders following the structure year/month/day/tablename.parquet.

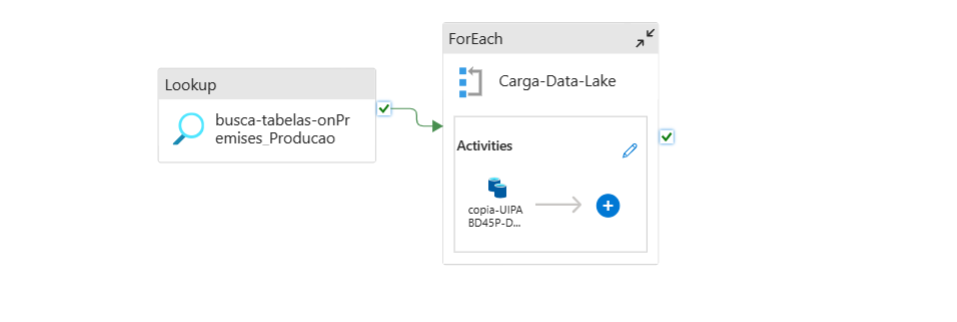

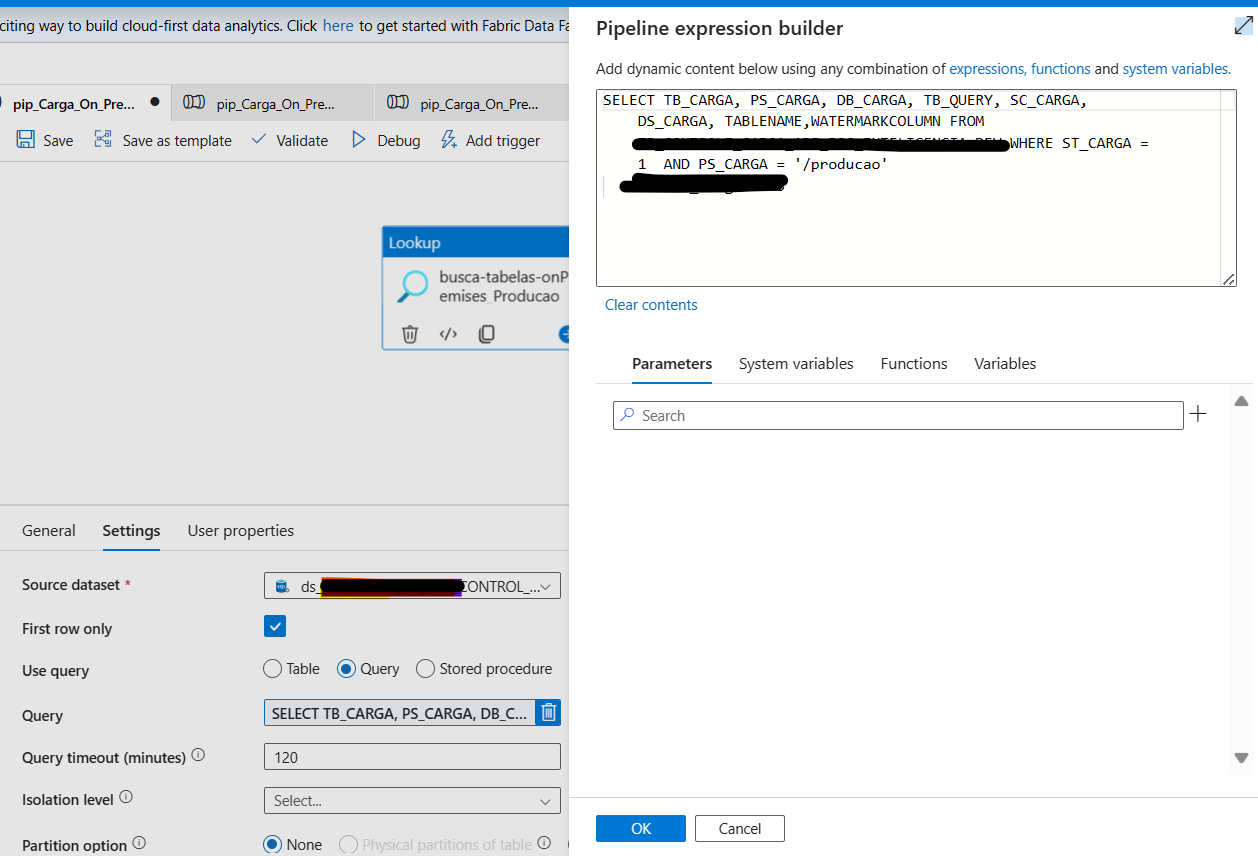

I have a similar process in which I perform a full load with multiple tables, using a control table that lists all the tables I wish to load. This process involves using lookup and foreach activities, as shown in the print below:

Has anyone implemented a similar solution, or can you suggest an approach to achieve this?

Cheers,

Answer 1

@Lucas Medina

Thanks for reaching MS Q&A

Extract Data from SQL Server On-Premises: You can use Azure Data Factory to create a pipeline that copies data from your SQL Server database to Azure Blob storage. You would need to create a self-hosted integration runtime, which moves data between on-premises and cloud data stores.

Historical Load: To load data before a specific date, you can add a filter in your query to only select records before the date 2023-12-17.

Dynamic Folder Creation: Azure Blob Storage doesn’t natively support folders. However, you can create a virtual directory structure by prefixing the blob name with the desired folder path. For example, you can name your blobs like year/month/day/tablename.parquet. This will give the illusion of them being stored in folders.

Full Load with Multiple Tables: You can use the Lookup activity to retrieve a list of table names from your control table. Then, use a ForEach activity to iterate over this list. Inside the ForEach loop, you can place a Copy activity that copies data from the current table in SQL Server to Azure Blob Storage.

Lookup and ForEach Activities: The Lookup activity can retrieve a dataset from any data source supported by Azure Data Factory and return the content of a configuration file or table. The ForEach activity defines a repeating control flow in your pipeline. It iterates over a collection and executes specified activities in a loop.

Hope this helps. Do let us know if you any further queries

---

If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.
