use java sdk call graph api with AADSTS7000218 error

Question

Context: I have a Azure App like below

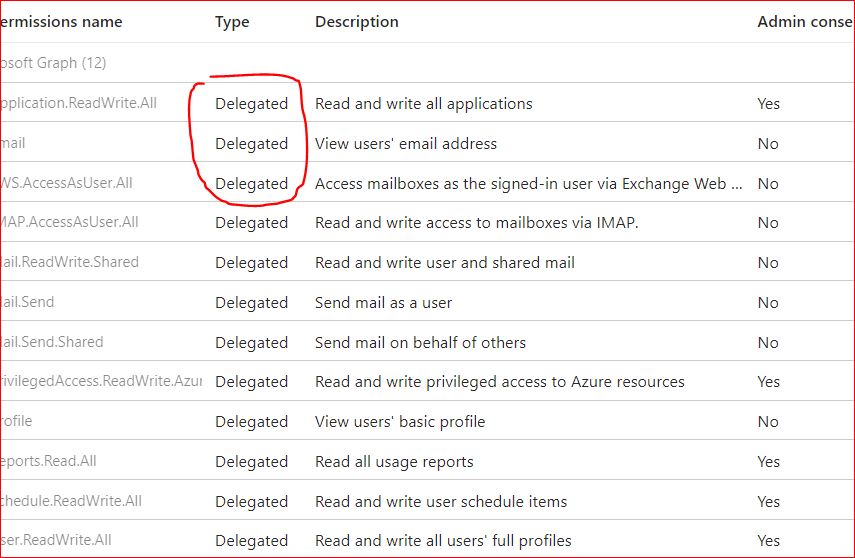

Because this app is assigned to delegated permission, so I use UsernamePasswordCrendential as auth provider. Code:

public void getClient() throws Exception {
        final InetSocketAddress proxyAddress = new InetSocketAddress(proxyHost,
                proxyPort);
// Setup proxy for the token credential from azure-identity
// From the com.azure.core.http.* packages
        final ProxyOptions options = new ProxyOptions(ProxyOptions.Type.HTTP, proxyAddress);
// If the proxy requires authentication, use setCredentials
        options.setCredentials(proxyUsername, proxyPassword);
        final HttpClient authClient = new NettyAsyncHttpClientBuilder()
                .proxy(options)
                .build();
        final UsernamePasswordCredential credential = new UsernamePasswordCredentialBuilder()
                .clientId(clientId)
                .tenantId(tenantId)
                .httpClient(authClient)
                .username(mailboxUsername)
                .password(mailboxPassword)
                .build();
// scopes is a list of permission scope strings
        final TokenCredentialAuthProvider authProvider = new TokenCredentialAuthProvider(
                scopes, credential);
// Setup proxy for the Graph client
        final Proxy proxy = new Proxy(Proxy.Type.HTTP, proxyAddress);
// This object is only needed if the proxy requires authentication
        final Authenticator proxyAuthenticator = (route, response) -> {
            String credential1 = Credentials.basic(proxyUsername, proxyPassword);
            return response.request().newBuilder()
                    .header("Proxy-Authorization", credential1).build();
        };
// Omit proxyAuthenticator if no authentication required
        final OkHttpClient httpClient = HttpClients.createDefault(authProvider)
                .newBuilder()
                .proxy(proxy).proxyAuthenticator(proxyAuthenticator)
                .build();
        final GraphServiceClient<Request> graphClient = GraphServiceClient.builder()
                .httpClient(httpClient).buildClient();
        graphClient.users(mailboxUsername).messages().buildRequest().get();
    }

Result:

com.microsoft.aad.msal4j.MsalServiceException: AADSTS7000218: The request body must contain the following parameter: 'client_assertion' or 'client_secret'. Trace ID: ae0dcaa5-0c09-4dc9-860d-69f6a18d2c00 Correlation ID: 32a9b65e-d4a3-4a2b-8c7b-74b071f43048 Timestamp: 2024-02-20 08:17:24Z
at com.microsoft.aad.msal4j.MsalServiceExceptionFactory.fromHttpResponse(MsalServiceExceptionFactory.java:45) ~[msal4j-1.14.0.jar:1.14.0]
at com.microsoft.aad.msal4j.TokenRequestExecutor.createAuthenticationResultFromOauthHttpResponse(TokenRequestExecutor.java:111) ~[msal4j-1.14.0.jar:1.14.0]
at com.microsoft.aad.msal4j.TokenRequestExecutor.executeTokenRequest(TokenRequestExecutor.java:34) ~[msal4j-1.14.0.jar:1.14.0]
at com.microsoft.aad.msal4j.AbstractClientApplicationBase.acquireTokenCommon(AbstractClientApplicationBase.java:129) ~[msal4j-1.14.0.jar:1.14.0]
at com.microsoft.aad.msal4j.AcquireTokenByAuthorizationGrantSupplier.execute(AcquireTokenByAuthorizationGrantSupplier.java:63) ~[msal4j-1.14.0.jar:1.14.0]
at com.microsoft.aad.msal4j.AuthenticationResultSupplier.get(AuthenticationResultSupplier.java:69) [msal4j-1.14.0.jar:1.14.0]
at com.microsoft.aad.msal4j.AuthenticationResultSupplier.get(AuthenticationResultSupplier.java:18) [msal4j-1.14.0.jar:1.14.0]
at java.util.concurrent.CompletableFuture$AsyncSupply.run(CompletableFuture.java:1604) [na:1.8.0_281]
at java.util.concurrent.CompletableFuture$AsyncSupply.exec(CompletableFuture.java:1596) [na:1.8.0_281]
at java.util.concurrent.ForkJoinTask.doExec(ForkJoinTask.java:289) [na:1.8.0_281]
at java.util.concurrent.ForkJoinPool$WorkQueue.runTask(ForkJoinPool.java:1067) [na:1.8.0_281]
at java.util.concurrent.ForkJoinPool.runWorker(ForkJoinPool.java:1703) [na:1.8.0_281]
at java.util.concurrent.ForkJoinWorkerThread.run(ForkJoinWorkerThread.java:172) [na:1.8.0_281]
2024-02-20 16:17:24.385 ERROR 23924 --- [nPool-worker-25] c.a.identity.UsernamePasswordCredential  : Azure Identity => ERROR in getToken() call for scopes [https://graph.microsoft.com/.default]: Failed to acquire token with username and password. To mitigate this issue, please refer to the troubleshooting guidelines here at [https://aka.ms/azsdk/java/identity/usernamepasswordcredential/troubleshoot]()

If I want to add client_secret to request body, where I can add client_secret to UsernamePasswordCrendential, Or there is any other way to access graph api? many thanks for you help!

Answer 1

Hi @Huimin ZHANG

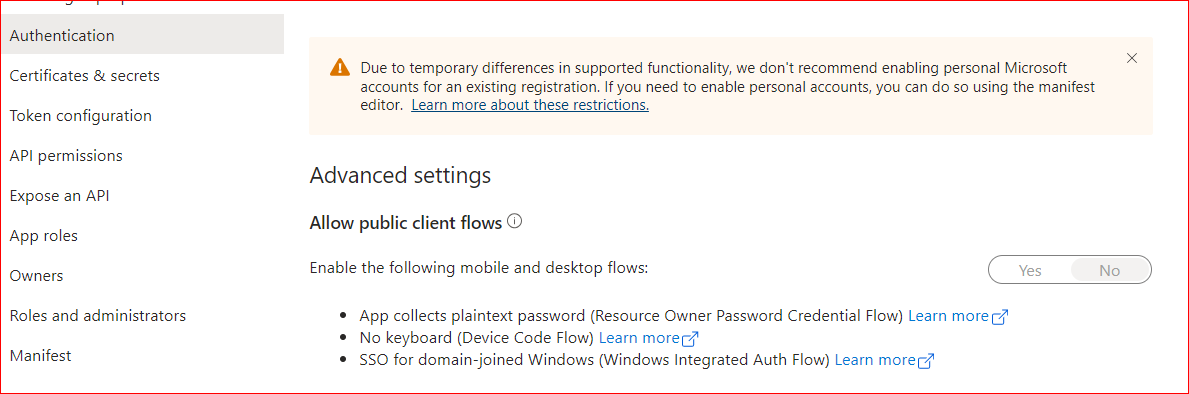

You just need to enable public client flow for this app.

Hope this helps.
