How to show another window on FSE(FullScreen Exclusive)

Saito, Makoto (SIE) 20 Reputation points
2024-05-02T16:39:51.1233333+00:00

私たちは FullScreen Exclusive (FSE) な画面を持つアプリケーションを開発中です。

FSE は SetFullscreenState(TRUE, nullptr) を呼び出すよう実装しています。

FSE上でCreateWindowEx() して、別のウィンドウを表示したいのですが、それは可能でしょうか?

https://learn.microsoft.com/en-us/windows/win32/direct3ddxgi/dxgi-1-4-improvements

には以下のように書いてあり、可能なようにも読み取れるのですが。

  • SetFullscreenState no longer exclusively owns the display, so user-initiated operating system elements can seamlessly appear in front of application output. Volume settings is an example of this.

手元で確認しているのは、CreateWindowEx() に渡す style に WS_OVERLAPPED が含まれていると、FSEではなくなりました。

WS_CHILD を渡すと、FSEを保ったままウィンドウを作れることは確認しました。

できれば、WS_OVERLAPPED を指定したいですが、それは可能でしょうか?

WS_CHILDを渡す以外に、FSEのままウィンドウを表示する方法はあるでしょうか?

Windows
Windows
A family of Microsoft operating systems that run across personal computers, tablets, laptops, phones, internet of things devices, self-contained mixed reality headsets, large collaboration screens, and other devices.
4,843 questions
Windows API - Win32
Windows API - Win32
A core set of Windows application programming interfaces (APIs) for desktop and server applications. Previously known as Win32 API.
2,448 questions
{count} votes

Accepted answer
  1. Tong Xu - MSFT 2,036 Reputation points Microsoft Vendor
    2024-05-09T08:15:14.02+00:00

    Hi! I bring good news!
    I succeed in keeping FSE when making a child window with WS_OVERLAPPEDWINDOW.
    Using GetDeviceCaps in SetWindowPos to set full screen mode but cannot set background color of child window.

    #include <Windows.h>
    #include <windowsx.h>
    #include <dwmapi.h>
    #include"Resource.h"
    #pragma comment(lib, "dwmapi.lib")
    LRESULT CALLBACK  WndProc2(HWND, UINT, WPARAM, LPARAM);
    LRESULT hitTest(HWND hwnd, POINT cursor) {
        const POINT border{
            ::GetSystemMetrics(SM_CXFRAME) + ::GetSystemMetrics(SM_CXPADDEDBORDER),
            ::GetSystemMetrics(SM_CYFRAME) + ::GetSystemMetrics(SM_CXPADDEDBORDER)
        };
        RECT winRect;
        if (!::GetWindowRect(hwnd, &winRect)) return HTNOWHERE;
        enum region_mask {
            client = 0b0000,
            left = 0b0001,
            right = 0b0010,
            top = 0b0100,
            bottom = 0b1000,
        };
        const auto result = left * (cursor.x < (winRect.left + border.x)) |
            right * (cursor.x >= (winRect.right - border.x)) |
            top * (cursor.y < (winRect.top + border.y)) |
            bottom * (cursor.y >= (winRect.bottom - border.y));
        switch (result) {
        case left: return HTLEFT;
        case right: return HTRIGHT;
        case top: return HTTOP;
        case bottom: return HTBOTTOM;
        case top | left: return HTTOPLEFT;
        case top | right: return HTTOPRIGHT;
        case bottom | left: return HTBOTTOMLEFT;
        case bottom | right: return HTBOTTOMRIGHT;
        case client: return HTCAPTION;
        default: return HTNOWHERE;
        }
    }
    LRESULT CALLBACK wndProc(HWND hwnd, UINT msg, WPARAM wparam, LPARAM lparam) {
        switch (msg) {

        case WM_NCHITTEST: {
            return hitTest(hwnd, POINT{ GET_X_LPARAM(lparam), GET_Y_LPARAM(lparam) });
        }
        case WM_CLOSE: {
            ::DestroyWindow(hwnd);
            return 0;
        }
        case WM_DESTROY: {
            PostQuitMessage(0);
            return 0;
        }
        }
        return ::DefWindowProcW(hwnd, msg, wparam, lparam);
    }
    int WINAPI WinMain(HINSTANCE, HINSTANCE, LPSTR, int) {
        WNDCLASSEXW wcx{};
        wcx.cbSize = sizeof(wcx);
        wcx.style = CS_HREDRAW | CS_VREDRAW;
        wcx.hInstance = nullptr;
        wcx.lpfnWndProc = &wndProc;
        wcx.lpszClassName = L"BorderlessWindowClass";
        wcx.hbrBackground = CreateSolidBrush(RGB(240, 160, 160));
        wcx.hCursor = ::LoadCursorW(nullptr, IDC_ARROW);
        ::RegisterClassExW(&wcx);
        WNDCLASSEX wcex;
        wcex.cbSize = sizeof(WNDCLASSEX);
        wcex.style = CS_HREDRAW | CS_VREDRAW;
        wcex.lpfnWndProc = WndProc2;
        wcex.cbClsExtra = 0;
        wcex.cbWndExtra = 0;
        wcex.hInstance = nullptr;
        wcex.hIcon = LoadIcon(NULL, MAKEINTRESOURCE(IDI_FULLSCREEN));
        wcex.hCursor = LoadCursor(NULL, IDC_ARROW);
        wcex.hbrBackground = (HBRUSH)(COLOR_WINDOW + 1);
        wcex.hbrBackground = CreateSolidBrush(RGB(20, 20, 160));
        wcex.lpszMenuName = MAKEINTRESOURCE(IDC_FULLSCREEN);
        wcex.lpszClassName = L"BorderlessWindowClass";;
        wcex.hIconSm = LoadIcon(wcex.hInstance, MAKEINTRESOURCE(IDI_SMALL));

        auto borderlessStyle =  WS_VISIBLE;
        HWND hwnd = CreateWindowExW(0, wcx.lpszClassName, L"window", borderlessStyle, CW_USEDEFAULT, CW_USEDEFAULT, 800, 600, nullptr, nullptr, nullptr, nullptr);
        HWND hwnd2 = CreateWindowExW(0, wcex.lpszClassName, L"windows2", WS_CHILD| WS_OVERLAPPEDWINDOW, CW_USEDEFAULT, CW_USEDEFAULT, 400, 300, hwnd, nullptr, nullptr, nullptr);
        ShowWindow(hwnd, SW_SHOW);
        UpdateWindow(hwnd);
        ShowWindow(hwnd2, SW_SHOW);
        UpdateWindow(hwnd2);
        ::SetWindowLongPtrW(hwnd, GWL_STYLE, borderlessStyle);
        //static const MARGINS shadow_state{ 1,1,1,1 };
       // ::DwmExtendFrameIntoClientArea(hwnd, &shadow_state);
        //::SetWindowPos(hwnd, nullptr, 110, 110, 0, 0, SWP_FRAMECHANGED | SWP_NOSIZE);
        SetWindowLongPtr(hwnd, GWL_EXSTYLE, WS_EX_APPWINDOW);
        SetWindowLongPtr(hwnd, GWL_STYLE, WS_SYSMENU | WS_MAXIMIZEBOX | WS_MINIMIZEBOX  | WS_VISIBLE | WS_OVERLAPPED);
        // I tried this too, and same problem
        //SetWindowPos(hwnd, NULL, (GetDeviceCaps(GetDC(NULL), HORZRES) - W) / 2, (GetDeviceCaps(GetDC(NULL), VERTRES) - H) / 2, W, H, SWP_FRAMECHANGED | SWP_NOZORDER);
        //SetWindowPos(hwnd, NULL, (GetDeviceCaps(GetDC(NULL), HORZRES) - 100) / 2, (GetDeviceCaps(GetDC(NULL), VERTRES) - 100) / 2, 400, 400, NULL);
        SetWindowPos(hwnd, NULL, 0, 0, GetDeviceCaps(GetDC(NULL), HORZRES), GetDeviceCaps(GetDC(NULL), VERTRES), NULL);
        MSG msg;
        while (::GetMessageW(&msg, nullptr, 0, 0) == TRUE) {
            ::TranslateMessage(&msg);
            ::DispatchMessageW(&msg);
        }
    }
    LRESULT CALLBACK WndProc2(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
    {
        int wmId, wmEvent;
        PAINTSTRUCT ps;
        HDC hdc;
        switch (message)
        {

        case WM_PAINT:
            hdc = BeginPaint(hWnd, &ps);

            EndPaint(hWnd, &ps);
            break;
        case WM_DESTROY:
            PostQuitMessage(0);
            break;
        default:
            return DefWindowProc(hWnd, message, wParam, lParam);
        }
        return 0;
    }

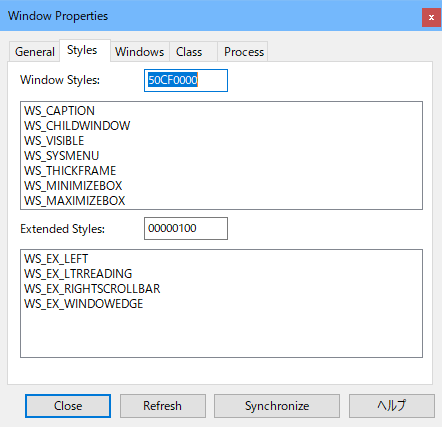

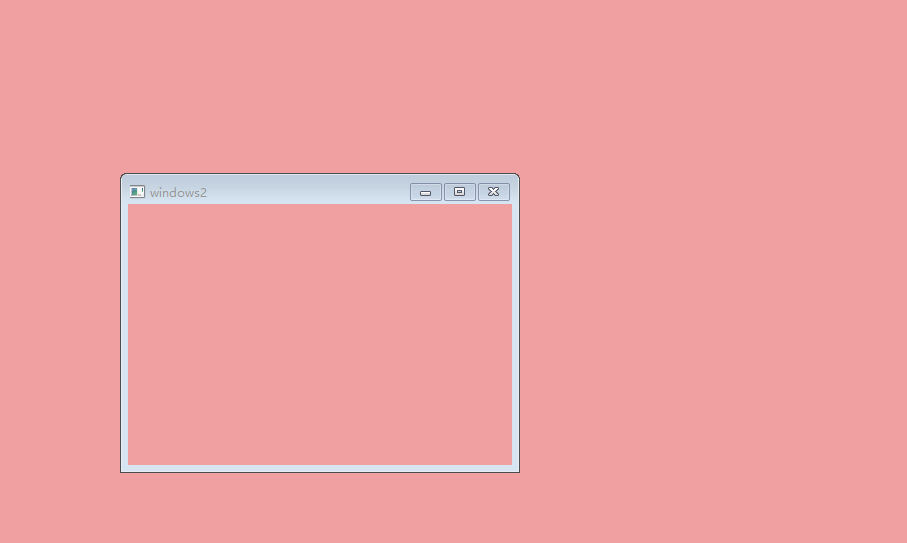

    Here is the effect:
    User's image


1 additional answer

Sort by: Most helpful
  1. Tong Xu - MSFT 2,036 Reputation points Microsoft Vendor
    2024-05-03T04:23:57.5433333+00:00

    Hello, @Saito, Makoto (SIE)
    Welcome to Microsoft Q&A!
    Please note. Here is the English Q&A forum. Please use English to get the attention of the community and better help answer your questions.

    I want to use CreateWindowEx() on FSE to display a different window, is that possible?

    You can test my code. It should be possible and worked.

    // include the basic windows header files and the Direct3D header files
    #include <windows.h>
    #include <windowsx.h>
    #include <d3d11.h>
    #include <dxgi.h>
    #include<d3d10.h>
    #include<directxmath.h>
    // include the Direct3D Library file
    #pragma comment (lib, "d3d11.lib")
    #pragma comment(lib,"DXGI.lib")
    #pragma comment(lib,"D3D10.lib")
    // define the screen resolution
    #define SCREEN_WIDTH  800
    #define SCREEN_HEIGHT 600
    // global declarations
    IDXGISwapChain* swapchain;
    // the pointer to the swap chain interface
    ID3D11Device* dev;                     // the pointer to our Direct3D device interface
    ID3D11DeviceContext* devcon;           // the pointer to our Direct3D device context
    ID3D11RenderTargetView* backbuffer;    // the pointer to our back buffer
    HWND hWnd;
    // function prototypes
    void InitD3D(HWND hWnd);    // sets up and initializes Direct3D
    void RenderFrame(void);     // renders a single frame
    void CleanD3D(void);        // closes Direct3D and releases memory
    // the WindowProc function prototype
    LRESULT CALLBACK WindowProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam);
    // the entry point for any Windows program
    int WINAPI WinMain(HINSTANCE hInstance,
        HINSTANCE hPrevInstance,
        LPSTR lpCmdLine,
        int nCmdShow)
    {
       ;
        WNDCLASSEX wc;
        ZeroMemory(&wc, sizeof(WNDCLASSEX));
        wc.cbSize = sizeof(WNDCLASSEX);
        wc.style = CS_HREDRAW | CS_VREDRAW;
        wc.lpfnWndProc = WindowProc;
        wc.hInstance = hInstance;
        wc.hCursor = LoadCursor(NULL, IDC_ARROW);
        // wc.hbrBackground = (HBRUSH)COLOR_WINDOW;    // 不在需要
        wc.lpszClassName = L"WindowClass";
        RegisterClassEx(&wc);
        RECT wr = { 0, 0, NULL, NULL };
        //AdjustWindowRect(&wr, WS_OVERLAPPEDWINDOW, FALSE);
         hWnd = CreateWindowEx(NULL,
            L"WindowClass",
            L"Our First Direct3D Program",
            NULL,
            300,
            300,
            CW_USEDEFAULT,
            CW_USEDEFAULT,
            NULL,
            NULL,
            hInstance,
            NULL);
        if (hWnd == NULL)
        {
            return 0;
        }
        ShowWindow(hWnd, nCmdShow);

        // set up and initialize Direct3D
        InitD3D(hWnd);
        CleanD3D();
        // enter the main loop:

        MSG msg;
        while (TRUE)
        {
            if (PeekMessage(&msg, NULL, 0, 0, PM_REMOVE))
            {
                TranslateMessage(&msg);
                DispatchMessage(&msg);
                if (msg.message == WM_QUIT)
                    break;
            }


        }

        // clean up DirectX and COM
        return msg.wParam;
    }
    // this is the main message handler for the program
    LRESULT CALLBACK WindowProc(HWND hWnd, UINT message, WPARAM wParam, LPARAM lParam)
    {
        switch (message)
        {
        case WM_DESTROY:
        {
            PostQuitMessage(0);
            return 0;
        } break;
        }
        return DefWindowProc(hWnd, message, wParam, lParam);
    }
    // this function initializes and prepares Direct3D for use
    void InitD3D(HWND hWnd)
    {
        // create a struct to hold information about the swap chain
        DXGI_SWAP_CHAIN_DESC scd;
        // clear out the struct for use
        ZeroMemory(&scd, sizeof(DXGI_SWAP_CHAIN_DESC));
        // fill the swap chain description struct
        scd.BufferCount = 1;                                    // one back buffer
        scd.BufferDesc.Format = DXGI_FORMAT_R8G8B8A8_UNORM;     // use 32-bit color
        scd.BufferDesc.Width = NULL;                    // set the back buffer width
        scd.BufferDesc.Height = NULL;                  // set the back buffer height
        scd.BufferUsage = DXGI_USAGE_RENDER_TARGET_OUTPUT;      // how swap chain is to be used
        scd.OutputWindow = hWnd;                                // the window to be used
        scd.SampleDesc.Count = 4;                               // how many multisamples
        scd.Windowed = TRUE;                                    // windowed/full-screen mode
        scd.Flags = DXGI_SWAP_CHAIN_FLAG_ALLOW_MODE_SWITCH;     // allow full-screen switching
        // create a device, device context and swap chain using the information in the scd struct
        D3D11CreateDeviceAndSwapChain(NULL,
            D3D_DRIVER_TYPE_HARDWARE,
            NULL,
            NULL,
            NULL,
            NULL,
            D3D11_SDK_VERSION,
            &scd,
            &swapchain,
            &dev,
            NULL,
            &devcon);
        // get the address of the back buffer
        ID3D11Texture2D* pBackBuffer;
        swapchain->GetBuffer(0, __uuidof(ID3D11Texture2D), (LPVOID*)&pBackBuffer);
        // use the back buffer address to create the render target
        dev->CreateRenderTargetView(pBackBuffer, NULL, &backbuffer);
        pBackBuffer->Release();
        // set the render target as the back buffer
        devcon->OMSetRenderTargets(1, &backbuffer, NULL);
        // Set the viewport
        D3D11_VIEWPORT viewport;
        ZeroMemory(&viewport, sizeof(D3D11_VIEWPORT));
        viewport.TopLeftX = 0;
        viewport.TopLeftY = 0;
        viewport.Width = NULL;
        viewport.Height = NULL;
        devcon->RSSetViewports(1, &viewport);
    }
    // this is the function used to render a single frame
    void RenderFrame(void)
    {
        float clearColor[4] = { 0.0f, 1.0f, 0.2f, 1.0f };
        // clear the back buffer to a deep blue
        devcon->ClearRenderTargetView(backbuffer, clearColor);
        // do 3D rendering on the back buffer here
        // switch the back buffer and the front buffer
        swapchain->Present(0, 0);
    }
    // this is the function that cleans up Direct3D and COM
    void CleanD3D(void)
    {
        ID3D11Texture2D* pTex = NULL;
        swapchain->GetBuffer(0, __uuidof(ID3D11Texture2D), (void**)pTex);
        HRESULT ree= swapchain->SetFullscreenState(TRUE, nullptr);    // switch to windowed mode
        if (ree != S_OK)
        {
            MessageBoxW(hWnd,L"error",L"error",NULL);
        }
        // close and release all existing COM objects
        swapchain->Release();
        backbuffer->Release();
        dev->Release();
        devcon->Release();
    }


    Because I worked on a Terminal Server, I cannot verify it worked:
    DXGI_ERROR_NOT_CURRENTLY_AVAILABLE if the action failed. When this error is returned, your application can continue to run in windowed mode and try to switch to full-screen mode later. There are many reasons why a windowed-mode swap chain cannot switch to full-screen mode. Here are some examples.

    • The application is running over Terminal Server.
    • The output window is occluded.
    • The output window does not have keyboard focus.
    • Another application is already in full-screen mode.

    I'd like to specify the WS_OVERLAPPED if possible, but is that possible?

    No, You certainly understand the definition of windowing and fullscreen. Using WS_OVERLAPPEDWINDOW is contradictory.

    Thank you.
