Can't move forward "Select a resource to work with" step in vision studio
I am following MS learning page to work on one of the courses and I am trying to start a 'Customize Models with Images' project using Vision Studio, but it asks me to select a resource. Even though I choose my default resource, nothing happens, and the page doesn't move forward. There’s no error message or any indication of what’s wrong. How can I proceed with creating this project if I can't move to the next step?
Azure AI Custom Vision
-
Sina Salam 10,566 Reputation points
2024-09-06T17:47:09.8633333+00:00 Hello DavaaD,
Welcome to the Microsoft Q&A and thank you for posting your questions here.
I understand that you are having issue moving forward with 'Customize Models with Images' project using Vision Studio, after you're prompt to select a resource.
If the default resource isn't working, try creating a new Vision resource directly from the Vision Studio interface - https://learn.microsoft.com/en-us/answers/questions/1828199/how-to-find-resource-in-vision-studio
Secondly, ensure that the resource group and storage account are in the same region and subscription as your Vision Studio project - https://learn.microsoft.com/en-us/azure/ai-services/computer-vision/how-to/model-customization
Finally, refresh the page, necessary permissions to access the selected resource and clearing of "Browser Cache" can however resolve the issue faster.
I hope this is helpful! Do not hesitate to let me know if you have any other questions.
Please don't forget to close up the thread here by upvoting and accept it as an answer if it is helpful
-
navba-MSFT 24,190 Reputation points • Microsoft Employee
2024-09-09T02:59:41.54+00:00 @DavaaD Welcome to Microsoft Q&A Forum, Thank you for posting your query here!
.

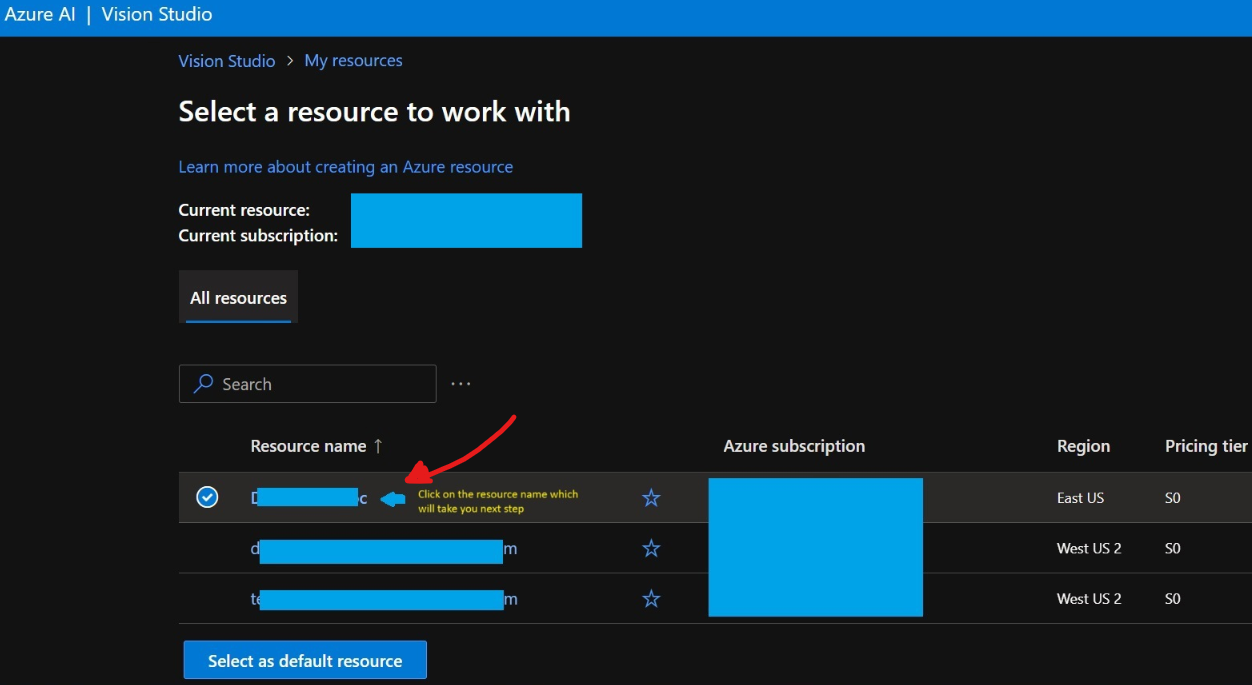

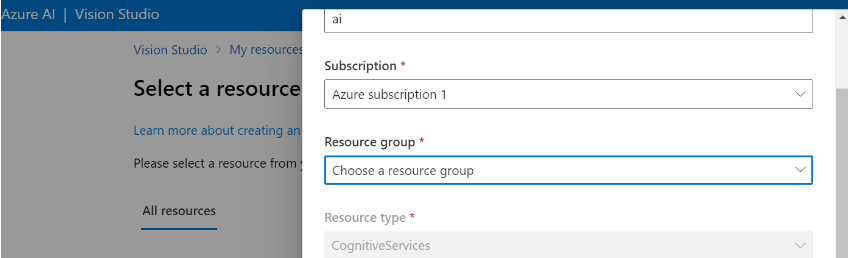

Could you please confirm if you are using the vision studio settings page to create your resource? On the below screenshot, it tries to pull the resource groups which already have an "Azure AI services multi-service account" resource created in the resource group.
.
This limits the resource groups that are listed and the only way you can use this option is to use a resource group which already has
Azure AI services multi-service account
resource created in it.I would recommend using the Azure portal itself to create an AI vision resource in the resource group of your choice and then use the settings page on vision studio to map your vision studio to this resource. By following the below steps:
- Open Azure Portal
- Navigate to the Azure Ai Services --> Custom Vision and Click Create

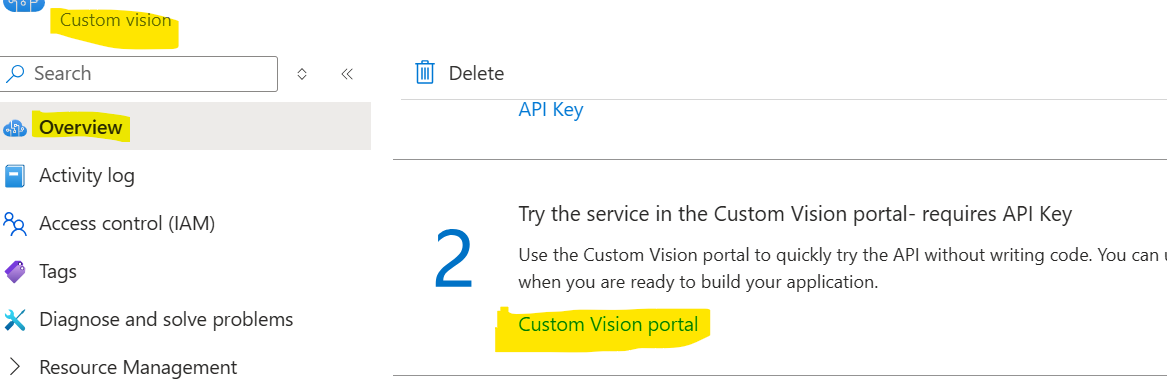

After creating the Custom vision, go to that resource and click on Custom Vision Portal:
-

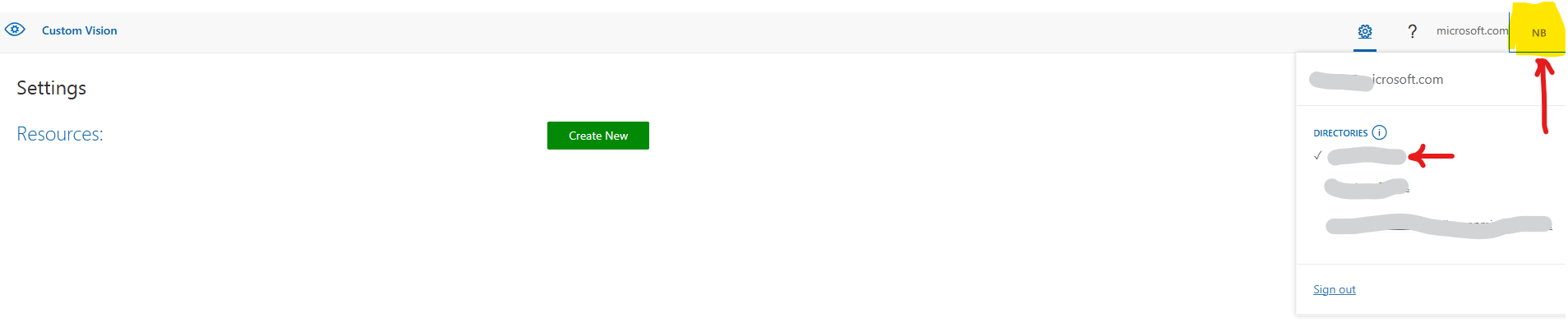

Click on your profile icon on the right side top of the menu bar and select the right subscription directory:
-

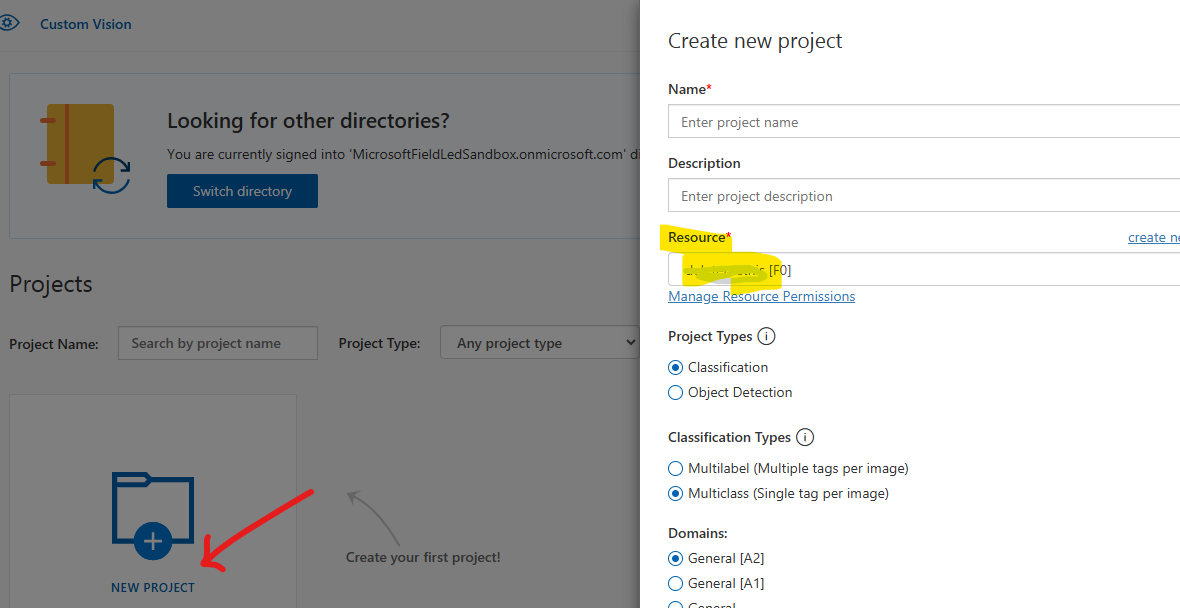

Then click on New Project option and your concerned resource should be loaded.
.
Hope this helps. If you have any follow-up questions, please let me know. I would be happy to help.
-
DavaaD 11 Reputation points
2024-09-10T17:15:12.8033333+00:00 Hi @Sina Salam ,
Thank you for your input.
I created a resource using Vision Studio, and while the resource was successfully created, selecting it as the default doesn’t allow me to proceed to the next step.
I haven’t yet checked if the resource group and storage account are in the same region, but I’ll try that next to see if it resolves the issue.
Thanks again!
-
navba-MSFT 24,190 Reputation points • Microsoft Employee
2024-09-11T03:52:39.63+00:00 @DavaaD @DavaaD Thanks for the update. Could you also follow the steps which I have suggested above and check if that helps ?

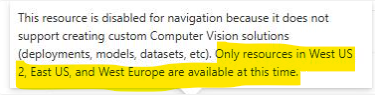

From the studio we have an Information icon with "This resource is disabled for navigation because it does not support creating custom Computer Vision solutions (deployments, models, datasets, etc). Only resources in West US 2, East US, and West Europe are available at this time."
@d
-
navba-MSFT 24,190 Reputation points • Microsoft Employee
2024-09-12T04:26:55.6233333+00:00 @DavaaD This is a quick follow-up to check if you had a chance to look at the above suggestion and also try from a resource deployed to West US 2, East US, and West Europe region. Awaiting your reply.
-
navba-MSFT 24,190 Reputation points • Microsoft Employee
2024-09-16T05:45:49.14+00:00 @DavaaD Just following up to check if my suggestion helped. Please let me know if you have any further queries. I would be happy to help.
-
DavaaD 11 Reputation points
2024-09-16T15:41:51.13+00:00 Hi @navba-MSFT ,
My resource is an Azure AI services multi-service account located in East US, but it didn't work. I followed your instructions to create a Custom Vision resource separately, but my main goal is to use my multi-service account. Therefore, I'm still facing the same issue.
From my little research, it seems like I might need specific permissions for my directory, but I need more time to investigate. In the meantime, if you have any other recommendations to try, please let me know.
Thanks,
Davaa
-
navba-MSFT 24,190 Reputation points • Microsoft Employee
2024-09-17T05:23:54.5533333+00:00 @DavaaD Thanks for getting back. To grant the RBAC permissions, you need to follow the below:
- In the Azure portal, navigate to your specific Custom Vision training resource.
- Select Access control (IAM) on the left navigation pane.
- Select Add -> Add role assignment.
- On the Role tab on the next screen, select Cognitive Services Custom Vision Contributor role.
- On the Members tab, select a user, group, service principal, or managed identity.
- On the Review + assign tab, select Review + assign to assign the role.
Then wait for atleast 30 minutes for this new role to take effect and then test.
Awaiting your reply.
-
navba-MSFT 24,190 Reputation points • Microsoft Employee
2024-09-19T04:56:50.4733333+00:00 @DavaaD Just following up to check if my suggestion helped. Please let me know if you have any further queries. I would be happy to help.
-
Samuel Dare Awoseyin 20 Reputation points
2024-10-08T05:13:56.82+00:00 Hi @navba-MSFT & @Sina Salam , I am experiencing the same issue as DavaaD above and the solution both of you provided have not been helpful. I can confirm Resource Group, Ai cognitive service resource and container are all in the same region (East US). However, whenever I start a new project from Vision Studion (https://portal.vision.cognitive.azure.com/),it takes me to the resource page and even after selecting the resource as default, nothing happens. Tried using devtools, however here are the errors I am seeing
Here is the method logs. However, we get a 200 OK response but nothing is triggered:
Request URL: https://browser.events.data.microsoft.com/OneCollector/1.0/?cors=true&content-type=application/x-json-stream&ext.intweb.msfpc=GUID%3D9d8e681a22cd4aa984c1b3ed7fa1b57c%26HASH%3D9d8e%26LV%3D202212%26V%3D4%26LU%3D1670407879853&w=0 Request Method: POST Status Code: 200 OK Remote Address: 20.189.173.13:443 Referrer Policy: strict-origin-when-cross-origin access-control-allow-credentials: true access-control-allow-headers: time-delta-millis access-control-allow-methods: POST access-control-allow-origin: https://portal.vision.cognitive.azure.com access-control-expose-headers: time-delta-millis content-length: 24 content-type: application/json date: Tue, 08 Oct 2024 05:08:16 GMT server: Microsoft-HTTPAPI/2.0 strict-transport-security: max-age=31536000 time-delta-millis: 303 :authority: browser.events.data.microsoft.com :method: POST :path: /OneCollector/1.0/?cors=true&content-type=application/x-json-stream&ext.intweb.msfpc=GUID%3D9d8e681a22cd4aa984c1b3ed7fa1b57c%26HASH%3D9d8e%26LV%3D202212%26V%3D4%26LU%3D1670407879853&w=0 :scheme: https accept: */* accept-encoding: gzip, deflate, br, zstd accept-language: en-US,en;q=0.9,en-GB;q=0.8,et;q=0.7,pt-BR;q=0.6,pt;q=0.5 apikey: 7560eb991c0e45459c9c0964620265fb-c42a2bde-aa8d-4814-bc5a-3ac7c51e96be-7097 cache-control: no-cache, no-store client-id: NO_AUTH client-version: 1DS-Web-JS-4.2.1 content-length: 2191 content-type: application/x-json-stream cookie: MC1=GUID=9d8e681a22cd4aa984c1b3ed7fa1b57c&HASH=9d8e&LV=202212&V=4&LU=1670407879853; MSCC=cid=jm7h0m562iiqmw5ha3jbsh54-c1=1-c2=1-c3=1; MS-CV=QUDOaR7Um0uVb1X5.1; OcRPSAuth=FABGARRhXI1uoQXjpavVIhYpYW+GLT0unQ5mAAAMgAAAECtPYSwpHNwHGNUOXl5Sx43wAItaQ32A0aLNf9aar5clvSSZrVlRMCmR/ls6G5CBudye0jaNAiY+TTJpPlYjCIxy7V/zlkldxAR5DYPIHRU05elBK9Gm3mUcQR6I9/IM+o+eMd52VtdxHkDdfuwJA2NCICUFP6zZruOexwTOszuiX237UJsexW/q45UHpUpFIC784+TakYPJUHH8ytOgZSDmF907psPAuDoskFbxnB7V/f5mQwOQ9CeOIc5LHLl16W6vAGqZDH9pkKp8d6ZTKQ82V2TAOd+gF4i57lKE18dvm7p69WAbcrhTVXljphg9pj04TLLle7FoeQ5obKIgjh1dzCAAQZiusDCxpmf3V5Mf3HWXtcG6pWDPNi6rw+0k+Go1W5k=; MS0=545be1fd567f44c88b1a43c79c0ce883 origin: https://portal.vision.cognitive.azure.com priority: u=1, i referer: https://portal.vision.cognitive.azure.com/ sec-ch-ua: "Microsoft Edge";v="129", "Not=A?Brand";v="8", "Chromium";v="129" sec-ch-ua-mobile: ?0 sec-ch-ua-platform: "Windows" sec-fetch-dest: empty sec-fetch-mode: cors sec-fetch-site: cross-site time-delta-to-apply-millis: 466 upload-time: 1728364096905 user-agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/129.0.0.0 Safari/537.36 Edg/129.0.0.0
-
navba-MSFT 24,190 Reputation points • Microsoft Employee
2024-10-08T05:53:12.0566667+00:00 @Samuel Dare Awoseyin Thanks for sharing the error screenshot from the browser console. The error
NotSameOriginAfterDefaultedToSameOriginByCoep
seems like this is a JS behavior of the browser app, rather than an Azure platform behavior.On the app behavior, it seems outside our scope. Please try to access this from a different browser and check if that helps ?
Also test from a different network which is not within your coporate network.
There are some various discussions online all pointing at JS code as the problem: https://stackoverflow.com/a/70757834
