Hybrid Entra ID - I can't understand how it was set up

Question

Hybrid Entra ID - I can't understand how it was set up

Cloud_Geek_82 901

Hi guys,

Microsoft 365 users are synced from on-prem Active Directory.

(At least this is what I can conclude from the 365 admin center).

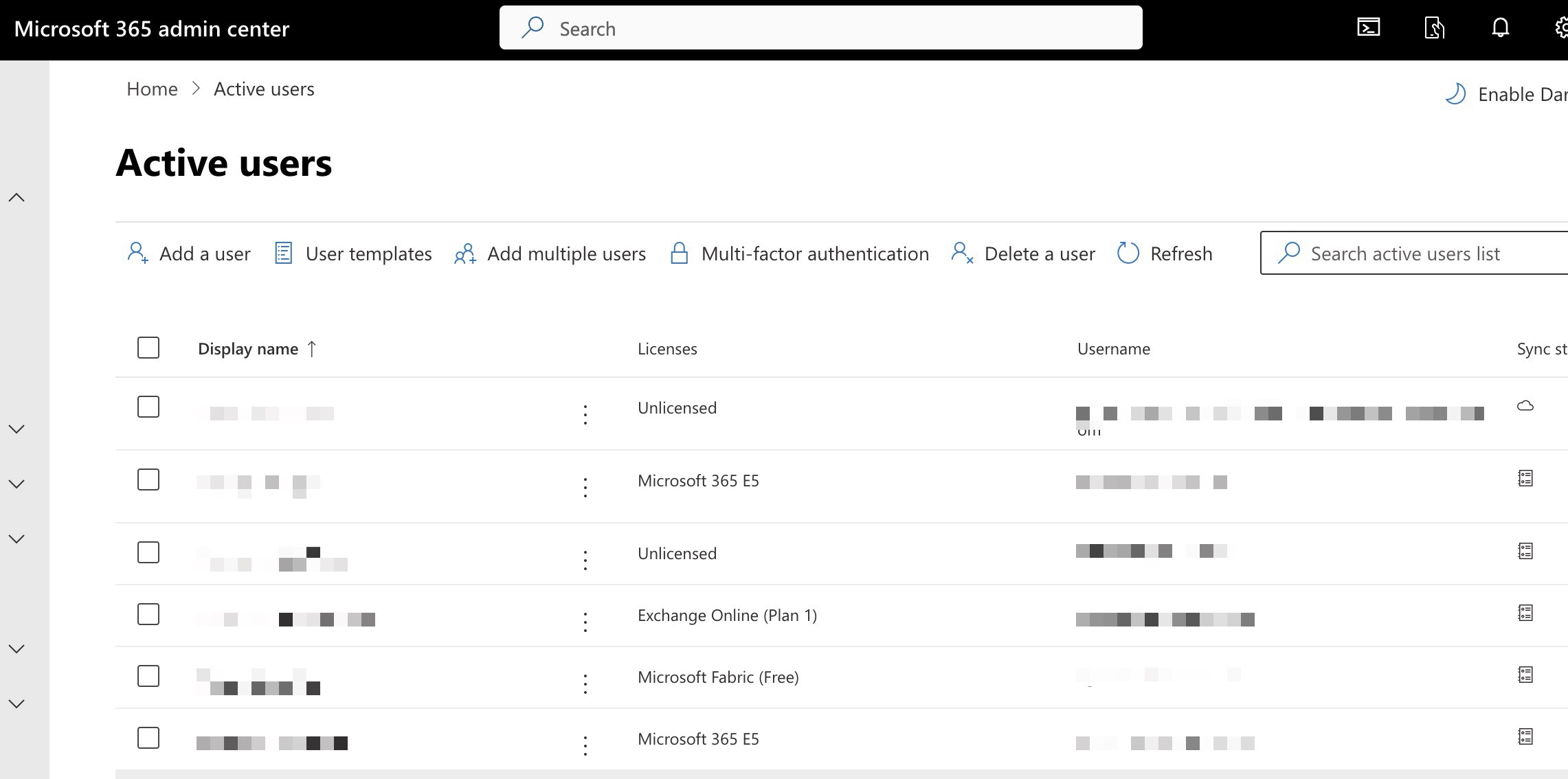

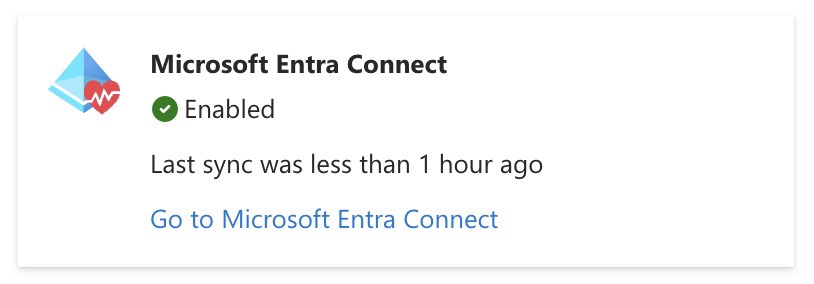

CleanShot 2024-10-22 at 07.55.03@2x CleanShot 2024-10-22 at 07.56.42@2x CleanShot 2024-10-22 at 07.57.40@2x However, in Microsoft Entra Connect Health - Sync Services I see this.

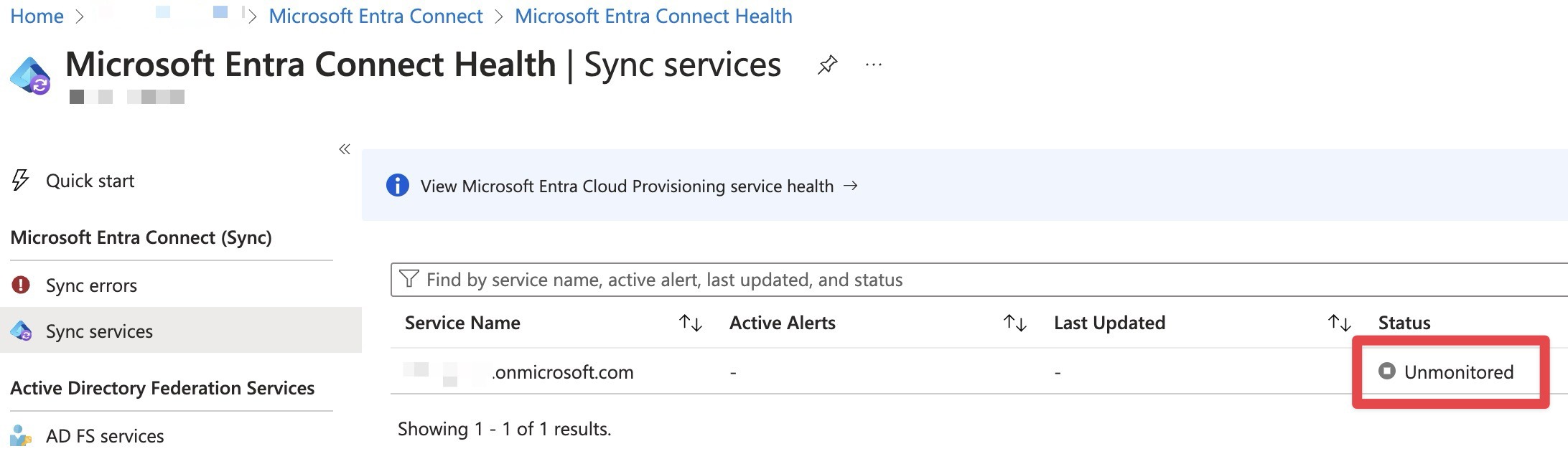

CleanShot 2024-10-22 at 08.28.22@2x

Interestingly AD objects are synced but I don't understand how it works.

If it makes any sense for someone please advise.

Givary-MSFT 35,786 Reputation points Microsoft Employee Moderator

2024-11-01T06:13:24.2666667+00:00

@Cloud_Geek_82 Just checking in to see if below information was helpful. If you have any further updates on this issue, please feel free to post back.
Cloud_Geek_82 901 Reputation points

2024-11-01T06:16:56.51+00:00

Thanks for following up.

All sorted.
Givary-MSFT 35,786 Reputation points Microsoft Employee Moderator

2024-11-01T06:19:10.3166667+00:00

@Cloud_Geek_82 Thanks for the update.

Please remember to "Accept Answer" if answer helped, so that others in the community facing similar issues can easily find the solution.

1 answer

Your answer

Givary-MSFT 35,786 Reputation points Microsoft Employee Moderator

2024-11-01T06:13:24.2666667+00:00

@Cloud_Geek_82 Just checking in to see if below information was helpful. If you have any further updates on this issue, please feel free to post back.
Cloud_Geek_82 901 Reputation points

2024-11-01T06:16:56.51+00:00

Thanks for following up.

All sorted.
Givary-MSFT 35,786 Reputation points Microsoft Employee Moderator

2024-11-01T06:19:10.3166667+00:00

@Cloud_Geek_82 Thanks for the update.

Please remember to "Accept Answer" if answer helped, so that others in the community facing similar issues can easily find the solution.

Answer 1

Marcin Policht 85,990 MVP Volunteer Moderator

Entra Connect Health is a supplemental service. You don't need to have it configured for synchronization to work. More at https://learn.microsoft.com/en-us/entra/identity/hybrid/connect/whatis-azure-ad-connect#what-is-microsoft-entra-connect-health

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin

Cloud_Geek_82 901 Reputation points

2024-10-22T04:30:01.5433333+00:00

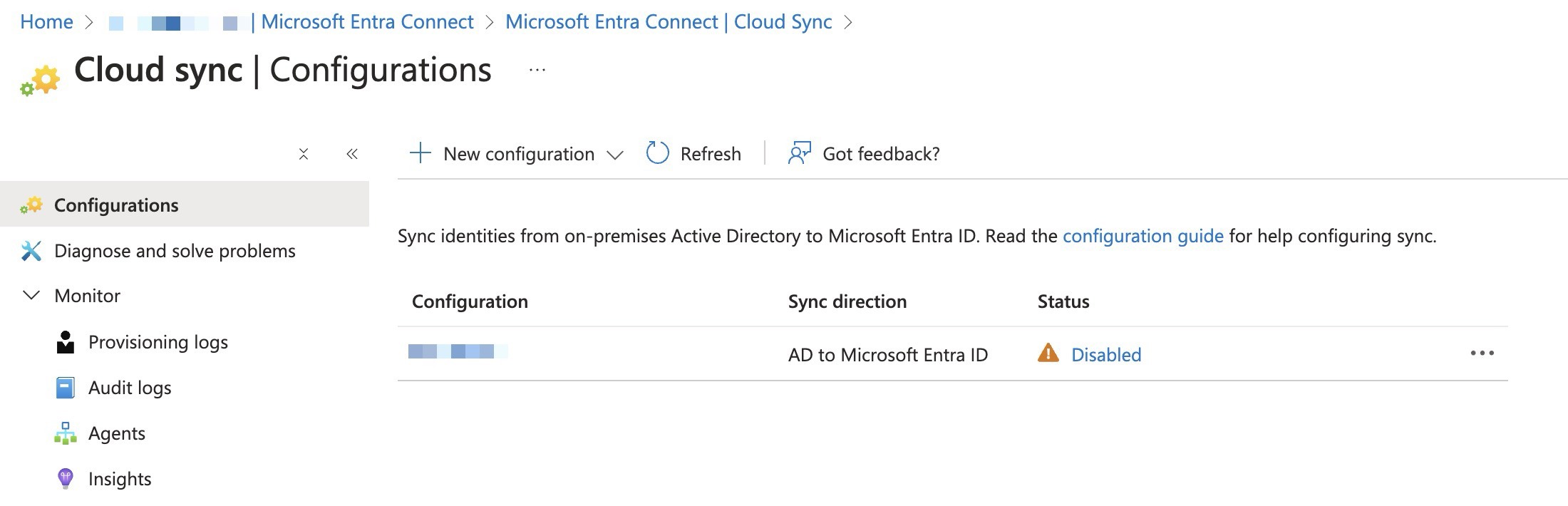

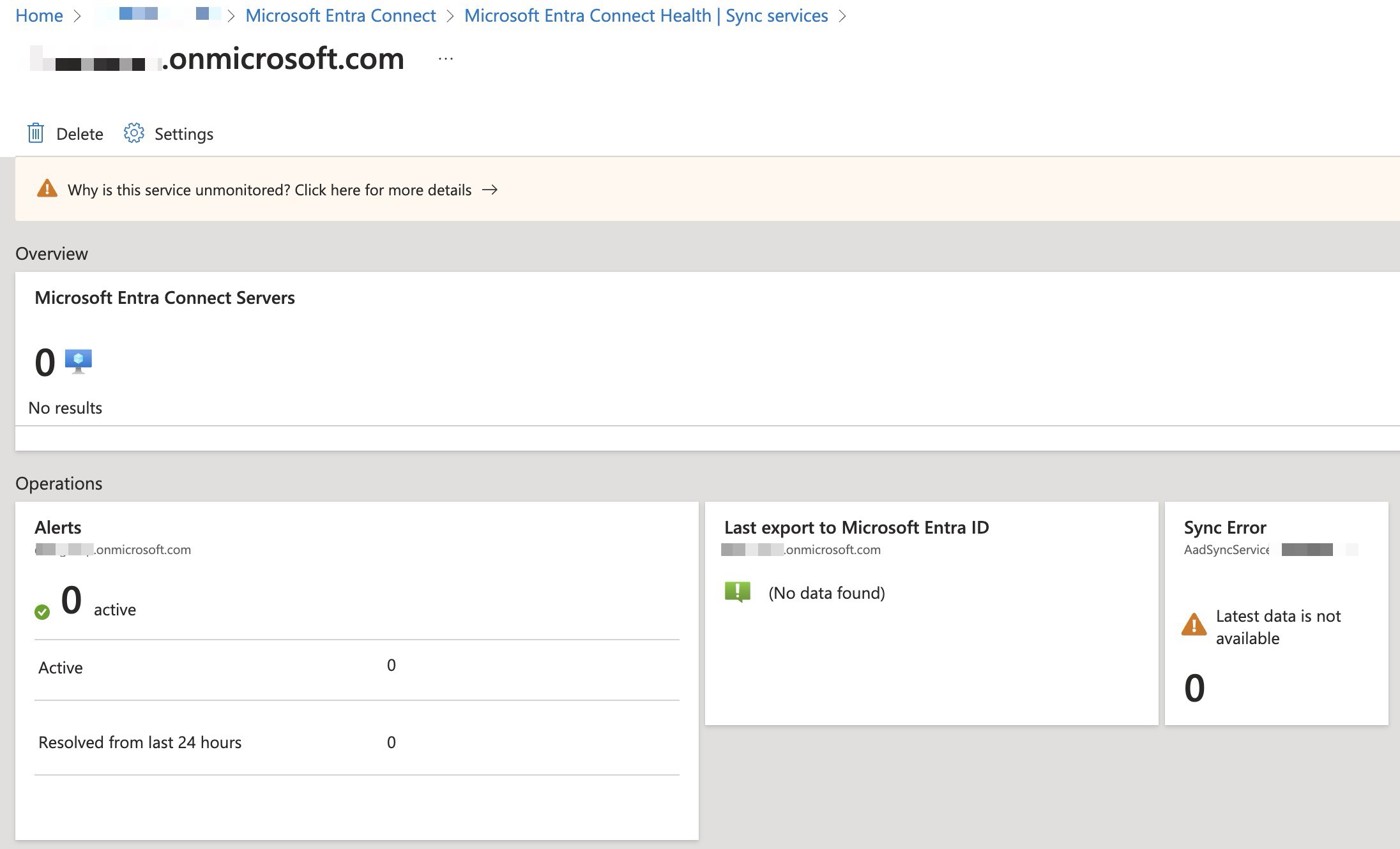

In addition to my first post attaching another screenshot.

Somehow on-prem AD objects are synced to Microsoft 365 but no on-prem server specified as a sync source.

Also, it doesn't look to me that Cloud Sync is deployed.
Cloud_Geek_82 901 Reputation points

2024-10-22T04:55:35.8033333+00:00

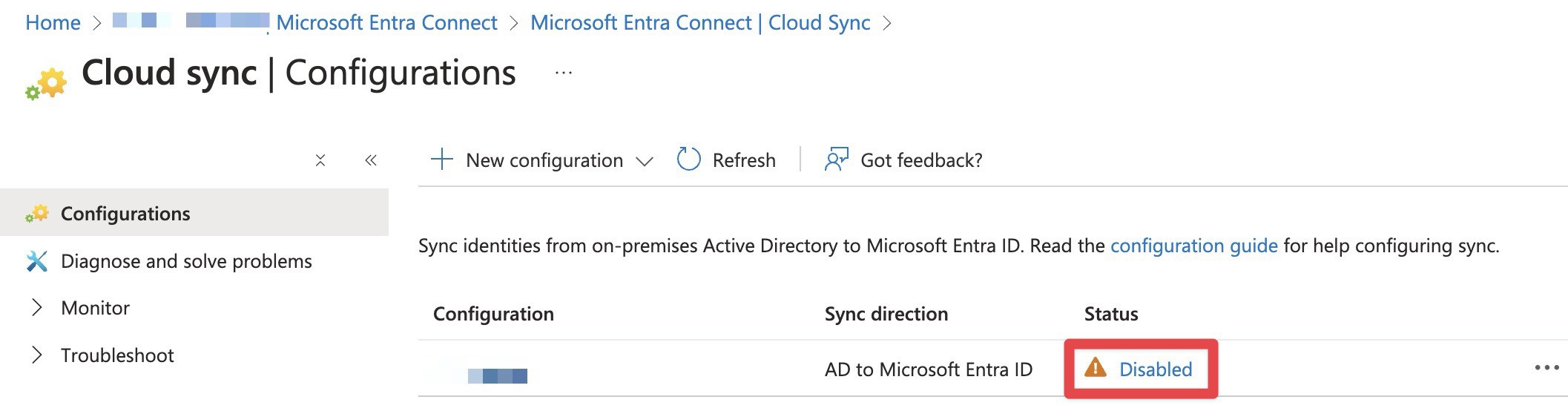

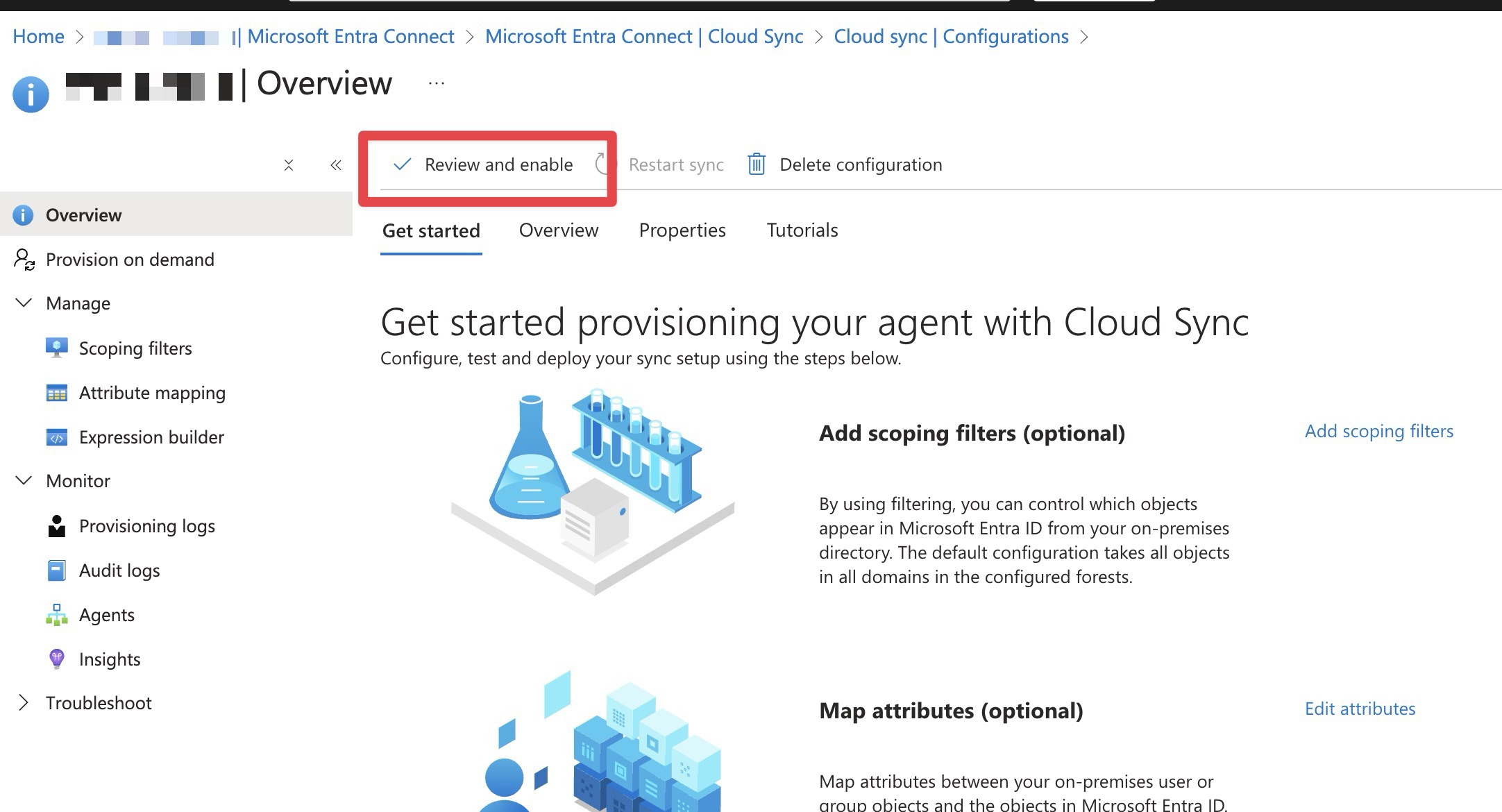

I assume when Cloud Sync is deployed It should not look like this. Right?
Marcin Policht 85,990 Reputation points MVP Volunteer Moderator

2024-10-22T13:12:18.73+00:00

Apparently you are using Connect Sync - not Cloud Sync

More at https://learn.microsoft.com/en-us/entra/identity/hybrid/cloud-sync/what-is-cloud-sync#comparison-between-microsoft-entra-connect-and-cloud-sync

If the above response helps answer your question, remember to "Accept Answer" so that others in the community facing similar issues can easily find the solution. Your contribution is highly appreciated.

hth

Marcin
Cloud_Geek_82 901 Reputation points

2024-11-01T06:16:32.1766667+00:00

The issue is sorted.

The on-prem environment is synced via Azure AD Connect, but not monitored hence no server is displayed as a source.
