How can I pass on a PipelineInput to a component - SDK-v2

Question

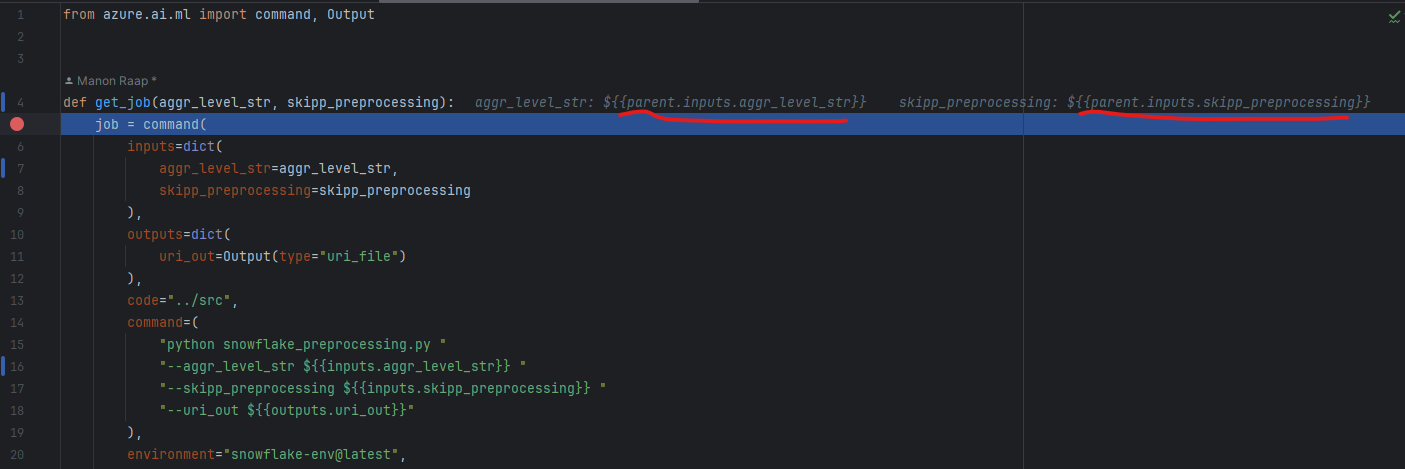

I have a component in AzureML, defined using SDK-v2. It runs fine if I hardcode my input strings in the pipeline definition, but as soon as I pass these as input into the pipeline and then pass them on to my component, I get this error:

"Unsupported input type: <class 'azure.ai.ml.entities._job.pipeline._io.base.PipelineInput'>, only Input, dict, str, bool, int and float are supported."

How can I adjust my component to use the parent input?

Thanks!!

Answer 1

@Manoni You can use any of the samples in the azureml-samples repo to load the components from YAML and pass the inputs to the pipeline. See this sample for example.

A pipeline is defined with the train model, score model and evaluate model steps all in their own yamls but loaded using load_component and then a pipeline job is created with the inputs and the required parameters.

from azure.ai.ml import MLClient, Input
from azure.ai.ml.dsl import pipeline
from azure.ai.ml import load_component


train_model = load_component(source=parent_dir + "/train_model.yml")
score_data = load_component(source=parent_dir + "/score_data.yml")
eval_model = load_component(source=parent_dir + "/eval_model.yml")


@pipeline()
def pipeline_with_components_from_yaml(
    training_input,
    test_input,
    training_max_epochs=20,
    training_learning_rate=1.8,
    learning_rate_schedule="time-based",
):
    """E2E dummy train-score-eval pipeline with components defined via yaml."""
    # Call component obj as function: apply given inputs & parameters to create a node in pipeline
    train_with_sample_data = train_model(
        training_data=training_input,
        max_epochs=training_max_epochs,
        learning_rate=training_learning_rate,
        learning_rate_schedule=learning_rate_schedule,
    )

    score_with_sample_data = score_data(
        model_input=train_with_sample_data.outputs.model_output, test_data=test_input
    )
    score_with_sample_data.outputs.score_output.mode = "upload"

    eval_with_sample_data = eval_model(
        scoring_result=score_with_sample_data.outputs.score_output
    )

    # Return: pipeline outputs
    return {
        "trained_model": train_with_sample_data.outputs.model_output,
        "scored_data": score_with_sample_data.outputs.score_output,
        "evaluation_report": eval_with_sample_data.outputs.eval_output,
    }


pipeline_job = pipeline_with_components_from_yaml(
    training_input=Input(type="uri_folder", path=parent_dir + "/data/"),
    test_input=Input(type="uri_folder", path=parent_dir + "/data/"),
    training_max_epochs=20,
    training_learning_rate=1.8,
    learning_rate_schedule="time-based",
)

For simplicity, I have skipped some cells from the sample notebook. The above should help you create a pipeline and a job where *.ymls will actually create the components and pass the inputs. I hope this helps!!

If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.
