conditionnal formating on a column based on a seperate look up column

2024-11-07T20:07:47.4766667+00:00

I have a column called ETA in my SharePoint list, and I would like to apply conditional formatting based on the value of another column. The other column is a lookup column called Permits_x003a_Permit_x0020_Expiry_x0020_Date, which pulls data from a date field.

What I want is for the ETA column to change colors based on the date in the Permits_x003a_Permit_x0020_Expiry_x0020_Date column:

  • If the date is less than 60 days away, I want ETA to be RED.
  • If the date is between 61 and 90 days away, I want ETA to be YELLOW.
  • If the date is more than 90 days away, I want ETA to be GREEN.

However, when I try to apply these conditions, the Permits_x003a_Permit_x0020_Expiry_x0020_Date column is not appearing in the list of available choices. Could this be because it's a lookup column?

SharePoint Development
SharePoint Development
SharePoint: A group of Microsoft Products and technologies used for sharing and managing content, knowledge, and applications.Development: The process of researching, productizing, and refining new or existing technologies.
3,100 questions
{count} votes

2 answers

Sort by: Most helpful
  1. Xyza Xue_MSFT 26,051 Reputation points Microsoft Vendor
    2024-11-08T05:39:31.0266667+00:00

    Hi @Senneville, Danielle (Horne-CCR - CA) ,

    Yes, lookup columns cannot be displayed in conditionnal formating.

    To achieve the desired conditional formatting, you can use the following JSON formatting example for the ETA column:

    {
      "$schema": "https://developer.microsoft.com/json-schemas/sp/v2/column-formatting.schema.json",
      "elmType": "div",
      "txtContent": "[$Permits_x003a_Permit_x0020_Expir.lookupValue]",
      "style": {
        "background-color": "=if(Date([$Permits_x003a_Permit_x0020_Expir.lookupValue]) - @now <= 5184000000, '#ff0000', if((Date([$Permits_x003a_Permit_x0020_Expir.lookupValue]) - @now <= 7776000000) && (Date([$Permits_x003a_Permit_x0020_Expir.lookupValue]) - @now >= 5184000000), '#ffff00', '#00ff00'))"
      }
    }




    Note: Make sure you are using correct internal name of your extended lookup date column.

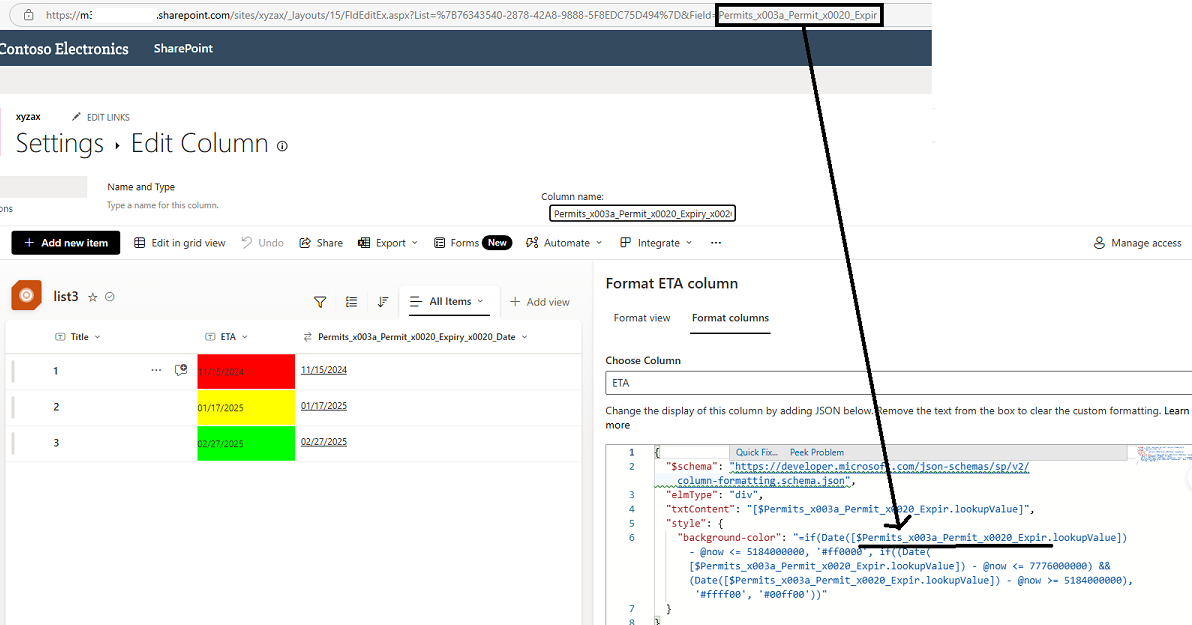

    Result:

    User's image


    If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

    Note: Please follow the steps in our documentation to enable e-mail notifications if you want to receive the related email notification for this thread.


  2. 2024-11-08T12:24:24.2933333+00:00

    There seems to be something not right happing. All my cells are red with no more date value.
