Microsoft entra private network connector

Question

I need to see how many Transactions per second TPA coming on azure proxy connector . as it has limitation 750 TPA per proxy service. I have three connectors and wanted to see the logs on azure portal for TPA. can we setup this in DCR somewhere? tried but couldn't find the performance counter for #request/sec there. I can see it after logging the server via perf counter but want to integrate it with azure portal so no need to logged-in the server to see the logs. welcome any suggestion here

Answer 1

Hello @Aditi Sharma.

Thank you for posting your query on Microsoft Q&A.

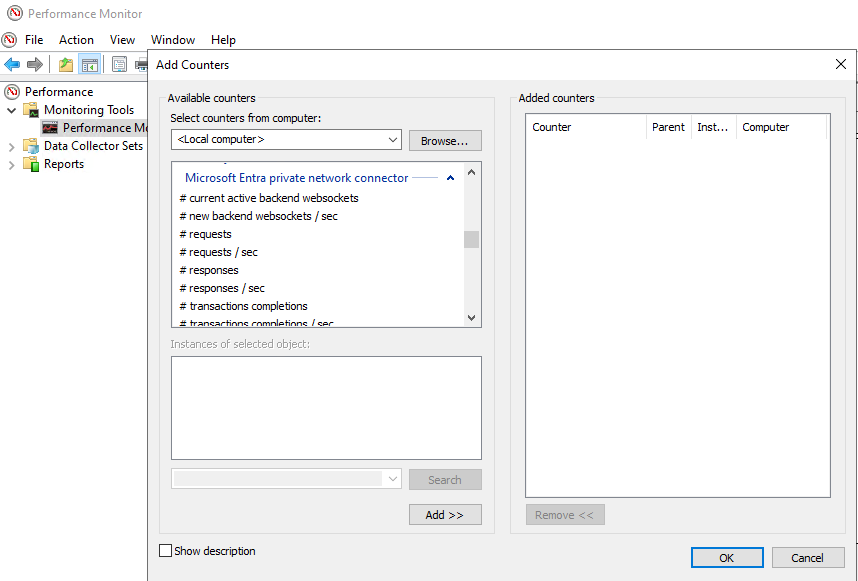

Unfortunately, proxy connector logs cannot be exported at this time, so performance counters remain the best available option. Transaction metrics are collected for each connector and can be monitored using performance counters under the object name Microsoft AAD App Proxy Connector. Please refer to the screenshot below for more details.

Reference: Microsoft Entra ID limits

If you'd like to review the session log, which includes all transactions and their processing details, you can refer to the documentation here: Under the Hood - Entra Microsoft Entra private network connector.

The session log is typically used for troubleshooting and is disabled by default. You can enable it to start collecting events and disable it once it's no longer needed.

I hope this information is helpful. Please feel free to reach out if you have any further questions.

If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".

Thanks,
Raja Pothuraju.
