Error DF-EXPR-010 in ADF data flow, Column 'body' used in expression is unavailable or invalid

Question

I need to take the results of a REST API query and transform them to upsert them into a table.

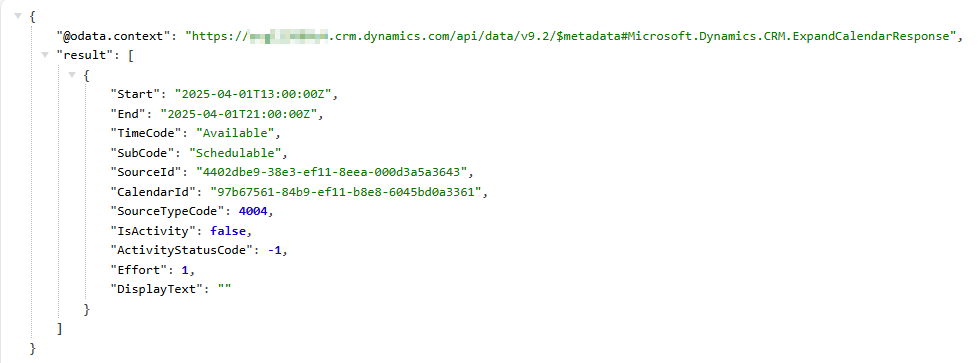

The source returns this JSON:

The Projection step ALWAYS puts the content in context of a body field. I can't figure out how to feed in the expected schema like I might in Power Automate.

Any step I put in after the source (flatten, derive, etc) fails with error DF-EXPR-010 stating that the column 'body' is unavailable. There is no body column. I'm at a loss. Help?

Answer 1

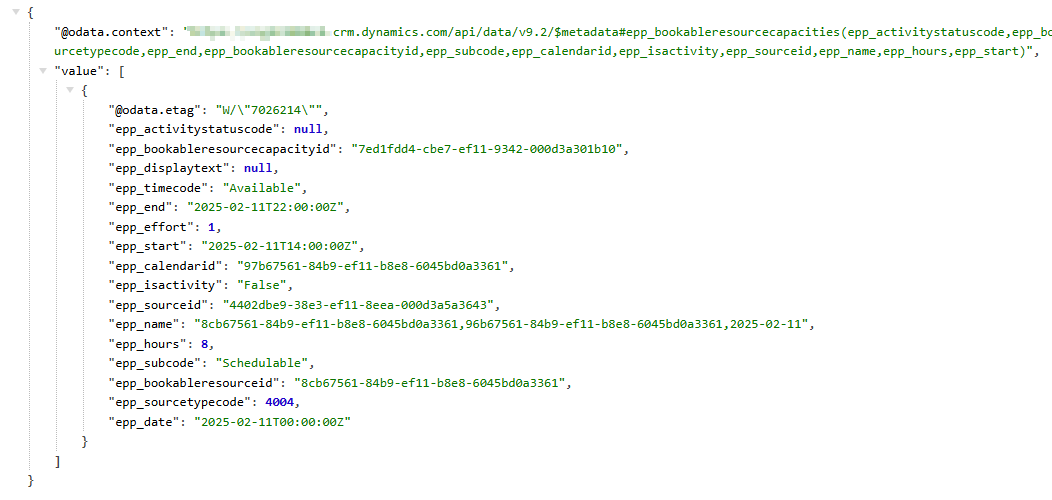

Apologies, wrong REST API source image, it should be:

still, no body column.

Answer 2

@Altobelli, Marie K

Thanks for reaching out to Microsoft Q&A.

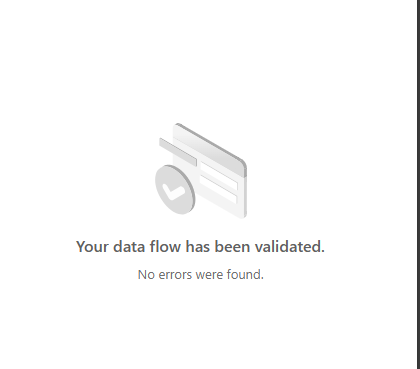

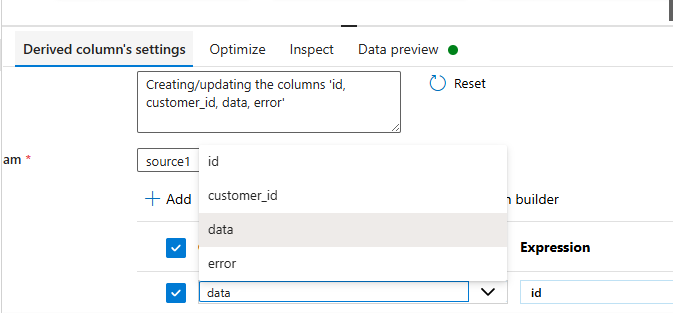

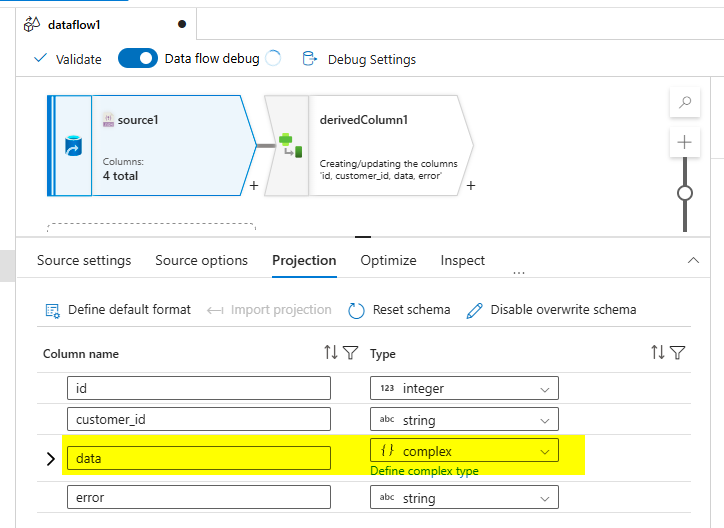

I have reproduced from my end i can see all columns of my Json reflecting in derived column

please correct me if I missed any thing

could you please provide more details about source settings with screenshot and pipeline configuration

meanwhile please check the below steps and confirm whether it helps.

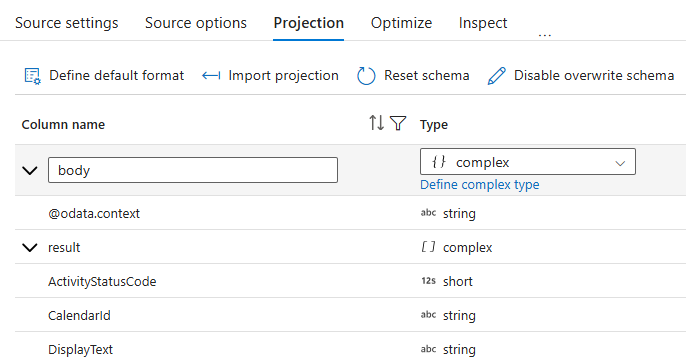

• Go to the Projection tab and define the complex type for the body column.
• Expand body and map the fields (e.g., result, ActivityStatusCode, CalendarId, etc.).
• Instead of referencing body.result directly, use:
• This helps ADF recognize the structure correctly.
• Since result is an array, use a Flatten transformation to extract its values before applying any derived columns or expressions.
• After importing the projection, check if the expected fields are accessible and correctly formatted.

I hope this information helps. Please do let us know if you have any further queries.

Kindly consider upvoting the comment if the information provided is helpful. This can assist other community members in resolving similar issues.
