MAUI: How to update the webview height after loading new content

Question

MAUI: How to update the webview height after loading new content

Sreejith Sreenivasan 1,001

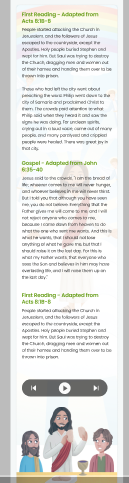

I want to implement the below UI in my MAUI application (header and footer sections are not added): asadf

Below is my code (header and footer sections are not added): Webview to show HTML content(with a background image), Audio frame with previous, play and next options and finally a footer image.

<Frame
    Margin="10,0,10,0"
    x:Name="android_uwp_layout"
    IsVisible="False"
    Padding="0"
    CornerRadius="20"
    Grid.Row="1">

    <ScrollView
        x:Name="android_scroll_view"
        Orientation="Vertical"
        VerticalOptions="FillAndExpand">
        <VerticalStackLayout Spacing="10">

            <!-- Background image with WebView -->
            <Grid>
                <Image Aspect="Fill" HorizontalOptions="FillAndExpand" Source="ic_daily_reading_new_bg_xx.png"/>

                <WebView
                    x:Name="mywebview"
                    BackgroundColor="Transparent"
                    HorizontalOptions="FillAndExpand"
                    VerticalOptions="FillAndExpand"
                    Navigated="OnWebViewNavigated"/>
            </Grid>

            <!-- Audio frame (Appears after WebView content) -->
            <Frame
                x:Name="android_audio_frame"
                BackgroundColor="#666664"
                Padding="0"
                CornerRadius="{OnIdiom Phone=30, Tablet=45, Desktop=30}"
                Margin="0,10,0,15"
                HorizontalOptions="CenterAndExpand"
                VerticalOptions="EndAndExpand">

                //Audio frame UI with previous, play and next options
            </Frame>

            <!-- Footer image (Appears at the bottom) -->
            <ffimageloading:CachedImage
                Aspect="AspectFit"
                HorizontalOptions="Fill"
                VerticalOptions="End"
                Source="ic_jesus_xx.png"/>
        </VerticalStackLayout>
    </ScrollView>
</Frame>

I integrated the HTML content to webview like below: (Added custom font and added a different color for header contents)

string description = Details.description;
string htmlContent = $@"
        <html>
        <head>
            <meta name='viewport' content='width=device-width, initial-scale=1.0, maximum-scale=1.0, user-scalable=no'/>
            <style>
                @font-face {{
                    font-family: 'PoppinsLight';
                    src: url('file:///android_asset/fonts/Poppins-Light.ttf');
                }}
                html, body {{
                    font-family: 'PoppinsLight', Arial, sans-serif;
                    margin: 0;
                    padding: 5;
                    line-height: 1.6;
                    overflow-x: hidden;
                    height: 100%;
                }}
                h4 {{
                    color: #679E18;
                }}
            </style>
        </head>
        <body>
            {description}
        </body>
        </html>";
var htmlSource = new HtmlWebViewSource
{
    Html = htmlContent
};
mywebview.Source = htmlSource;

Everything is working fine when load data initially. My Problem is when refreshing the content via API either blank space is showing in webview bottom or the entire webview content is not showing on the UI. The initially loaded height is not changing when loading the new content.

I have added Navigated event for webview, but it only fires when loading the data on initial time.

private async void OnWebViewNavigated(object sender, WebNavigatedEventArgs e)
{
    await Task.Delay(500); // Allow time for content to load

    string js = "document.body.scrollHeight";
    var height = await mywebview.EvaluateJavaScriptAsync(js);

    if (double.TryParse(height, out double newHeight) && newHeight > 0)
    {
        mywebview.HeightRequest = newHeight;  // Set WebView height dynamically
    }
}

Please check this video for a clear understanding.

I tried creating a new function with the OnWebViewNavigated logic like below:

//setting html data to webview
mywebview.Source = htmlSource;
await Task.Delay(500);
await AdjustWebViewHeight();

private async Task AdjustWebViewHeight()
{
    string js = "document.body.scrollHeight";
    var height = await mywebview.EvaluateJavaScriptAsync(js);

    if (double.TryParse(height, out double newHeight) && newHeight > 0)
   {
        mywebview.HeightRequest = newHeight;
   }
}

But at that time the UI completely breaks. Showing blank space on top and font styles are changing with that approach. In this video I have added what kind of issues with the new logic I tried.

Please suggest a solution to update the webview height based on the content without affecting the font family and blank spaces.

Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) 50,106 Reputation points Microsoft External Staff

2025-03-17T03:03:27.72+00:00
Could you please provide the following information?

Does this problem only occur on Android?

Do you customize the WebView using a Handler or Renderer?

Could you please provide a minimal code example that reproduces this problem and update it to the question?

Your prompt reply will be highly appreciated.
Sreejith Sreenivasan 1,001 Reputation points

2025-03-17T04:57:43.8033333+00:00

@Yonglun Liu (Shanghai Wicresoft Co,.Ltd.)

Does this problem only occur on Android?

Yes, only on Android

Do you customize the WebView using a Handler or Renderer?

No, not using handler or renderer

Could you please provide a minimal code example that reproduces this problem and update it to the question?\

I will create a demo and share here ASAP.
Sreejith Sreenivasan 1,001 Reputation points

2025-03-17T05:23:01.41+00:00

@Yonglun Liu (Shanghai Wicresoft Co,.Ltd.)

I have created a demo, could you please check with that?

https://drive.google.com/file/d/1yvjKJuIL6b-gIsdUcm7Xhl_cthFCak5-/view?usp=sharing

I have used the same codes in this demo, but when loading data initially also the height is not correct, height is increasing gradually without stopping. To refresh data choose calendar option and choose any data. Could you please help me to resolve it today itself, since today is the last date of the deadline of this project.
Sreejith Sreenivasan 1,001 Reputation points

2025-03-18T04:33:51.3733333+00:00

@Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) Any solution?
Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) 50,106 Reputation points Microsoft External Staff

2025-03-18T05:20:29.1566667+00:00

Thanks for your feedback.

I downloaded the demo you provided but it gives NETSDK1181 error when compiling. I noticed that you are using .net framework 8.0 and some old versions of Nuget Package, have you tried updating them to the latest version?
Sreejith Sreenivasan 1,001 Reputation points

2025-03-18T05:33:43.8466667+00:00

@Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) What Nuget Package need to update?
Sreejith Sreenivasan 1,001 Reputation points

2025-03-18T11:52:12.81+00:00

@Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) I resolved this issue from the SO thread, can you post it as your answer.
https://stackoverflow.com/questions/79510997/maui-how-to-update-the-webview-height-after-loading-new-content

Accepted answer

0 additional answers

Your answer

Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) 50,106 Reputation points Microsoft External Staff

2025-03-17T03:03:27.72+00:00

Could you please provide the following information?

Does this problem only occur on Android?

Do you customize the WebView using a Handler or Renderer?

Could you please provide a minimal code example that reproduces this problem and update it to the question?

Your prompt reply will be highly appreciated.
Sreejith Sreenivasan 1,001 Reputation points

2025-03-17T04:57:43.8033333+00:00

@Yonglun Liu (Shanghai Wicresoft Co,.Ltd.)

Does this problem only occur on Android?

Yes, only on Android

Do you customize the WebView using a Handler or Renderer?

No, not using handler or renderer

Could you please provide a minimal code example that reproduces this problem and update it to the question?\

I will create a demo and share here ASAP.
Sreejith Sreenivasan 1,001 Reputation points

2025-03-17T05:23:01.41+00:00

@Yonglun Liu (Shanghai Wicresoft Co,.Ltd.)

I have created a demo, could you please check with that?

https://drive.google.com/file/d/1yvjKJuIL6b-gIsdUcm7Xhl_cthFCak5-/view?usp=sharing

I have used the same codes in this demo, but when loading data initially also the height is not correct, height is increasing gradually without stopping. To refresh data choose calendar option and choose any data. Could you please help me to resolve it today itself, since today is the last date of the deadline of this project.
Sreejith Sreenivasan 1,001 Reputation points

2025-03-18T04:33:51.3733333+00:00

@Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) Any solution?
Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) 50,106 Reputation points Microsoft External Staff

2025-03-18T05:20:29.1566667+00:00

Thanks for your feedback.

I downloaded the demo you provided but it gives NETSDK1181 error when compiling. I noticed that you are using .net framework 8.0 and some old versions of Nuget Package, have you tried updating them to the latest version?
Sreejith Sreenivasan 1,001 Reputation points

2025-03-18T05:33:43.8466667+00:00

@Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) What Nuget Package need to update?
Sreejith Sreenivasan 1,001 Reputation points

2025-03-18T11:52:12.81+00:00

@Yonglun Liu (Shanghai Wicresoft Co,.Ltd.) I resolved this issue from the SO thread, can you post it as your answer.
https://stackoverflow.com/questions/79510997/maui-how-to-update-the-webview-height-after-loading-new-content

Answer 1

Hello,

You can use Handler to solve this problem. Please refer to the following code example:

We create a CustomWebViewClient class and set it to platformWebView.

    public DailyReadingPage()
    {
        InitializeComponent();

        ModifyWebView();
        ...
        CallDailyReading(htmldata);
    }

    void ModifyWebView()
    {
            Microsoft.Maui.Handlers.WebViewHandler.Mapper.AppendToMapping("MyCustomization", (handler, view) =>
        {
#if ANDROID
            if (handler.PlatformView is global::Android.Webkit.WebView platformWebView)
            {
                 platformWebView.SetWebViewClient(new CustomWebViewClient(this.mywebview));
            }
#endif
        });
    }

Here is the code for CustomWebViewClient class, you can place it just in code behind,

#if ANDROID
    public class CustomWebViewClient : WebViewClient
    {

        Microsoft.Maui.Controls.WebView mywebview;
        public CustomWebViewClient(Microsoft.Maui.Controls.WebView webView)
        {

            mywebview = webView;
            //mywebview.HeightRequest = 0;
        }

        public async override void OnPageFinished(Android.Webkit.WebView view, string url)
        {
            mywebview.HeightRequest = 0;
            await Task.Delay(500); // Allow time for content to load

            string js = "document.body.scrollHeight";
            var height = await mywebview.EvaluateJavaScriptAsync(js);

            if (double.TryParse(height, out double newHeight) && newHeight > 0)
            {
                mywebview.HeightRequest = newHeight;  // Set WebView height dynamically
            }

            base.OnPageFinished(view, url);


        }

    }
#endif

Just set the height: 100% is okay.

It will adjust the size then.

By the way, though it seems not necessary, you could also try adding the PropertyChanged event for the WebView and implement it. The code is shown below for your reference, hope it helps!

 <WebView  PropertyChanged="mywebview_PropertyChanged"
     x:Name="mywebview"

and implement it in code behind,

    private void mywebview_PropertyChanged(object sender, PropertyChangedEventArgs e)
    {
#if ANDROID
        if (e.PropertyName == "Source")
        {
            if (this.mywebview.Handler != null)
                (this.mywebview.Handler.PlatformView as Android.Webkit.WebView).SetWebViewClient(new CustomWebViewClient(this.mywebview));
        }
#endif
    }

Best Regards,

Alec Liu.
