How can I configuring a P2S VPN that is force tunneling to access internet

Question

I need some help trying to configure a P2S VPN (Virtual Network Gateway) to use force tunneling (0.0.0.0/1 and 128..0.0.0/1 split). I have tried to configure a NAT Gateway and a Firewall to route traffic through the VNET to the internet. Is this possible or do I need to use a NVA? My ultimate goal is to require access to M365 apps when the VPN is connected only (CA policy from known locations).

I am not interested in using the vWAN as the price is quite large for less that 15 clients using the VPN.

Appreciate the help.

Answer 1

Hi Jaden,

This might not be possible.

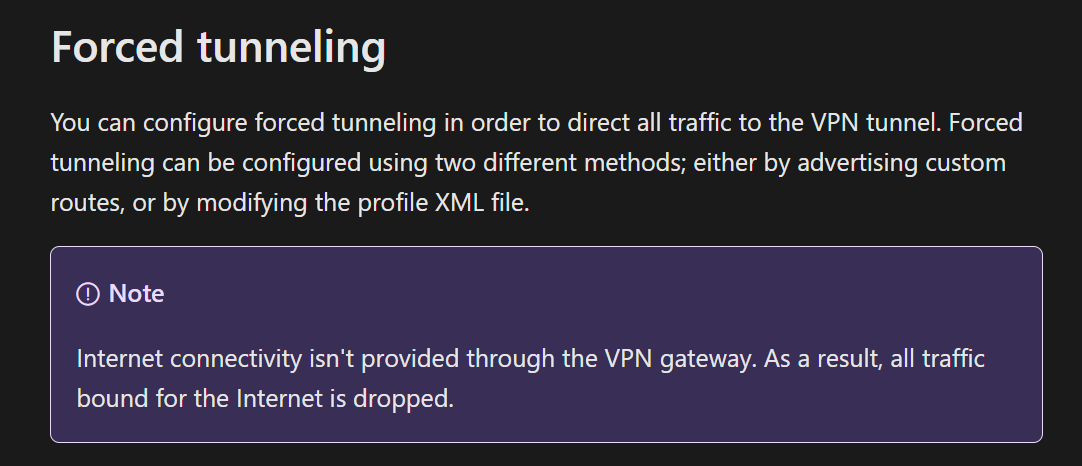

https://learn.microsoft.com/en-us/azure/vpn-gateway/azure-vpn-client-optional-configurations#routing

If you still wanted to try it:

https://learn.microsoft.com/en-us/azure/vpn-gateway/azure-vpn-client-optional-configurations#routing to get traffic to show up in your VNET (if it doesn't get dropped).

You can attach a route table to the GatewaySubnet to define the next hop which could be an Azure Firewall, NVA, or NAT Gateway (https://learn.microsoft.com/en-us/azure/nat-gateway/tutorial-hub-spoke-route-nat?tabs=portal#create-hub-network-route-table).
