How to Fetch Sensitivity Labels for Files in OneDrive/SharePoint and Outlook Emails

Question

I am having difficulty fetching the sensitivity labels for files stored in Office applications like Word and Outlook emails.

For Word: I attempted to use the endpoint https://graph.microsoft.com/v1.0/sites/{site-id}/drive/items/{item-id}/extractSensitivityLabels, but it returns a 404 error, despite the sensitivity label being applied to the document, which is visible when the document is opened.

For Emails: I used the endpoint https://graph.microsoft.com/v1.0/me/messages/{message-id}, but it does not provide any information regarding the sensitivity label. The email I was fetching was sent from another domain where Purview was enabled, and the email was marked with a sensitivity label before it was sent. I have verified that the information exists in the email's internet headers.

I consider that if there were any rights issues, there should have been an insufficient privileges error. I have provided the InformationProtectionPolicy.Read permission to my Azure app, so I believe the rights are set correctly.

Can anyone provide guidance on how to retrieve the sensitivity labels and suggest the best methods to do so?

Best Regards,

Kanwal Singh

Answer 1

Hi @Kanwal Singh,

The 404 error usually occurs if you are using GET method instead of POST while fetching sensitivity labels for SharePoint file.

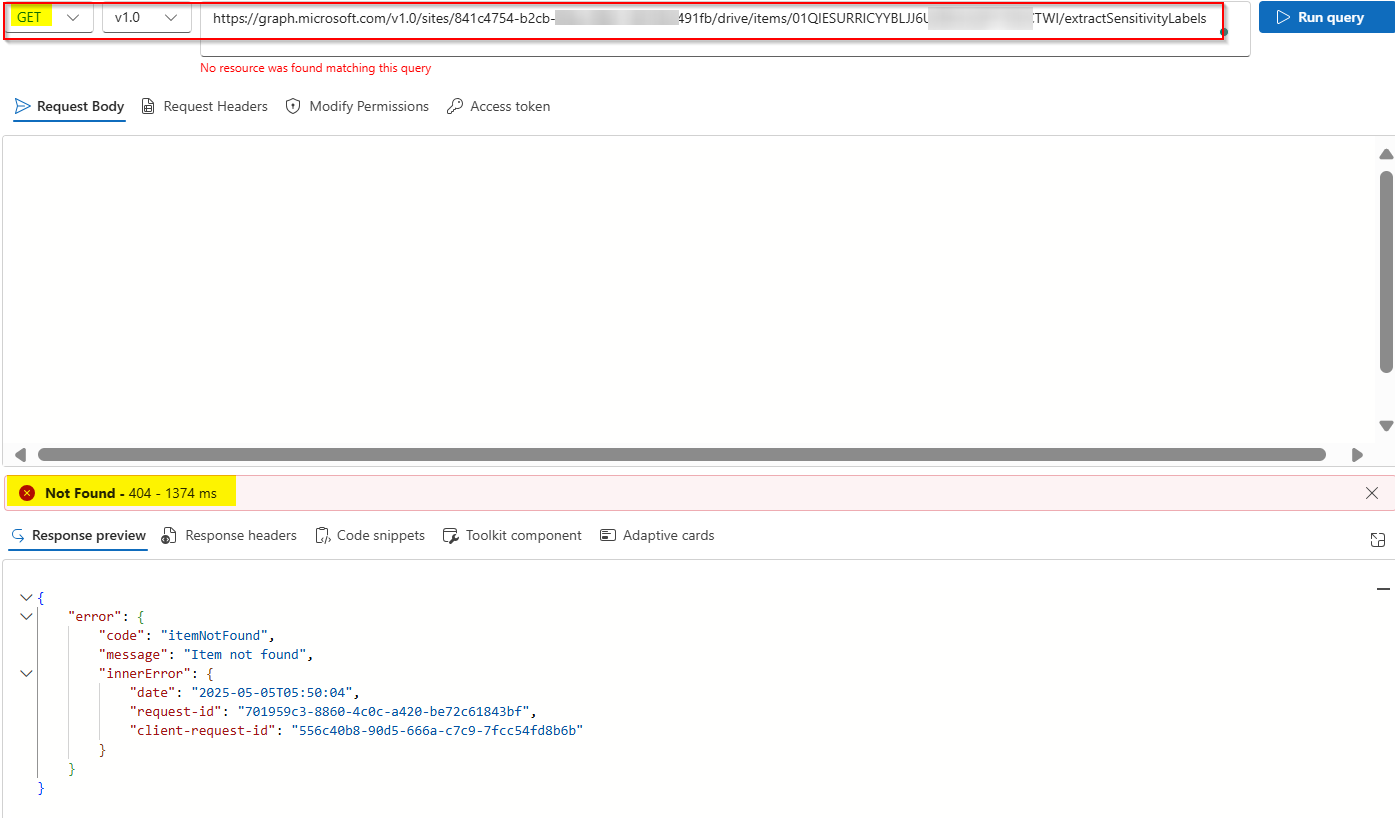

Initially I got the same error, when called the extractSensitivityLabels API using GET:

To resolve the error, make use of POST and also make sure that you are passing the correct ItemID:

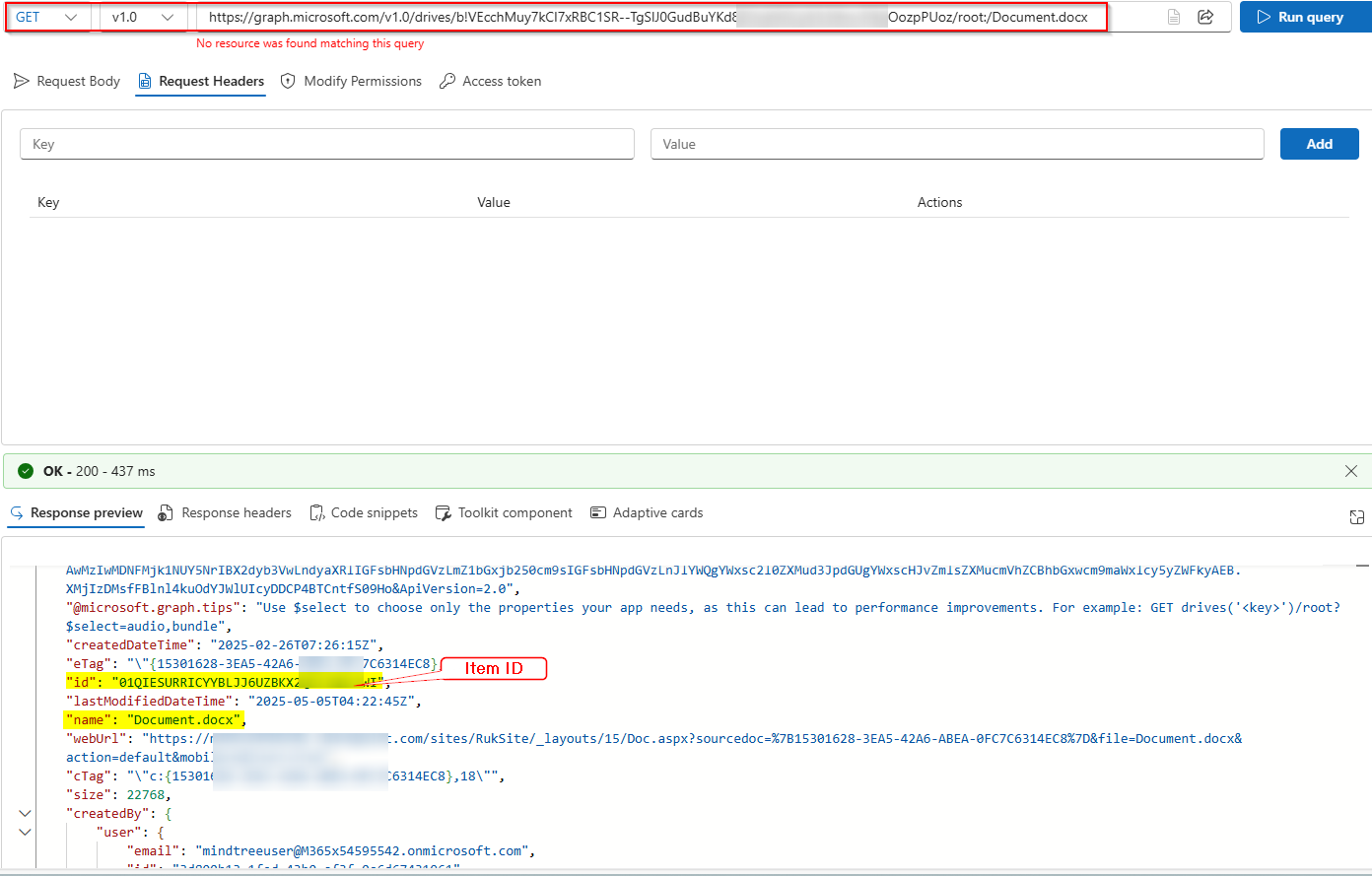

Fetch Item ID:

GET https://graph.microsoft.com/v1.0/drives/DriveID/root:/Document.docx

• Also make sure to grant admin consent to Files.Read.All API permission.

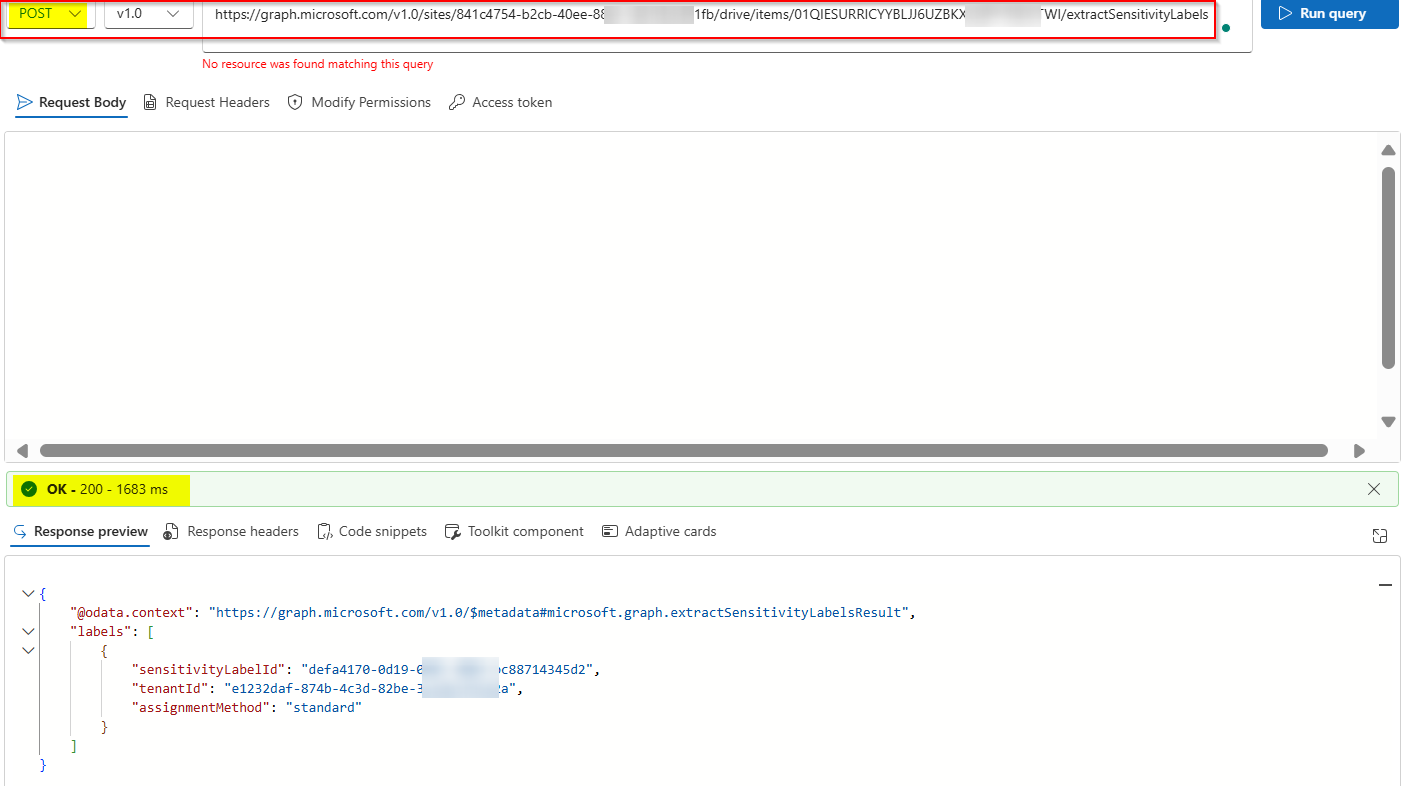

I am able to fetch the sensitivity labels for SharePoint file successfully:

POST https://graph.microsoft.com/v1.0/sites/SiteID/drive/items/ItemID/extractSensitivityLabels

Note that for emails, currently fetching sensitivity labels for mails is not supported for the endpoint https://graph.microsoft.com/v1.0/me/messages using Microsoft Graph API.

• You can raise a feature request for the same, Refer this Fetch mail sensitivity label using the Graph API - Microsoft Q&A

Reference:

driveItem: extractSensitivityLabels - Microsoft Graph v1.0 | Microsoft

Hope this helps!

---

If this answers your query, do click Accept Answer and Yes for was this answer helpful, which may help members with similar questions.

If you have any other questions or are still experiencing issues, feel free to ask in the "comments" section, and I'd be happy to help.
