cannot link speech resource to foundry project

Question

cannot link speech resource to foundry project

Borgert, Andrew J 20

I am trying to migrate our speech studio resources to a Foundry project. I have created a foundry project in the same region as our existing speech resource, under the same resource group, and am attempting to connect the speech resource to the foundry project as outlined here: https://learn.microsoft.com/en-us/azure/ai-services/connect-services-ai-foundry-portal

When I attempt to add a new connection, my speech resource does not appear on the list of available resources.

Ravada Shivaprasad 535 Reputation points Microsoft External Staff Moderator

2025-05-21T17:52:22.7066667+00:00

Hi Borgert, Andrew J

If your Speech resource does not appear in the list when attempting to add a new connection in Azure AI Foundry, several factors could be causing this issue. First, ensure that your Speech resource is of a supported type for Foundry integration, as some older deployments may not be compatible. You can verify this in the Azure AI Foundry documentation.
Next, check your subscription and permissions—your account must have Owner or Contributor access to both the Speech resource and the Foundry project. You can review and update permissions in the Access Control (IAM) section of the Azure portal. Additionally, networking and firewall settings may prevent your Speech resource from being listed. If the resource is using private networking or has restrictive firewall rules, adjust its Networking settings in the Azure portal to ensure accessibility. If the resource still does not appear, manually entering its Resource ID from the Properties page may work.
Sometimes, resources take time to appear due to caching or indexing delays, so refreshing the portal or logging out and back in might help. If none of these steps resolve the issue, consider recreating the Foundry project and attempting the connection again. For additional troubleshooting insights, you can refer to the official Microsoft guide and check Azure portal activity logs for any connection-related errors.
Let me know if you need further clarification!

Thanks
Borgert, Andrew J 20 Reputation points

2025-05-21T19:41:59.05+00:00

I've confirmed that there are no firewall/networking settings in play, 'Allow access from' is set to 'All networks'

I've also confirmed that I have contributor access to both the Foundry resource and the Speech resource.

When viewing the Speech service resource page in Azure portal, the endpoint for the Speech resource is listed only as https://eastus.api.cognitive.microsoft.com/. Shouldn't the endpoint be something like: https://{speech_resource_name}.speech.azure.com? Could this be related to the issues I'm experiencing?
Ravada Shivaprasad 535 Reputation points Microsoft External Staff Moderator

2025-05-21T20:05:41.6166667+00:00

Hi Borgert, Andrew J

Thanks for the Confirmation

If a Speech resource does not appear when attempting to connect it to an Azure AI Foundry project, the issue could be attributed to factors beyond firewall and networking configurations, given that 'Allow access from' is set to 'All networks.' Additionally, since contributor access has been confirmed for both the Foundry resource and the Speech resource, permission-related issues can be ruled out.

One possible cause is the endpoint format used by the Speech resource. The user has noted that their endpoint follows the older Cognitive Services structure (https://eastus.api.cognitive.microsoft.com/)is an older Cognitive Services structure and some legacy configurations still use the older Cognitive Services endpoint format instead of the expected Speech-specific format (https://{speech_resource_name}.speech.azure.com). This discrepancy can impact Foundry’s ability to recognize and list the resource.

To address this, the first step is to verify whether the Speech resource has been provisioned under the newer architecture. This can be checked in the Azure portal under the Properties section of the resource.

If the endpoint structure is outdated, the resource might not be fully compatible with Foundry’s integration requirements. Additionally, authentication settings should be reviewed. If Microsoft Entra ID is being used for authentication, ensure that the token scope aligns with the expected configuration (https://cognitiveservices.azure.com or https://ai.azure.com), as incorrect audience settings may prevent the Speech resource from appearing in Foundry. Since permissions and networking settings are correct, another factor to consider is whether the region (East US) supports the newer endpoint format. Some regions still default to legacy configurations, which can impact Foundry integration.

If the resource still does not appear, manually entering its Resource ID in Foundry’s connection settings may help establish a link. Additionally, reviewing Azure portal activity logs for connection-related errors and executing direct API calls using both endpoint formats can provide insights into whether the resource is accessible.

For further guidance, refer to Azure AI Foundry service connection documentation and Speech service endpoint configurations. If the Speech resource remains incompatible, provisioning a new Speech service instance under the expected format may be necessary to ensure seamless integration with Foundry.

Let me know if you need additional clarification!

Thanks
Ravada Shivaprasad 535 Reputation points Microsoft External Staff Moderator

2025-05-23T19:25:10.7366667+00:00

Hi Borgert, Andrew J

Just checking in to see if the below answer helped. If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.

Thanks
Ravada Shivaprasad 535 Reputation points Microsoft External Staff Moderator

2025-05-26T22:47:27.04+00:00

Hi Borgert, Andrew J

Following up to see if the above answer was helpful. If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.

Thanks

1 answer

Your answer

Ravada Shivaprasad 535 Reputation points Microsoft External Staff Moderator

2025-05-21T17:52:22.7066667+00:00

Hi Borgert, Andrew J

If your Speech resource does not appear in the list when attempting to add a new connection in Azure AI Foundry, several factors could be causing this issue. First, ensure that your Speech resource is of a supported type for Foundry integration, as some older deployments may not be compatible. You can verify this in the Azure AI Foundry documentation.
Next, check your subscription and permissions—your account must have Owner or Contributor access to both the Speech resource and the Foundry project. You can review and update permissions in the Access Control (IAM) section of the Azure portal. Additionally, networking and firewall settings may prevent your Speech resource from being listed. If the resource is using private networking or has restrictive firewall rules, adjust its Networking settings in the Azure portal to ensure accessibility. If the resource still does not appear, manually entering its Resource ID from the Properties page may work.
Sometimes, resources take time to appear due to caching or indexing delays, so refreshing the portal or logging out and back in might help. If none of these steps resolve the issue, consider recreating the Foundry project and attempting the connection again. For additional troubleshooting insights, you can refer to the official Microsoft guide and check Azure portal activity logs for any connection-related errors.
Let me know if you need further clarification!

Thanks
Borgert, Andrew J 20 Reputation points

2025-05-21T19:41:59.05+00:00

I've confirmed that there are no firewall/networking settings in play, 'Allow access from' is set to 'All networks'

I've also confirmed that I have contributor access to both the Foundry resource and the Speech resource.

When viewing the Speech service resource page in Azure portal, the endpoint for the Speech resource is listed only as https://eastus.api.cognitive.microsoft.com/. Shouldn't the endpoint be something like: https://{speech_resource_name}.speech.azure.com? Could this be related to the issues I'm experiencing?
Ravada Shivaprasad 535 Reputation points Microsoft External Staff Moderator

2025-05-23T19:25:10.7366667+00:00

Hi Borgert, Andrew J

Just checking in to see if the below answer helped. If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.

Thanks
Ravada Shivaprasad 535 Reputation points Microsoft External Staff Moderator

2025-05-26T22:47:27.04+00:00

Hi Borgert, Andrew J

Following up to see if the above answer was helpful. If this answers your query, do click Accept Answer and Yes for was this answer helpful. And, if you have any further query do let us know.

Thanks

Answer 1

Hi there Borgert, Andrew J

Thanks for using QandA platform

Check the Speech resource is in the same region and resource group as your Foundry project — which you already did — but also double-check that the resource type is supported.

Also, ensure your user account has Contributor or Owner access to both the resource and project.

If the Speech resource uses private networking or firewall rules, it might not show up.

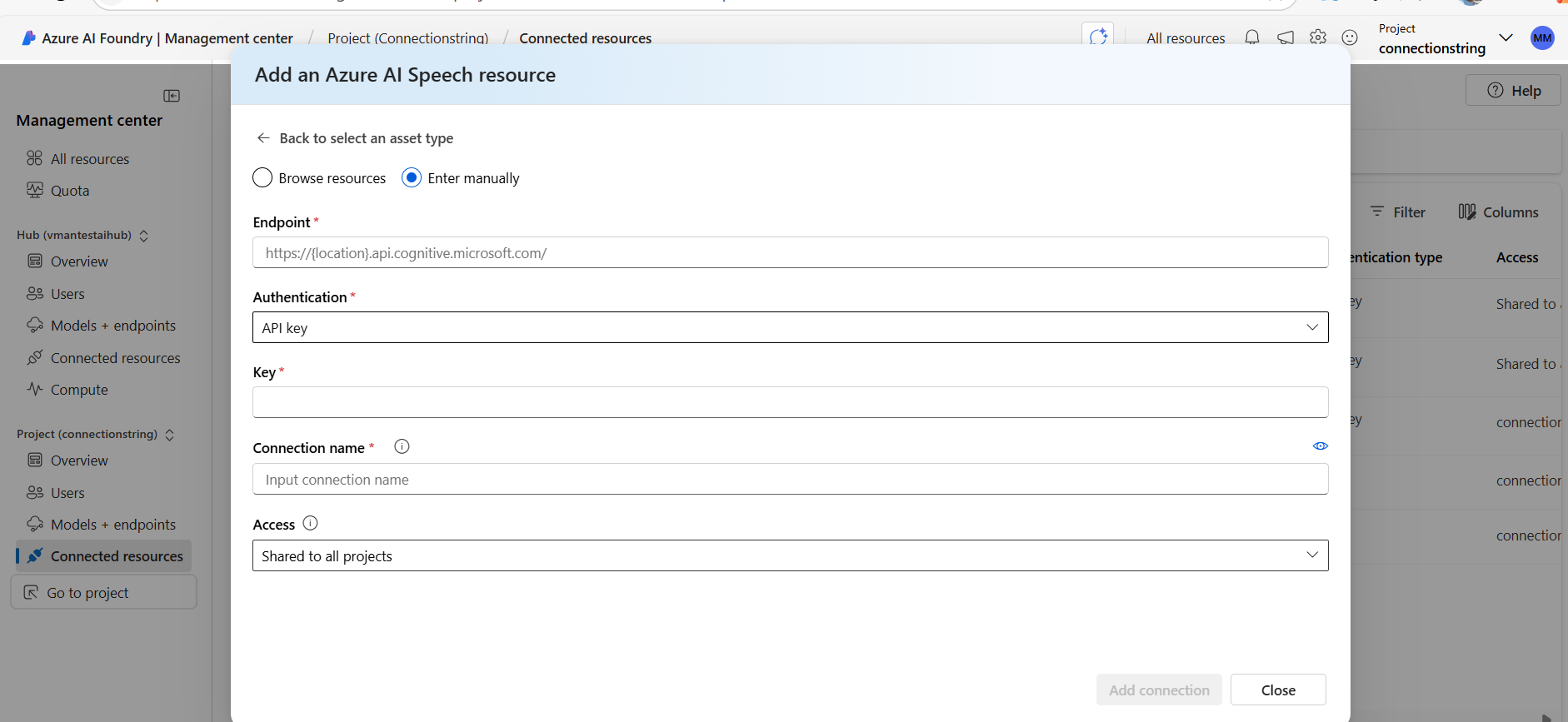

You can also try manually entering the Resource ID from the Speech resource’s Properties page in Azure.

If nothing works try recreating this again, probably that might fix it,

If this helps kindly accept the answer thanks much,
