Why am I getting error "No file found with this pattern" during Azure Devops pipeline execution?

Question

I created an Azure Devops Azure Synapse Deployment Pipeline and have the following yaml file

name: Synapse-Release-$(rev:r)

trigger:
  branches:
    include:
      - workspace_publish

pool:
  vmImage: windows-latest

variables:
  - group: synapse-qa-vars

stages:
- stage: Deploy
  displayName: 'Deploy from Dev to QA'
  jobs:
  - deployment: DeployWorkspace
    environment: 'QA'
    strategy:
      runOnce:
        deploy:
          steps:
          - checkout: self
          - task: Synapse workspace deployment@2
            inputs:
              operation: 'deploy'
              TemplateFile: 'abc-data/TemplateForWorkspace.json'
              ParametersFile: 'abc-data/TemplateParametersForWorkspace.json'
              azureSubscription: 'Azure Dev Service Connection'
              ResourceGroupName: '$(qa-rg-name)'
              TargetWorkspaceName: '$(qa-workspace-name)'
              DeleteArtifactsNotInTemplate: false
              DeployManagedPrivateEndpoints: false
              OverrideArmParameters: |
                -workspaceName $(qa-workspace-name) -azure_datalake_storage_default_properties_typeProperties_url $(datalakeurl) -azure_synapse_dedicated_pool_default_properties_typeProperties_server $(synapseserver) -azure_synapse_dedicated_pool_default_properties_typeProperties_database $(synapsedb) -datakeyvault_properties_typeProperties_baseUrl $(KVurl)
              FailOnMissingOverrides: false
              Environment: 'prod'
              npmpackage: 'prod'

For reference this is my Azure Repos structure:

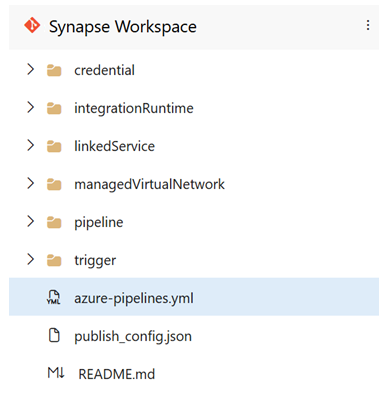

main branch:

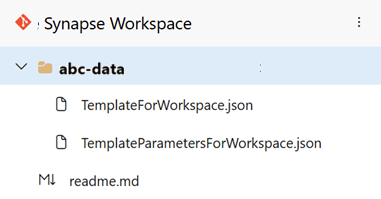

workspace_publish branch:

I am getting this error at the Synapseworkspacedeployment step when running the pipeline:

An error occurred during execution: Error: No file found with this pattern
##[error]Encountered with exception:Error: No file found with this pattern

I tried adding $(System.DefaultWorkingDirectory)/ to the template and parameters file paths but that didnt help.

What could be the issue?? the error is very ambiguous...

Answer 1

Hi Cataster

Thanks for your info. Please try the below steps:

1. Move azure-pipelines.yml from main to workspace_publish
2. Update the default pipeline definition to point to workspace_publish
3. Trigger the pipeline manually or by pushing to that branch

If you want to manage all pipeline logic in main, use a checkout step to check out workspace_publish branch as an additional repo or folder

- checkout: self
  persistCredentials: true
- checkout: git://$(Build.Repository.Name)@workspace_publish
  path: workspace_publish_code

Update your template paths to:

TemplateFile: '$(Build.SourcesDirectory)/workspace_publish_code/abc-data/TemplateForWorkspace.json'

Hope this helps!

Please Let me know if you have any queries.

Answer 2

Hi Cataster

Try updating your YAML like this:

TemplateFile: '$(Build.SourcesDirectory)/abc-data/TemplateForWorkspace.json'
ParametersFile: '$(Build.SourcesDirectory)/abc-data/TemplateParametersForWorkspace.json'

If you're checking out multiple repositories or using templates from a different repo, ensure that you include:

- checkout: self
  path: s

and then refer to paths as:

$(System.DefaultWorkingDirectory)/s/abc-data/TemplateForWorkspace.json

Hope this helps!

Please Let me know if you have any queries.

Answer 3

@Durga Reshma Malthi Thanks for your suggestions, however, they didnt resolve the error unfortunately. I dont even know if the problem is with the template paths json files, the error is ambiguous it doesnt really say much...

Also Im not using different repositories. Please refer to the screenshots to see how my repo is setup with the two branches. And I already had used checkout: self in the yaml filei provided

for reference this is the full log

Starting: Synapseworkspacedeployment
==============================================================================
Task         : Synapse workspace deployment
Description  : Deployment task for synapse workspace v2
Version      : 2.5.0
Author       : Microsoft Corporation
Help         : Displays the name of your extension v2
==============================================================================
Bundle source :  https://web.azuresynapse.net/assets/cmd-api/main.js
Starting deploy operation
deploy operation failed
An error occurred during execution: Error: No file found with this pattern
##[error]Encountered with exception:Error: No file found with this pattern
Finishing: Synapseworkspacedeployment

Answer 4

Hi Cataster

Could you please try explicitly echoing the working directory in a step right before the deployment:

- script: echo $(System.DefaultWorkingDirectory)

Then add this format to the file paths:

TemplateFile: '$(System.DefaultWorkingDirectory)/abc-data/TemplateForWorkspace.json'
ParametersFile: '$(System.DefaultWorkingDirectory)/abc-data/TemplateParametersForWorkspace.json'

If not worked, then try wrapping it explicitly in glob syntax:

TemplateFile: '$(System.DefaultWorkingDirectory)/abc-data/**/TemplateForWorkspace.json'
ParametersFile: '$(System.DefaultWorkingDirectory)/abc-data/**/TemplateParametersForWorkspace.json'

You’re on version 2.5.0 - a recent build, but it’s worth trying explicitly pinning the latest stable version or even downgrading if 2.5.0 introduced a regression:

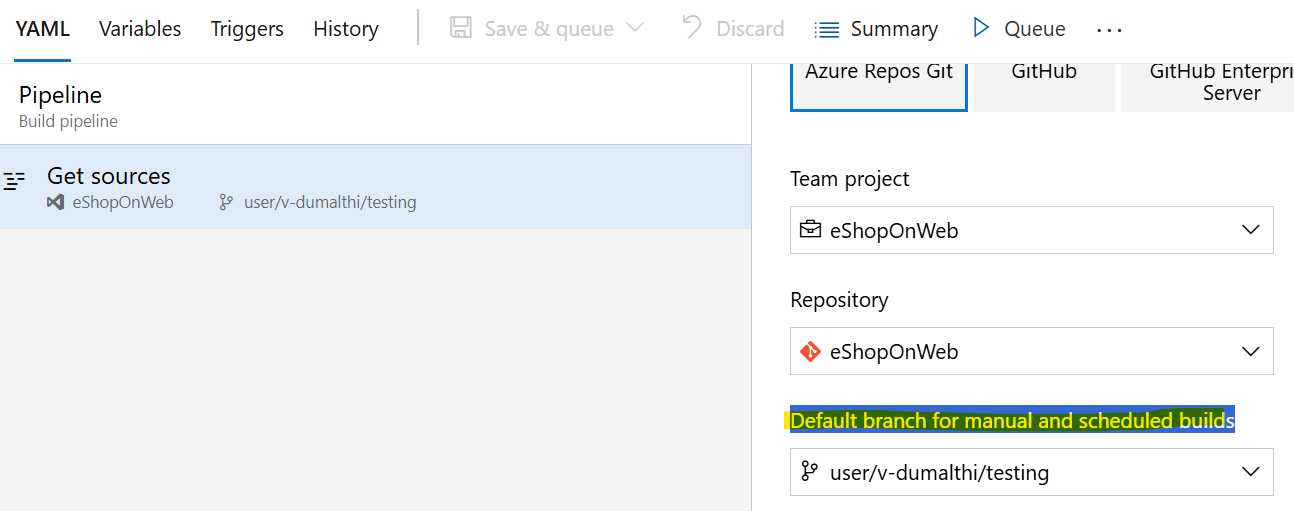

Even though the workspace_publish branch triggers the pipeline, make sure your default YAML path and the pipeline definition point to that branch as well, Go to Pipelines -> Your Pipeline -> Edit -> Triggers -> YAML Tab.

Hope this helps!

Please Let me know if you have any queries.

Answer 5

@Durga Reshma Malthi Thanks i already tried $(System.DefaultWorkingDirectory)/ in my first question but didnt work

TemplateFile: '$(System.DefaultWorkingDirectory)/abc-data/TemplateForWorkspace.json'ParametersFile: '$(System.DefaultWorkingDirectory)/abc-data/TemplateParametersForWorkspace.json'

Anyways I tried your second suggestion Even though the workspace_publish branch triggers the pipeline, make sure your default YAML path and the pipeline definition point to that branch as well, Go to Pipelines -> Your Pipeline -> Edit -> Triggers -> YAML Tab.

The Default branch for manual and scheduled builds was set to main. so I changed it to workspace_publish and tried queuing afterwards but then i got this error:

Encountered error(s): Could not find valid pipeline YAML file for this branch/tag

This makes sense i suppose considering that the azure-pipelines.yml is in main not workspace_publish. On the other hand, my Template/Parameter files are in workspace_publish...please refer to my screenshots from the question to see how the repository and branches are setup currently.
