Azure Front Door : Domain Manager Custom Certificate || DNS Status - Create CName Record

Question

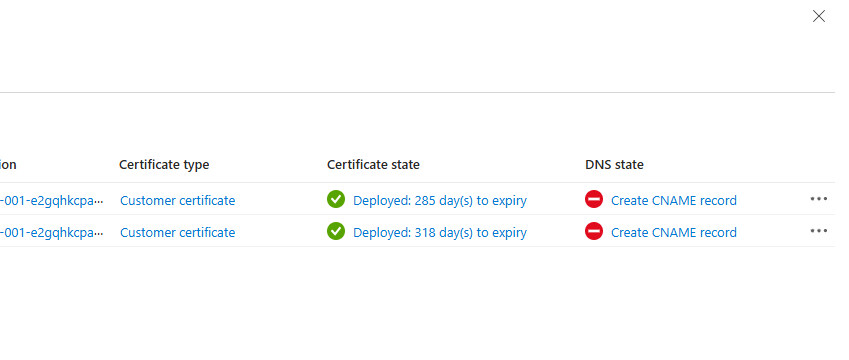

Validation : Approved and Provision State : Success .... But DNS State has an error. Is front door domain configured successfully?

Answer 1

Hello Lokesh MS (C-T0 Admin)

I can see from above screenshot Cname record has not been associated with azure front door endpoint Use tools like https://www.digwebinterface.com/ to confirm that your domain has a valid CNAME pointing to the Azure Front Door endpoint.

After validating your custom domain, you can associate it with your Azure Front Door Standard/Premium endpoint

Step 1: Select the Unassociated link to open the Associate endpoint and routes pane. Select the endpoint and routes you want to associate with the domain, then select Associate to update your configuration.

Step 2: The Endpoint association status updates to reflect the endpoint currently associated with the custom domain.

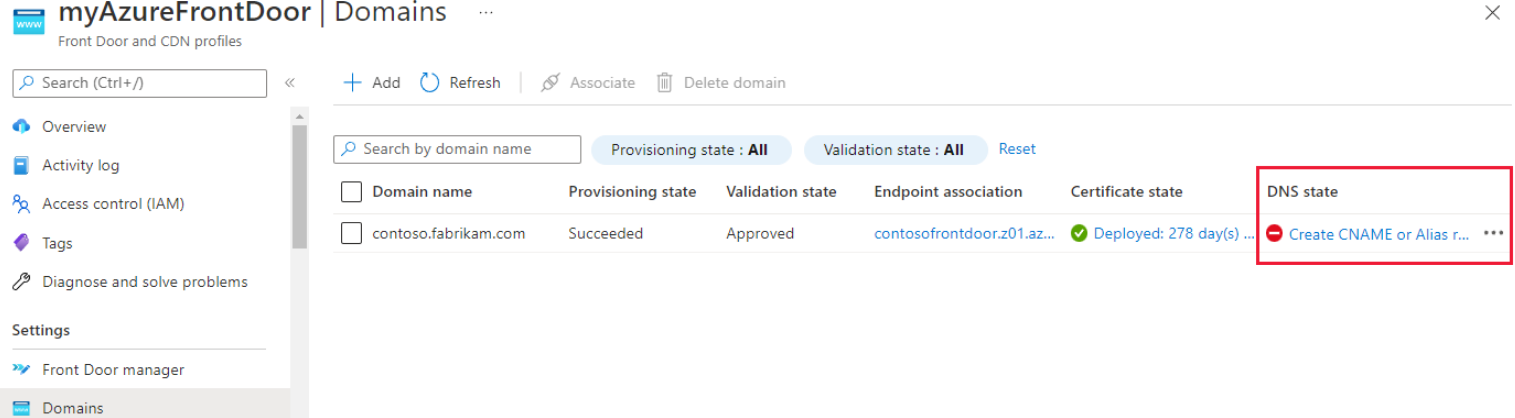

Step 3: Select the DNS state link.

Step 4: The Add or update the CNAME record pane appears with the necessary CNAME record information. If using Azure DNS hosted zones, you can create the CNAME records by clicking Add on the pane. If using another DNS provider, manually enter the CNAME record name and value as shown on the pane.

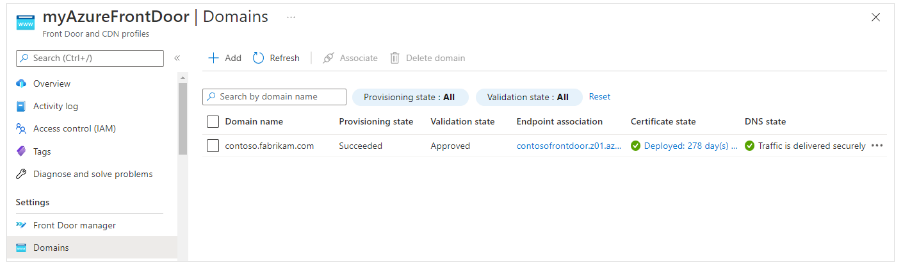

Step 5: Once the CNAME record is created and the custom domain is associated with the Azure Front Door endpoint, traffic starts flowing.

Step 6: After validating and associating the custom domain, ensure that the custom domain is correctly referenced to your endpoint.

Finally, verify that your application content is being served by using a browser.

---

If you are still facing an error, please share your domain name in Private messages.

I hope this has been helpful!

If the above is unclear or you are unsure about something, please add a comment below.

please don’t forget to close the thread by clicking Accept the answer wherever the information provided helps you, as this can be beneficial to other community members.
