Active Signal Mode Bug

Anonymous
2024-01-02T21:08:50+00:00

so i want to play 4k resolution 144 hz (3840 x 2160 Hz)

when I put 4k resolution with 60 hz the Active signal mode is normal (3840 x 2160)
but when i put 144hz it goes to Active signal mode 2560 x1440, 144hz

Please help.

I already tried going to

Display adapter options for Display 2 > List All Modes /

                                                                       The selected mode is 3640 x 2160, 144hz
Windows for home | Windows 11 | Display and graphics

Locked Question. This question was migrated from the Microsoft Support Community. You can vote on whether it's helpful, but you can't add comments or replies or follow the question.

0 comments

3 answers

Sort by: Most helpful
Most helpful Newest Oldest
  1. Anonymous
    2024-01-03T05:50:23+00:00

    Hello Apo Ster.

    Welcome to Microsoft Community.

    Regarding to your information I assume that you can't set your computer to 4k 144 hz.

    Your issue seems to be related to insufficient bandwidth of your cable. The output screen specifications appear to be an

    HDMI 2.0 bandwidth output signal.

    If your graphics card driver and the graphics card itself support this output mode, please ensure that you are using an HDMI 2.1 or DP 1.4 (DSC)

    DP 2.0 interface and cable, and then check if you are able to display the 4K 144 signal.

    You can also check if the relevant settings can be configured within your graphics card driver software (both Nvidia and AMD have such features).

    If there is anything not clear, please do not hesitate to let me know.

    Best Regards,

    Tommy-MSFT | Microsoft Community Support Specialist

    0 comments
  2. Anonymous
    2024-01-03T09:48:46+00:00

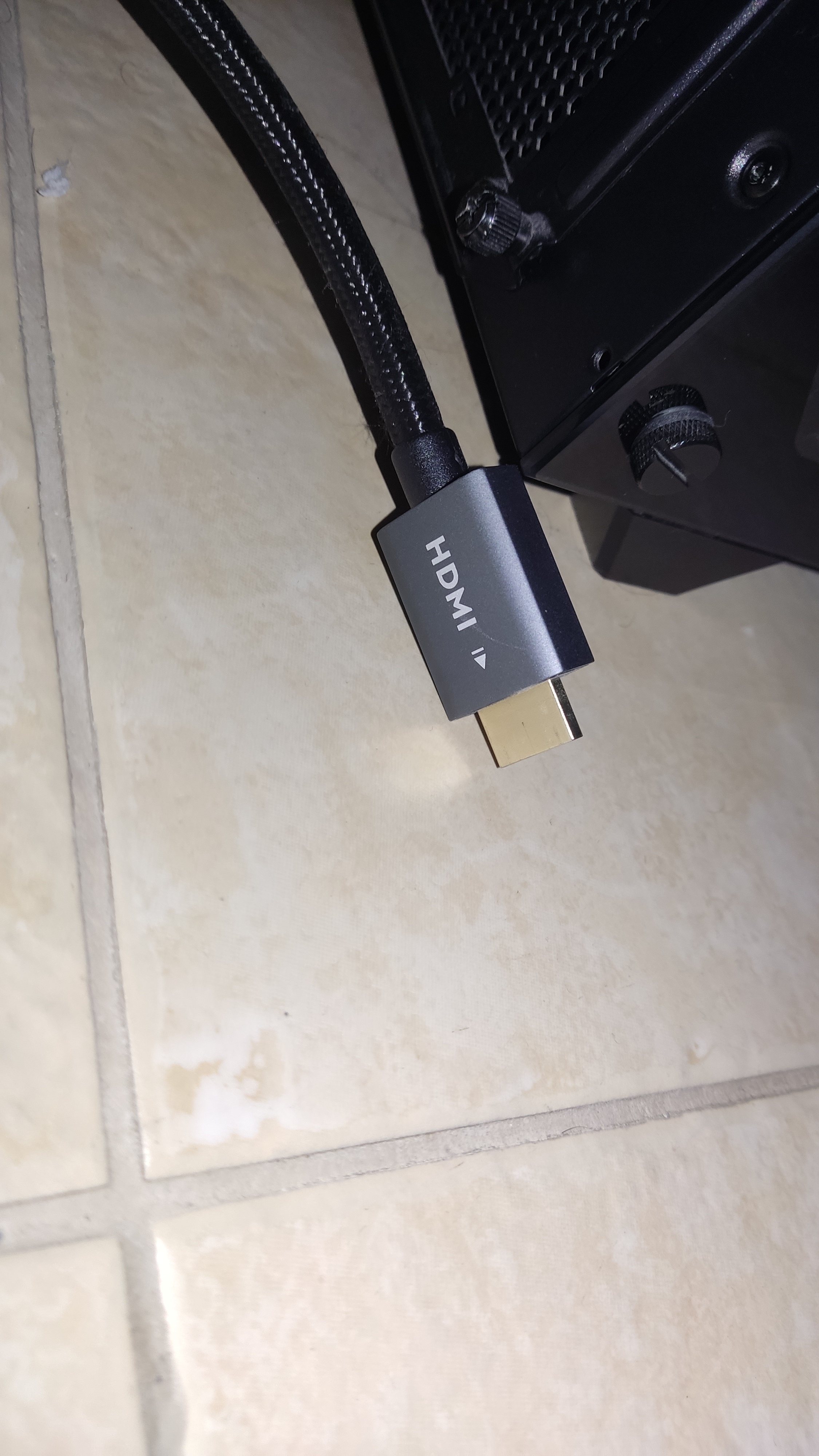

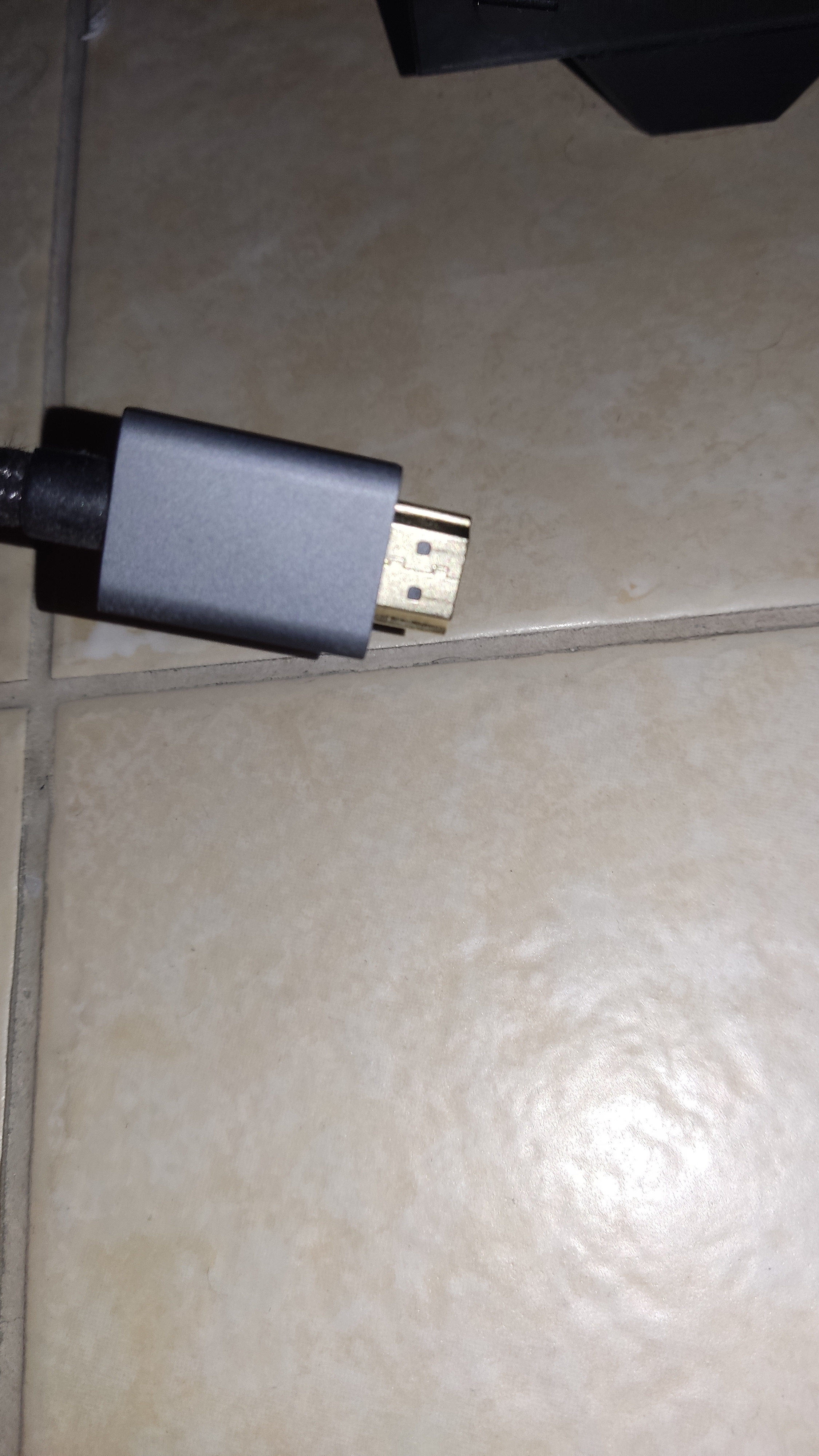

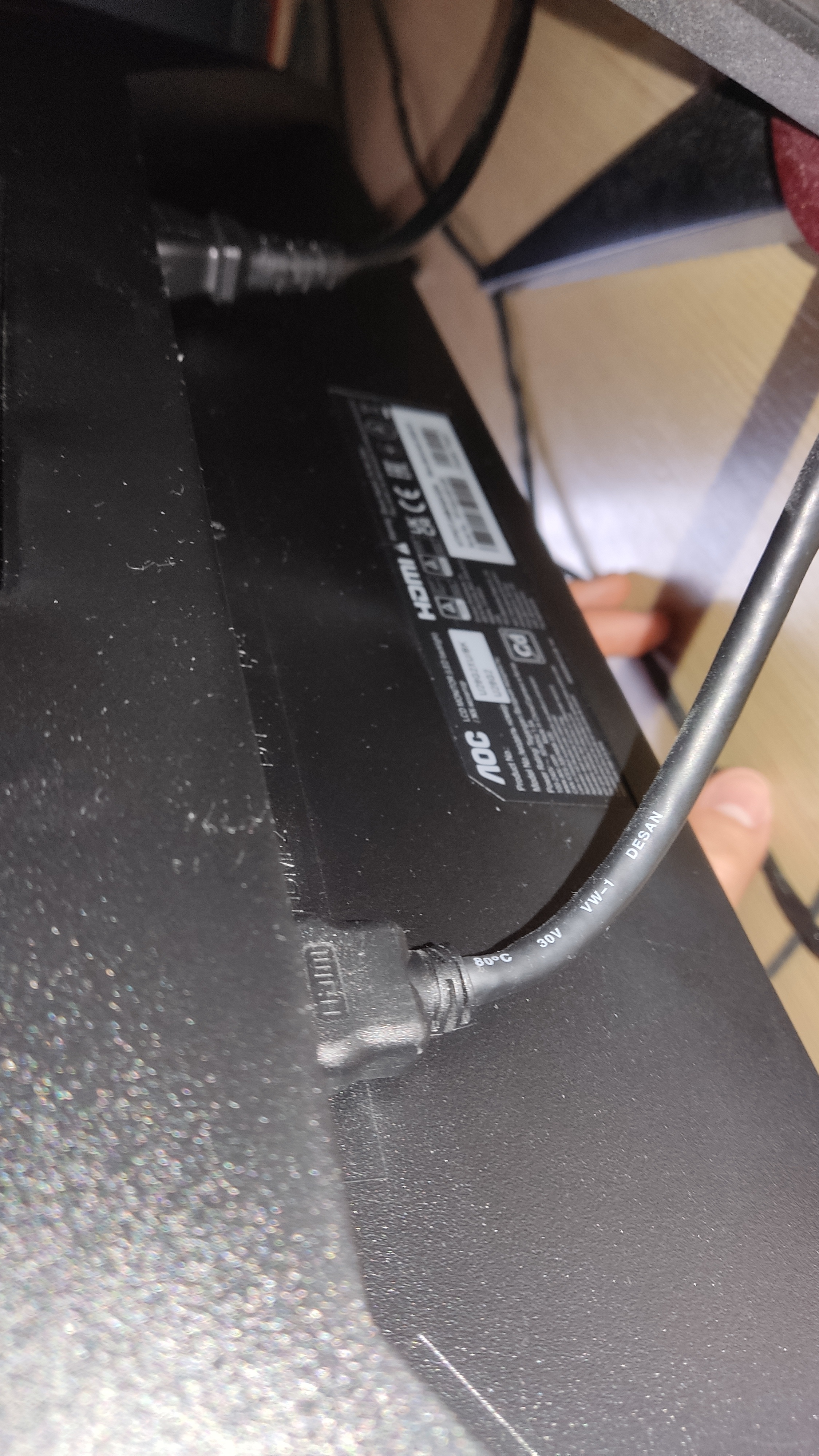

    Hello again, thanks for the quick reply. I cant really understand what cable is this that i have plugged into my main 4k 144hz monitor but i got some pictures of it if you can make something out of it

    I also want to say that in games when i put fullscreen 4k resolution it auto caps at 120 hz (if this helps)

    0 comments
  3. Anonymous
    2024-01-05T03:07:12+00:00

    Hello Apo Ster.

    Thanks for your reply.

    According to the information of AOC's official website.

    I checked on the AOC official website and found that the 4k 120 model of the monitor is the limit of the HDMI cable (HDMI 2.0 port).

    For 4K 144, you will need to use a DP1.4 specification cable (which will enable DSC function and may cause a black screen when you switch

    to full screen. If you encounter this issue after changing the DP cable, it is normal).

    If there is anything not clear, please do not hesitate to let me know.

    Best Regards,

    Tommy-MSFT | Microsoft Community Support Specialist

    0 comments
