Azure Gateway S2S Intermittent Connection

Question

Azure Gateway S2S Intermittent Connection

Vincent Molloy 1

@AzureSupport suggested this would be a good place to post this question...

Trying to resolve an Azure Virtual Network Gateway intermittent S2S connectivity issue (to a Fortinet device). Can someone please clarify what is meant by Step 6 of the troubleshooting steps below?

https://learn.microsoft.com/en-us/azure/vpn-gateway/vpn-gateway-troubleshoot-site-to-site-disconnected-intermittently#step-6-check-on-premises-vpn-device-external-interface-address

Many Thanks

1 answer

Your answer

Answer 1

Andreas Baumgarten 122.1K MVP Volunteer Moderator

Hi @Vincent Molloy ,

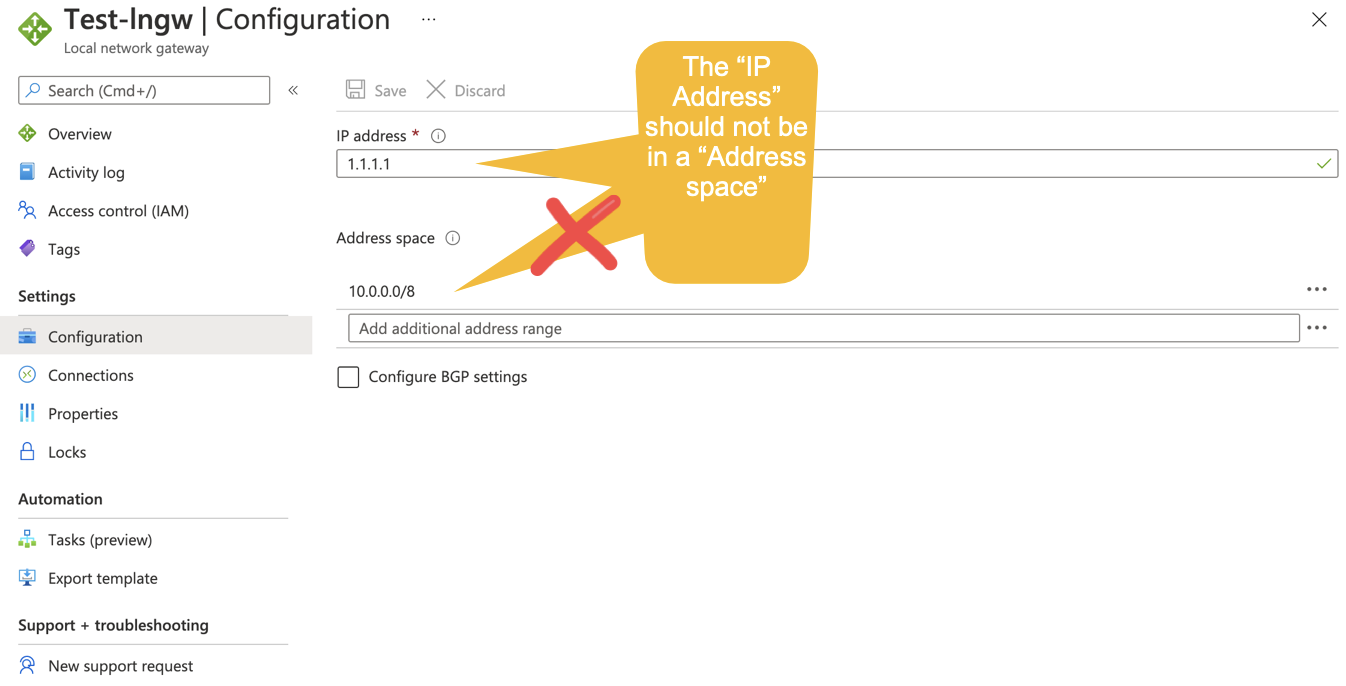

I read Step 6 like this - The Public IP of the Fortinet Device should no be in a configured Address Space in the Local Network Gateway configuration.

----------

(If the reply was helpful please don't forget to upvote and/or accept as answer, thank you)

Regards
Andreas Baumgarten

Vincent Molloy 1 Reputation point

2021-05-18T19:49:51.053+00:00

Thank You Andreas. That could be it but typically the IP address is going to be a publicly routable IP address and the address space will be an internal (not publicly routable) private address space? So I'm not sure there could be an overlap?
Andreas Baumgarten 122.1K Reputation points MVP Volunteer Moderator

2021-05-18T20:24:32.06+00:00

Hi Vincent,
I am with you.
The Step 6 is very vague. And there is only the "address space config" in Local Network Gateway where an IP can be part of.

Kind regards
Andreas Baumgarten
