Office 365 SMTP authentication failing, even with correct account information

Question

On my Wordpress site I've run into a problem in the last day or so, where emails simply fail to send. Before today it was running flawlessly for two months. The account information/password/username etc have not changed in that two months.

I'm using a Wordpress plugin called WP Mail SMTP to facilitate the sending of all outgoing emails. The error log I'm getting from the email test on that is as follows:

Versions:

WordPress: 5.3.2

WordPress MS: No

PHP: 7.3.14-5+0~20200202.52+debian9~1.gbpa71879

WP Mail SMTP: 1.8.1

Params:

Mailer: smtp

Constants: No

ErrorInfo: SMTP Error: Could not authenticate.

Host: smtp.office365.com

Port: 587

SMTPSecure: tls

SMTPAutoTLS: bool(true)

SMTPAuth: bool(true)

Server:

OpenSSL: OpenSSL 1.1.1d 10 Sep 2019

SMTP Debug:

2020-02-10 16:36:56 Connection: opening to smtp.office365.com:587, timeout=300, options=array ()

2020-02-10 16:36:56 Connection: opened

2020-02-10 16:36:56 SERVER -> CLIENT: 220 LNXP123CA0008.outlook.office365.com Microsoft ESMTP MAIL Service ready at Mon, 10 Feb 2020 16:36:55 +0000

2020-02-10 16:36:56 CLIENT -> SERVER: EHLO www.*****.com

2020-02-10 16:36:56 SERVER -> CLIENT: 250-LNXP123CA0008.outlook.office365.com Hello [***]250-SIZE 157286400250-PIPELINING250-DSN250-ENHANCEDSTATUSCODES250-STARTTLS250-8BITMIME250-BINARYMIME250-CHUNKING250 SMTPUTF8

2020-02-10 16:36:56 CLIENT -> SERVER: STARTTLS

2020-02-10 16:36:56 SERVER -> CLIENT: 220 2.0.0 SMTP server ready

2020-02-10 16:36:56 CLIENT -> SERVER: EHLO www.zestpromotional.com

2020-02-10 16:36:56 SERVER -> CLIENT: 250-LNXP123CA0008.outlook.office365.com Hello [***]250-SIZE 157286400250-PIPELINING250-DSN250-ENHANCEDSTATUSCODES250-AUTH LOGIN XOAUTH2250-8BITMIME250-BINARYMIME250-CHUNKING250 SMTPUTF8

2020-02-10 16:36:56 CLIENT -> SERVER: AUTH LOGIN

2020-02-10 16:36:56 SERVER -> CLIENT: 334 VXNlcm5hbWU6

2020-02-10 16:36:56 CLIENT -> SERVER: c2FsZXNAemVzdHByb21vdGlvbmFsLmNvbQ==

2020-02-10 16:36:56 SERVER -> CLIENT: 334 UGFzc3dvcmQ6

2020-02-10 16:36:56 CLIENT -> SERVER: QmFkMzM4MzA=

2020-02-10 16:37:02 SERVER -> CLIENT: 535 5.7.3 Authentication unsuccessful [LNXP123CA0008.GBRP123.PROD.OUTLOOK.COM]

2020-02-10 16:37:02 SMTP ERROR: Password command failed: 535 5.7.3 Authentication unsuccessful [LNXP123CA0008.GBRP123.PROD.OUTLOOK.COM]

SMTP Error: Could not authenticate.

2020-02-10 16:37:02 CLIENT -> SERVER: QUIT

2020-02-10 16:37:02 SERVER -> CLIENT: 221 2.0.0 Service closing transmission channel

2020-02-10 16:37:02 Connection: closed

SMTP Error: Could not authenticate.

Does anyone have any ideas at all? I'm completely at a loss here.

Answer 1

I have checked everything outlined here and i still have the issue

-Modern auth is off

-SmtpClientAuthenticationDisabled $false

-User SMTP is ticked

-Security defaults is off

The worst part is i went over all this then it worked last week, then a week later with no tenant changes it is not working

As a last ditch i toggled all the settings encase they were displaying incorrectly or some such and it still won't work.

I have also created a brand new user and applied the relevant settings and it also does not work.

Side note when enabling 2 factor App passwords cannot be created even tho the option is on, and there are no policy's preventing it as polices aren't available in the license.

Answer 2

Thanks for digging into this.

It is frustrating as on the application development side, to get announcements like these https://techcommunity.microsoft.com/t5/exchange-team-blog/announcing-oauth-2-0-support-for-imap-and-smtp-auth-protocols-in/ba-p/1330432

And then to move forward with implementation and getting customers through any friction with admin consent and then to discover that old accounts will respect the OAuth SMTP scope grant, but new ones won't because of this setting.

From a consumer perspective, they've authorized it and in many cases an admin has granted approval for the application only to still have it not work for some hard to know reason (this setting).

The OAuth grant should allow for SMTP, and at the least have a clear spot in azure admin to toggle SmtpClientAuthenticationDisable .

As an application developer, I must say that the experience with conflicting, unclear documentation and the UX/UI of the admin portals have been the biggest challenge in interfacing with OAuth setup.

Answer 3

On my Wordpress site I've run into a problem in the last day or so, where emails simply fail to send. Before today it was running flawlessly for two months. The account information/password/username etc have not changed in that two months.

I'm using a Wordpress plugin called WP Mail SMTP to facilitate the sending of all outgoing emails. The error log I'm getting from the email test on that is as follows:

Versions:

WordPress: 5.3.2

WordPress MS: No

PHP: 7.3.14-5+0~20200202.52+debian9~1.gbpa71879

WP Mail SMTP: 1.8.1

Params:

Mailer: smtp

Constants: No

ErrorInfo: SMTP Error: Could not authenticate.

Host: smtp.office365.com

Port: 587

SMTPSecure: tls

SMTPAutoTLS: bool(true)

SMTPAuth: bool(true)

Server:

OpenSSL: OpenSSL 1.1.1d 10 Sep 2019

SMTP Debug:

2020-02-10 16:36:56 Connection: opening to smtp.office365.com:587, timeout=300, options=array ()

2020-02-10 16:36:56 Connection: opened

2020-02-10 16:36:56 SERVER -> CLIENT: 220 LNXP123CA0008.outlook.office365.com Microsoft ESMTP MAIL Service ready at Mon, 10 Feb 2020 16:36:55 +0000

2020-02-10 16:36:56 CLIENT -> SERVER: EHLO www.*****.com

2020-02-10 16:36:56 SERVER -> CLIENT: 250-LNXP123CA0008.outlook.office365.com Hello [***]250-SIZE 157286400250-PIPELINING250-DSN250-ENHANCEDSTATUSCODES250-STARTTLS250-8BITMIME250-BINARYMIME250-CHUNKING250 SMTPUTF8

2020-02-10 16:36:56 CLIENT -> SERVER: STARTTLS

2020-02-10 16:36:56 SERVER -> CLIENT: 220 2.0.0 SMTP server ready

2020-02-10 16:36:56 CLIENT -> SERVER: EHLO www.zestpromotional.com

2020-02-10 16:36:56 SERVER -> CLIENT: 250-LNXP123CA0008.outlook.office365.com Hello [***]250-SIZE 157286400250-PIPELINING250-DSN250-ENHANCEDSTATUSCODES250-AUTH LOGIN XOAUTH2250-8BITMIME250-BINARYMIME250-CHUNKING250 SMTPUTF8

2020-02-10 16:36:56 CLIENT -> SERVER: AUTH LOGIN

2020-02-10 16:36:56 SERVER -> CLIENT: 334 VXNlcm5hbWU6

2020-02-10 16:36:56 CLIENT -> SERVER: c2FsZXNAemVzdHByb21vdGlvbmFsLmNvbQ==

2020-02-10 16:36:56 SERVER -> CLIENT: 334 UGFzc3dvcmQ6

2020-02-10 16:36:56 CLIENT -> SERVER: QmFkMzM4MzA=

2020-02-10 16:37:02 SERVER -> CLIENT: 535 5.7.3 Authentication unsuccessful [LNXP123CA0008.GBRP123.PROD.OUTLOOK.COM]

2020-02-10 16:37:02 SMTP ERROR: Password command failed: 535 5.7.3 Authentication unsuccessful [LNXP123CA0008.GBRP123.PROD.OUTLOOK.COM]

SMTP Error: Could not authenticate.

2020-02-10 16:37:02 CLIENT -> SERVER: QUIT

2020-02-10 16:37:02 SERVER -> CLIENT: 221 2.0.0 Service closing transmission channel

2020-02-10 16:37:02 Connection: closed

SMTP Error: Could not authenticate.

Does anyone have any ideas at all? I'm completely at a loss here.

I am experiencing the same issue.

I tried setting up the Outlook Web App and Outlook Desktop and it works in both, yet when I try to send a test email from Wordpress or dotnet core I get the same error.

Another thing I tried was using port 25 and didn't work either.

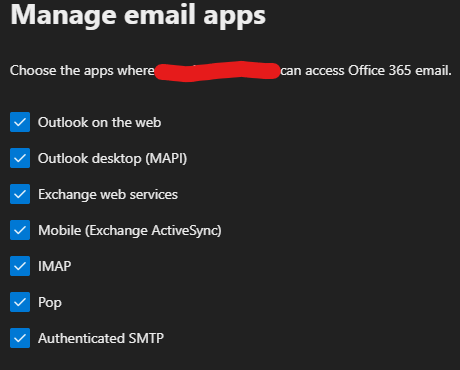

The account has access to all mail apps:

Answer 4

Hello Adam,

Given this situation, I consider you may login Outlook Web App with impacted account to see if emails can be sent.

If Outlook Web App works well, then check firewall settings, anti-virus or related apps on your server and network, make sure all Office 365 related traffics are allowed: Office 365 URLs and IP address ranges, for some SMTP relay issues are caused by network settings.

You may also refer to this article for troubleshooting: Fix issues with SMTP client submission.

Besides, is there any organization-wide changes made recently? If convenient, use a different Office 365 account to see how it goes.

Best Regards,

Anna
