how to solve redirect url mis match with jenkins log in through azure

Question

AADSTS50011: The redirect URI 'https://20.66.106.78:8080/securityRealm/finishLogin' specified in the request does not match the redirect URIs configured for the application '381c0ec1-ede9-43d2-8c6d-2f970e0de004'. Make sure the redirect URI sent in the request matches one added to your application in the Azure portal. Navigate to https://aka.ms/redirectUriMismatchError to learn more about how to fix this.

Answer 1

Hi @Deepa T,

Thank you for reaching out. Below is a detailed guide to help you resolve the AADSTS50011 error related to redirect URI mismatch when integrating Jenkins with Azure Active Directory (Azure AD).

1. Identify the Application ID

• Go to Jenkins → Azure AD Plugin → locate the Application (Client) ID.
• Or copy it from the error message: 381c0ec1-ede9-43d2-8c6d-2f970e0de004.

2. Access Azure Portal

• Log in to https://portal.azure.com.
• Navigate to Azure Active Directory > App Registrations.
• Search for the application using the Application ID or name (e.g., “Jenkins”).

3. Configure the Redirect URI

• Open the Authentication section of the app.
• Under Platform configurations, ensure the Web platform is selected.
• Add the following Redirect URI:

https://20.66.106.78:8080/securityRealm/finishLogin

• Make sure the following components match exactly:
  • Scheme: https
  • IP/domain: 20.66.106.78
  • Port: 8080
  • Path: /securityRealm/finishLogin

 If Jenkins uses a domain (e.g., jenkins.yourcompany.com) or a different port, use that exact address instead.

4. Verify Jenkins Configuration

• Go to Manage Jenkins > Configure System.
• Ensure the Jenkins Root URL matches the Redirect URI added in Azure AD.

5. Enable ID Token (if needed)

• In the Implicit grant and hybrid flows section, enable ID tokens.

6. Save and Wait for Propagation

• Click Save to apply changes.
• Azure AD may take 3–5 minutes to fully update.

Test the Login

• Return to Jenkins and attempt to log in via Azure AD.
• If the error persists:
  • Use an incognito/private browser window to avoid cached sessions.
  • Double-check that the Redirect URI in the error message matches exactly with the one added.

Additional Considerations

• Multiple Access URLs: If Jenkins is accessible via multiple addresses (IP, domain, ports), add each one as a Redirect URI in Azure AD.
• Correct App Registration: Ensure you are editing the correct app with the matching Application ID.
• Trailing Slash or Case Sensitivity: If you suspect a mismatch due to minor formatting, delete the incorrect URI and re-add the correct one.
• HTTPS Requirement: Azure AD requires https:// for Redirect URIs (except for http://localhost in development).
• Proxy or Load Balancer: If Jenkins is behind a proxy, ensure it generates the correct public-facing Redirect URI.
• Use Logs for Debugging: Check Jenkins logs and Azure AD sign-in logs for more details. Tools like Fiddler can help inspect the redirect_uri parameter.

If you have any updates regarding the issue or any other questions, please feel free to share them with me.

---

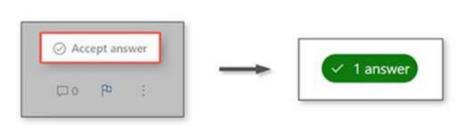

 If the answer is helpful, please click "Accept Answer" and kindly upvote it. If you have extra questions about this answer, please click "Comment".
