how to show the music's spectrum in .net maui?

Question

I am using .net MAUI 9.0 and I want to get this in page:

when I play music in the mobile I can get the rhythm how to do it?

Answer 1

Hi @mc ,

Thanks for reaching out.

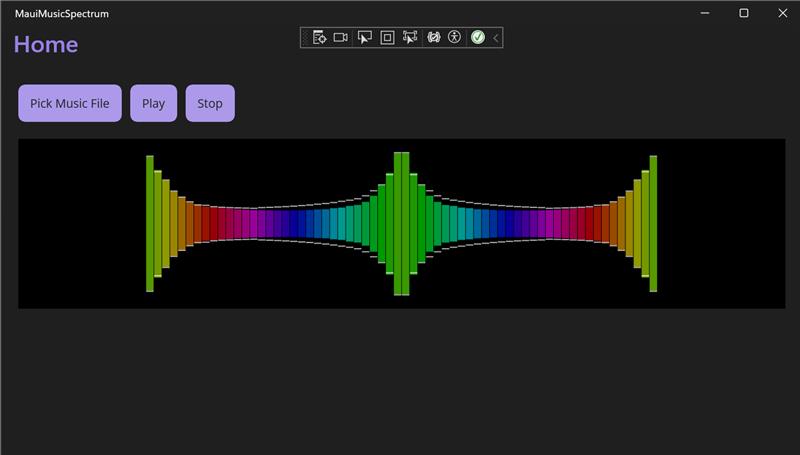

I’ve created a sample .NET MAUI project that demonstrates a music spectrum visualizer with mirrored bars, peak markers, and play/stop functionality. The spectrum responds to audio playback on Windows (tested in VS 2022).

Currently, this project works with Windows only, but you can use it as a base to extend for Android or iOS later. The spectrum is generated from audio samples and provides a nice visualization of frequency amplitudes.

Make sure to install the following via NuGet:

• Plugin.Maui.Audio – for audio playback
• SkiaSharp.Views.Maui – for drawing the spectrum
• MathNet.Numerics – for FFT calculation
• NAudio – for decoding audio files on Windows

MainPage.xaml

<?xml version="1.0" encoding="utf-8" ?>
<ContentPage
    xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
    xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
    xmlns:skia="clr-namespace:SkiaSharp.Views.Maui.Controls;assembly=SkiaSharp.Views.Maui.Controls"
    x:Class="MauiMusicSpectrum.MainPage">
    <VerticalStackLayout Padding="20" Spacing="20">
        <HorizontalStackLayout Spacing="10">
            <Button Text="Pick Music File" Clicked="OnPickMusic" />
            <Button Text="Play" Clicked="OnPlayMusic" />
            <Button Text="Stop" Clicked="OnStopMusic" />
        </HorizontalStackLayout>
        <skia:SKCanvasView x:Name="SpectrumCanvas"
                           HeightRequest="200"
                           PaintSurface="OnPaintSurface" />
    </VerticalStackLayout>
</ContentPage>

MainPage.xaml.cs

using Plugin.Maui.Audio;
using SkiaSharp;
using SkiaSharp.Views.Maui;
using MathNet.Numerics.IntegralTransforms;
using System.Numerics;

namespace MauiMusicSpectrum;

public partial class MainPage : ContentPage
{
    IAudioPlayer player;
    float[] spectrum = new float[32];
    float[] spectrumPeak = new float[32]; // for peak decay
    float[] samples;
    bool isPlaying = false;
    bool spectrumLoopRunning = false;

    public MainPage()
    {
        InitializeComponent();
    }

    // -------------------------

    // File Picker

    // -------------------------

    async void OnPickMusic(object sender, EventArgs e)
    {
        var file = await FilePicker.PickAsync();
        if (file == null) return;
        player?.Stop();
        player?.Dispose();
        await LoadAudioSamples(file);
        var stream = await file.OpenReadAsync();
        player = AudioManager.Current.CreatePlayer(stream);
        player.Volume = 1.0;
        // Start playing
        player.Play();
        isPlaying = true;
        if (samples != null && !spectrumLoopRunning)
            StartAudioSpectrum();
    }

    void OnPlayMusic(object sender, EventArgs e)
    {
        if (player != null && !isPlaying)
        {
            player.Play();
            isPlaying = true;
        }
    }

    void OnStopMusic(object sender, EventArgs e)
    {
        if (player != null && isPlaying)
        {
            player.Pause();
            isPlaying = false;
        }
    }

    // -------------------------

    // Load audio samples (Windows only)

    // -------------------------

    async Task LoadAudioSamples(FileResult file)
    {
#if WINDOWS
        var tempPath = Path.Combine(Path.GetTempPath(), file.FileName);
        using (var fs = File.Create(tempPath))
        using (var src = await file.OpenReadAsync())
            await src.CopyToAsync(fs);
        samples = DecodePCMWindows(tempPath);
#else
        samples = null;
#endif
    }
    void StartAudioSpectrum()
    {
        spectrumLoopRunning = true;
        int fftSize = 1024;
        Task.Run(async () =>
        {
            int pos = 0;
            while (true)
            {
                if (!isPlaying || samples == null || pos + fftSize >= samples.Length)
                {
                    await Task.Delay(30);
                    continue;
                }
                var buffer = new Complex[fftSize];
                for (int i = 0; i < fftSize; i++)
                    buffer[i] = new Complex(samples[pos + i], 0);
                Fourier.Forward(buffer, FourierOptions.Matlab);
                int binsPerBar = fftSize / 2 / spectrum.Length;
                for (int i = 0; i < spectrum.Length; i++)
                {
                    double sum = 0;
                    for (int j = 0; j < binsPerBar; j++)
                        sum += buffer[i * binsPerBar + j].Magnitude;
                    float value = (float)(Math.Log10(sum + 1) * 20);
                    spectrum[i] = value;
                    if (value > spectrumPeak[i])
                        spectrumPeak[i] = value;
                    else
                        spectrumPeak[i] *= 0.95f;
                }
                pos += fftSize / 4;
                MainThread.BeginInvokeOnMainThread(() => SpectrumCanvas.InvalidateSurface());
                await Task.Delay(30);
            }
        });
    }

    void OnPaintSurface(object sender, SKPaintSurfaceEventArgs e)
    {
        var canvas = e.Surface.Canvas;
        canvas.Clear(SKColors.Black);
        int barCount = spectrum.Length;
        float barWidth = e.Info.Width / (barCount * 3f);
        float centerX = e.Info.Width / 2f;
        float centerY = e.Info.Height / 2f;
        for (int i = 0; i < barCount; i++)
        {
            float hue = (i * 360f / barCount + DateTime.Now.Millisecond / 10f) % 360f;
            var baseColor = SKColor.FromHsl(hue, 100, 30);
            float barHeight = spectrum[i] * 2.5f;
            if (barHeight > centerY) barHeight = centerY;
            var paint = new SKPaint { Color = baseColor, IsAntialias = true };
            canvas.DrawRect(centerX + i * barWidth, centerY - barHeight, barWidth - 1, barHeight, paint);
            canvas.DrawRect(centerX - (i + 1) * barWidth, centerY - barHeight, barWidth - 1, barHeight, paint);
            canvas.DrawRect(centerX + i * barWidth, centerY, barWidth - 1, barHeight, paint);
            canvas.DrawRect(centerX - (i + 1) * barWidth, centerY, barWidth - 1, barHeight, paint);
            var peakPaint = new SKPaint { Color = SKColors.White.WithAlpha(180), IsAntialias = true };
            float peakYTop = centerY - spectrumPeak[i] * 2.5f - 2;
            float peakYBottom = centerY + spectrumPeak[i] * 2.5f;
            if (peakYTop < 0) peakYTop = 0;
            if (peakYBottom > e.Info.Height) peakYBottom = e.Info.Height;
            canvas.DrawRect(centerX + i * barWidth, peakYTop, barWidth - 1, 2, peakPaint);
            canvas.DrawRect(centerX - (i + 1) * barWidth, peakYTop, barWidth - 1, 2, peakPaint);
            canvas.DrawRect(centerX + i * barWidth, peakYBottom, barWidth - 1, 2, peakPaint);
            canvas.DrawRect(centerX - (i + 1) * barWidth, peakYBottom, barWidth - 1, 2, peakPaint);
        }
    }
#if WINDOWS
    float[] DecodePCMWindows(string path)
    {
        using var reader = new NAudio.Wave.AudioFileReader(path);
        var list = new List<float>();
        float[] buffer = new float[1024];
        int read;
        while ((read = reader.Read(buffer, 0, buffer.Length)) > 0)
            list.AddRange(buffer.Take(read));
        return list.ToArray();
    }
#endif
}

Limitations / Notes

1. Platform Support:
   • This sample is fully tested only on Windows.
   • Android / iOS decoding is not included.
2. Spectrum Behavior:
   • The spectrum reflects audio samples, but in Windows it may appear somewhat “random” due to FFT simplification.
3. Extensibility:
   • You can expand this project with Android/iOS decoding, smoother animations, color themes, volume control, etc.

Hope this helps! If my answer was helpful - kindly follow the instructions here so others with the same problem can benefit as well.

Answer 2

It is a 3 step process. First you need a Maui plugin that gives access to audio stream, say

https://github.com/jfversluis/Plugin.Maui.Audio

second you will need a library package that can provide graphic visualizer of the stream (which just a transformation)

third you need a graphics package to display the visualization.

Google for c# samples.
