IOS numeric keypad does not have a done button like how they have it in android

Question

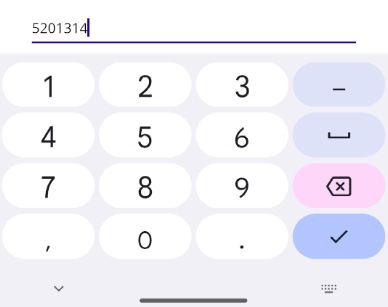

Android :

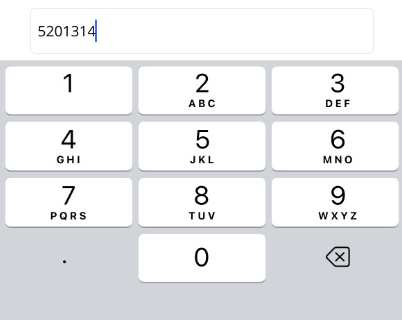

IOS :

I tried a lot of things including the ones mentioned here in github https://github.com/dotnet/maui/issues/19550and i also tried my own but all i could see is only the done button without the numeric keypad , is there an easy way to do it without having to touch all the entries ? It would be nice if it can be done using handlers.

Answer 1

Hello @Manickam, Suraj ,

Although Apple doesn’t include this button by default, it was added in .NET MAUI after this commit: https://github.com/dotnet/maui/commit/e6f3c755d04c1269e357e0de5376fad93a5b70f3.

Your implementation looks great. But if possible, please consider updating to the latest .NET MAUI version to take advantage of this feature and to receive better support in the future.

Answer 2

Oh this worked

using UIKit;
using Microsoft.Maui.Handlers;
using Microsoft.Maui.Controls;
using Microsoft.Maui.Platform;

namespace App.Platforms.IOS.EntryDone
{
    public class EntryDoneHandler : EntryHandler
    {
        protected override void ConnectHandler(MauiTextField textField)
        {
            base.ConnectHandler(textField);

            if (VirtualView is Entry entry &&
                (entry.Keyboard == Keyboard.Numeric))
            {
                AttachDoneToolbar(textField);
            }
        }

        private void AttachDoneToolbar(MauiTextField textField)
        {
            // 1. Specify a frame. iOS needs a defined height to properly
            // render the toolbar ABOVE the keypad rather than replacing it.
            var toolbar = new UIToolbar(new CoreGraphics.CGRect(0, 0, UIScreen.MainScreen.Bounds.Width, 44))
            {
                BarStyle = UIBarStyle.Default,
                Translucent = true
            };

            var doneButton = new UIBarButtonItem(UIBarButtonSystemItem.Done, (s, e) =>
            {
                textField.ResignFirstResponder();
                // Optional: manually fire the Completed event
                VirtualView?.Completed();
            });

            var flexSpace = new UIBarButtonItem(UIBarButtonSystemItem.FlexibleSpace);

            toolbar.SetItems(new[] { flexSpace, doneButton }, animated: false);

            // 2. Assign to InputAccessoryView (NOT InputView)
            textField.InputAccessoryView = toolbar;

            // 3. Ensure the keypad type is correct
            // If this is set to UIKeyboardType.Default, it might hide the numpad.
            if (textField.KeyboardType == UIKeyboardType.Default)
            {
                textField.KeyboardType = UIKeyboardType.NumberPad;
            }
        }
    }
}
