AutoML to On-Premise SQL Server Workflow?

Question

I've jumped through what must have been a dozen+ articles now, but can't seem to find something concrete regarding the architecture for an on-premise SQL server kick-starting an AutoML batch job.

Goal: On a monthly basis, data is pulled from the on-premise SQL database and passed to an ML batch job. The results of this batch are saved back to the SQL database afterwards.

Questions:

1. How does my on-premise SQL database receive the results of the AutoML batch job?
2. How is the job scheduled, and how is data passed to the AutoML cluster for batching?

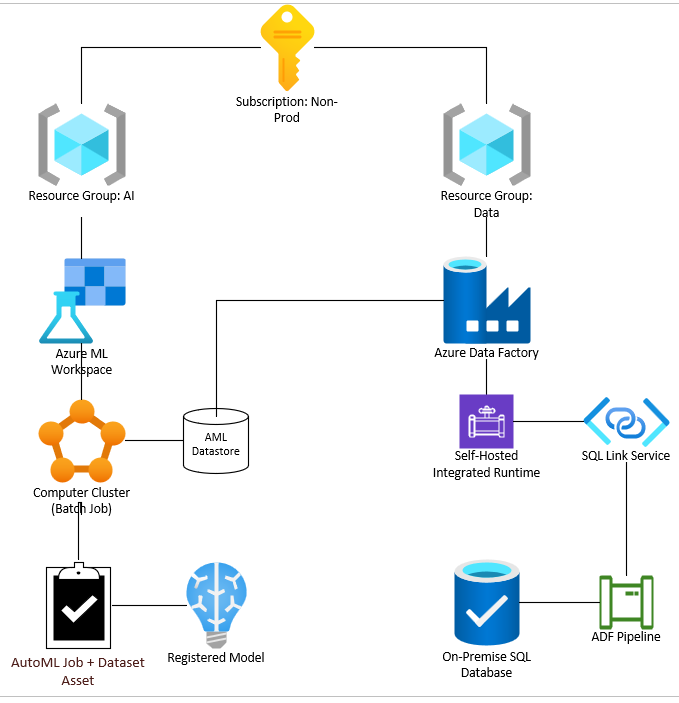

This is my ERP (based on my understanding):

Answer 1

Hi Jonathan Nguyen

Good day.

Thank you for sharing your architecture.

Here are answer to your queries.

1. How does my on-premise SQL database receive the results of the AutoML batch job?

   Prediction results normally get stored in same datastore unless explicitly mentioned. You can create ADF node to save the prediction results back to SQL.

2. How is the job scheduled, and how is data passed to the AutoML cluster for batching?

   You can set cron jobs to trigger pipeline on certain hours Schedule Jobs But please note that AutoML needs data in MLTable format, you need to convert them to ML Table format prior. I am skeptical if we can set Batch size in AutoML side. But it is possible via scoring scripts in Batch Endpoint jobs. Sample code of using batches.

      import os
      import pandas as pd
      import torch
      import torchvision
      import glob
      from os.path import basename
      from mnist_classifier import MnistClassifier
      from typing import List
      def init():
          global model
          global device
          # AZUREML_MODEL_DIR is an environment variable created during deployment
          # It is the path to the model folder
          model_path = os.environ["AZUREML_MODEL_DIR"]
          model_file = glob.glob(f"{model_path}/*/*.pt")[-1]
          model = MnistClassifier()
          model.load_state_dict(torch.load(model_file))
          model.eval()
          device = torch.device("cuda:0" if torch.cuda.is_available() else "cpu")
      def run(mini_batch: List[str]) -> pd.DataFrame:
          print(f"Executing run method over batch of {len(mini_batch)} files.")
          results = []
          with torch.no_grad():
              for image_path in mini_batch:
                  image_data = torchvision.io.read_image(image_path).float()
                  batch_data = image_data.expand(1, -1, -1, -1)
                  input = batch_data.to(device)
                  # perform inference
                  predict_logits = model(input)
                  # Compute probabilities, classes and labels
                  predictions = torch.nn.Softmax(dim=-1)(predict_logits)
                  predicted_prob, predicted_class = torch.max(predictions, axis=-1)
                  results.append(
                      {
                          "file": basename(image_path),
                          "class": predicted_class.numpy()[0],
                          "probability": predicted_prob.numpy()[0],
                      }
                  )
          return pd.DataFrame(results)


Thank you.
