Cross-Tenant ACR Image Pull Failure Using AKS Managed Identity with OIDC

Question

I have successfully tested the OIDC-based authentication method for pulling container images from Azure Container Registry (ACR) to Azure Kubernetes Service (AKS) within a single tenant, and it works as expected.

However, I am now attempting to implement the same setup in a cross-tenant scenario, where the ACR is in one tenant and the AKS cluster (with its managed identity) is in another tenant. I have assigned the AcrPull role in the ACR tenant to the managed identity associated with the AKS cluster.

Despite this configuration, I am encountering an error when trying to pull container images from ACR to AKS. I would appreciate guidance on the correct configuration for enabling cross-tenant image pulls using OIDC/Workload Identity and ensuring proper authentication between the AKS managed identity and ACR.

apiVersion: v1 kind: Namespace metadata:   name: cloudcadi --- apiVersion: v1 kind: ServiceAccount metadata:   name: cloudcadi-sa   namespace: cloudcadi   annotations:     azure.workload.identity/[CLIENTID HIDDEN]  labels:     azure.workload.identity/use: "true" --- apiVersion: apps/v1 kind: Deployment metadata:   name: cloudcadi-app   namespace: cloudcadi spec:   replicas: 1   selector:     matchLabels:       app: cloudcadi-app   template:     metadata:       labels:         app: cloudcadi-app         azure.workload.identity/use: "true"     spec:       serviceAccountName: cloudcadi-sa       containers:         - name: cloudcadi-app           image: rishiacrtest.azurecr.io/demo/hello-world:v1           imagePullPolicy: IfNotPresent           ports:             - containerPort: 80 --- apiVersion: v1 kind: Service metadata:   name: cloudcadi-app   namespace: cloudcadi spec:   type: LoadBalancer   selector:     app: cloudcadi-app   ports:     - port: 80       targetPort: 80

this is the yaml file used for acr pull

Answer 1

Hello @RajKumar Kannan ,

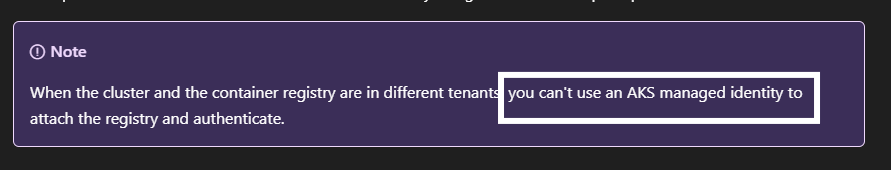

Please note that you can't use an AKS managed identity to attach the registry and authenticate to it when AKS cluster and the registry are in different tenants which is most likely why you are getting error with your setup.

Source: https://learn.microsoft.com/en-us/azure/container-registry/authenticate-aks-cross-tenant

---

Instead of this approach,
Recommended approach will be to use cross‑tenant AKS service principal authentication.

High-level required steps:

• Create a multitenant app registration in Tenant A
• Provision that service principal in Tenant B
• Grant it permission to pull from the registry in Tenant B
• Update the AKS cluster to use that service principal.

For detailed steps, please refer: https://learn.microsoft.com/en-us/azure/container-registry/authenticate-aks-cross-tenant

or

as alternative approach, you could use ImagePullSecret.

Create a pull secret using a service principal that has AcrPull on the ACR, then reference it in the deployment. Detailed steps for this approach can be found out over here: https://learn.microsoft.com/en-us/azure/container-registry/container-registry-auth-kubernetes

Please let us know if this answers your question or if you have any other follow-up query.
