Unparsed FortiGate logs issue

Question

Hello,

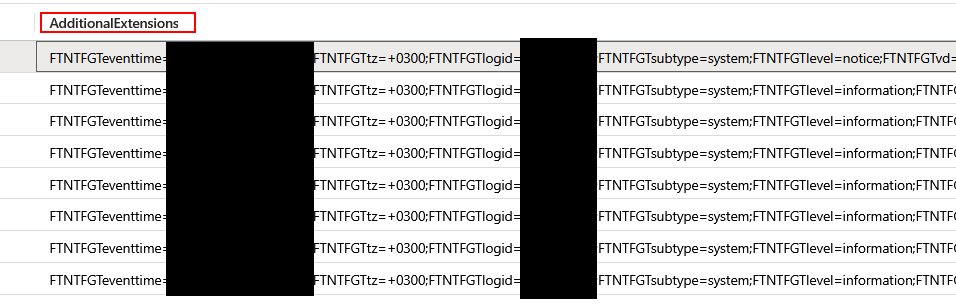

I have a problem where the enabled CEF via AMA data connector outputs the ingested logs like this:

Answer 1

Hello Youssef Helmy

Thank you for posting your query on Microsoft Q&A platform.

Could you please share us the below details?

1. “Are you using the new Azure Monitor Agent (AMA) or the older Log Analytics agent? Which version?”
2. “Please paste the relevant portion of your syslog/CEF config (e.g., /etc/azuremonitoragent/… or MMA config).”
3. “Can you share a raw log message example as it appears on the Linux/Windows host before it’s ingested?”
4. Which data collection agent and version are you using (Azure Monitor Agent, MMA, etc.)?
5. What version of the AMA CEF connector or extension have you installed?
6. How have you configured the syslog/CEF collection (include your YAML or JSON config snippet)?
7. Can you share a text sample of the raw syslog message as it arrives on the host (with any sensitive fields redacted)?

Thanks,
Suchitra.

Answer 2

FortiGate logs ingested through the CEF via AMA connector appear in the CommonSecurityLog table. Any CEF key–value pairs that Microsoft Sentinel does not map to a standard CommonSecurityLog column are stored in the AdditionalExtensions field.

In the screenshot, the FTNTFGT* fields are vendor‑specific Fortinet keys that do not have built‑in mappings, so they are expected to appear concatenated in AdditionalExtensions rather than in separate columns. This does not indicate a parsing failure, only that these fields are unmapped.

To validate that the logs are correctly parsed as CEF and not raw syslog:

1. Confirm the CEF header format on the FortiGate side matches the required structure:

      <Priority>Timestamp Hostname CEF:Version|Device Vendor|Device Product|Device Version|Device Event Class ID|Name|Severity|[Extension]


   For example:

      Jan 18 11:07:53 host CEF:0|Vendor|Product|1.0|100|EventName|5|src=10.0.0.1 dst=10.0.0.2


   Ensure:
   • CEF:0| is present.
   • All seven header fields are present and separated by |.
   • Any |, \, or = characters in values are properly escaped (\|, \\, \=).
2. Verify that the Data Collection Rule on the AMA forwarder is configured for CEF:

      sudo grep -i -r "SECURITY_CEF_BLOB" /etc/opt/microsoft/azuremonitoragent/config-cache/configchunks


   Presence of SECURITY_CEF_BLOB confirms that CEF events are being collected.
3. If needed, enable AMA diagnostic tracing temporarily to confirm that events are recognized as CEF and uploaded correctly:

      sudo vim /etc/default/azuremonitoragent
      # add -T 0x2002 to MDSD_OPTIONS
      sudo systemctl restart azuremonitoragent
      sudo tail -f /var/opt/microsoft/azuremonitoragent/log/mdsd.info | grep -a "CEF"


   Then remove the trace flag after troubleshooting to avoid excessive logging.

If the CEF header is valid and SECURITY_CEF_BLOB is present, the behavior where Fortinet‑specific fields appear in AdditionalExtensions is by design. Queries can extract these values from AdditionalExtensions using KQL parsing functions if needed.

---

References:

• Troubleshoot CEF and Syslog via AMA connectors
• Ingest syslog and CEF messages to Microsoft Sentinel with the Azure Monitor Agent
