Reagentc not recognized after Mbr2gpt conversion

Question

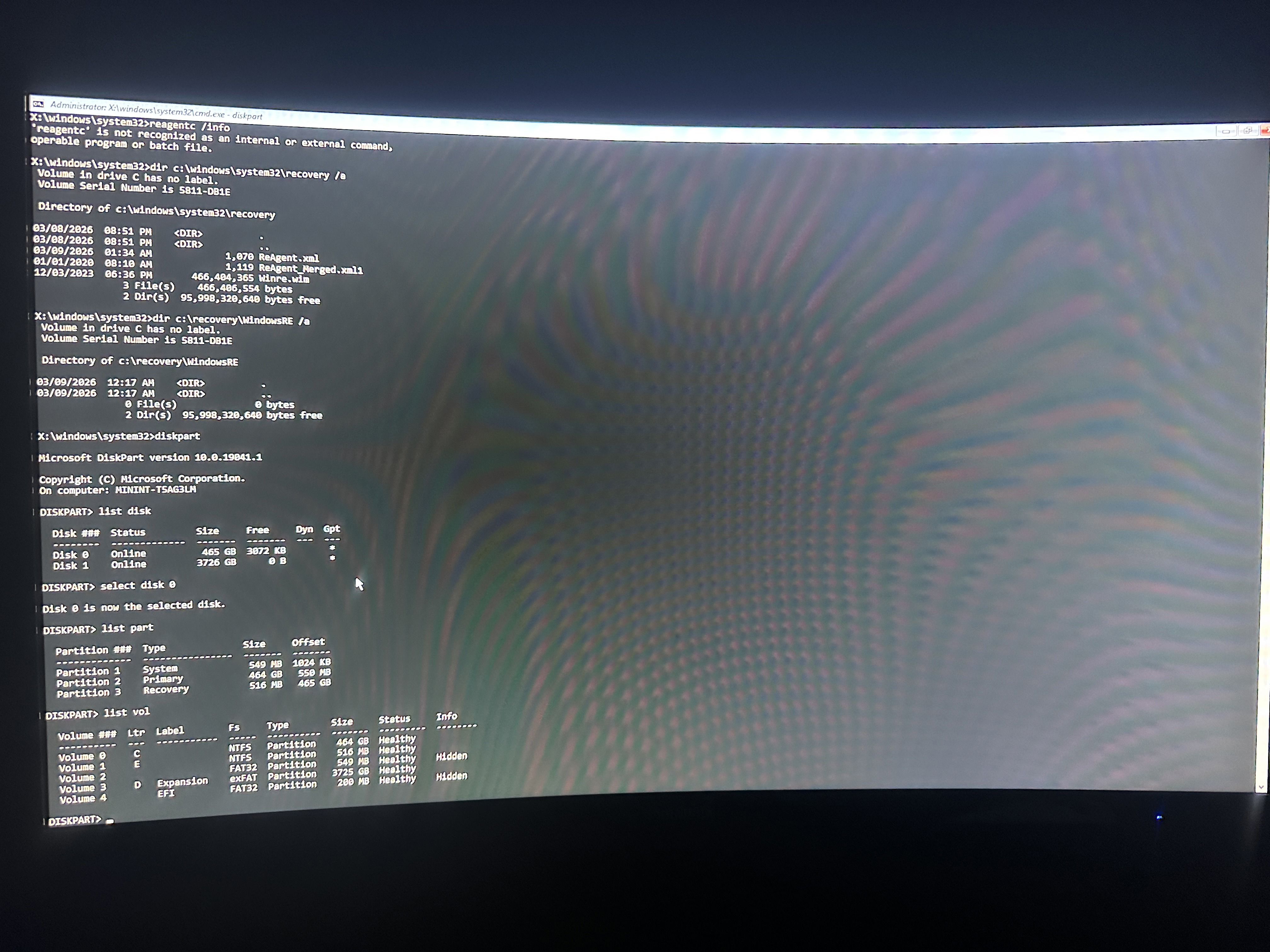

Similar to another post I saw on here my ReAgentC is not recognized as an internal or external command, operable program or batch file, after MBR2GPT conversion for Windows 11. I redownload Winre.wim from the Media tool for windows 22h2 Iso using 7zip, put it in my recovery folder, and then ran the commands presented to me in this other post. Everything went smoothly, I even saw winre.wim in the

dir c:\windows\system32\recovery /a

command, but as soon as I had to run a command using ReAgentC it was unrecognized. Ive tried all i could find so far and have no idea what to do, can I get some help here?

Answer 1

I think it failed because the command was run from the X: prompt in WinRE.

Answer 2

Ok. It appears that the Diskpart screenshot you posted is from Windows RE.

Please boot into Windows. Open Command Prompt (admin) and run these commands:

xcopy /h c:\windows\system32\recovery\winre.wim c:\recovery\windowsre\
reagentc /info
diskpart
list vol
exit

Post the screenshot.

Answer 3

Got the screenshots. Thanks.

If you don't plan to use BitLocker drive encryption, WinRE can be enabled on the OS partition itself. Let me know if that's fine for you.

Answer 4

Hi Ivan,

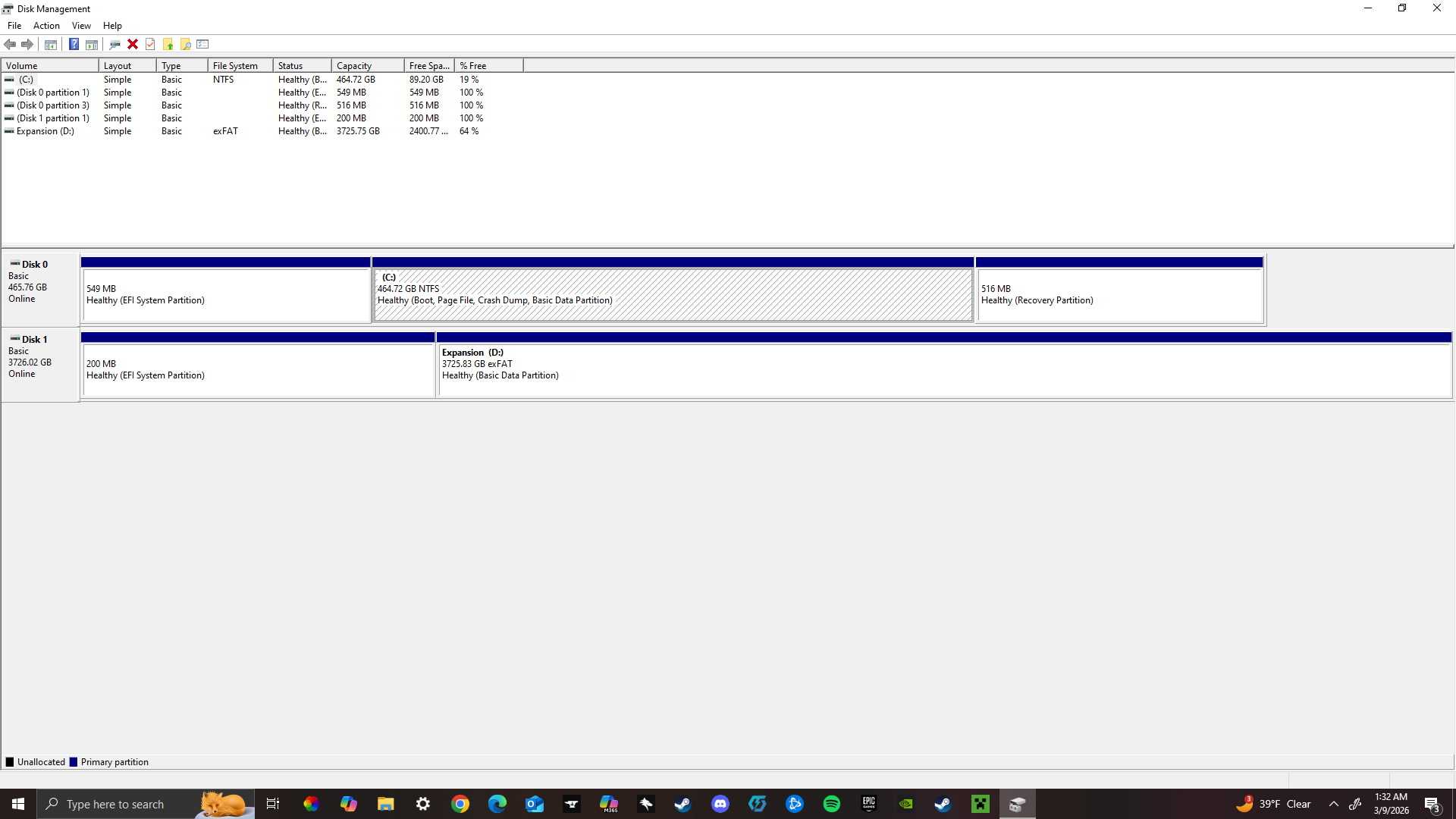

Let me check the disk layout and WinRE's status. Please open Disk Management and maximize it. Adjust the column widths in the top pane to make all the entries visible. Post a screenshot.

---

Open the admin Command Prompt and run these commands:

reagentc /info
dir c:\windows\system32\recovery /a
dir c:\recovery\WindowsRE /a
diskpart
list disk
select disk 0
list part
list vol
exit

Post the output.

Answer 5

ReAgentC.exe is part of Windows and does not depend on winre.wim being present. If the command reagentc is not recognized, the issue is with the executable location or the system PATH, not with WinRE itself.

Use these steps to verify and work around the problem:

1. Check that ReAgentC.exe exists
   Open an elevated Command Prompt and run:

      dir C:\Windows\System32\reagentc.exe


   If this file is missing, system files are likely damaged and an in‑place repair/upgrade of Windows may be required.
2. Run ReAgentC with full path
   In the same elevated Command Prompt, try:

      C:\Windows\System32\reagentc.exe /info


   If this works, ReAgentC itself is fine and the problem is that C:\Windows\System32 is not in the PATH for some reason.
3. Verify PATH contains System32
   Still in Command Prompt, run:

      echo %PATH%


   Confirm that a segment like C:\Windows\System32 is present. If it is missing, update the system PATH in System Properties → Advanced → Environment Variables so that C:\Windows\System32 is included in the Path variable, then open a new elevated Command Prompt and try reagentc /info again.
4. Confirm WinRE location once ReAgentC works
   After reagentc is recognized, use it to confirm the WinRE configuration and location:

      reagentc /info


   Note the Windows RE location path shown. This is the path that should contain winre.wim.
5. Validate WinRE image with DISM (optional check)
   If reagentc is working and WinRE is enabled, but there are concerns about the winre.wim file that was manually copied, use DISM to inspect it (replace the path with the one from reagentc /info):

      Dism /Get-ImageInfo /ImageFile:\\?\GLOBALROOT\device\harddisk0\partitionX\Recovery\WindowsRE\winre.wim /index:1


   This confirms that the WinRE image is valid and shows its version.

If reagentc.exe is missing or cannot be run even with the full path, and sfc/DISM repairs do not restore it, an in‑place repair of Windows 11 using installation media is typically required to put the system files back into a consistent state.

---
